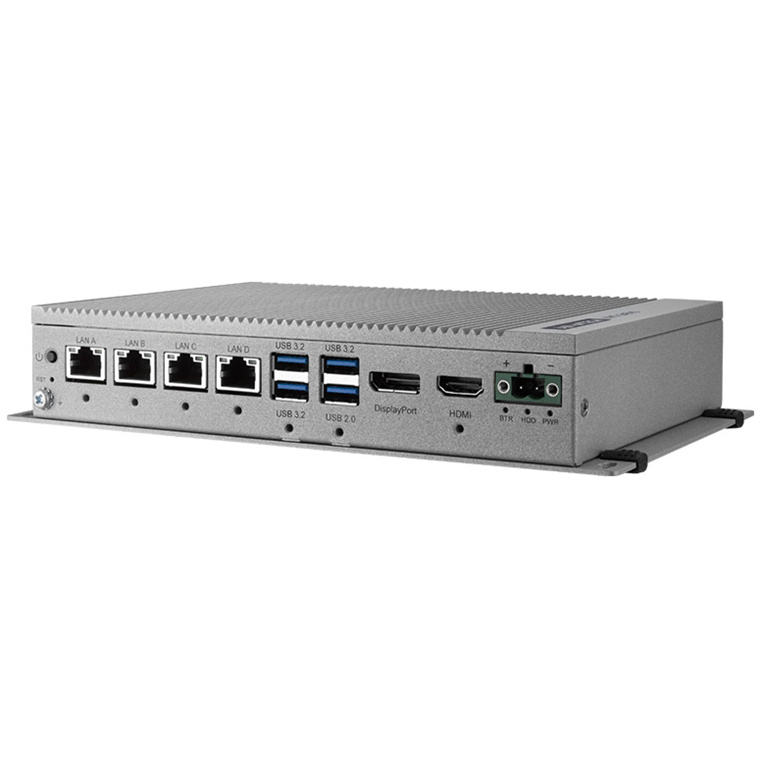

Advantech UNO-2484G-B731AE Modular Compact Embedded Box PC with 11th Gen Intel Core i7-1165G7E CPU
Advantech's UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible scalability with various I/O ports to support IoT Connectivity. The UNO-2484G V2 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission. 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech's iDoor technology.
- Intel® Core™ 11th i7 Processor with 8GB DDR4 3200Mb/s memory
- 4x GbE, 3 x USB 3.2 Gen2, 1 x USB2.0, 1 x HDMI 1.4, 1 x DP 1.4a, 4 x RS232/422/485
- Optional 2nd stack supports up to 2 x iDoor extension for expending wireless connectivity, industrial fieldbus or more I/O
- Compact fanless design
- Ruggedized by zero cable and lockable I/O design
- Supports NVME storage with high data-transmission efficiency
Specifications
Hardware
CPU
Intel® Core™ i7-1185G7E 1.8GHz Quad core
Certification
CE, FCC, UL, CCC, BSMI
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
10~36 VDC
Storage
1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
Memory
2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
Environment
Ingress Protection
IP40
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
3 Grms, random
I/O Interface
Serial Ports
4 x RS-232/422/485
Displays
1 x HDMI, 1 x DP
Power Connector
1 x 2-Pin Terminal Block
LAN Ports
3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps
USB Ports
3 x USB 3.2, 1 x USB 2.0
Mechanical
Dimension (W x H x D)
200 x 140 x 70 mm
Enclosure
Aluminum housing
Weight (Net)
1.4 kg ( 3.09 lb)
USB Vision
Connector
1 x USB 3.2 Type C
