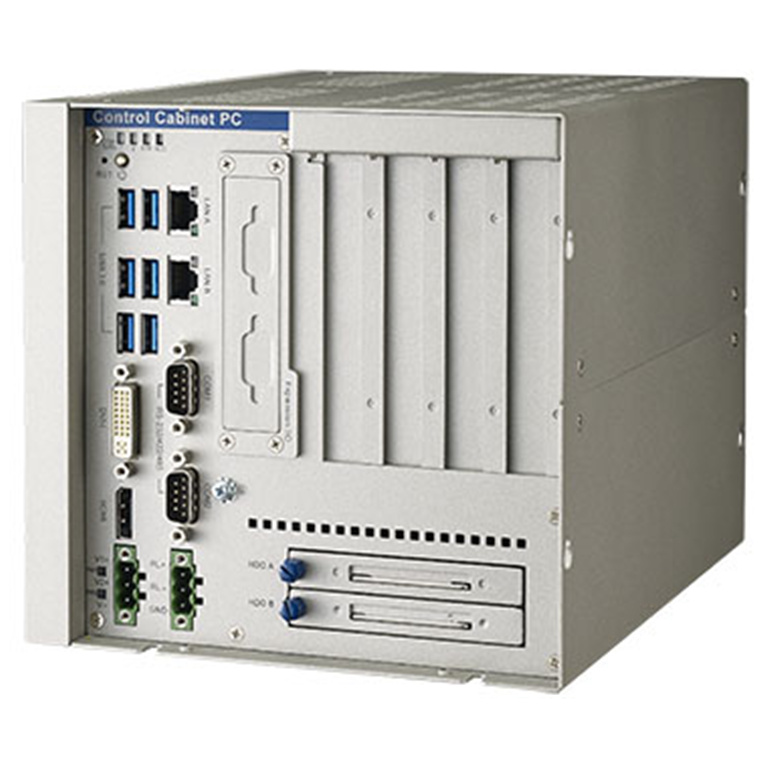

Advantech UNO-3285G-674BE Expandable Embedded Box IPC with 6th Gen Intel i7-6822EQ CPU, 2 PCIE, 2 PCI
- Brand: Advantech
- MPN: UNO-3285G-674BE
- Part #: IPCAVH221463

Product URL: https://www.pbtech.com/au/product/IPCAVH221463/Advantech-UNO-3285G-674BE-Expandable-Embedded-Box
Features
Advantech UNO-3285G-674BE Expandable Embedded Box IPC with 6th Gen Intel i7-6822EQ CPU, 2 PCIE, 2 PCI
- 6th Gen. Intel® Core™ i7-6822EQ 2.0GHz Quad-Core Processors with 8GB DDR4 Memory
- 2x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
- 2x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
- Dual Hot-Swappable storage with thumb screw support for RAID 0/1
- Supports Fieldbus Protocol by iDoor Technology
- Dual power input for power redundancy
- Front LED indicator design for monitoring system status
For more information: https://advdownload.advantech.com/productfile/PIS/UNO-3285G/file/UNO-3283G_3285G_DS(032023)2023032017465620240513110610.pdf
Specifications
Environment
Ingress Protection
IP20
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
4 Grms, random
Hardware
Certification
UL, CE, FCC Class A, CCC, BSMI
CPU
6th Gen. Intel® Core™ i7-6822EQ 2.0GHz Quad-Core
Graphics Engine
Intel® HD Graphics
Memory
1 x SO-DIMM with 8 GB DDR4 2133 MHz, 1 x DDR4 SO-DIMM Slot
OS Support
Microsoft® Windows 10 2019 LTSC, WES7, Linux
Power Input
12~36 VAC
Storage
2 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x CFast
System Chip
Intel QM170
I/O Interface
Audio
Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
Displays
1 x HDMI, 1 x DVI-I
Expansion
2 x Full-size mPCIe Slot, 2 x PCIe x8, 2 x PCI
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
2 x 3-Pin Terminal Block
Serial Ports
2 x RS-232/422/485, 2 x RS-232 (Pin Header)
USB Ports
6 x USB 3.0
Mechanical
Dimension (W x H x D)
182 x 177 x 238 mm
Enclosure
Aluminum housing
Weight (Net)
4.5 kg
