Advantech UNO-348-ANN3A Expandable Embedded Box IPC supporting 10th Gen Intel Corei CPU with 1 x PCIe x16 and 2 x PCI
- Brand: Advantech
- MPN: UNO-348-ANN3A
- Part #: IPCAVH221470

Product URL: https://www.pbtech.com/au/product/IPCAVH221470/Advantech-UNO-348-ANN3A-Expandable-Embedded-Box-IP
Features

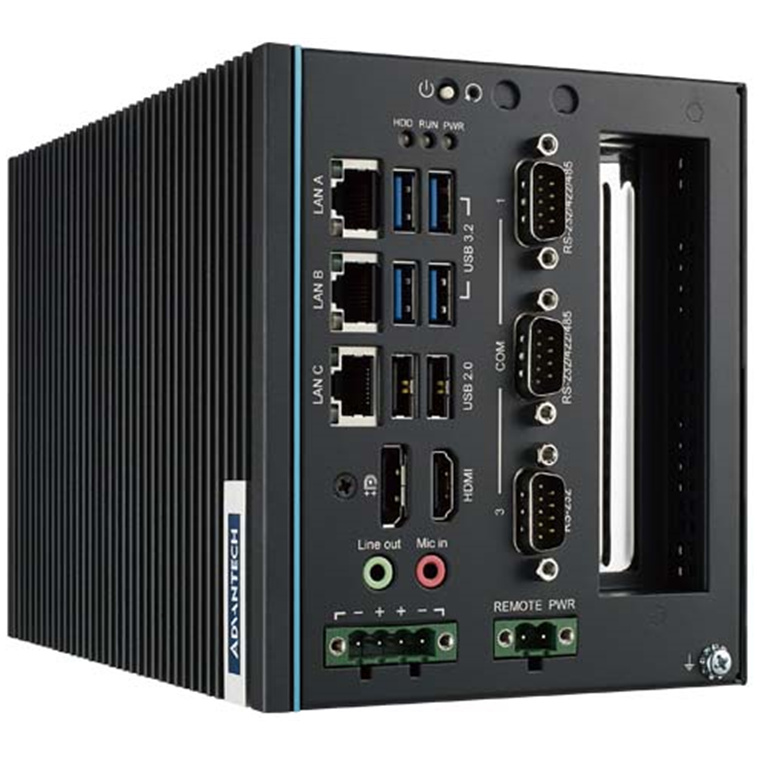

Advantech UNO-348-ANN3A Expandable Embedded Box IPC supporting 10th Gen Intel Corei CPU with 1 x PCIe x16 and 2 x PCI
- Intel® 10th Gen socket type processor with DDR4 memory
- Scalable CPU, RAM selection
- Compact, rugged and fanless design for harsh embedded environment
- Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
- Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech's iBMC technology
- Built-in TPM2.0 for hardware-based security
For more information: https://advdownload.advantech.com/productfile/PIS/UNO-348/file/UNO-348_DS(041124)20240411105424.pdf
Specifications
Environment
Ingress Protection
IP20
Operating Temperature
-20~50 °C (-4~122 °F)
Relative Humidity
95% RH (non-condensing)
Shock Protection
50 G, half sine
Storage Temperature
-40~85 °C (-40~185 °F)
Vibration Protection
4 Grms, random
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
-
Graphics Engine
Intel® HD Graphics
Hardware Security
TPM 2.0
Memory
-
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Input
10~36 VDC
Storage
2 x 2.5" SSD/HDD Bay
I/O Interface
Audio
Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
Displays
1 x DP, 1 x HDMI
Expansion
1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16, 2 x PCI
LAN Ports
3 x 10/100/1000 Mbps
Power Connector
1 x 4-Pin Terminal Block
Serial Ports
1 x RS-232, 2 x RS-232/422/485
USB Ports
4 x USB 3.2, 2 x USB 2.0
Mechanical
Dimension (W x H x D)
200 x 140 x 160 mm
Enclosure
Aluminum housing
Weight (Net)
4 kg (7.72 Ib)
