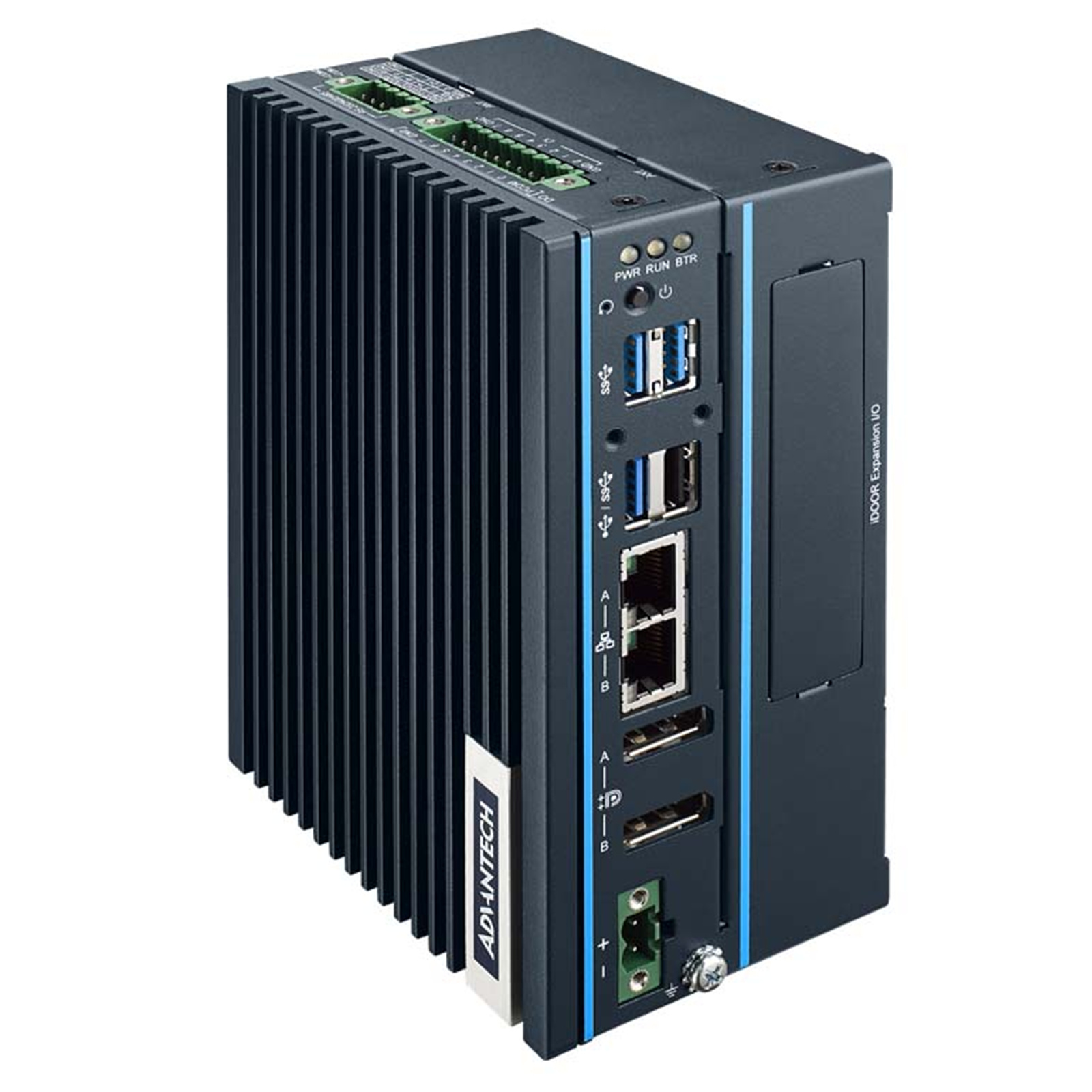

Advantech UNO-410-E1HX C1D2, ATEX/ IECEx Certified DIN-rail Gateway with Intel Atom E3940 CPU
- Brand: Advantech
- MPN: UNO-410-E1HX
- Part #: IPCAVH221472

Product URL: https://www.pbtech.com/au/product/IPCAVH221472/Advantech-UNO-410-E1HX-C1D2-ATEX-IECEx-Certified-D
Features
- Explosion protection with UL listed Class 1, Division 2 /ATEX Zone 2/ IECEx Zone 2 certification
- Port isolation for 8 x DI, 8 x DO, 2 x COM
- Dual storage with M.2 2242 SATA SSD and 2.5" HDD/SSD
- Onboard TPM 2.0 provides hardware-based security
- Supports M.2 3042/3052 module
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
Specifications
General
Certification
CE; FCC; CCC; UL 61010-2-201;
Class I, Division 2, Groups A, B, C, D
ATEX/IECEx Zone 2
Dimensions (W x D x H)
70 x 105 x 150 mm/2.8 x 4.1 x 5.9 in
Form Factor
Small
Enclosure
Aluminum housing
Mount Options
DIN rail
Weight (Net)
1 kg/2.2 lb
Power Requirement
10 ~ 36 VDC
Power Consumption
21W (typical), 47W (max.)
OS Support
Win 10 2019 LTSC, AdvLinux (Ubuntu 18.04)
System Hardware
BIOS
AMI UEFI (128 Mbit)
Watchdog Timer
Programmable timer with 255 intervals (1 ~ 255 sec)
Hardware Security
TPM2.0
Processor
Intel® Atom® E3940, 1.6 GHz (up to 1.8 GHz)
Memory
8 GB DDR3L, 1600 MHz (Up to 8 GB)
Graphics Engine
Intel® HD Graphics
Ethernet
Intel® i210-IT GbE, IIEEE802.1AS, 802.3az
LED Indicators
1 x Programmable LED, 1 x power LED, 1 x RTC battery LED, and LAN (active, status)
Storage/Expansion
1 x 2.5"SSD SATA connector (1 x 2.5" 64G SATA SSD is default in UNO-410-E1HX)
1 x M.2 (B-key) (SATA,USB 3.0 signal) for 2242 SATA
SSD or 3042/3052 cellular module
1 x Full-size mPCIe (PCIe/USB signal),
1 x Nano SIM card slot
I/O
Isolated Serial Ports
2 x RS-232/422/485 (terminal block)
50 bps ~115.2 kbps (2500 VDC isolation protection)
LAN
2 x 10/100/1000 Mbps IEEE 802.3u 1000 BASE-T Fast Ethernet (RJ45)
USB
3 x USB 3.2 Gen 1, 1 x USB 2.0 (Type A)
Isolated DI/O
8 x Digital input channels with 2500 VDC isolation
protection
- Wet contact: Logic 0: 10 ~ 30 VDC/
Logic 1: 0 ~ 3 VDC
- Dry contact: Logic 0: Shorted to GND/
Logic 1: Open
8 x Digital output channels
- Output voltage: 5 ~ 30 VDC
Displays
2 x DP 1.2, up to 4096 x 2306 @ 60 Hz
Power Connector
1 x 2-pin terminal block
