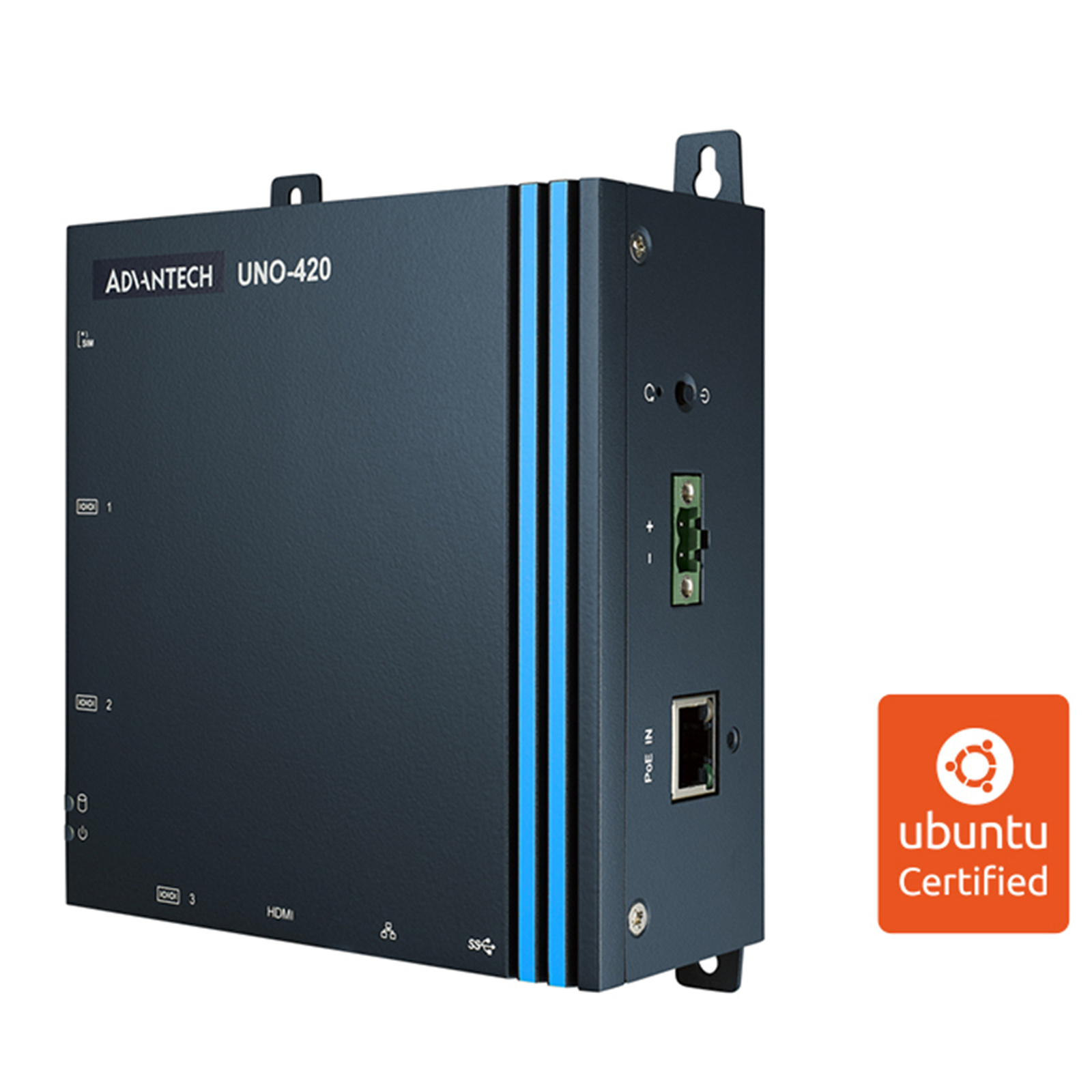

Advantech UNO-420-E0A PoE Powered Device Sensing Gateway with Intel Atom E3815

PB Tech price
PB Tech price
$ 1,087 .63
 +GST
$ 1,196 .39
 inc GST
$1,087.63  +GST
$1,196.39

Advantech UNO-420-E0A PoE Powered Device Sensing Gateway with Intel Atom E3815

  • Brand: Advantech
  • MPN: UNO-420-E0A
  • Part #: IPCAVH221473
  • UPC:
PB Tech price
$ 1,087 .63 $ 1,196 .39
 +GST  inc GST


Delivery: Order now and it ships on 24 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,087.63  +GST
$1,196.39

Features

- Intel Atom™ E3815 Processor with 2GB DDR3L onboard memory

- 2 x GbE (1 x PoE-IN), 1 x USB 3.0, 1 x HDMI, 1 x RS-485, 2 x RS-232/422/485, and 8 x Programmable GPIO

- 32GB eMMC storage onboard

- Ruggedized compact fanless design

- Support one Ethernet cable for both data &amp

- power delivery

- Support Trusted Platform Module (TPM) 2.0 for cyber security

- Advantech WISE-PaaS/EdgeLink support

- Edgelink support MQTT, LWM2M client for cloud communication

- EdgeLink supports more than 200 I/O Drivers and user-defined acquisition period

- Supports Ubuntu 20.04 LTS

Specifications

General

?Certification

CE, FCC, CB, UL, CCC

Dimensions (W x D x H)

125 x 125 x 50 mm

Enclosure

Aluminum Housing

Mounting

Wall Mount (Optional Din-Rail)

Weight (Net)

1.5 kg

Power Requirement

10 ~ 30 VDC

Power Consumption

12W (Typical), 20W (Max)

System Hardware

BIOS

AMI EFI64 Mbit

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255sec

Hardware Security

TPM 2.0

Processor

Intel Atom E3815 1.46GHz

System Chip

Intel Atom SoC integrated

Memory

2GB DDR3L 1066 MHz

Graphics Engine

Intel® HD Graphics

Ethernet Realtek

RTL8111E GbE, 802.10av

LED Indicators

LEDs for Power, Storage (M.2)

Storage

Onboard 32GB eMMC
1 x M.2 2242 (B key) (SATA)

Expansion

1 x Full-size mPCIe slot (USB/PCIe Signal)
1 x Half-size mPCIe slot (USB/PCIe Signal)

I/O Interfaces

Serial Ports

2 x RS-232/422/485, 0.15~115.2kbps, DB9
1 x RS-485, 0.15~115.2kbps, terminal block

LAN Ports

2 x RJ45 (1x PoE-IN IEEE 802.3at & 10/100/1000 Mbps IEEE
802.3u 1000Base-T Fast Ethernet)

Isolated GPIO

8 x GPIO (Programmable ADC, DAC 12bit), isolated protection,
2000 VDC
DI: logic 0: 0~ 1.5 V ; logic 1: 3.5V~5V
DO: logic 0:0~0.4V ; logic 1: 4~5V
AI: 12 bit ADC (0~5V scale; Integral Nonlinearity error:
2 Bit Max
AO: 12 bit DAC (0~2.5V scale / 0~5V scale; Integral Nonlinearity
error: 2 bit Max

USB Port

1 x USB 3.0

Display

1 x HDMI, supports 1920 x 1080 @ 60Hz

Power Connector

1 x 2 Pins, Terminal Block

Environment

Operating Temperature

-20 ~ 60°C (-4~140 °F) @ 5 ~ 85% RH with 0.7 m/s airflow

Storage Temperature

-40 ~ 80°C ( -40 ~ 180°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11 ms

Vibration Protection

Operating, IEC60068-2-6, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (M.2)

Manufacturer Part No:
UNO-420-E0A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221473
Product Model:
UNO-420-E0A
Warranty: 12 months *
