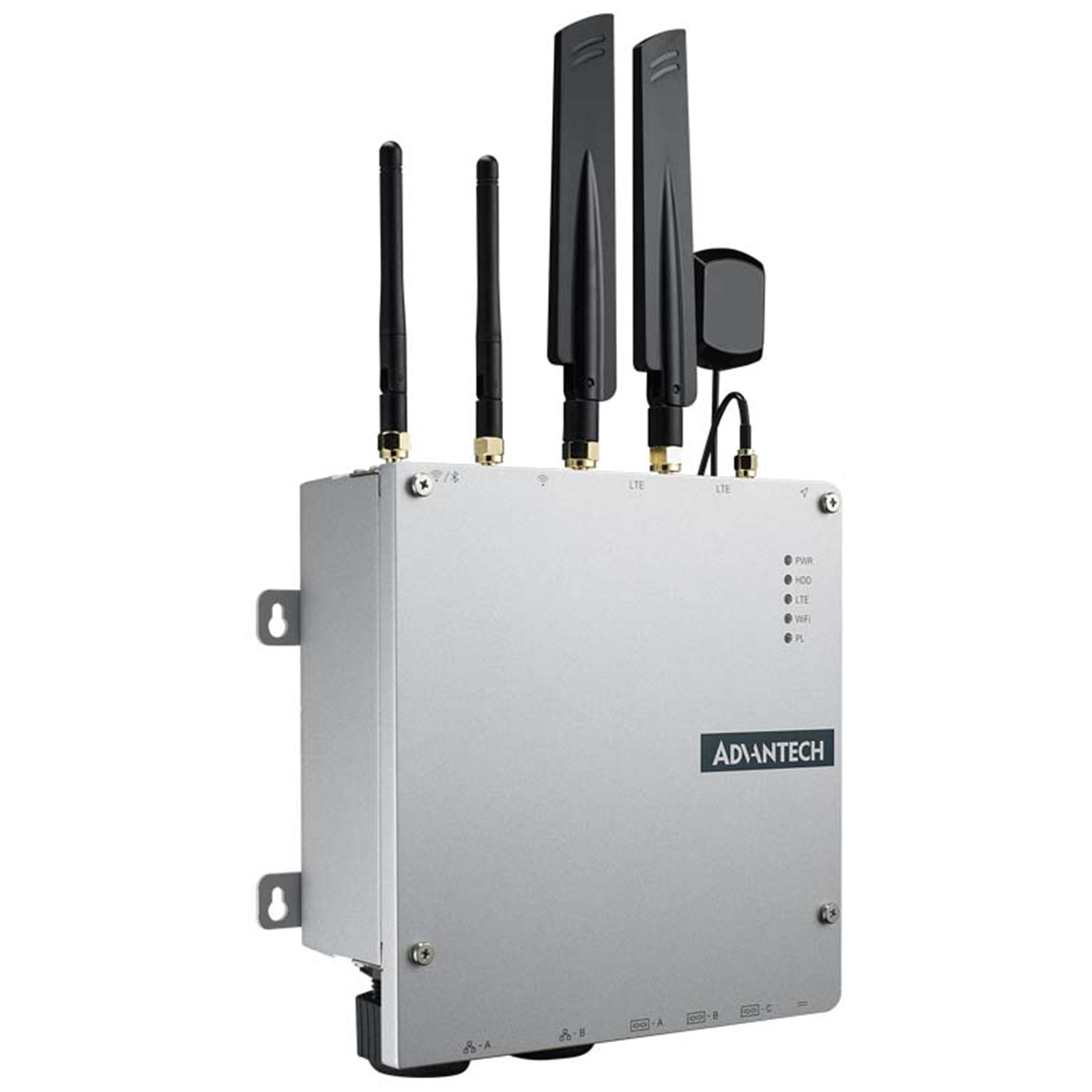

Advantech UNO-430-E1A IP69/IP68 Waterproof Edge Intelligence Gateway with Intel Atom E3950 CPU
- Brand: Advantech
- MPN: UNO-430-E1A
- Part #: IPCAVH221474

Product URL: https://www.pbtech.com/au/product/IPCAVH221474/Advantech-UNO-430-E1A-IP69IP68-Waterproof-Edge-Int
Features
- Intel® Atom® E3950 quad-core processor with 8G DDR3L memory
- Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE &
- GPS expansion
- Water-proof and sustain -40 ~ 70°C for outdoor environments
- Easy maintenance and installation with front door and cable gland design
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
- RED compliance
Specifications
General
Certification
CE, FCC, IEC/ UL 62368-1, UL 60950-22
(Part 22: Equipment to be installed outdoors)
?Dimensions (W x D x H)
200 x 200 x 68 mm/7.87 x 7.87 x 2.67 in
Form Factor
Square
Enclosure
Aluminum housing
Mount Options
Wall mount
Weight (Net)
3 kg/6.61 lb
Power Requirement
10 ~ 36 VDC
Power Consumption
21W (typical), 27W (max.)
OS Support
Microsoft® Windows 10 Ent. LTSC, Advantech Linux (Ubuntu 18.04)
System Hardware
BIOS
AMI UEFI (64 Mbit)
Watchdog Timer
Programmable timer with 255 intervals (1 ~ 255 sec)
Hardware Security
TPM 2.0
Processor
Intel® Atom® E3950 quad core, 1.6GHz (up to 2GHz)
Memory
8GB of DDR3L, 1600MHz
Graphics Engine
Intel® HD Graphics 505
Ethernet
Intel® i210-IT GbE, IIEEE802.1AS, 802.3az
LED Indicators
Power, Storage, LTE, Wi-Fi, Programmable LED
Storage
1 x M.2 2242 B-key (SATA signal)
Communication
1 x M.2 (E-key)(PCIe/USB2.0 signal) socket for 2230
Wi-Fi/Bluetooth module expansion
1 x M.2 (B-key)(USB2.0/USB3.0 signal) socket for
3042/3052 LTE/5G module expansion
1 x socket (USB signal) for MultiTech Dragonfly™ card
Internal Maintenance
1 x USB 3.0, 1 x USB 2.0, 1 x DP
I/O Interface
Serial Ports
2 x RS-422/485, 50 ~115.2 kbps
(terminal block with 2500VDC isolation protection)
1 x RS-232, 50 ~115.2 kbps
(terminal block, console port)
?LAN
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u,
1000BASE-T Fast Ethernet
Power Connector
1 x 3-pin terminal block
Cable Gland
2 x M32 cable gland for Ethernet cable
(cable size OD 5 ~ 6.6 mm/0.19 ~ 0.25 in)
4 x M12 cable gland for serial cable and power cable
(cable size OD 4.5 ~ 6.5 mm/0.17 ~ 0.25 in)
Environment
Operating Temperature
-40 ~ 70 °C/-40 ~ 158 °F @ 5 ~ 85% RH with 0.7 m/s airflow
Storage Temperature
-40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity
10 ~ 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection
Operating, IEC 60068-2-64, 2Grms, random,
5 ~ 500Hz, 1hr/axis
Ingress Protection
IP69K, IP68
