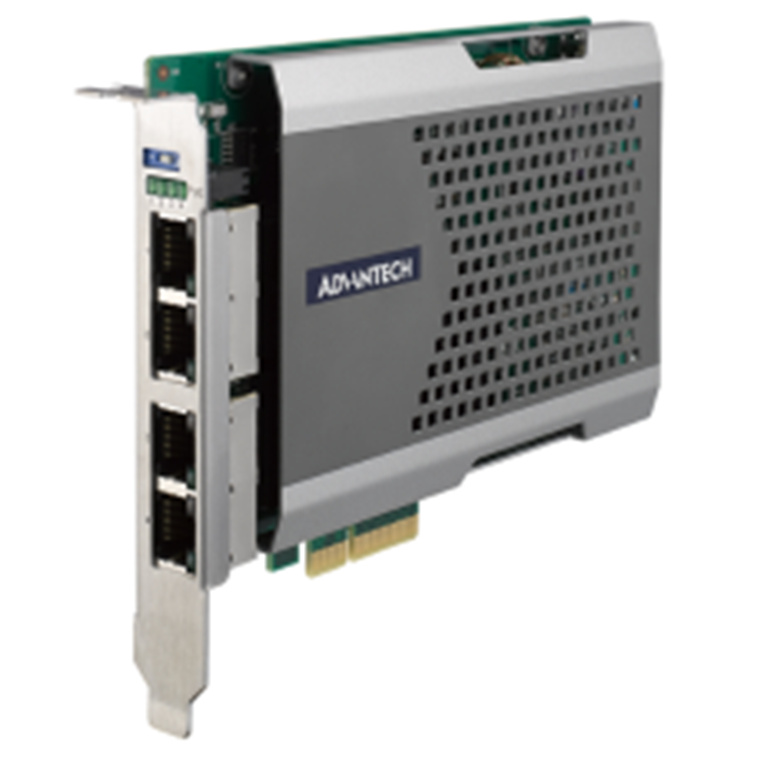

Advantech PCIE-1674E-AE 4-ports PCI Express PoE+ GigE Vision Frame Grab
- Brand: Advantech
- MPN: PCIE-1674E-BE
- Part #: IPCAVH221483

Product URL: https://www.pbtech.com/au/product/IPCAVH221483/Advantech-PCIE-1674E-AE-4-ports-PCI-Express-PoE-Gi
Features
- Intel I350 1GbE Ethernet Controller
- PCI Express Gen2 x4 compliant
- Compliance with IEEE 802.3at-2009 (PoE+), up to 2 ports delivers up to 25.4 W of power via power jet supply and protect by recoverable eFuse
- Powered Device (PD) auto detection and classification
- Supports IEEE 802.3u Auto-Negotiation
- Supports Jumbo frame (9,500 byte) and link aggregation
- Supports IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE on/off control by Hardware switch
- Protect shell reduce the risk of damage from system installation
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u, IEEE802.3ab,IEEE802.3x, IEEE802.3af, IEEE802.3at
Speed
10/100/1000 Mbps
Num. of Ports
4 Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
Port Connector
8-pin RJ45
Bus Interface
PCI Express Gen 2 x4 compliant
Protection
ESD
8KV (air), 4KV (contact)
EFT
2 KV
Surge Protection
1 KV
Power Requirements
Input Voltage
12 VDC direct from PCIe slot, or AT/ATX System power input
Overload Current
Present
Protection
Connection
AT/ATX Power Jack
Output
PoE Power 12 VDC direct from PCIe slot, or with optional 12 VDC AT/ATX power jack input 54 VDC PoE+ power output IEEE802.3af support, total power budge 60W with maximum 25.4W per port and protect by recoverable eFuse
Protective shell
Mechanical protective shell reduce the risk of damage from system installation
Environment
Operating Temperature
0 ~ 60°C (32 ~ 140°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
5 ~ 95% RH
Mechanics
Dimensions (W x D)
165 x 110 mm (5.8" x 3.9")
