Advantech NUC-Sized Edge Computer UBX-330M-BI5H0 Core Ultra 5 125H, Barebone and I/O Expansion, Supporting Intel Arc Graphics and Essentials Platform
- Brand: Advantech
- MPN: UBX-330M-BI5H0
- Part #: IPCAVH221499

Product URL: https://www.pbtech.com/au/product/IPCAVH221499/Advantech-NUC-Sized-Edge-Computer-UBX-330M-BI5H0-C
Features
NUC-Sized Edge Computer with Intel® Core™ Ultra 5 Processors and I/O Expansion, Supporting Intel Arc Graphics and Essentials Platform
- Equipped with three AI engines, it provides low-latency and fast response
- Compact, NUC-sized cubic form factor offers flexible and versatile I/O expansion
- Empowered by Hailo-8 M.2 AI module up to 26 TOPS
- Include Intel® Arc™ graphics and vPro® Essentials platform
- Support advanced backup and disaster recovery technology
- Support AI modules through M.2 expansion, delivering efficient edge AI inference
- Efficient thermal dissipation solution with a quiet acoustic design
- Offer a versatile mounting kit compatible with VESA, wall mount, pole mount, DIN rail, and ARM mount options
- An optional dedicated power adapter bracket available for improved cable management
Specifications
Processor System
CPU
Intel® Core™ Ultra 5 Processor 125H
OS
Windows 10 LTSC 21H2, Windows 11 LTSC 24H2, Ubuntu 24.04
Intel vPro®
Intel vPro® Essentials Platform
Memory
Technology
DDR5-5600
Max. Capacity
48 GB
Storage
M.2
1 x M.2 2280 B+M Key, Supports NVMe, SATA SSD and Apacer CoreSnapshot quick backup SSD
Graphics
Controller
Intel® Arc™ Graphics 2.2GHz
Expansion
WiFi, Bluetooth
1 x M.2 2230 E Key
I/O Interface
Audio
Mic-in, Line-out
USB Port
2 x USB Type A 2.0, 2 x USB 3.2
LAN
1 x LAN, up to 2.5 Gbps
Output
1 x USB-C, supports DisplayPort protocols and 10W power delivery; 1 x HDMI 2.1
Power Jack
1 x DC 12V
Extendable Slot

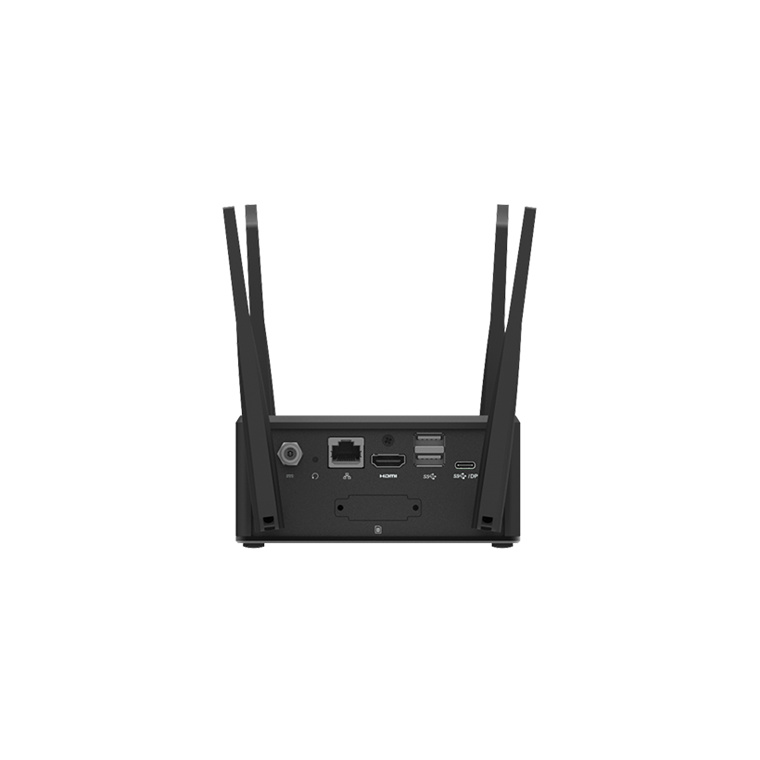

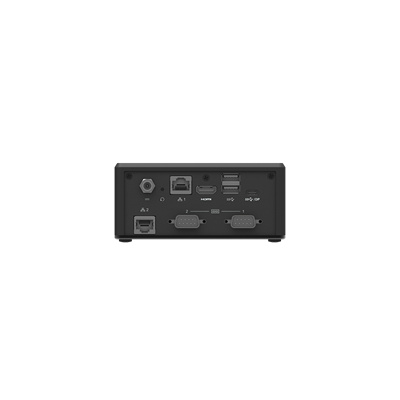

UBX-300E-CM00 (2 x COM, supports RS232 only; 1 x LAN, supports up to 2.5 Gbps), UBX-300E-SA00 (1 x 2.5" SATA Storage), UBX-300E-TE00 (1 x M.2 3052 B Key, 1 x SIM Slot, 4 x Antenna)
Environment
Operating Temperature
0 ~ 40 °C (32 ~ 104 °F)
Mounting
Mounting
VESA, Desk, Wall, Pole, DIN Rail, ARM Mounts; with Optional Adapter Bracket
