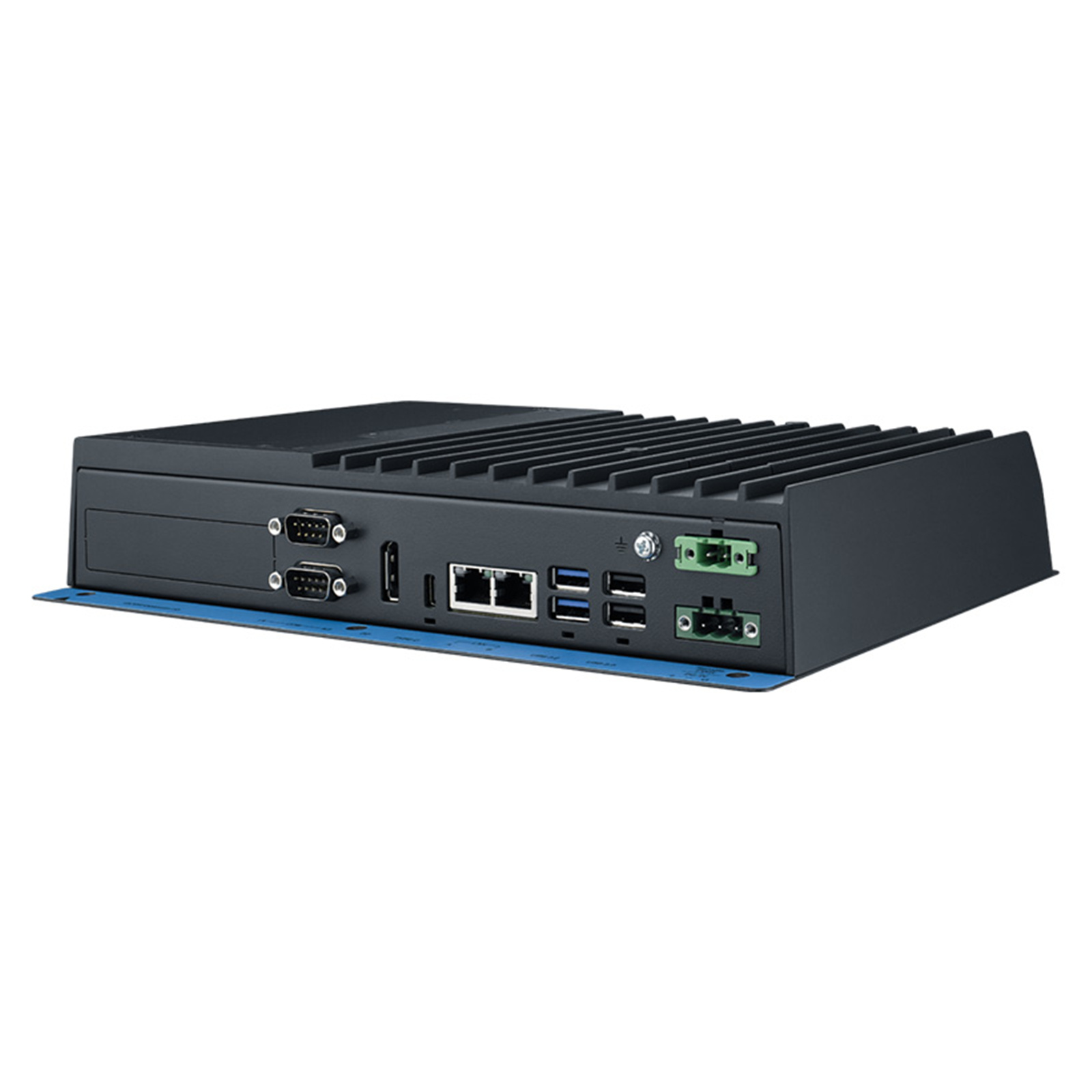

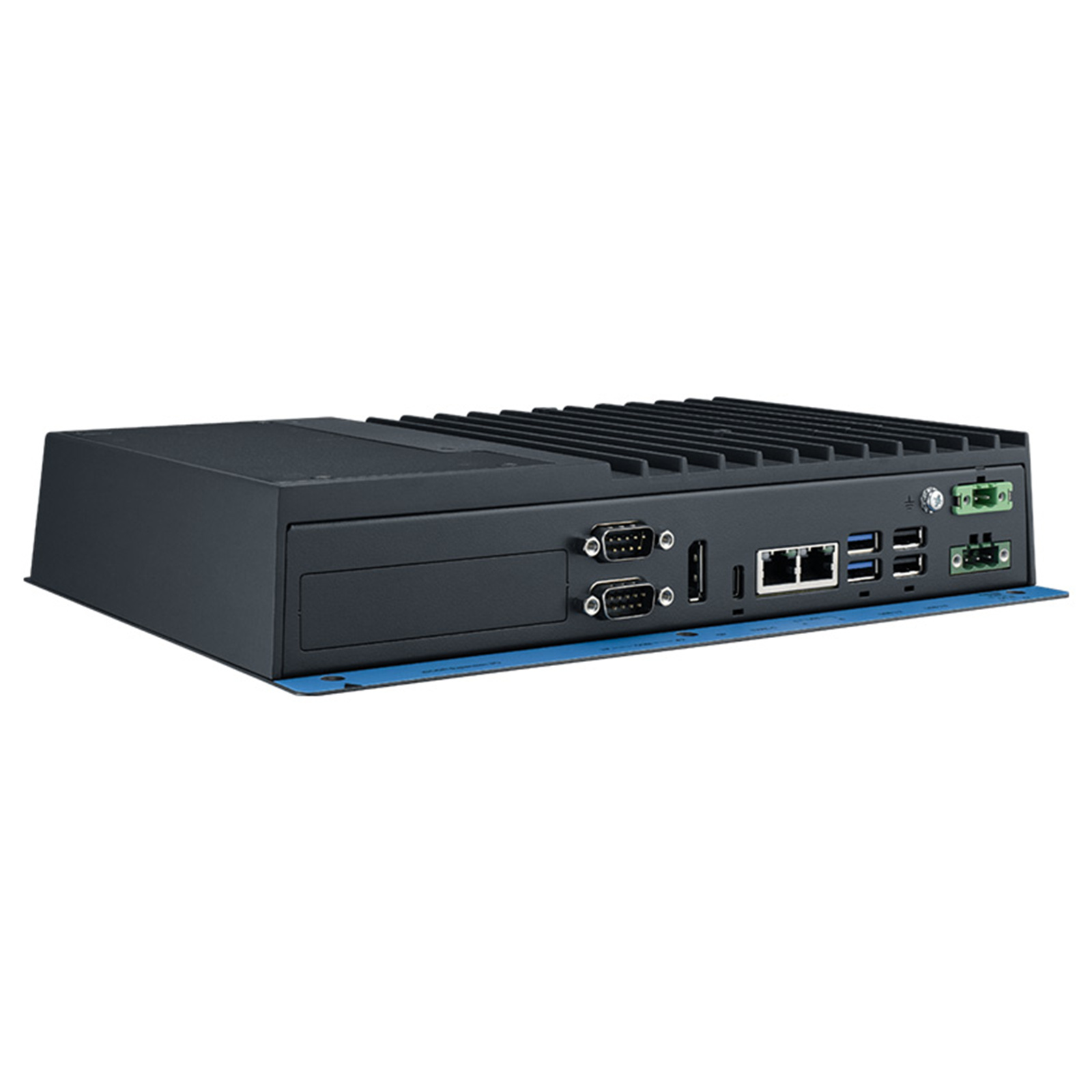

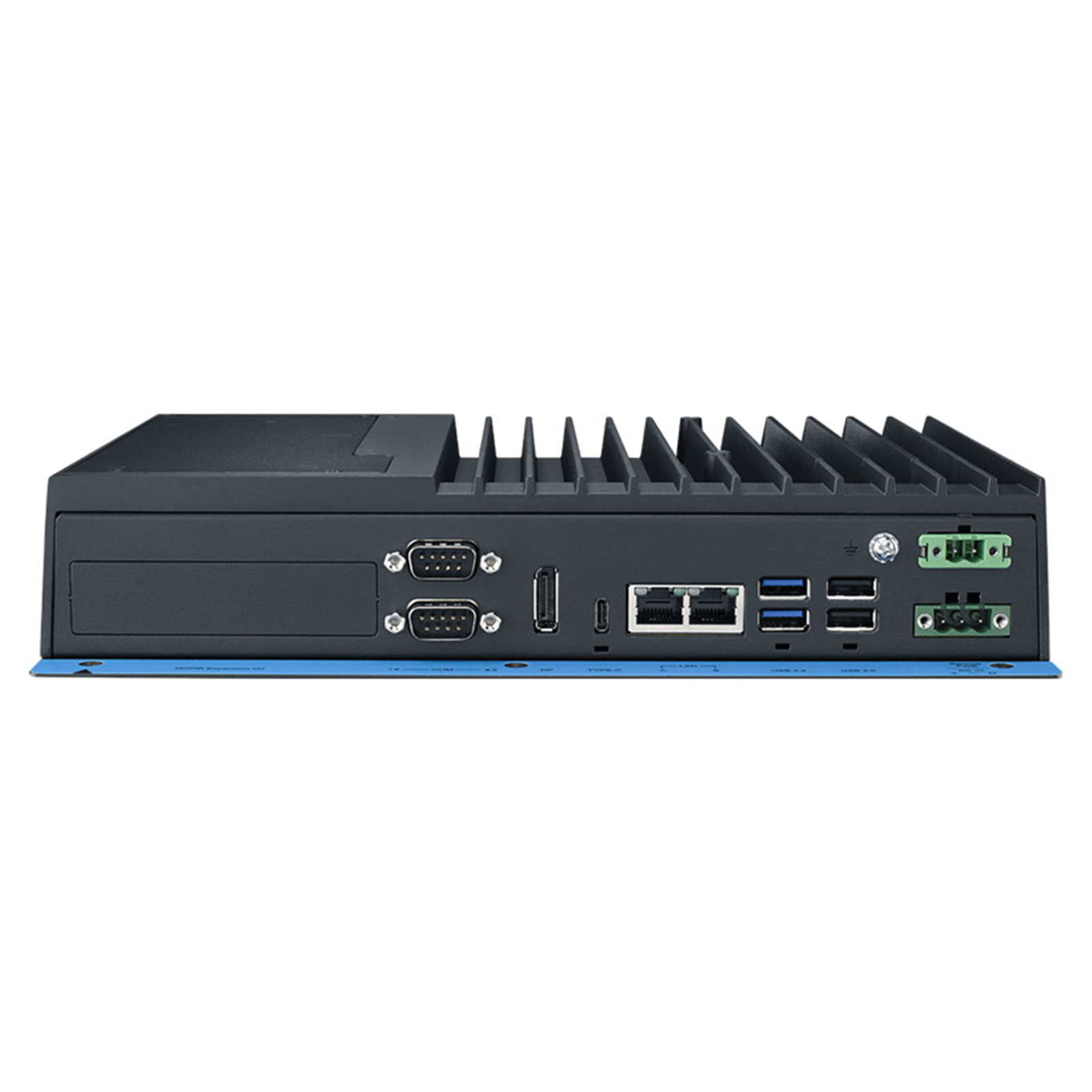

Advantech TPC-B520-D70A Modular TPC - Computing Box Module with Intel Core i7-1365URE

Advantech TPC-B520 Modular TPC - Computing Box Module with Intel® Core™ processors (13th gen)

- Modular Computing Box powered by Intel® Core™ processors (13th gen) i5-1335UE deca-core/ i7-1365URE deca-core processor
- Single DDR5 Memory slot supports up to 32GB
- Support expansion via three M.2 slots (NVMe, Wifi, 5G)
- LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
- Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)

Performance and Modularity

The Advantech TPC-B520 is a powerful modular computing box designed for flexibility and high-performance industrial computing. At its core, it is powered by Intel's 13th generation Core™ processors, with options including the deca-core i5-1335UE and the i7-1365URE, also featuring ten cores. This cutting-edge processor architecture ensures robust multitasking and efficient computing, making the TPC-B520 an excellent choice for demanding industrial applications.

Memory and Expansion Flexibility

Focusing on memory and expandability, the TPC-B520 features a single DDR5 memory slot that supports up to 32GB of RAM. This allows users to scale memory according to their specific application needs, enhancing system responsiveness and performance. Furthermore, the computing box is equipped with three M.2 slots, facilitating expansion for high-speed NVMe storage, WiFi modules, and even 5G connectivity, thus meeting the requirements of data-intensive and wireless communication scenarios.

Versatile Connectivity and I/O

A strong focus on connectivity sets the TPC-B520 apart. Through Advantech's iDoor technology, the box offers extensive options including LAN, Power over Ethernet (PoE), isolated serial ports, and isolated digital I/O. This modularity ensures that the device can be tailored for integration into diverse industrial environments, interoperating with various legacy and modern systems as needed.

Modern Interface Support

The TPC-B520 also addresses contemporary interface requirements by supporting a Type C connector that features USB 3.2 capabilities, DisplayPort 1.4a standards, and up to 15W of power delivery. This makes it future-proof and suitable for high-speed data transfer, modern display equipment, and peripheral charging or powering needs within a single connector.

Advanced Front Panel and Additional Functionalities

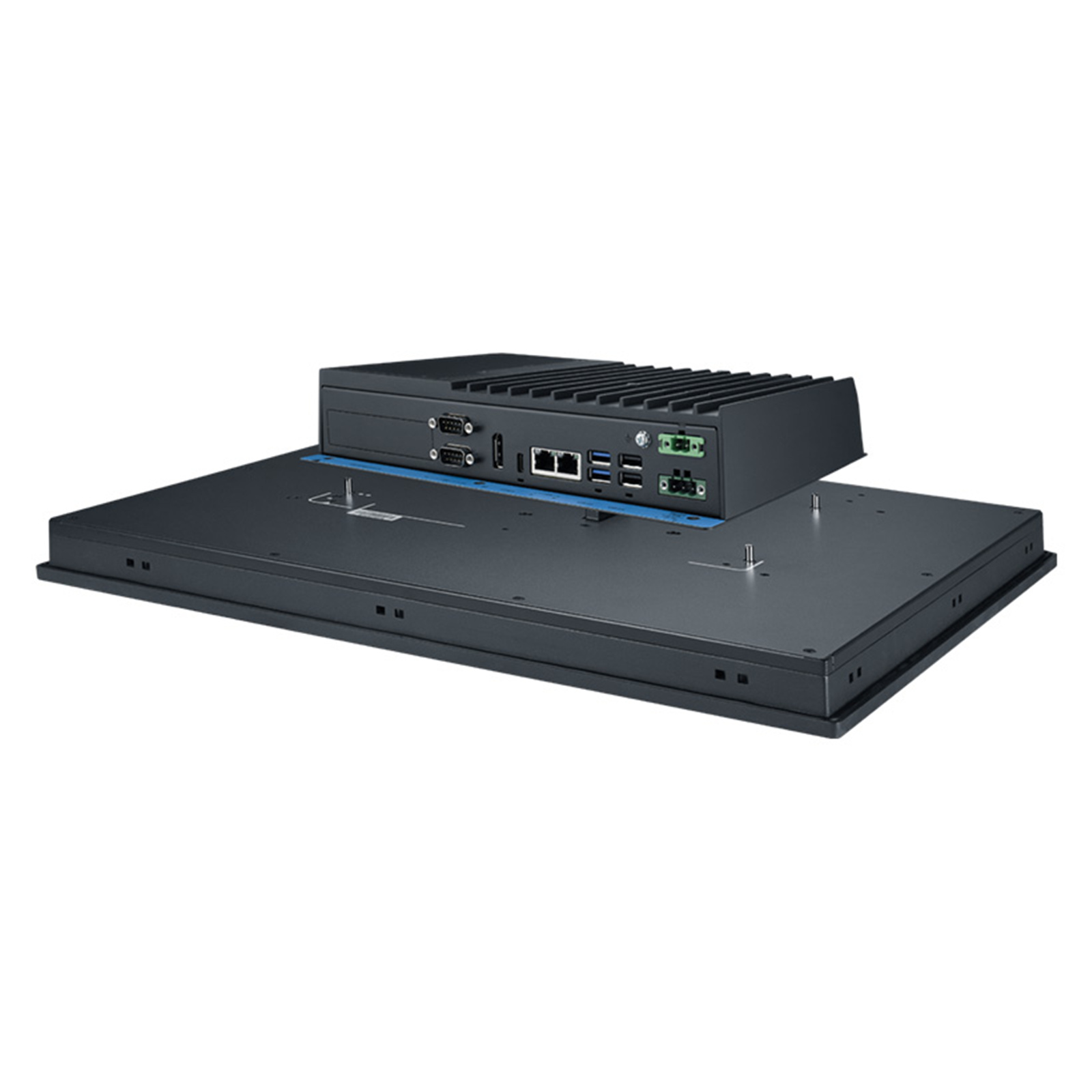

To adapt to various operational requirements, Advantech provides a set of modular front panel options for the TPC-B520. These panels range in size from 12.1 inches up to 23.8 inches and can be selected with P-CAP multi-touch technology, allowing for intuitive and robust user interaction. Certain front panel sizes also offer high-brightness models, addressing outdoor or high-visibility scenarios. Coupled with iDoor-enabled support for fieldbus protocols, GPS, GPRS, and Wi-Fi, the TPC-B520 stands out as a flexible solution ready for smart factories, automation, and industrial IoT applications
