Advantech TPC-B510-853BE Modular TPC - Computing Box Module with Intel Core i5-8365UE
- Brand: Advantech
- MPN: TPC-B510-853BE
- Part #: IPCAVH500016

Product URL: https://www.pbtech.com/au/product/IPCAVH500016/Advantech-TPC-B510-853BE-Modular-TPC---Computing-B
Features

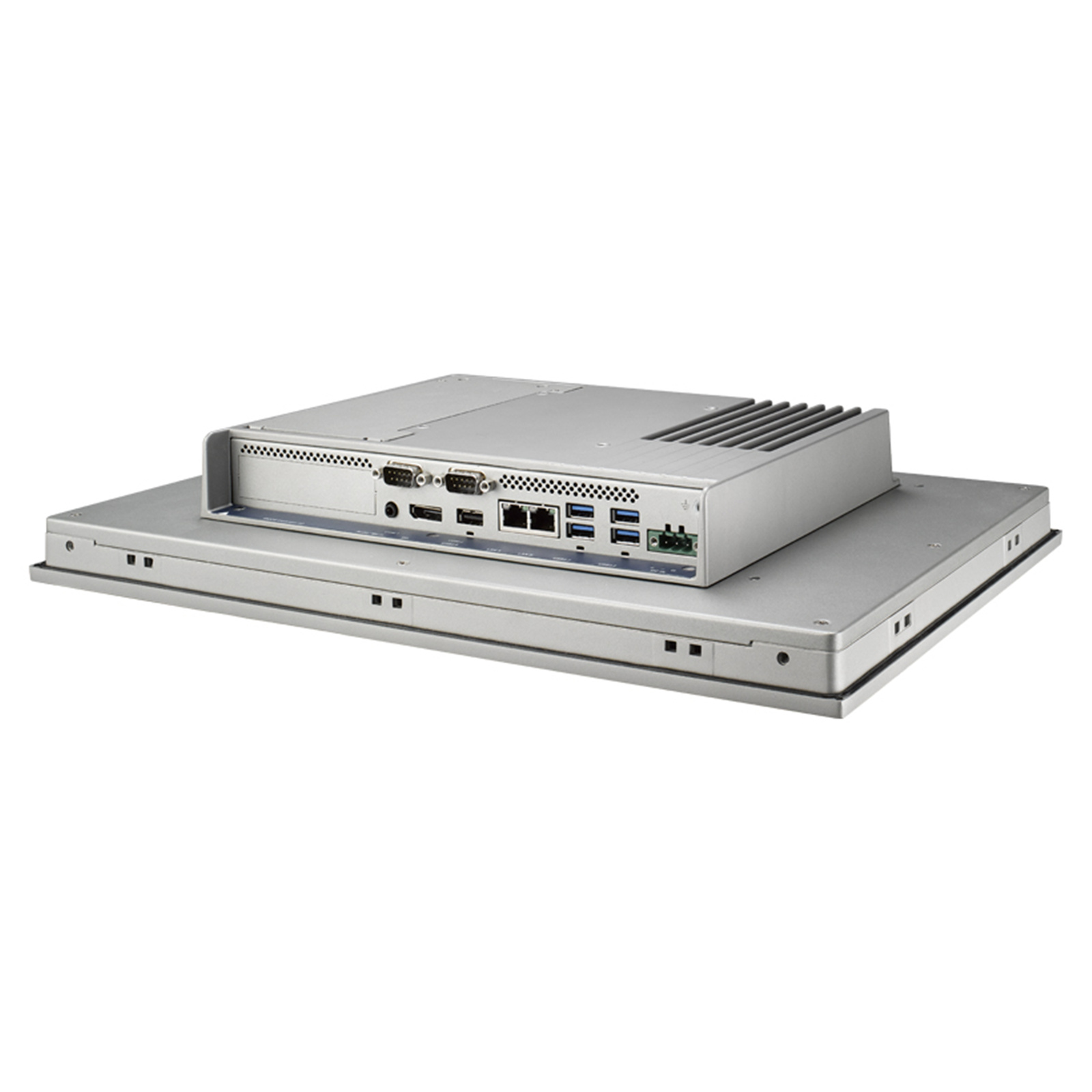

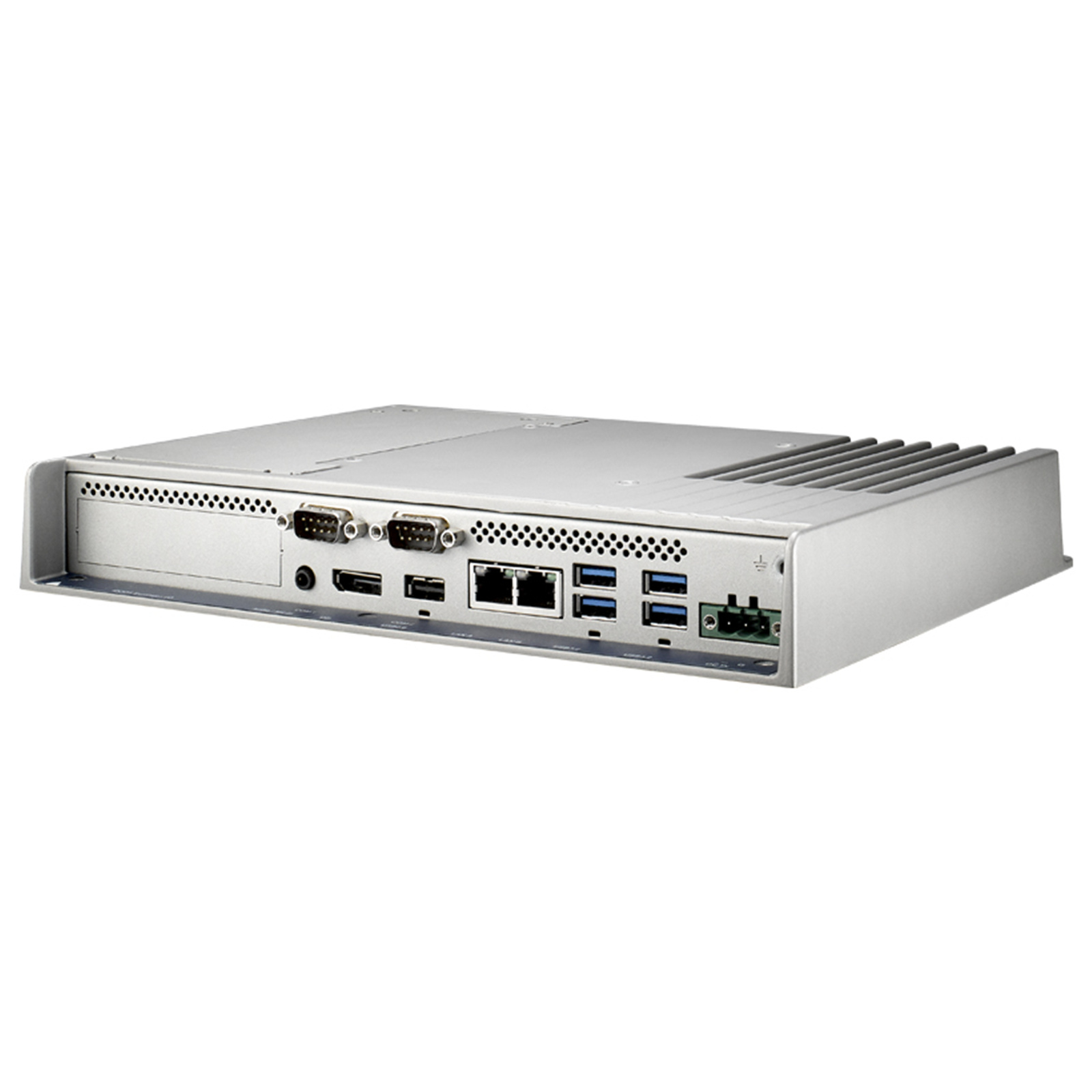

Modular TPC - Computing Box Module with Intel® Core™ processors (8th gen)
- Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 32GB in total
- Compact, fanless embedded system with chassis grounding protection
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security

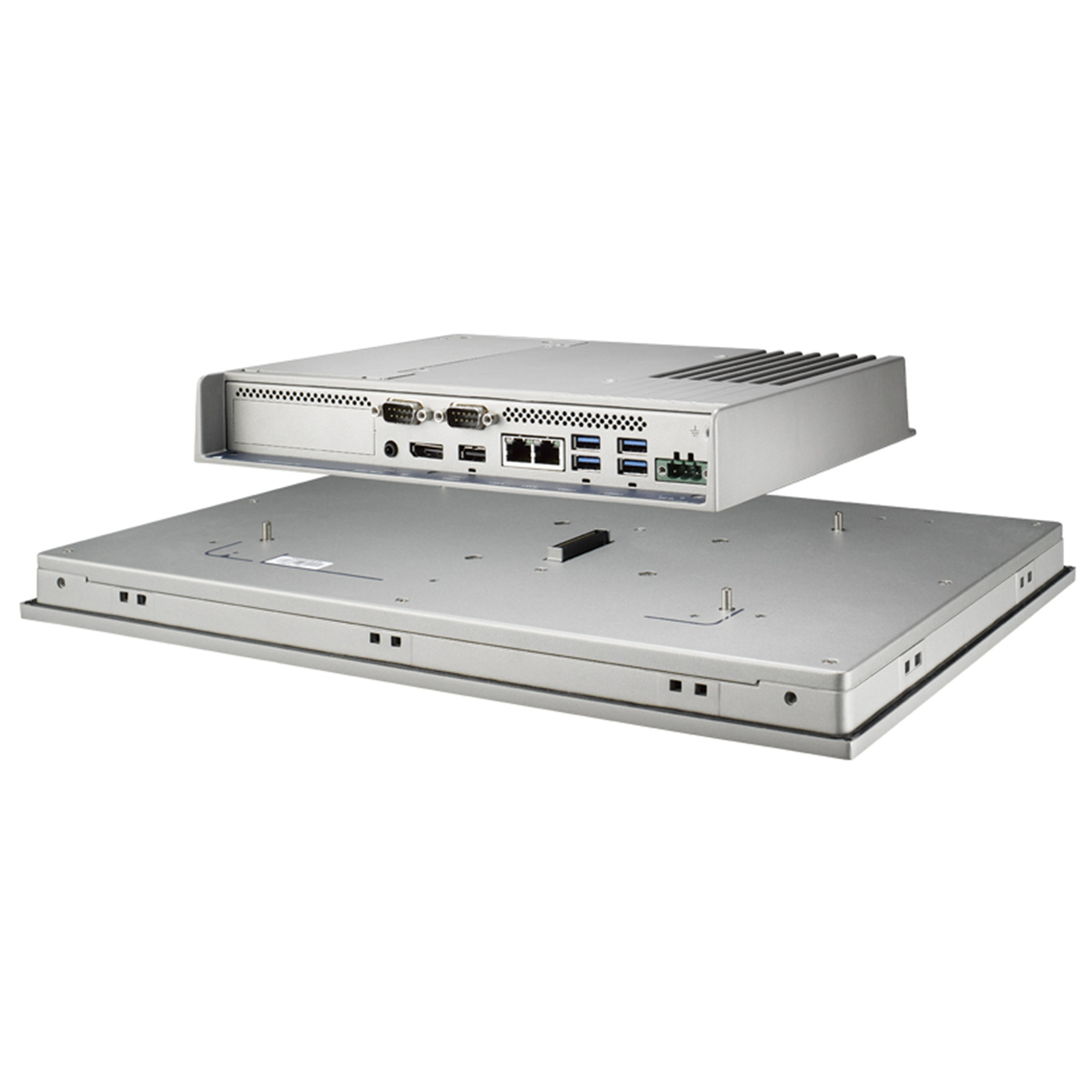

- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" & 19" features 5-wire resistive touch)
Specifications
General
BIOS
AMI UEFI
Certification
BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System
Fanless design
Dimensions (W x H x D)
268.96 x 202.96 x 39.5 (mm)
Enclosure
Back housing: Die cast aluminum alloy
Mounting
VESA Mount, Desktop, Wall or Panel Mount
OS Support
Win 10, Android, Linux
Security
TPM 2.0 (built-in)
Power Consumption
Typ. 29W; Max. 65W
Power Input
24 VDC ± 20%
Watchdog Timer
15-255 sec (system)
Weight (Net)
4.5kg
System Hardware
CPU
i5-8365UE 1.60GHz Quad-core
Memory
Dual channel DDR4 SO-DIMM (Each channel supports up to 16G)
1 x 8G DDR4 SO-DIMM (Built-in)
LAN
1 x 1GbE and 1 x 2.5GbE
Expansion Slot
1 x Full-size mini PCIe
1 x SIM card slot
Storage Slot
1 x M.2 M key 2280 (SATA*or NVMe PClex4)
1 x M.2 B Key 2242 (SATA) 3042, 3052 (PCIe/USB3.0 for 4G/5G module)
1 x 2.5" SSD/ HDD (SATA, Max. 7mm)

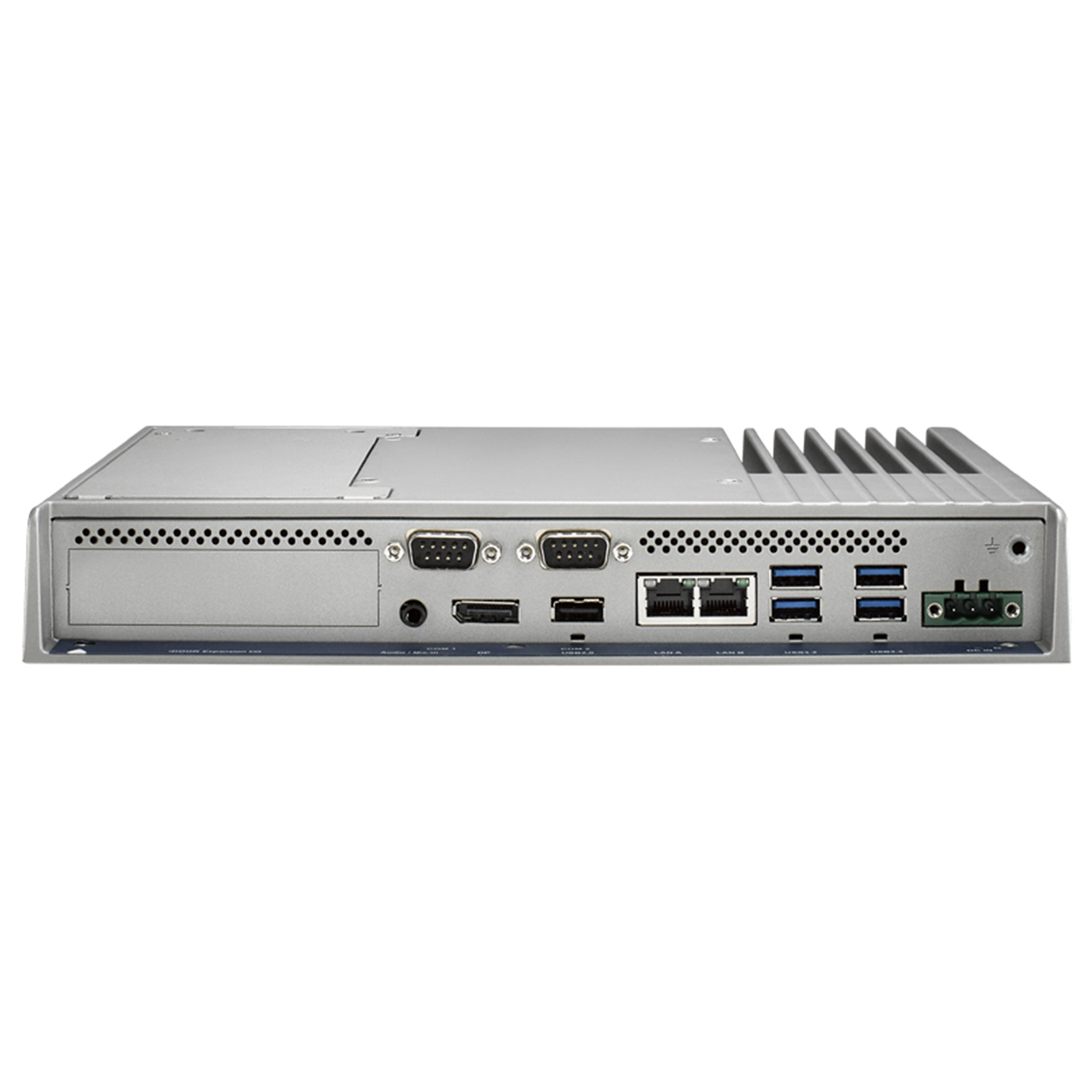

I/O
2 x RS-232/422/485
1 x USB 2.0
4 x USB 3.1 (Gen.2)
1 x iDoor slot
1 x Displayport (Video output)
1 x Audio line out/ mic in
Environment
Humidity
95% RH @ 40°C, non-condensing
Ingress Protection
IP66-rated front panel
Operating Temperature
-10~55°C (14~131°F) (w/o air flow)
Storage Temperature
-20~70°C (-4~158°F)
Vibration Protection
With SSD: 1 Grms (5 ~ 500 Hz)(Operating, random vibration)
