Dracal USB-TRH320 Precision USB temperature and humidity sensor (with filter)

PB Tech price

$ 261 .90

+GST

$ 288 .09

inc GST

Dracal USB-TRH320 Precision USB temperature and humidity sensor (with filter)

Brand: Dracal
MPN: USB-TRH320
Part #: IPCDAL20006
UPC:

PB Tech price

$ 288 .09

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 09 Jul

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Dracal
MPN: USB-TRH320
Part #: IPCDAL20006
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

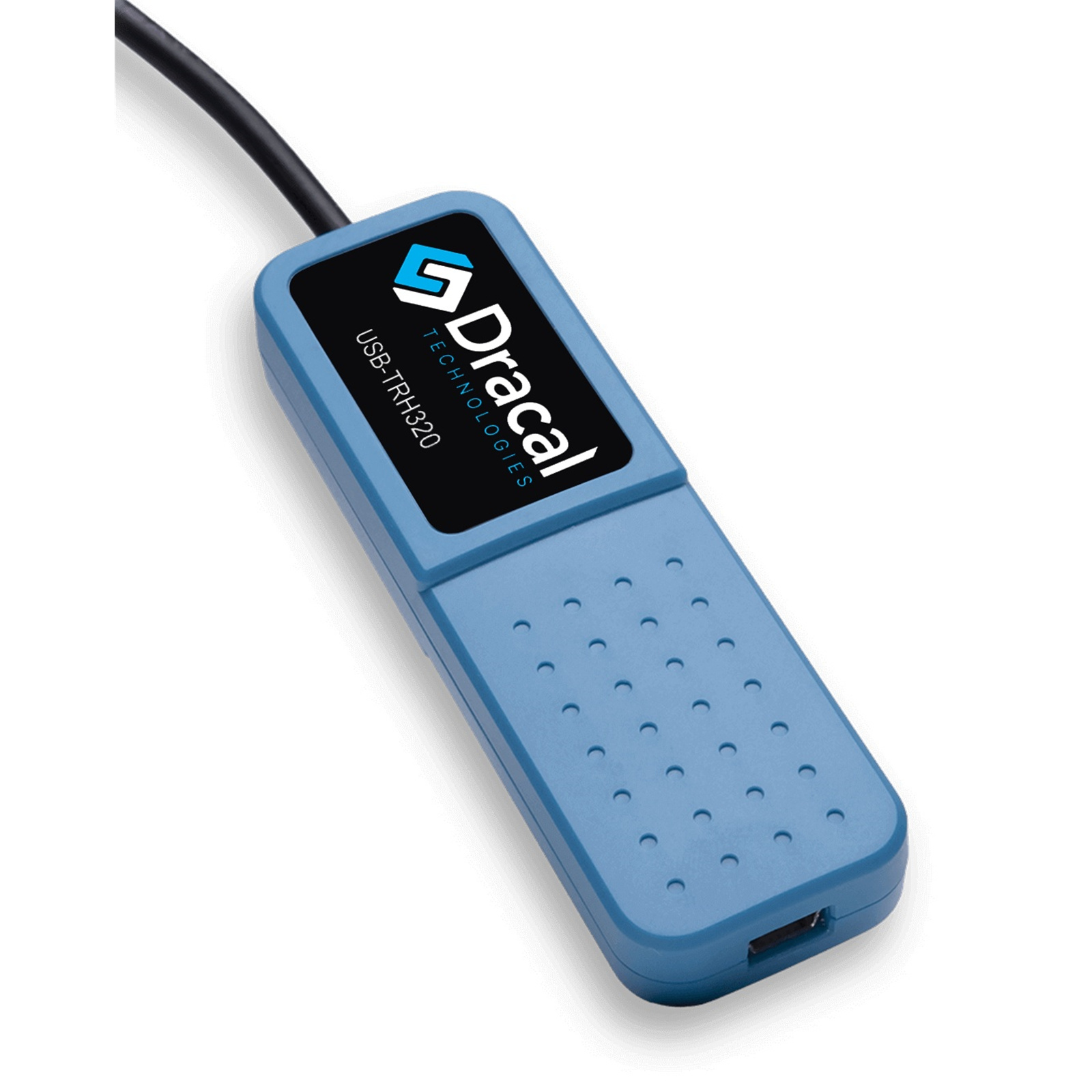

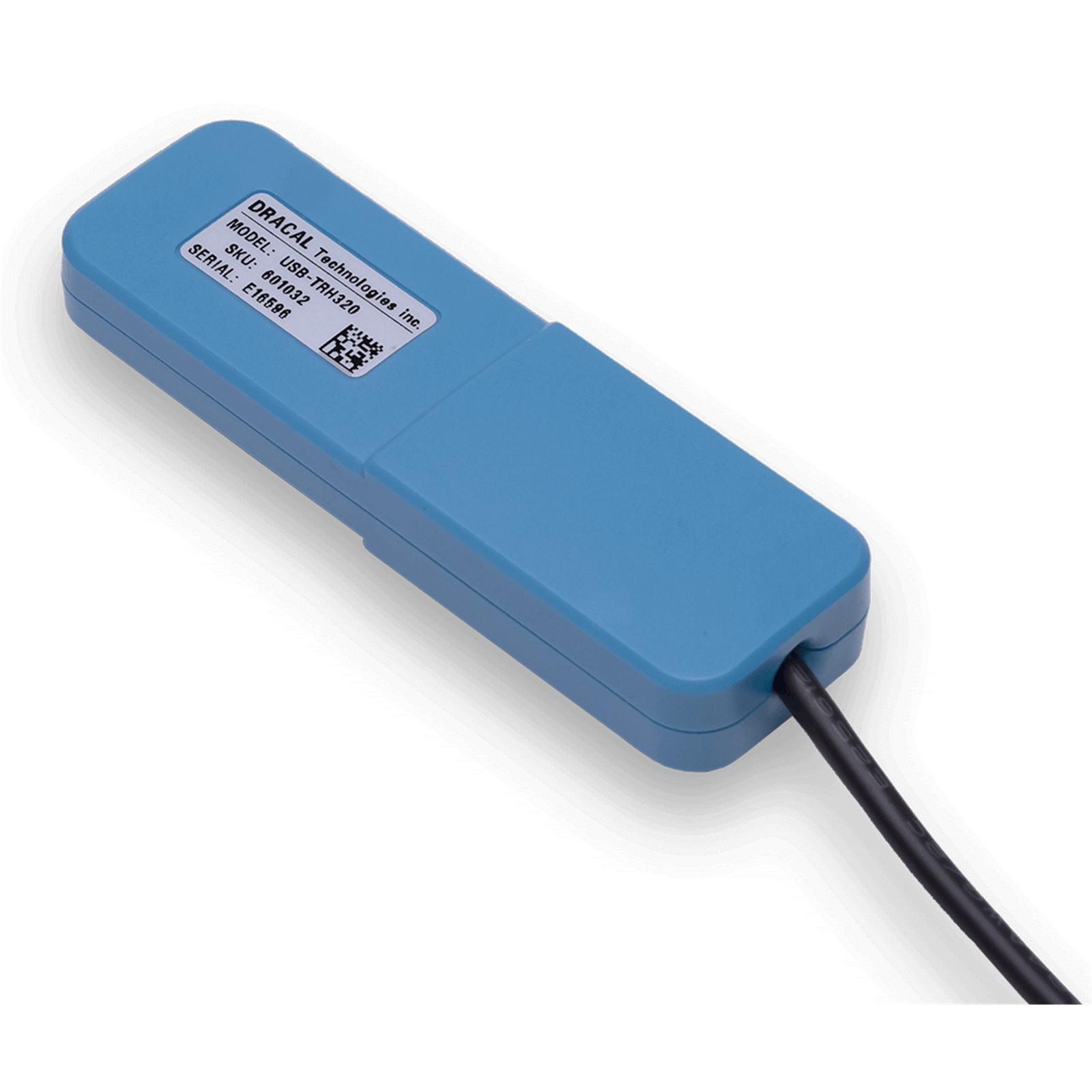

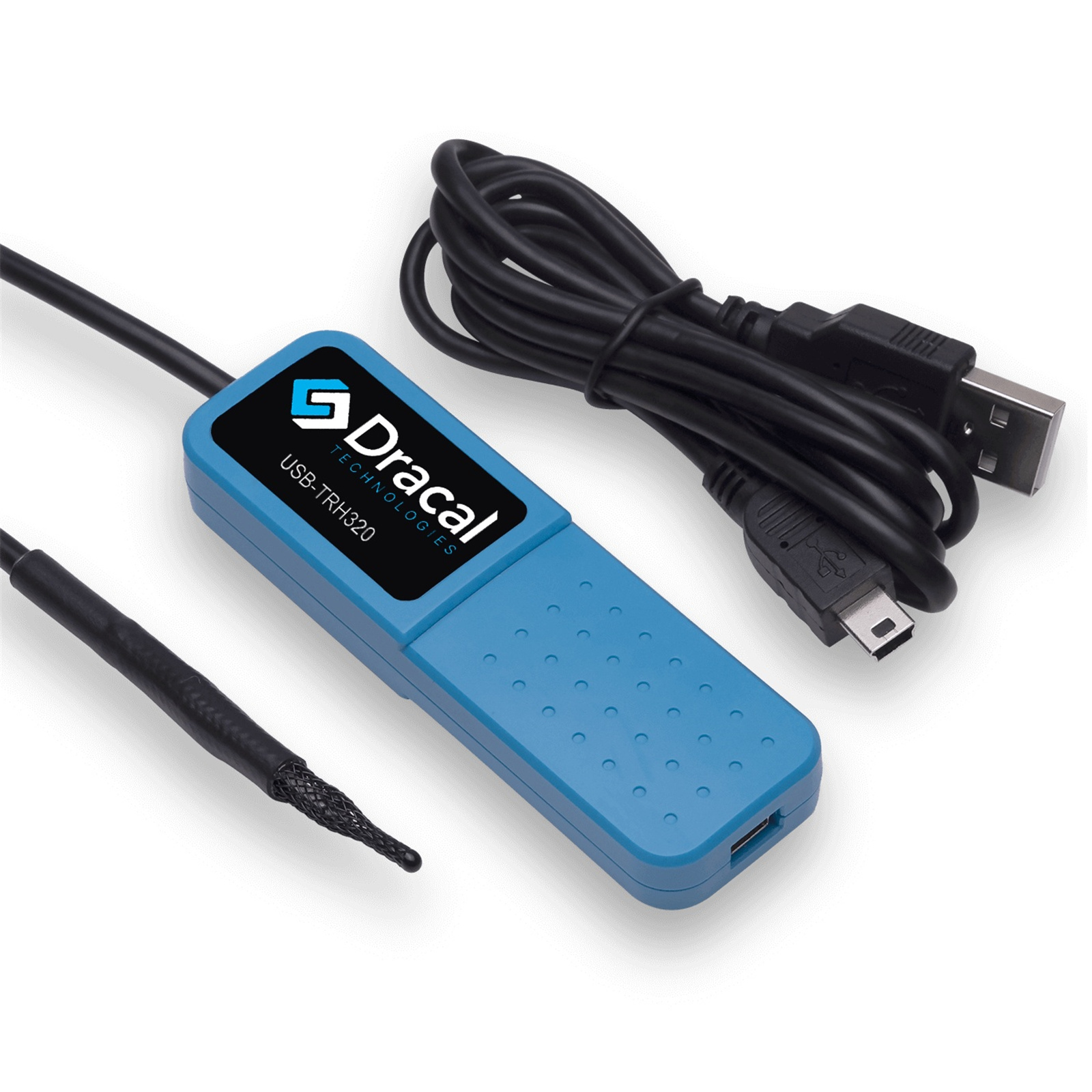

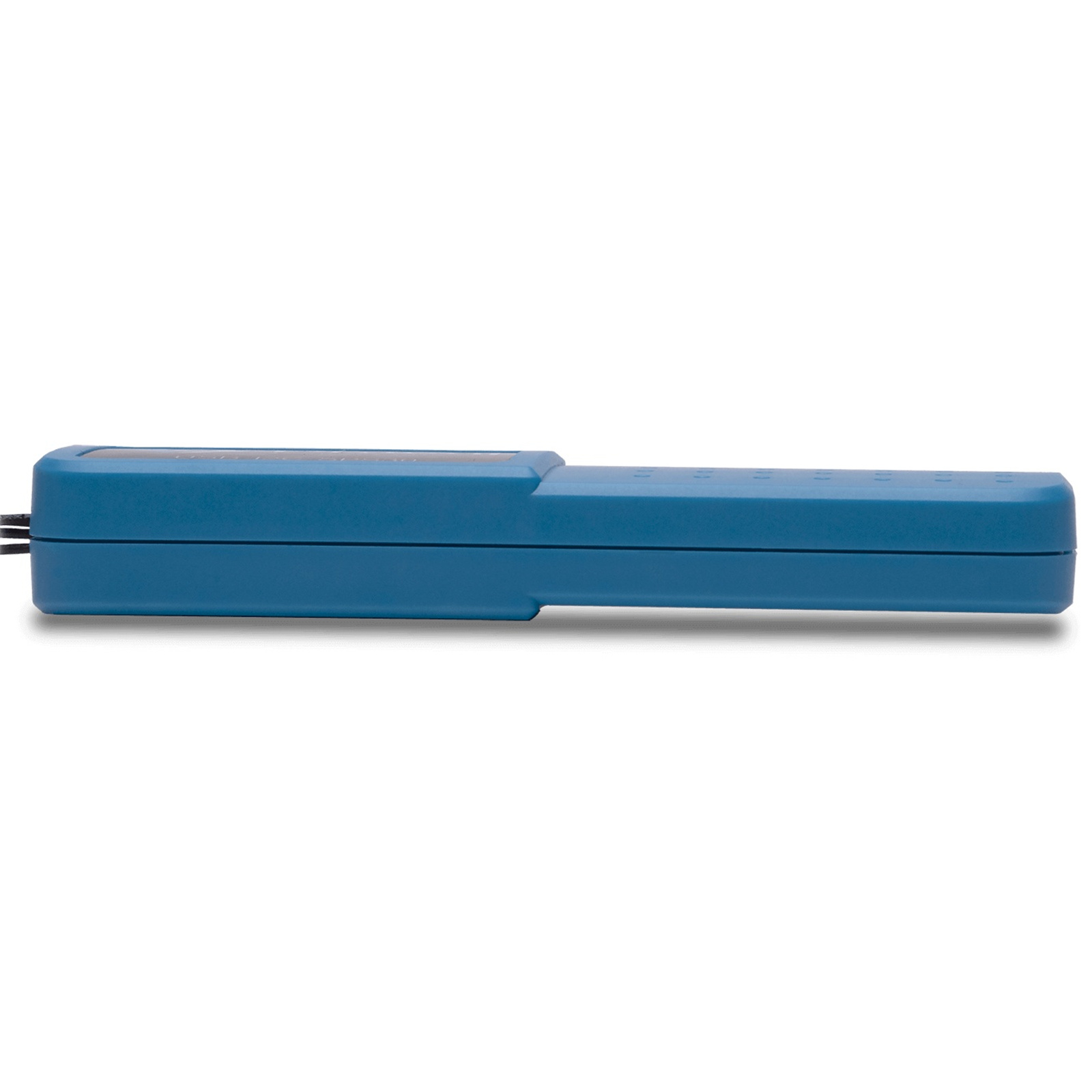

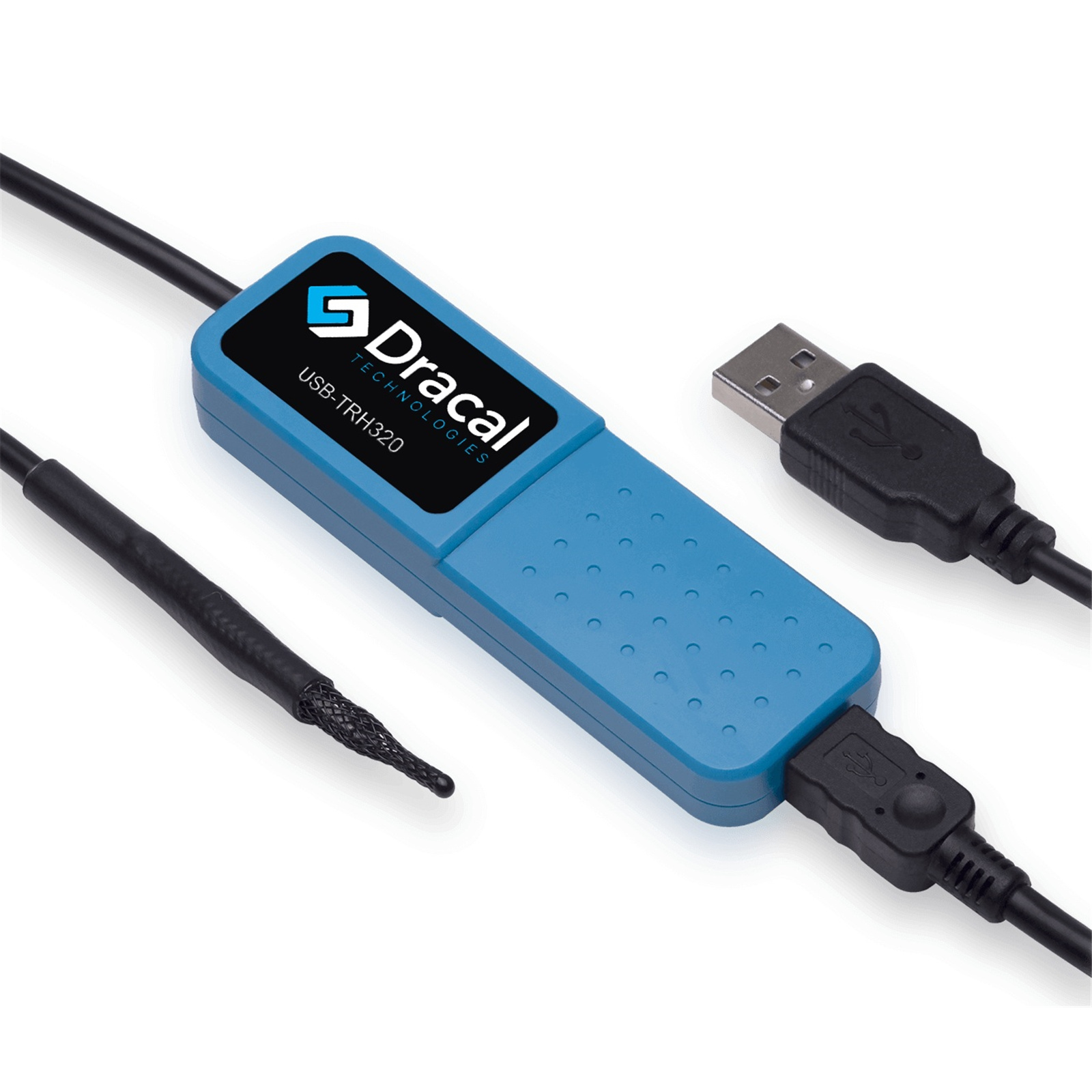

TRH320: USB Temperature and Humidity Sensor for Precise Measurements in Various Environments

The TRH320, a member of the TRH series, is a USB sensor designed for environmental temperature and relative humidity measurements. With a probe operating range from -40°C to 70°C and an accuracy of ±0.3°C (20°C to 60°C) for temperature, as well as an accuracy of ±2.0% RH (0 to 80% RH) at 25°C for relative humidity, it offers high precision for various applications. Its compact probe is equipped with an integrated filtration membrane for additional protection against dust. Powered by USB, it can be used in a relative humidity range of 0 to 100% RH, with a resolution of 0.015°C for temperature and 0.01% RH for relative humidity. Its 1-meter USB cable provides excellent installation flexibility.

Easy to use in your applications

- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate

Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Application examples

LIMS integration (Tetra Lab Monitoring solution)

Probe filters

- First filter material: Polyethylene terephthalate (PET) mesh
- Second filter material: PTFE membrane

Free data monitoring and calibration software

Like all Dracal measurement instruments, the TRH320 is compatible with free software tools, making it an essential component of a DAQ solution. For those who wish to integrate the TRH320 into their system, there are two options available: command line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.

Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software

- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user

Dimensions

Note

*This product can operate at 100 %RH but is not waterproof. Protect the sensor and CPU against direct exposure to water or snow. Extra housing may be required depending on the application.
**It is recommended that the probe be installed pointing down to reduce the risk of water infiltration or build-up in the probe.

Specifications

Temperature (probe)

Probe operating range

-40°C to 70°C

Accuracy (typical)

±0.3°C (20°C to 60°C)
±0.4°C (-40°C to 70°C)

Resolution (typical)

0.015°C

Repeatability (typical)

0.06°C

Relative humidity (probe)

Operating range

0 to 100 %RH

Accuracy at 25°C (typical)

±2.0 %RH (0 to 80 %RH)
±4.5 %RH (90 to 100 %RH)

Accuracy at 0 to 70°C (typical)

±2.0 %RH from 0 to 70 %RH

Resolution (typical)

0.01 %RH

Repeatability

0.1 %RH

Probe filters

First filter material

Polyethylene terephthalate (PET) mesh

Second filter material

PTFE membrane

Efficiency

>99.99% for particles of 200 nm

Miscellaneous

USB cable length

1 meter (3 ft.)

Operating temperature range (USB cable interface)

0°C to 70°C

Supply

Powered through USB

RoHS3 and CE compliant

Yes

Note

Manufacturer Part No:

USB-TRH320

Brand:

Dracal

Product Type:

UPC

Product Family:

Shipping Weight:

0.01 kg

PB Part No:

IPCDAL20006

Product Model:

USB-TRH320

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
