Giada DN74 RK3399 CPU, 4G Ram, 32G Storage, WIFI&BT, Android11 2xHDMI, Fanless
Out of stock
Giada DN74 RK3399 CPU, 4G Ram, 32G Storage, WIFI&BT, Android11 2xHDMI, Fanless
- Brand: Giada
- MPN: DN74
- Part #: IPCGDA20002
- UPC:
View all shipping info
- Brand: Giada
- MPN: DN74
- Part #: IPCGDA20002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Giada DN74 RK3399 CPU, 4G Ram, 32G Storage, WIFI&BT, Android11 2xHDMI, Fanless
- Brand: Giada
- MPN: DN74
- Part #: IPCGDA20002
Product URL: https://www.pbtech.com/au/product/IPCGDA20002/Giada-DN74-RK3399-CPU-4G-Ram-32G-Storage-WIFIBT-An
Features
RK3399 High-performance Processors
The ultra-compact Android player adopts Dual-core Cortex-A72 and Quad-core Cortex-A53 processors. It supports onboard dual-channel LPDDR4 memory, eMMC5.1 storage and dual-band WiFi, Bluetooth 4.2.

Dual Display Outputs
Supporting 4K Video Playback
The player adopts Rockchip integrated Mali-T860 GPU. It supports two video outputs via 1 x HDMI 2.0 (4096 x 2304 @ 60Hz) and 1 x HDMI 1.4a (2560 x 1440 @ 30 Hz). As for video decoding capability, it supports one 4K (3840 x 2160 @ 60Hz) or two 1080p (1920x1080 @ 60Hz) video decoding.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

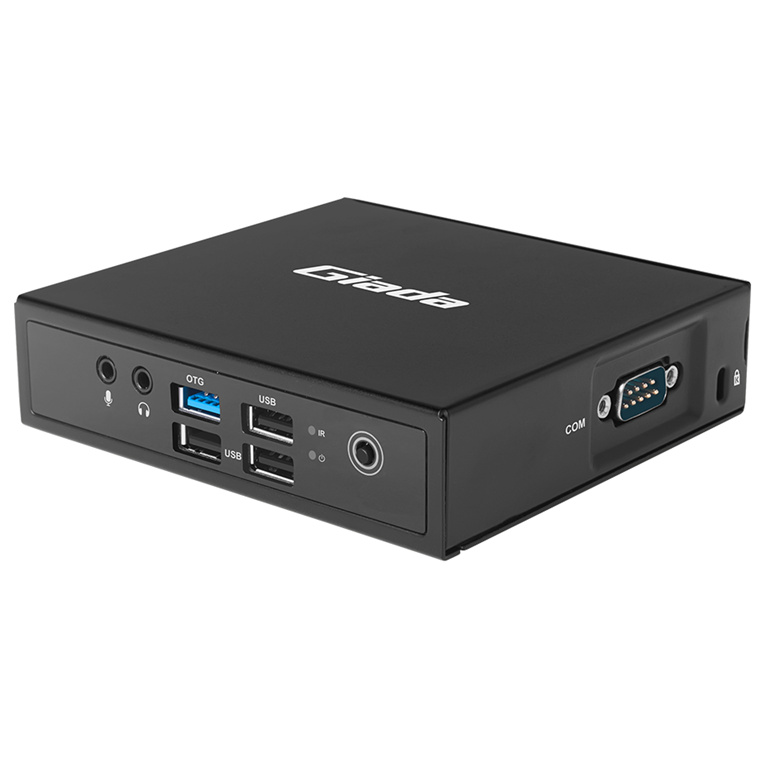

I/O port introduction

Specifications
CPU
CPU
Rockchip RK3399
Processing Units
2 Cores Cortex-A72 & 4 Cores Cortex-A53
TDP
6W
Memory
Size
4 GB
Type
Onboard LPDDR4-2133 MHz
Storage
Onboard
32 GB, Onboard eMMC (Optional: 64 GB)
Socket
1 x TF Card reader
Display
GPU
Mali-T860MP4
Graphic Engine
OpenGL ES1.1/2.0/3.0/3.1, OpenCL,
Support AFBC (ARM Frame Buffer Compression)
Multi-Media
4K VP9 decoders
4K 10bits H.265 video decoders
1080P VC-1, MPEG-1/2/4, VP8 video decoders
Display Interface
1 x HDMI (Max. 4096 x 2160 @ 60 Hz)
1 x HDMI (Max. 2560 x 1440 @ 30 Hz)
I/O interface
USB
1 x USB3.2 Gen1 (OTG), 3 x USB2.0

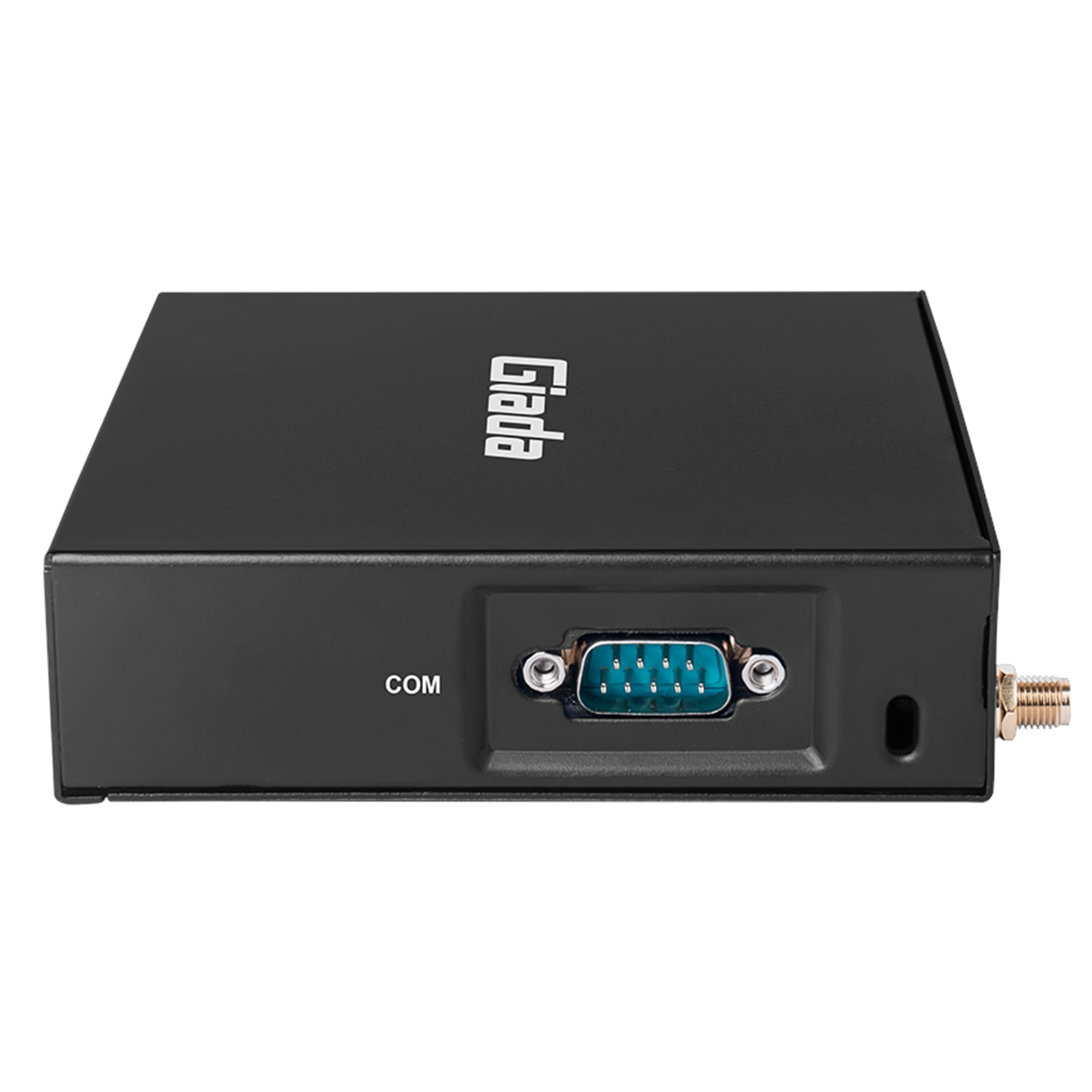

Serial Port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x Recovery
Antenna
1 x Connector for Wi-Fi/BT
1 x Connector for 3G/4G (Reserved)
Network
Network Controller
1 x Pef7071 PHY
Ethernet Interface
1 x RJ45
Wi-Fi/BT
Onboard Wi-Fi/BT module
Mobile Network
1 x Full-size Mini-PCIe for 3G/4G
1 x SIM Slot
System
Watchdog Timer
N/A
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 12 V/2.08 A
Dimensions
116 mm x 106 mm x 30 mm (4.57" x 4.17" x 1.18")
Construction
Metal, Black
Operating System
Android 7.1/Android 8.1/Android 11
Operating Temperature
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
Humidity
95% @ 40°C (non-condensing)
Certifications
CE, FCC Class B
