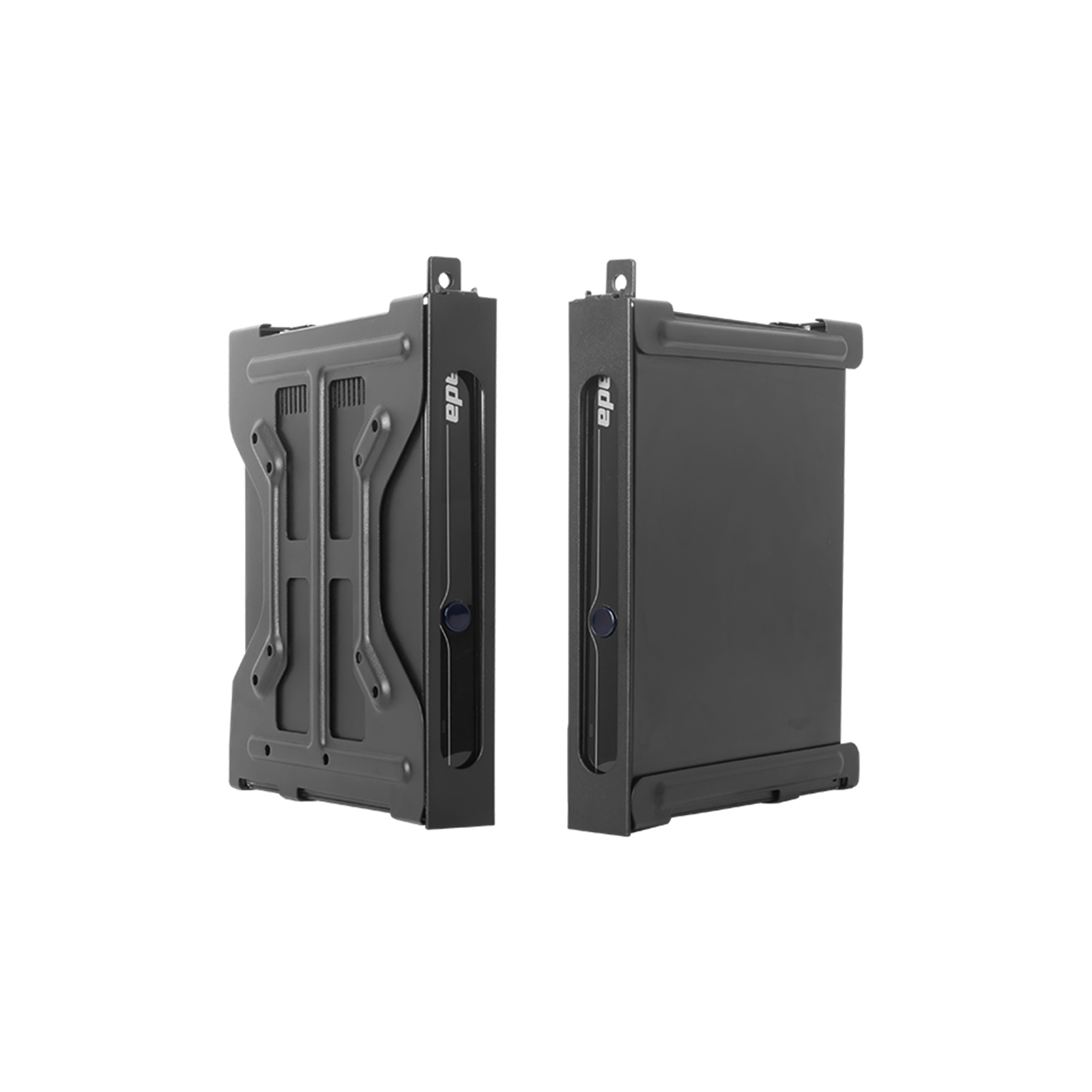

Giada D612-i3 Core i3-1215U CPU, Barebone Windows/Linux, 4xHDMI, vPro Technology, Fanless
Out of stock
Giada D612-i3 Core i3-1215U CPU, Barebone Windows/Linux, 4xHDMI, vPro Technology, Fanless
- Brand: Giada
- MPN: D612-i3
- Part #: IPCGDA20009
- UPC:
View all shipping info
- Brand: Giada
- MPN: D612-i3
- Part #: IPCGDA20009
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Giada D612-i3 Core i3-1215U CPU, Barebone Windows/Linux, 4xHDMI, vPro Technology, Fanless
- Brand: Giada
- MPN: D612-i3
- Part #: IPCGDA20009

Product URL: https://www.pbtech.com/au/product/IPCGDA20009/Giada-D612-i3-Core-i3-1215U-CPU-Barebone-WindowsLi
Features
High Computing Performance

Supporting 4K Video Playback




Specifications
CPU
CPU
Intel® Core™ i3-1215U processor
Efficient Frequency
3.30 GHz/3.30 GHz
Performance Frequency
4.40 GHz/4.40 GHz
Chipset
SoC
Processing Units
6 Cores /10 Cores
Configurable TDP-up
15 W /15 W
Memory
Size
Up to 64 GB
Type
2 x SO-DIMM DDR4-3200 MHz
Storage Socket
1 x M-Key M.2 (2242/2280) for PCIe SSD
Display
GPU
Intel® UHD Graphics (Core™ Core i3)
Intel® IRIS® Xe Graphics (Core™ Core i5)
Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
Display Interface
4 x HDMI (Max.4096 x 2304 @60 Hz)
Optional: 1 x DP (Max.7680 x 4320 @60 Hz), 2 x HDMI (Max.4096 x 2304 @60 Hz)
Network
Network Controller
1 x Intel® i219LM Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042/3052) for 3G/4G/5G,
1 x SIM Slot

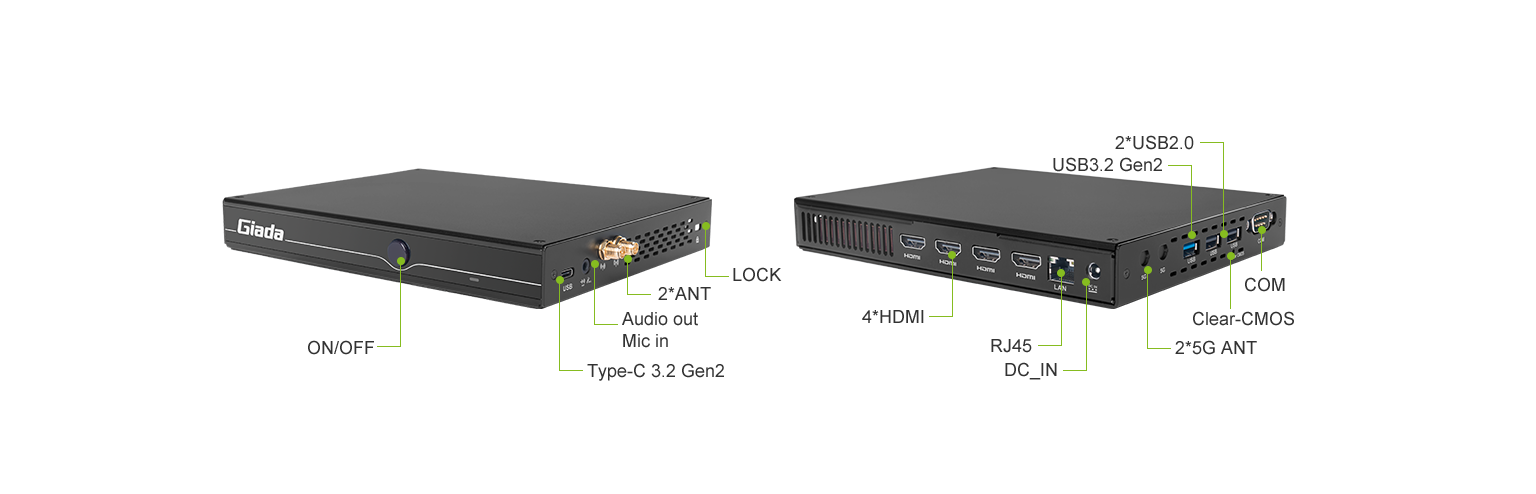

I/O interface
USB
1 x USB Type-C3.2 Gen2,
1 x USB3.2 Gen2, 2 x USB2.0
Serial Port
1 x RS232
Audio
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
2 x Connector for 5G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 19 V/3.42 A
Dimensions
189.6mm x 148.3mm x 26mm (7.46" x 5.83" x 1.02")
Construction
Metal, Black
Operating System
Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 40°C (non-condensing)
Certifications
CE, FCC Class B
