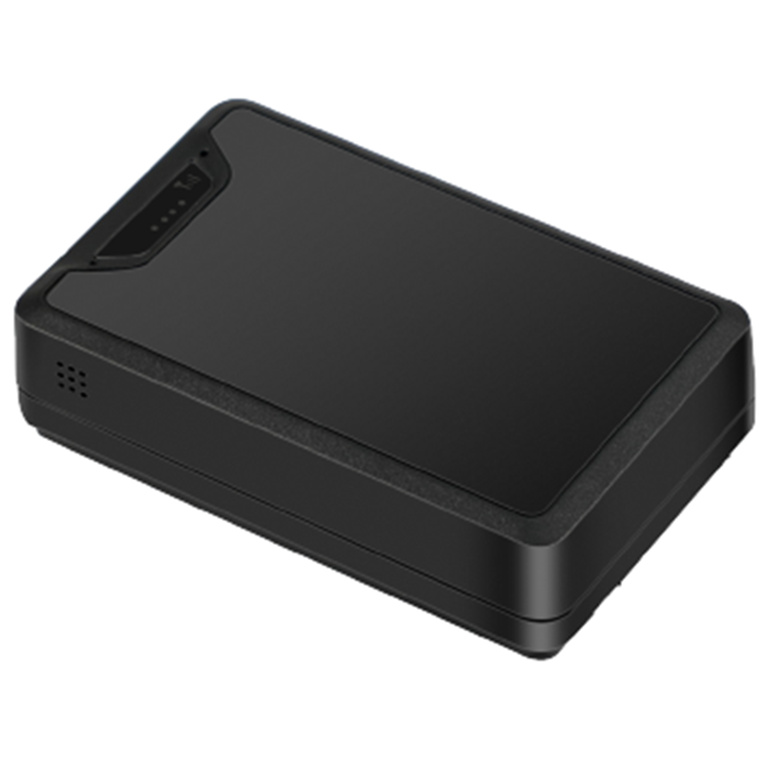

JimiLab Asset Trackers LL302 4G LTE Asset GNSS Tracker GPS & BDS & LBS Positioning, LTE & GSM Network, Tamper Alert
- Brand: JimiLab
- MPN: LL302
- Part #: IPCJIM0018

Product URL: https://www.pbtech.com/au/product/IPCJIM0018/JimiLab-Asset-Trackers-LL302-4G-LTE-Asset-GNSS-Tra
Features

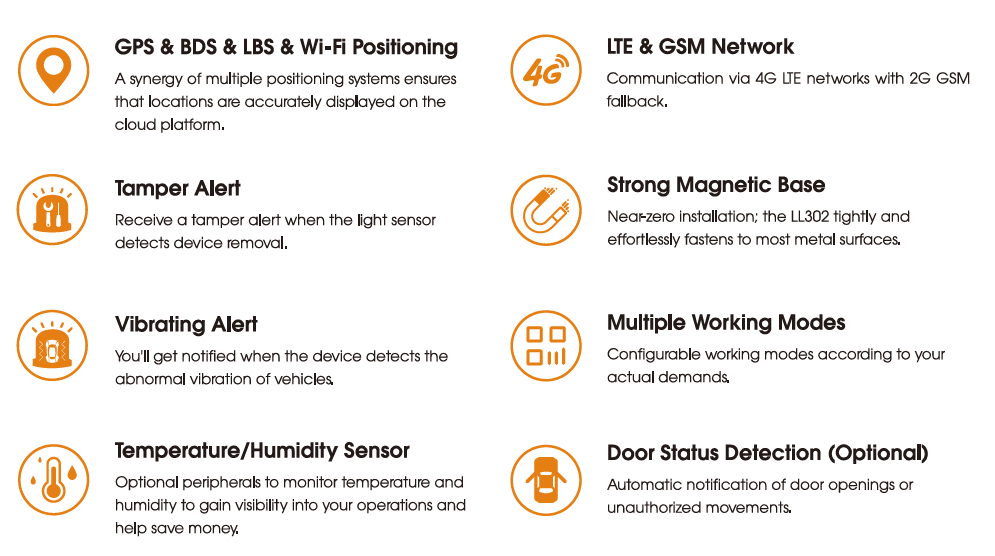

Designed for vehicle & asset tracking, LL302 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS/Wi-Fi positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our cloud platform and mobile App, LL302 is ideal for remote monitoring of users' targets, and it's also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.
Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.

Specifications
GNSS
Positioning system
GPS+BDS+LBS+WiFi
Positioning accuracy
<2.5m CEP
Tracking sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start =1sec
Avg. cold start =32sec
Cellular
Communication network
LTE Cat1/GSM
Frequency
LL302-C:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B39/B40/B41
GSM: B3/B8
LL302-E:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
LL302-L:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8
Power
Battery
6,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes
Mode 1: Regular GPS mode
Mode 2: Tracking mode
Mode 3: Power-saving mode
Standby time
Up to 1 year in power-saving mode
Interface
LED indication
GNSS (Blue), Cellular (Green), Power (White)
SIM
Micro-SIM
Tamper proof
Light sensor
Physical specification
Dimensions
95.0 x 59.0 x 29.2mm (with magnet)
Weight
233g (with magnet)
Operating environment
Operating temperature
-20 to +70C
Operating humidity
5%~95%, non-condensing
IP rating
IPX5
General
Temperature detection
-20 to +70C (±0.2C)
Humidity detection
5%~95% (±1%RH)
Sensors
Accelerometer, Light sensor, Temperature & humidity sensor, Hall effect sensor
Scenarios
Low battery alert, Tamper alert, Vibrating Alert
