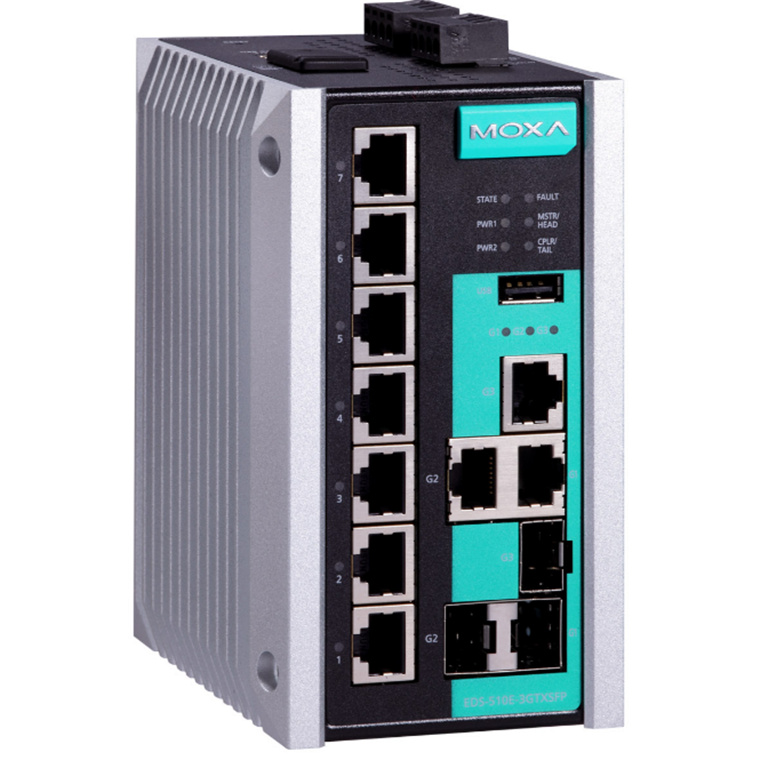

MOXA PoE switch EDS-510E-3GTXSFP Managed Gigabit Ethernet switch, with7X10/100BaseT(X) ports,3X10/100/1000BaseT(X) or 100/1000BaseSFP -10 to 60°C operating temperature
MOXA PoE switch EDS-510E-3GTXSFP Managed Gigabit Ethernet switch, with7X10/100BaseT(X) ports,3X10/100/1000BaseT(X) or 100/1000BaseSFP -10 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-510E-3GTXSFP
- Part #: IPCMXAEDS510E01
- UPC:
View all shipping info
- Brand: MOXA
- MPN: EDS-510E-3GTXSFP
- Part #: IPCMXAEDS510E01
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Appliances





MOXA PoE switch EDS-510E-3GTXSFP Managed Gigabit Ethernet switch, with7X10/100BaseT(X) ports,3X10/100/1000BaseT(X) or 100/1000BaseSFP -10 to 60°C operating temperature
- Brand: MOXA
- MPN: EDS-510E-3GTXSFP
- Part #: IPCMXAEDS510E01

Product URL: https://www.pbtech.com/au/product/IPCMXAEDS510E01/MOXA-PoE-switch-EDS-510E-3GTXSFP-Managed-Gigabit-E
Features
The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02-USB automatic backup configurator
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- SNMPv1/v2c/v3 for different levels of network management
- RMON for proactive and efficient network monitoring
- Bandwidth management to prevent unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through email and relay output
Specifications
Input/Output Interface
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons
Reset button
Digital Input Channels
1
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
3
10/100/1000BaseT(X) Ports (RJ45 connector)
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
Filter
802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Industrial Protocols
EtherNet/IP, Modbus TCP, PROFINET IO Device
Management
LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy Protocols
Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security
Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, SMTP with TLS
Time Management
NTP Server/Client, SNTP
Switch Properties
IGMP Groups
2048
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
USB Interface
Storage Port
USB Type A
LED Interface
LED Indicators
PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
Console Port
USB-serial console (Type B connector)
DIP Switch Configuration
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 4-contact terminal block(s)
Input Current
0.68 A @ 24 VDC
Input Voltage
12/24/48/-48 VDC, Redundant dual inputs
Operating Voltage
9.6 to 60 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in)
Weight
1690 g (3.73 lb)
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
