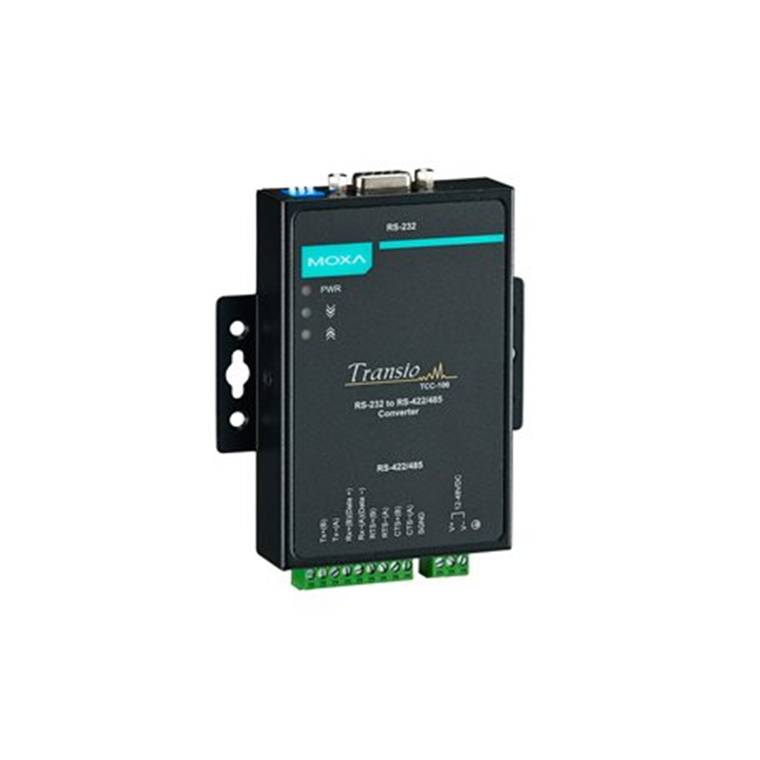

MOXA TCC-100 RS-232 to RS-422/485 converter
- Brand: MOXA
- MPN: TCC-100
- Part #: IPCMXATCC100001

Product URL: https://www.pbtech.com/au/product/IPCMXATCC100001/MOXA-TCC-100-RS-232-to-RS-422485-converter
Features
Specifications
Serial Interface
Baudrate
50 bps to 921.6 kbps (supports non-standard baudrates)
Connector
Terminal block
Isolation
TCC-100I/100I-T: 2 kV (-I model)
No. of Ports
2
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Serial Standards
RS-232, RS-422, RS-485
Terminator for RS-485
N/A, 120 ohms, 120 kilo-ohms
Serial Signals
RS-232
TxD, RxD, RTS, CTS, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Power Parameters
Input Current
TCC-100/100-T: 50 to 85 mA @ 12 to 48 VDC
TCC-100I/100I-T: 150 mA @ 12 to 48 VDC
Input Voltage
12 to 48 VDC
No. of Power Inputs
1
Overload Current Protection
Supported
Power Connector
Terminal block (for DC models)
Physical Characteristics
Housing
Metal
Dimensions
67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
IP Rating
IP30
Weight
148 g (0.33 lb)
Installation
DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits
Operating Temperature
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
