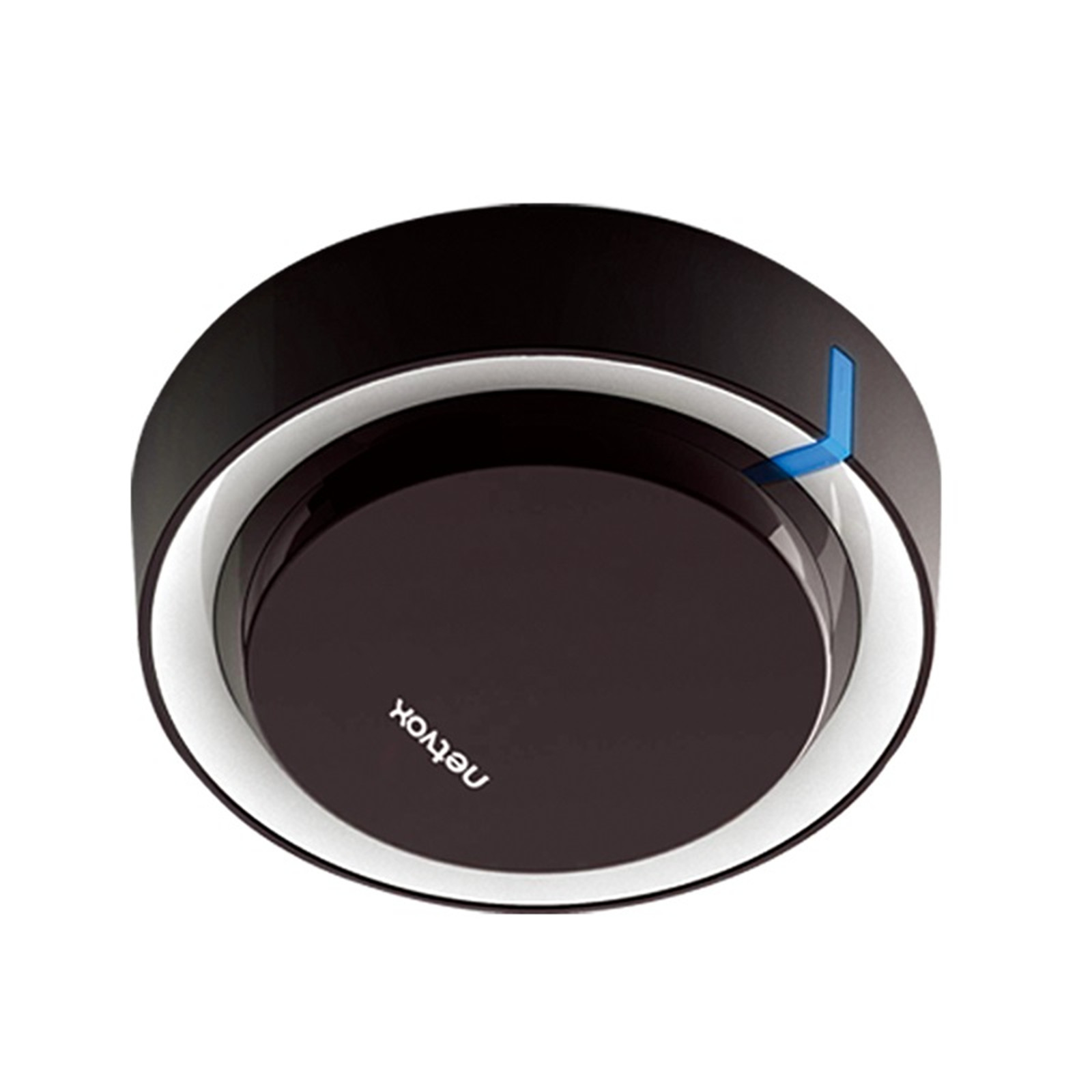

Netvox LoRa module Wireless IR Blaster (DC-Powered)
Out of stock
Netvox LoRa module Wireless IR Blaster (DC-Powered)
- Brand: Netvox
- MPN: R211
- Part #: IPCNVX4808819
- UPC:
View all shipping info
- Brand: Netvox
- MPN: R211
- Part #: IPCNVX4808819
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Netvox LoRa module Wireless IR Blaster (DC-Powered)
- Brand: Netvox
- MPN: R211
- Part #: IPCNVX4808819

Product URL: https://www.pbtech.com/au/product/IPCNVX4808819/Netvox-LoRa-module-Wireless-IR-Blaster-DC-Powered
Features
R211-Wireless IR Blaster
Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.
- LoRaWAN Class C compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Built-in 4M serial flash
- Infrared learning and emission
- Infrared frequency 38KHz
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R211/R211datasheet.pdf
Specifications
Electric:
Power Supply
DC 12V
Working Current
50mA / 12V/ 0.6W
Infrared Frequency
38 KHz
Infrared Transmission Range
32 meters
Frequency:
TX Power
19dBm±1dBm
Rx Sensitivity
-136dBm
(LoRa,Spreading Factor=12,Bit Rate=293bps )
-121dBm
(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
Up 10 km, the actual transmission distance depends on the environment.
Data Transfer Rate
0.3kbps~50kbps
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,
KR920-923,AS923,CN470-510
Configured before shipment
Power Supply
DC 12V
Working Current
50mA / 12V/ 0.6W
Infrared Frequency
38 KHz
Infrared Transmission Range
32 meters
Physical:
Dimension
Diameter-106mm , height-30.5mm
Weight
100g
Operating Temperature
-20 ~ 55C
Environment Humidity Range
5% RH ~ 95% RH (No condensation)
Storage Temperature
-40 ~ 85C
