Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
Out of stock
Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R313FC
- Part #: IPCNVX4808848
- UPC:
View all shipping info
- Brand: Netvox
- MPN: R313FC
- Part #: IPCNVX4808848
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors





Netvox LoRa module Wireless Activity Timer (Powered by 2 X CR2450 Battery)
- Brand: Netvox
- MPN: R313FC
- Part #: IPCNVX4808848

Product URL: https://www.pbtech.com/au/product/IPCNVX4808848/Netvox-LoRa-module-Wireless-Activity-Timer-Powered
Features

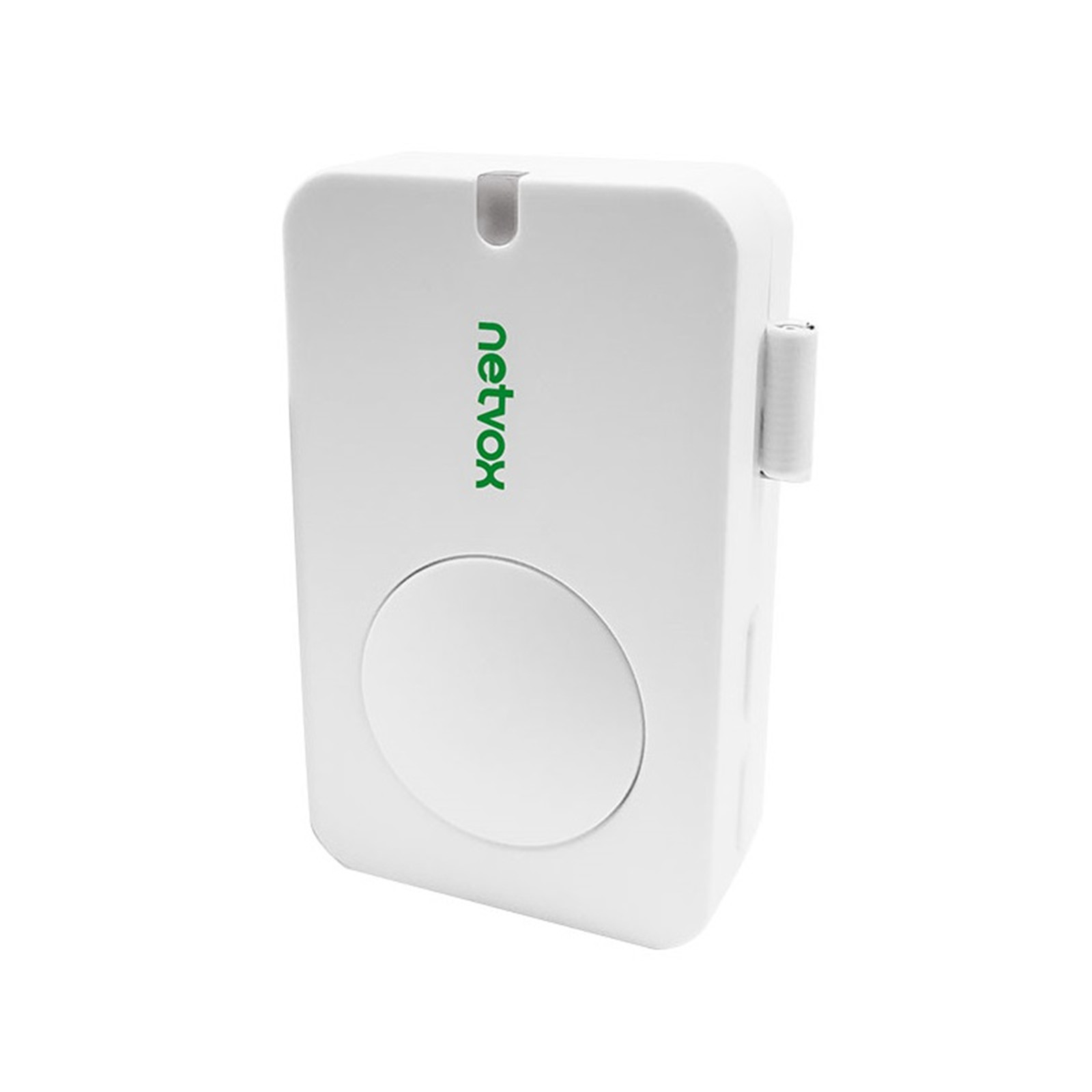

R313FC-Wireless Activity Timer
The device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing.
- Adopt SX1276 wireless communication module
- 2 x 3.0V CR2450 button batteries
- Activity Timer
- Compatible with LoRaWAN™ Class A
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- Low power consumption and long battery life Improved
Download data sheet: http://www.netvox.com.tw/um/R313FC/R313FCdatasheet.pdf
Specifications
Electric:
Power Supply
2 x 3.0V CR2450 button batteries
Operation Voltage
DC 2.4V to 3.0V
Standby Current
42µA / 3V
Transmitting Current (max)
120mA / 3.0V
Receiving Current (max)
11mA/ 3.0V
Battery Measurement Accuracy
± 0.1V
Low Voltage Threshold
2.4V
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
External antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
LoRa: 0.3kbps~50kbps
FSK: 1.2kbps~300kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Main Body Dimension
57mm x 38.05mm x 15mm
Weight
48.9g
Operating Temperature
-20°C ~ 55°C
Storage Temperature
-40°C ~ 85°C
Ambient Humidity
<90%RH (No condensation)
