Fanvil PA3 SIP Paging Gateway
- Brand: Fanvil
- MPN: Fan-PA3
- Part #: IPHFAN1065

Product URL: https://www.pbtech.com/au/product/IPHFAN1065/Fanvil-PA3-SIP-Paging-Gateway
Features

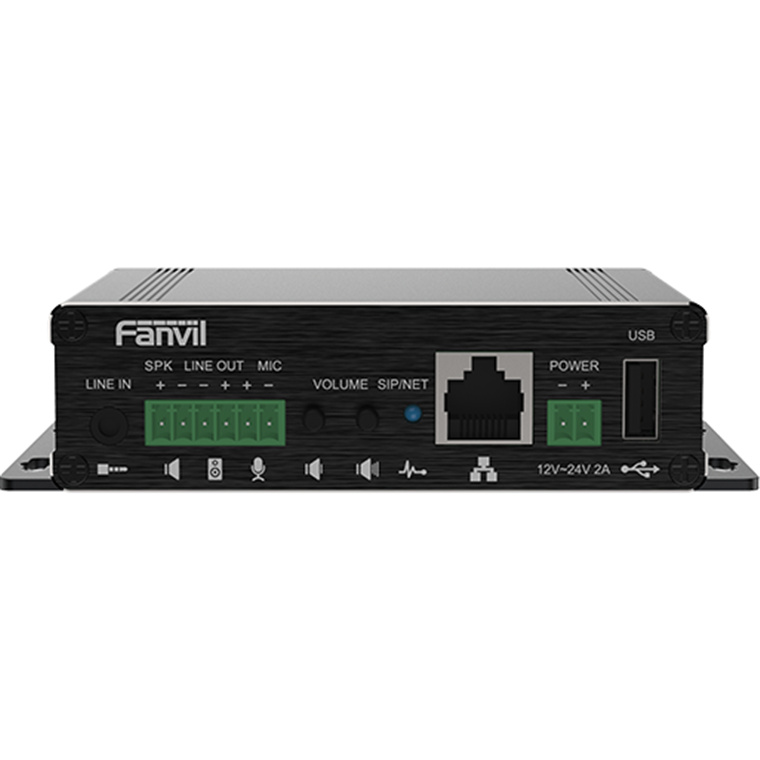

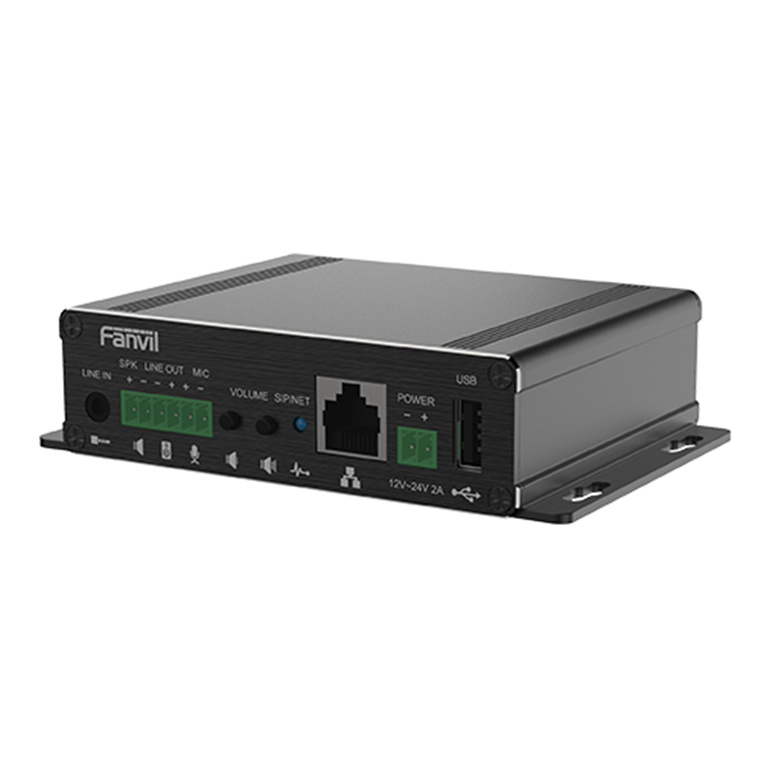

The design of Fanvil PA3 fits to every internal installation, especially for public broadcasting. With HD audio and function-rich interfaces, Fanvil PA3 can be used for real-time & fix-time MP3 broadcasting, and one-touch intercom when connecting to the external devices. Fanvil PA3 is your perfect choice to DIY the integrated broadcasting solution for the campus, shopping mall, railway station, building, etc.
- 2 SIP Lines
- 1 Speaker Interface and 1 Microphone Interface
- 1 Audio in and 1 Audio out Interface
- Support the USB or TF card Connectivity Max to 32G
- 2 Interfaces of Programmable Keys with Indicator Light
- 1 Blue LED Status Indicator Light
- Support PoE (Class 4)
- Support Desktop and Wall-mounted Mode
Specifications
SIP Line
2
Camera
No
Standalone intercom-No Central Unit /Server Needed
Yes
HD Video(720P)
No
HD Audio(G.722)
G.722 ,Opus
Linkage with Third Party IP Camera
Yes
Built-in Electric Relay
No
Access control
2
Audio Line-in/Line-out
Yes
Power Supply PoE
POE Class4
Power Supply 12V DC
12V-24V 2A
Wide Temperature Range
-20°C~50°C
Power Amplifier
Maximum 4ohm/30W or 8ohm/15W
Short Circuit Output
No
Short Circuit Input
No
Auto-Provisioning via DHCP/TR069/SIP PNP
Yes
Integration with Third Party Systems
Yes
TF cardreader
Yes
USB2.0
Yes
MP3 broadcasting
Yes
