Fanvil FAN-A10W A10W Dual band Wi-Fi mini intercom with 3 function buttons
- Brand: Fanvil
- MPN: FAN-A10W
- Part #: IPHFAN1087

Product URL: https://www.pbtech.com/au/product/IPHFAN1087/Fanvil-FAN-A10W-A10W-Dual-band-Wi-Fi-mini-intercom
Features

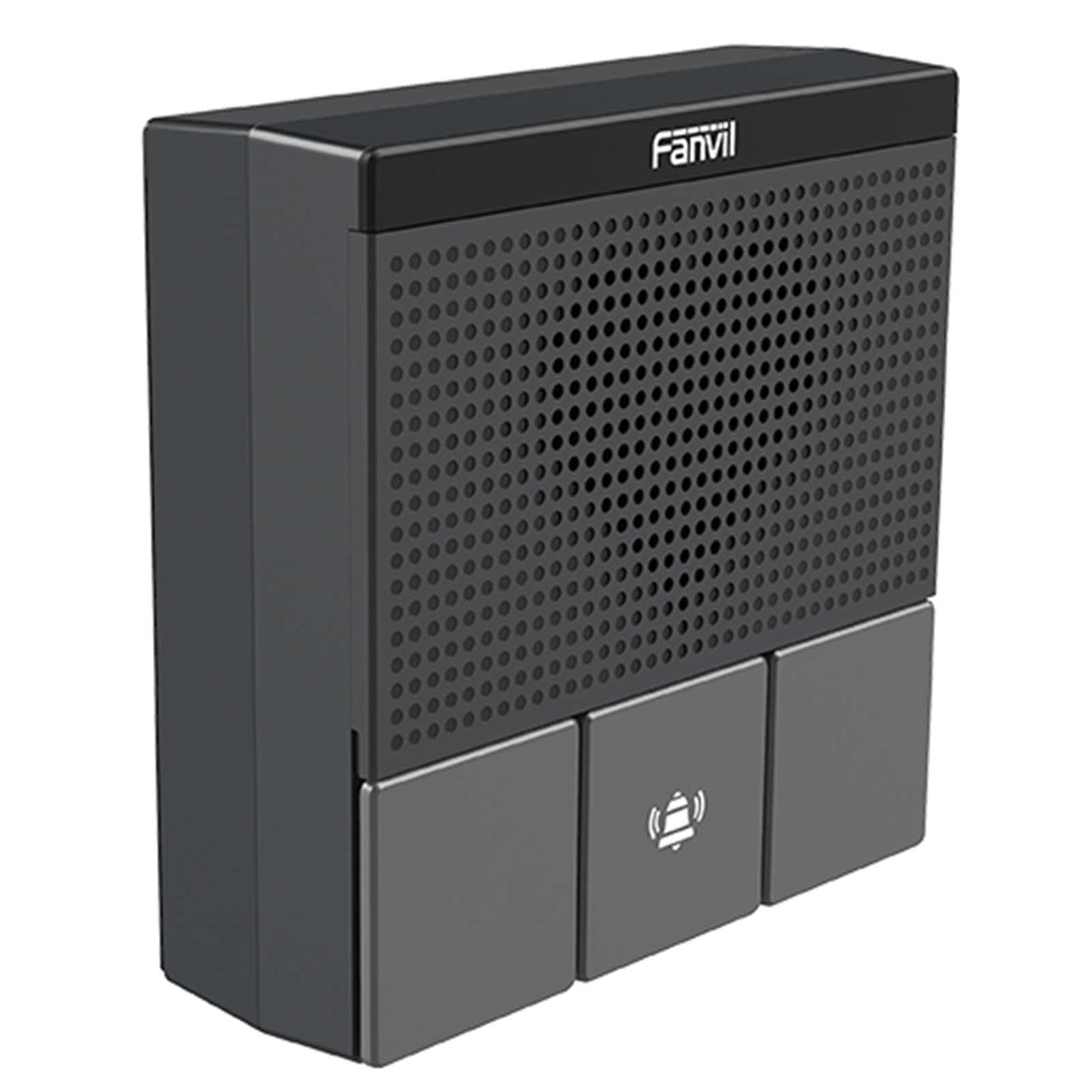

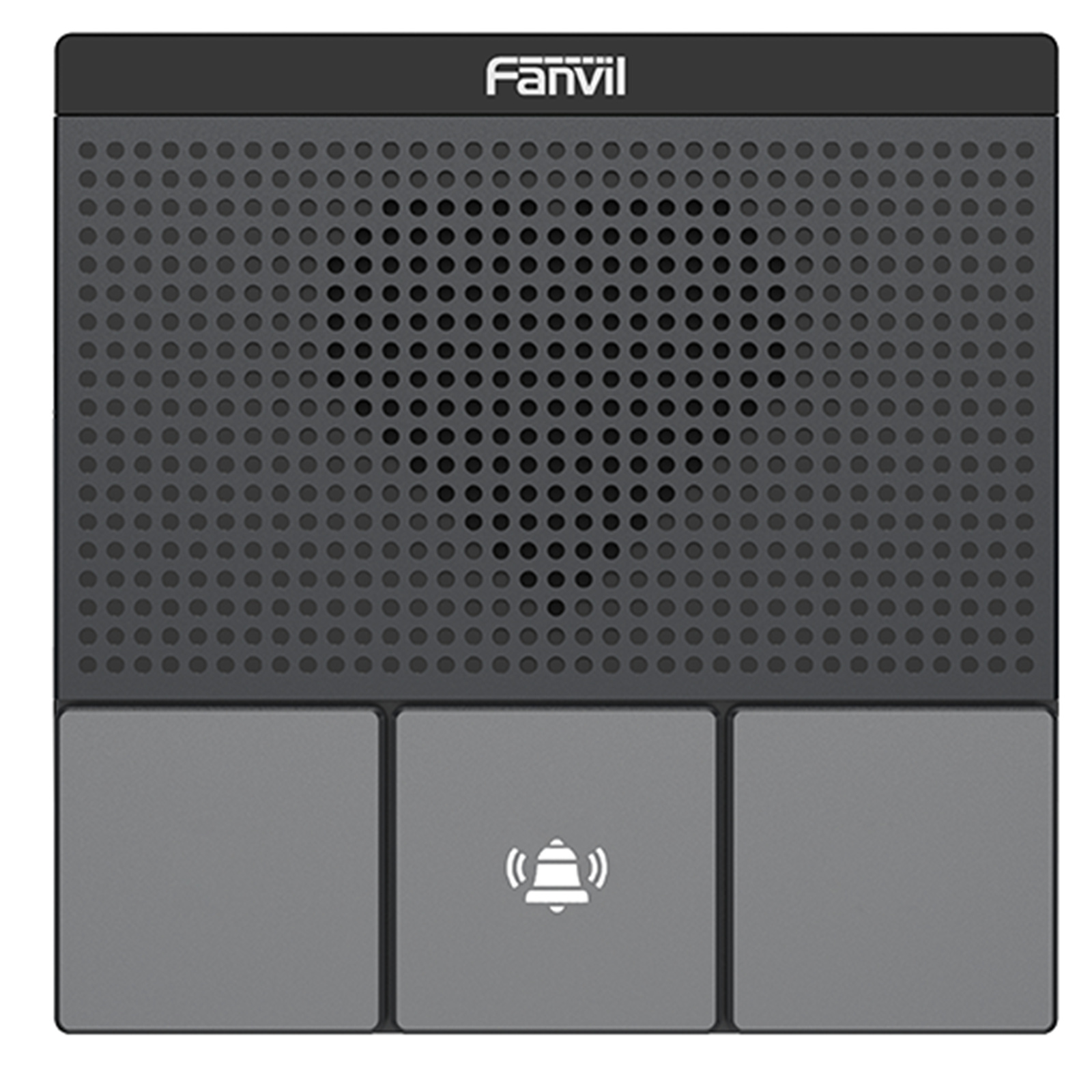

Fanvil A10W Dual band Wi-Fi mini intercom with 3 function buttons
Fanvil A10 Series SIP mini intercoms are designed for indoor scenes with security, intercom, and broadcasting functionality. They have a compact and fashionable appearance, featuring 3 detachable function buttons that can be customized according to your needs. They have rich functions such as HD audio, IP54 waterproof and dustproof, and built-in 2.4G & 5G Wi-Fi (A10W/A10W-E), providing a high-quality communication experience for the user. Moreover, they support wall mountable(A10/A10W) and standard 86 box embedded(A10-E/A10W-E) installation for more indoor application scenarios.
Specifications
Networking
Physical
10/100 Mbps Ethernet
Wi-Fi
2.4G (A10W)
IP Mode
IPv4/IPv6/IPv4&IPv6
IP Configuration
Static / DHCP / PPPoE
Wi-Fi Encryption
WPA /WPA2-PSK /802.X EAP
VPN
L2TP / OpenVPN
Audio
Narrowband Codec
G.711a/u, G.729AB, G.723.1, G.726, iLBC
Wideband Codec
G.722, Opus
DTMF
In-band, Out-of-Band - DTMF-Relay (RFC2833) / SIP INFO
other
Duplex intercom with Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
Physical Specifications
A10 Series
3 DSS button
Status indicator light
Fast flashing red (registration failed?network anomaly)?Slow flashing green(call)
Interface
1 RJ45 port
1 short circuit input interface
1 relay
NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
Power
DC12V/1A or POE
Power Consumption (Adapter)
1.42W~2.35W (A10W)
Power Consumption (PoE)
1.99W~3.05W (A10W)
Housing material
ABS
Installation
Indoor installation
Wall Mountable(A10W)
Color
Gunmetal
working temperature
-10 ~50 °C
Storage temperature
-20 ~ 50 °C
Relative humidity
10% - 90%
Equipment Dimension
87.56 x 87.56 x 30mm (Wall Mountable)
Packing Dimension
95 x 106 x 40mm
Item Weight
1.32 pounds
