Fanvil FAN-i10S i10S integrates access control & audio broadcasting functions foreaseofcommunication. And with its wide temperature adaptability (-20 C - 50 C) and being dustproof & waterproof, it can be used in various environments.
- Brand: Fanvil
- MPN: FAN-i10S
- Part #: IPHFAN1106

Product URL: https://www.pbtech.com/au/product/IPHFAN1106/Fanvil-FAN-i10S-i10S-integrates-access-control--au
Features

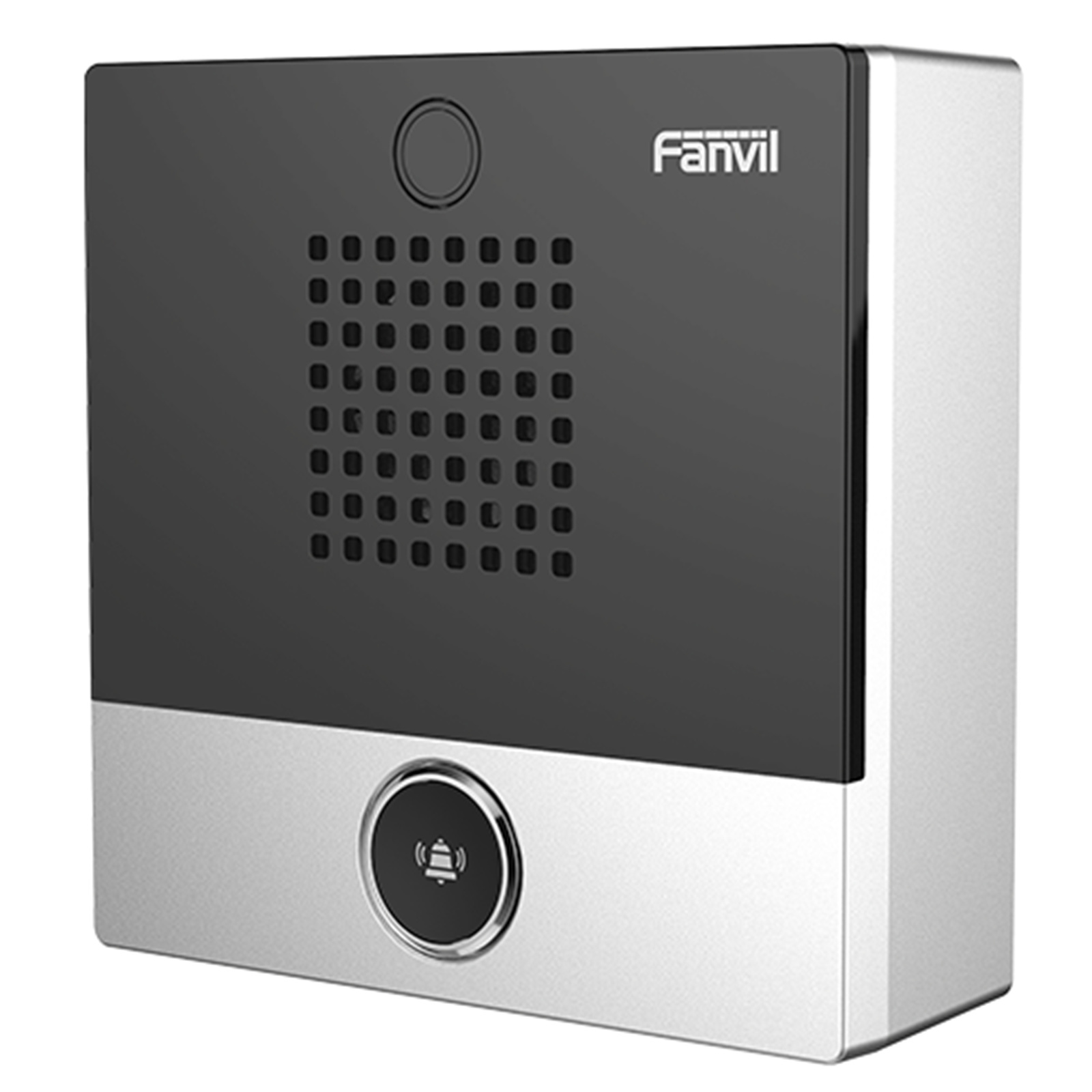

Fanvil i10S SIP Mini Intercom
This is designed for indoor use, featuring an IP54 waterproof and dustproof build for reliable performance in diverse conditions. With a focus on simplicity and convenience, it supports wall mounting, making it adaptable to various indoor settings. The i10S excels in providing a streamlined communication solution, seamlessly integrating security measures and broadcasting functionalities for users seeking a reliable and compact intercom system.
This compact intercom system prioritises ease of use and practicality, ensuring a hassle-free experience for users. Whether deployed in residential or commercial spaces, the i10S SIP mini intercom sets a high standard for indoor communication solutions, offering a balance of functionality and simplicity in its design.
- Easy installation and configuration.
- IP54 waterproof and dustproof.
- -20 °C to 50 °C wide range temperature adaptability.
- Built-in 1W speaker and Acoustic Echo Canceller (AEC).
- Built-in 1short circuit input/output interface.
- Functionality including security, intercom and broadcasting.
- Adaptive 10/100 Mbps network port, integrated PoE
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Specifications
General
2 SIP lines
Speed dial
Linkage with IP camera to realize video intercom
Oral announcement of the IP address(in English)
Switch signal input and output
Support programmable DSS key ports
PoE enabled
Device Functions
Auto-answering
Programmable DSS keys
Through web page volume adjustment
Network time synchronization
Time plan (task management)
Dynamic multicast function
Incoming call multicast
HTTP API
Action URL / Active URI
Call Functions
Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)
Audio
Narrowband codec: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
Wideband codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC
DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
Networking
Physical: 10/100 Mbps Ethernet
IP mode:IPv4/IPv6/IPv4&IPv6
IP configuration: Static IP / DHCP / PPPoE
VPN: L2TP / OpenVPN
VLAN
LLDP
Qos
Deployment and Management
Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web management portal
Web-based packet dump
Configuration export / import
Firmware upgrade
Syslog
Physical Specification
DSS Keys, follow model
i10S/i10SV: 1 DSS key (speed dial key)
i10SD: 2 DSS keys
RJ45 port x1: connect the network
WAN port: connect the network, Power over Ethernet (IEEE 802.3af), class 3
Short circuit input and output port x1 (built-in relay)
Relay: MAX DC30V / 1A, AC125V / 0.5A
Port: terminal socket
DC port: DC power input
DC power input: DC12V / 1A
Port: terminal socket
Protection level: IP54
Housing material: ABS
Installation: Wall-mounted
Working temperature: -20?~ 50?
Storage temperature: - 30?~ 60?
Working humidity: 10~95%
Device dimensions: 88x88x32 mm
