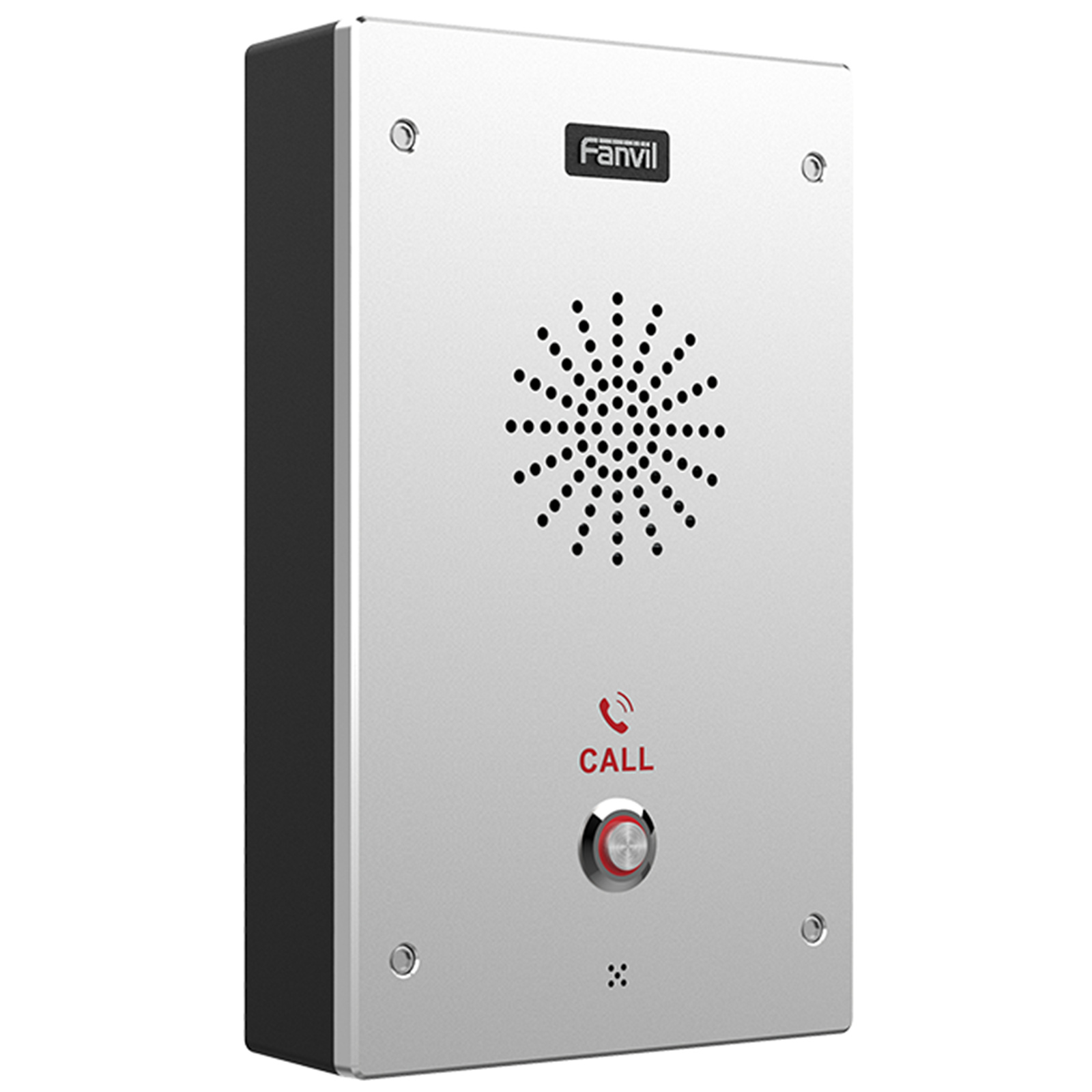

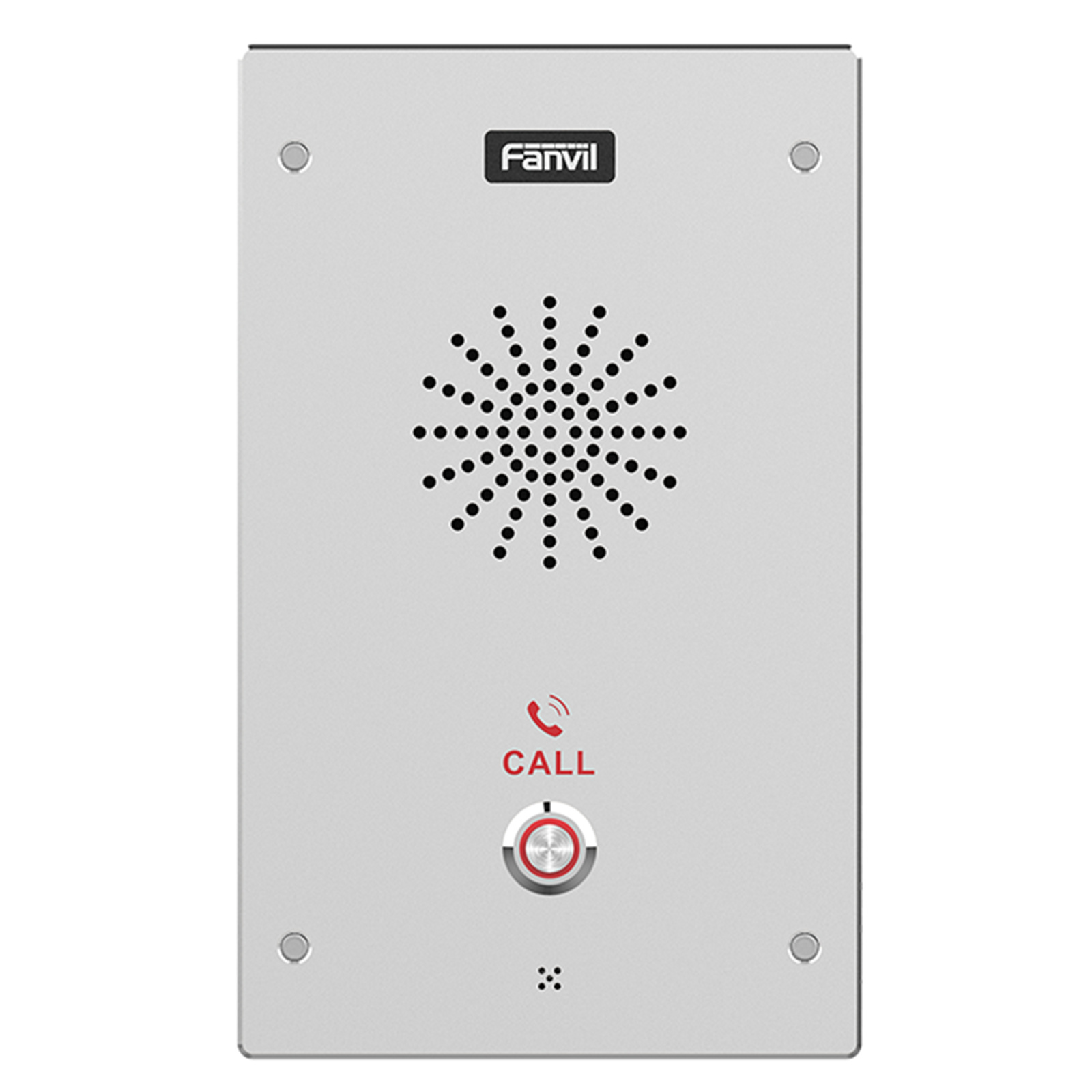

Fanvil i16S IP65/IK10 SIP Audio Intercom
This is a SIP intercom with exquisite appearance, integrating audio intercom and broadcasting functionalities. It supports wall mounting. With a dustproof, waterproof and anti-collision design rated at IP65 and IK10 protection grade, it can be applied in many indoor and outdoor scenarios and offer the best communication experience for users.
- IP65 waterproof and dustproof.
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
- Audio line out port, expandable external active speaker.
- Built-in 2 short-in detect port and 2 short-out control port
- Support built-in TF card slot for data storage or audio offline broadcasting.
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.
?Superior Intercom Experience with HD Audio
i16S intercom supports wideband codec G.722 and Opus, providing superior HD intercom experience. Built-in audio line-out interface enables it to do the broadcasting with an active speaker.
?Flexible Configuration for DSS Key
DSS key on Fanvil i16S can be configured as different functionalities on the webpage. Users can make an emergency call to the specified IP/SIP account.
?Achieve Local Broadcasting with TF Card
Fanvil i16S can be used to play the local music and audio prompt with a TF card up to 32G.
?Support Security Linkage, Make Alarm in Time
i16S can trigger the video monitoring of the camera or the alarm indicator with the short output port.
?Multiple Protection Design
Featured with IP65 and IK10 protection grade, dustproof, water- proof and anti-collision, and a wide temperature range from-30°C to 60°C, i16S/i16SV can be applied in many outdoor sce- narios.
?Easy Management
Configured via embedded web; Auto provisioning via Fanvil FDMS. Reduce operation and maintenance costs
Short Circuit Input & Output Interfaces
- Barrier Gate
- Electric Lock
- Alarm Indicator
- Door Magnet
- Indoor Switch
- PIR Sensor
Specifications
Functions
Device Functions
Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Time Plan (task management)
Incoming call multicast
Dynamic multicast function
HTTP API
Action URL / Active URI
Call Functions
Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)
Audio
Narrowband codec
G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
Wideband codec
G.722, Opus
DTMF
In-band, Out-of-Band (RFC2833/ SIP INFO)
Network
Physical
10/100 Mbps Ethernet
IP mod
IPv4/IPv6/IPv4&IPv6
IP configuration
Static IP / DHCP / PPPoE
VPN
L2TP / OpenVPN
Physical Specifications
DSS key (support LED)
1
RJ45 port
x1, connect the network
PoE enabled
Line out port
x1, connect the active speaker
Out: adjustable by volume, max up to1.2Vpp.
Port: terminal socket
Recording output port
x1, connect audio device
Out: mixed output of local microphone voice and call voice recording
Impedance: 15 Ohm
Port: terminal socket
Short circuit input and output port x2 (built-in relay)
Relay: MAX DC30V / 2A, AC125V / 0.5A
Active switching output: 12V/500mA DC(only 1 relay support)
Port: terminal socket
Tamper alarm switch
1
TF card slot
x1, connect TF card
DC port x1
DC power input
DC power input
DC12V~24V/1A
Port
2 Pin terminal socket
PoE level
Class 3
Protection level
IP65 and IK10
Housing material
aluminum alloy shell
Installation
wall-mounted
Working temperature
-30? ~ 60?
Storage temperature
- 40? ~ 70?
Working humidity
10~95%
Device dimensions
195x120x40 mm
