Fanvil i504 SIP Indoor Station
- Brand: Fanvil
- MPN: FAN-i504
- Part #: IPHFAN1111

Product URL: https://www.pbtech.com/au/product/IPHFAN1111/Fanvil-i504-SIP-Indoor-Station
Features

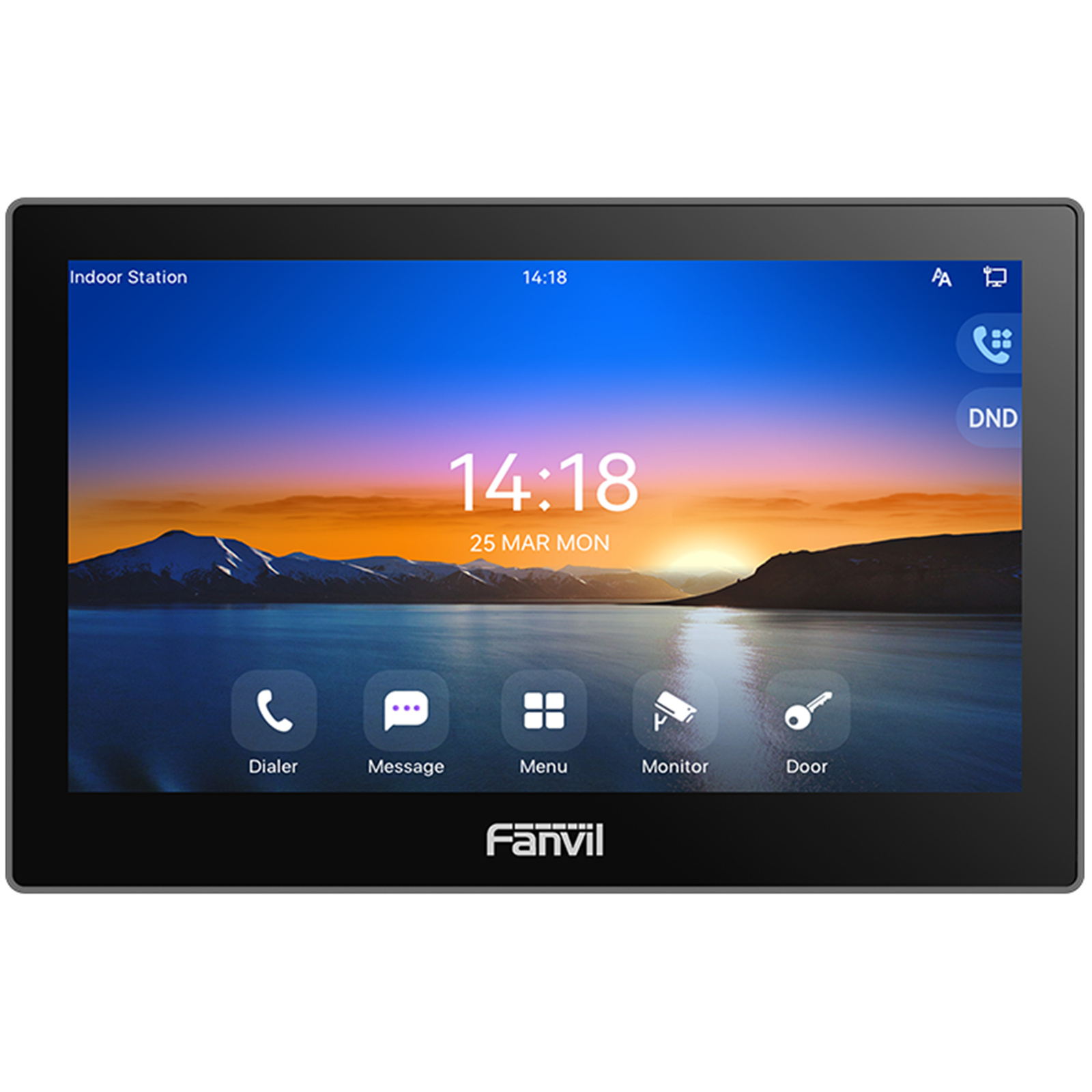

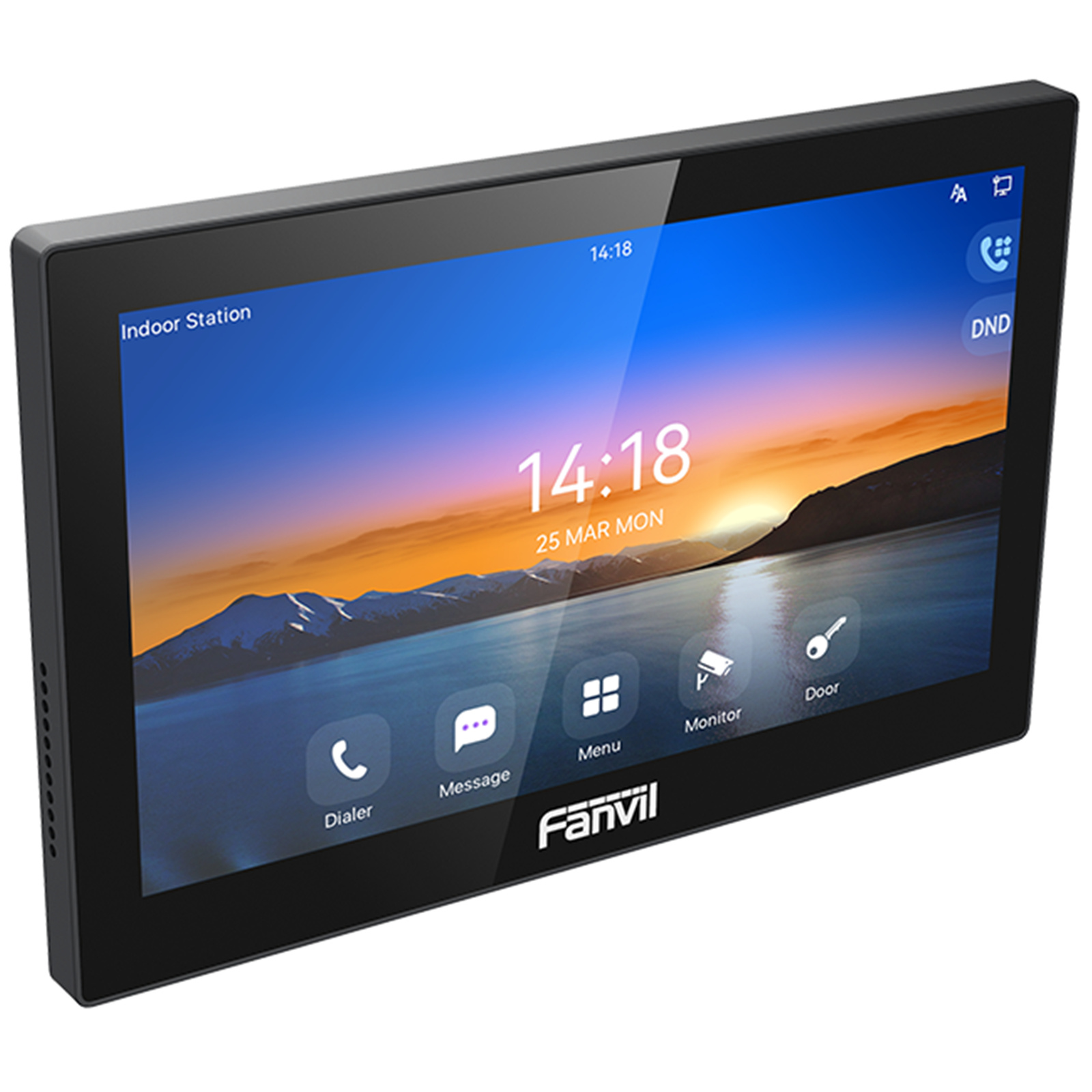

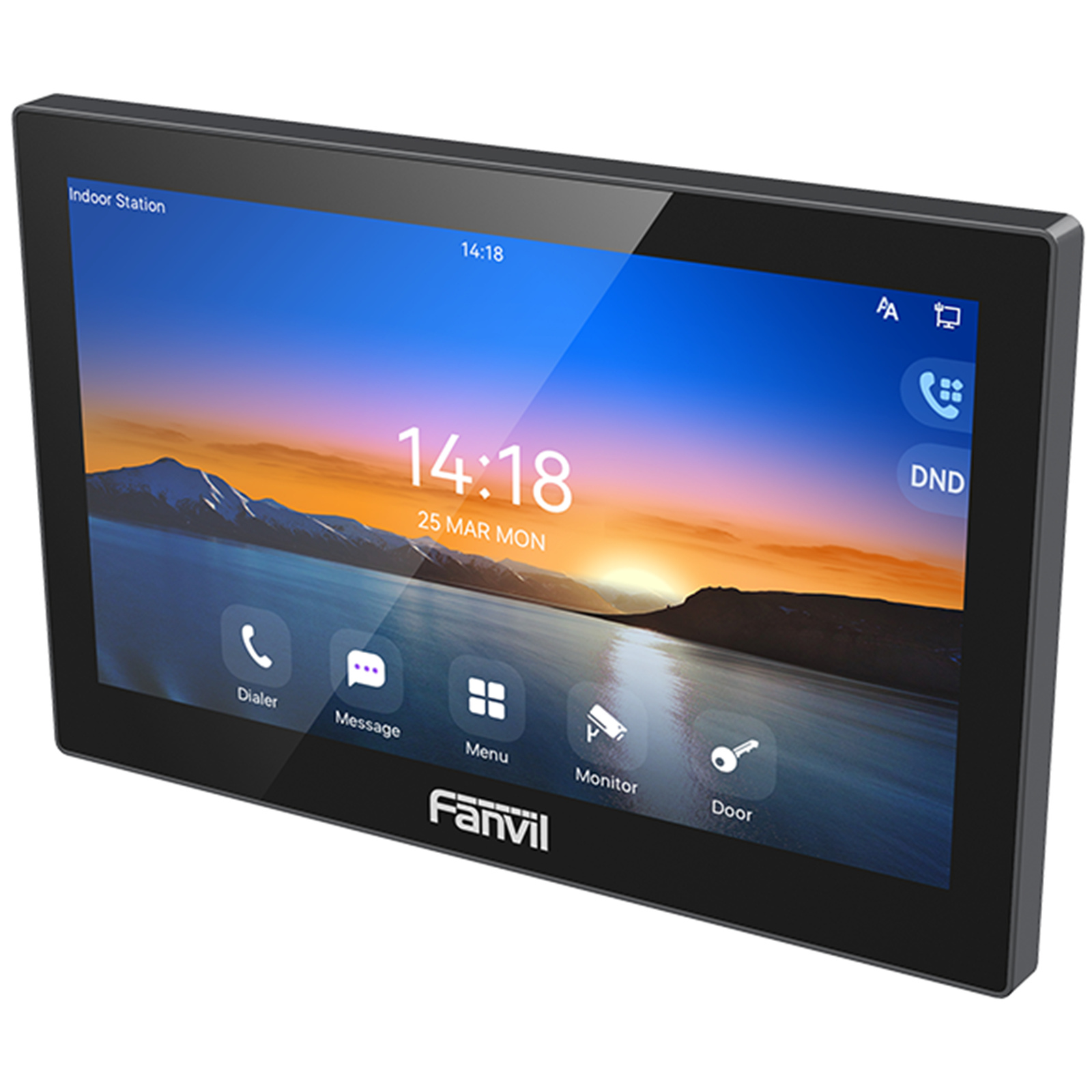

The i504 is a 7-inch touch screen indoor station, featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.

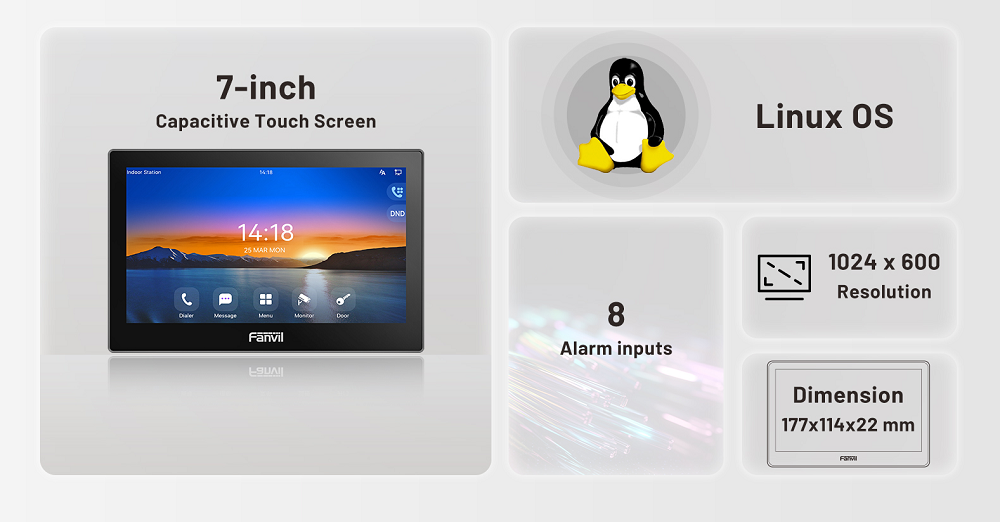

- 7-inch(1024 x 600) capacitive touch screen
- Support video codec 1080p@ 30fps
- Check real-time video of third-party IP cameras and door phone to ensure security
- Built-in 2W speaker and AEC to achieve high-quality hands-free call Support 8 alarm input interfaces, 1 short circuit output interface, 1 doorbell input interface, and 1 RS485(Reserved)
- Powered by PoE or external source
HD Video Call Remote Door-opening
i504 supports 1080p video codec, delivering premium HD video calls. Users can preview video to confirm visitors' identities and open the door remotely with just one click.

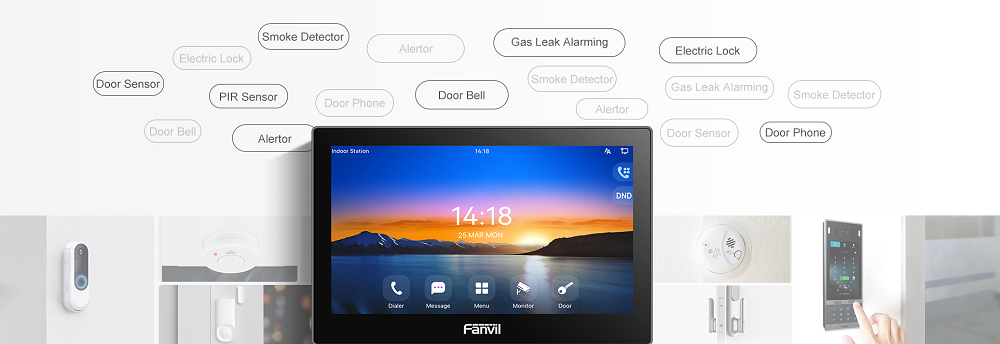

High-scalability with Rich Interfaces
i504 features rich input and output interfaces, which are easy to connect with other security devices and customize into various solutions.
Application Scenarios
- Villas: Indoor stations throughout the villa receive a call simultaneously, allowing users to remotely open the door with a single press from any station.
- Community: Residents can contact the community management center for assistance or services through indoor stations.
- Hotel: Customers can view corridor surveillance at any time and promptly report emergencies.

Specifications
Model No.
i504
Panel type
Community, Hotel, Villa
Screen
7-inch color capacitive touch screen 1024×600
Body
ABS
Speaker
2W
Wi-Fi
2.4G/5G(i504W Supported)
Interface
8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
Network
10/100 Mbps adaptive
Power Supply
DC 12V / 1A
PoE 802.3af
Power Consumption
PoE: 3.65~6.64W
Adapter: 2.71~5.53W
Working Temperature
-10°C~50°C
Storage Temperature
-40°C~80°C
Working Humidity
10%~90%
Size (LWH)
177.38x113.99x22.5mm
Installation
Wall-mounted
Supported Protocols
SIP 2.0 over UDP/TCP/TLS
Audio
Narrowband audio codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLB
Broadband audio codec: G.722, OPUS
Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)
Video
Hardware video decoding: H.264,H.265 (Opention)
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
DTMF
In-band, out-of-band DTMF (RFC2833), SIP Info
Do Not Disturb (DND)
Supported, and the time can be user-defined
Additionally
Supports viewing video from third-party IP cameras
Supports customizing incoming call ringtones
Supports remote door unlocking
Supports sending/receiving messages
