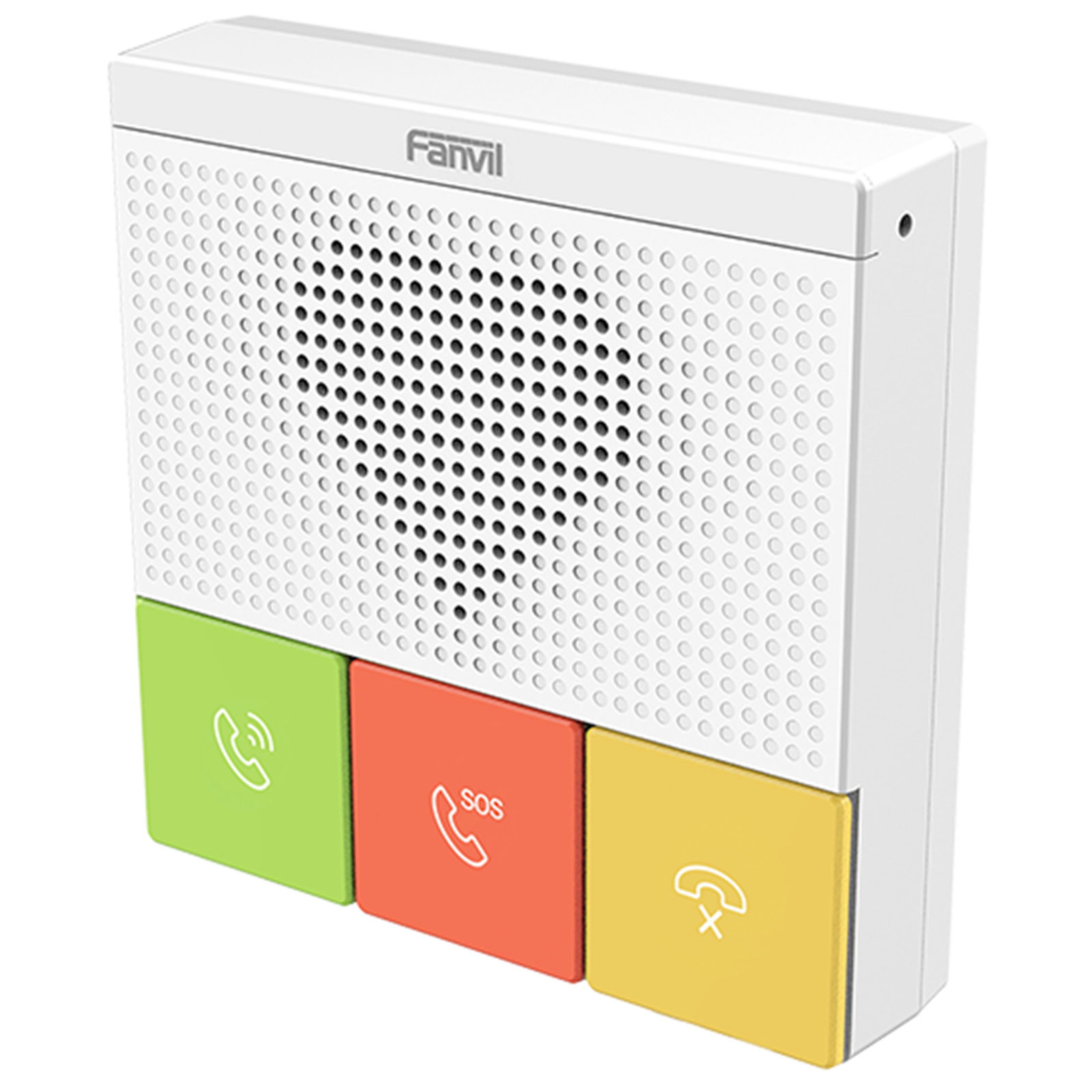

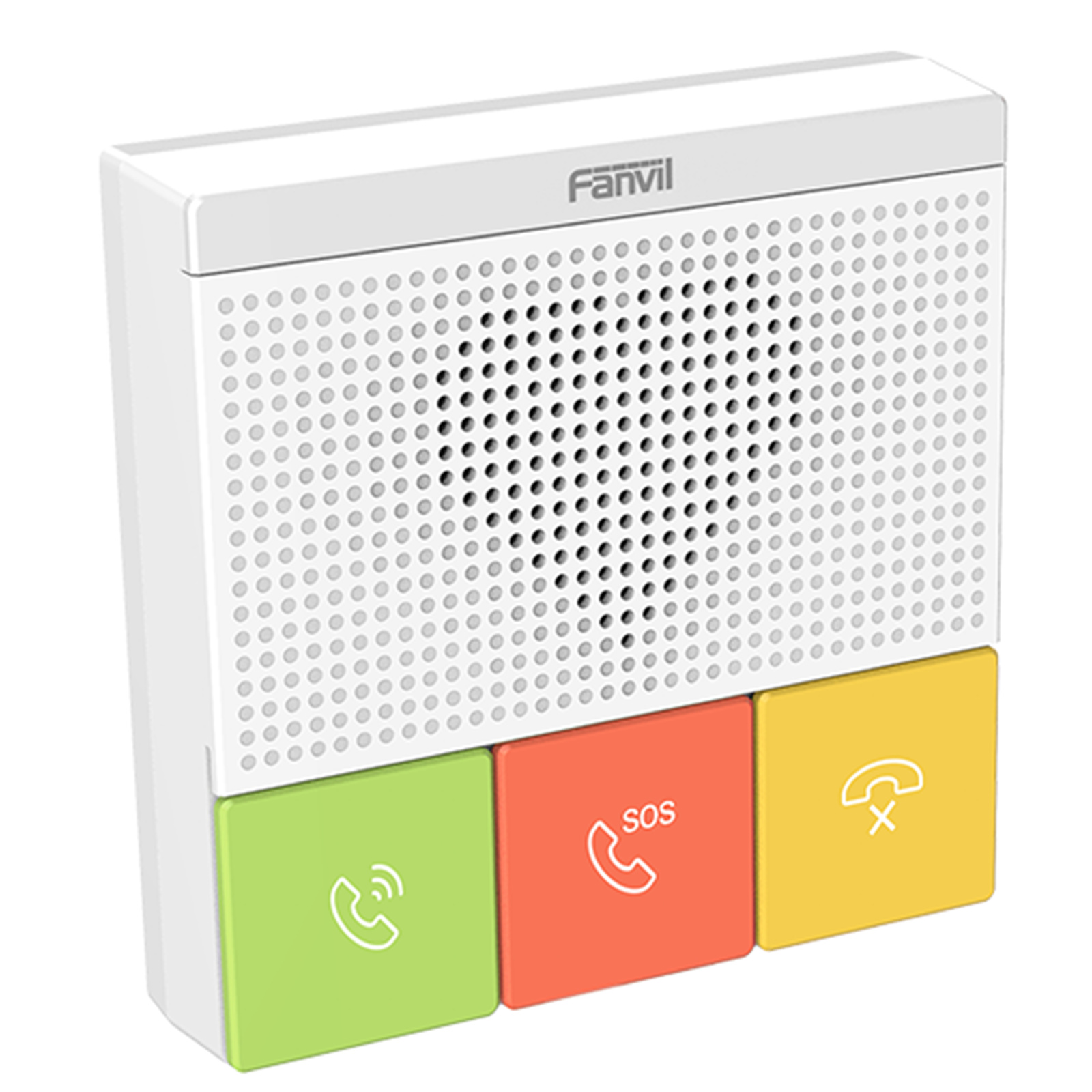

Fanvil Y501 SIP Healthcare Intercom
- Support specific 433MHz wireless button (Fanvil KT10&KT20)
- Features 2 SIP accounts and 3 antibacterial material detachable function buttons
- Support HD audio with codec G.722 and Opus
- Built-in 1 short circuit input/output interface
- IP54 waterproof and dustproof
- Support PoE power supply
- Support wall mountable installation
Compact and Reliable
Y501 series have a colorful appearance that can be located quickly and accurately by seniors. Equipped with 3 detachable DSS keys with antibacterial material, they allow users to customize the functionalities according to what they need.
Wireless Emergency Button in Hand
With built-in 433MHz wireless module, Y501 series support wireless buttons (KT10 & KT20 & KT30) for remote one-click calls. Call for help in an emergency when you can't get to the intercom.
Superior Intercom Experiencewith HD Audio
Y501 series have built-in 2W speaker and Acoustic Echo Canceller (AEC). They support wideband codec G.722 and Opus, providing superior HD intercom experience.
One-click Call, Instant Response
When seniors or patients press the Call/Emergency button on Y501 series for help, the host machine and other extensions will receive the call informationsimultaneously, providing timely response to users' needs.
External Connection for Security Alarm
Y501 series have 1 short-circuit input and 1 short-circuit output interface. They support external emergency buttons, sensors, alarm lights, and other security equipment, providing timely response to emergencies.

Specifications
Model No.
Y501
Network
10/100Mbps
Button
3
PoE
Yes
Wi-Fi
No
Installation
Wall Mountable
SIP Line
2
Camera
No
Standalone intercom-No Central Unit /Server Needed
Yes
RTSP
No
ONVIF
No
HD Video(720P)
No
Linkage with Third Party IP Camera
No
Built-in Electric Relay
1
Audio Line-in/Line-out
No
Power Supply PoE
Yes
Built-in 12V DC
Yes
Tamper-Proof
No
Protection Level
IP54
Wide Temperature Range
-10°C~50°C
Power Amplifier
2W
Short Circuit Output
1
Short Circuit Input
1
Auto-Provisioning via DHCP/TR069/SIP PNP
Yes
Integration with Third Party Systems
Yes
TF cardreader
No
MP3 broadcast
No
