Fanvil FAN-i60 i60 access control door phone
Fanvil FAN-i60 i60 access control door phone
- Brand: Fanvil
- MPN: FAN-i60
- Part #: IPHFAN1179
- UPC:
View all shipping info
- Brand: Fanvil
- MPN: FAN-i60
- Part #: IPHFAN1179
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Business Phones





Fanvil FAN-i60 i60 access control door phone
- Brand: Fanvil
- MPN: FAN-i60
- Part #: IPHFAN1179

Product URL: https://www.pbtech.com/au/product/IPHFAN1179/Fanvil-FAN-i60-i60-access-control-door-phone
Features

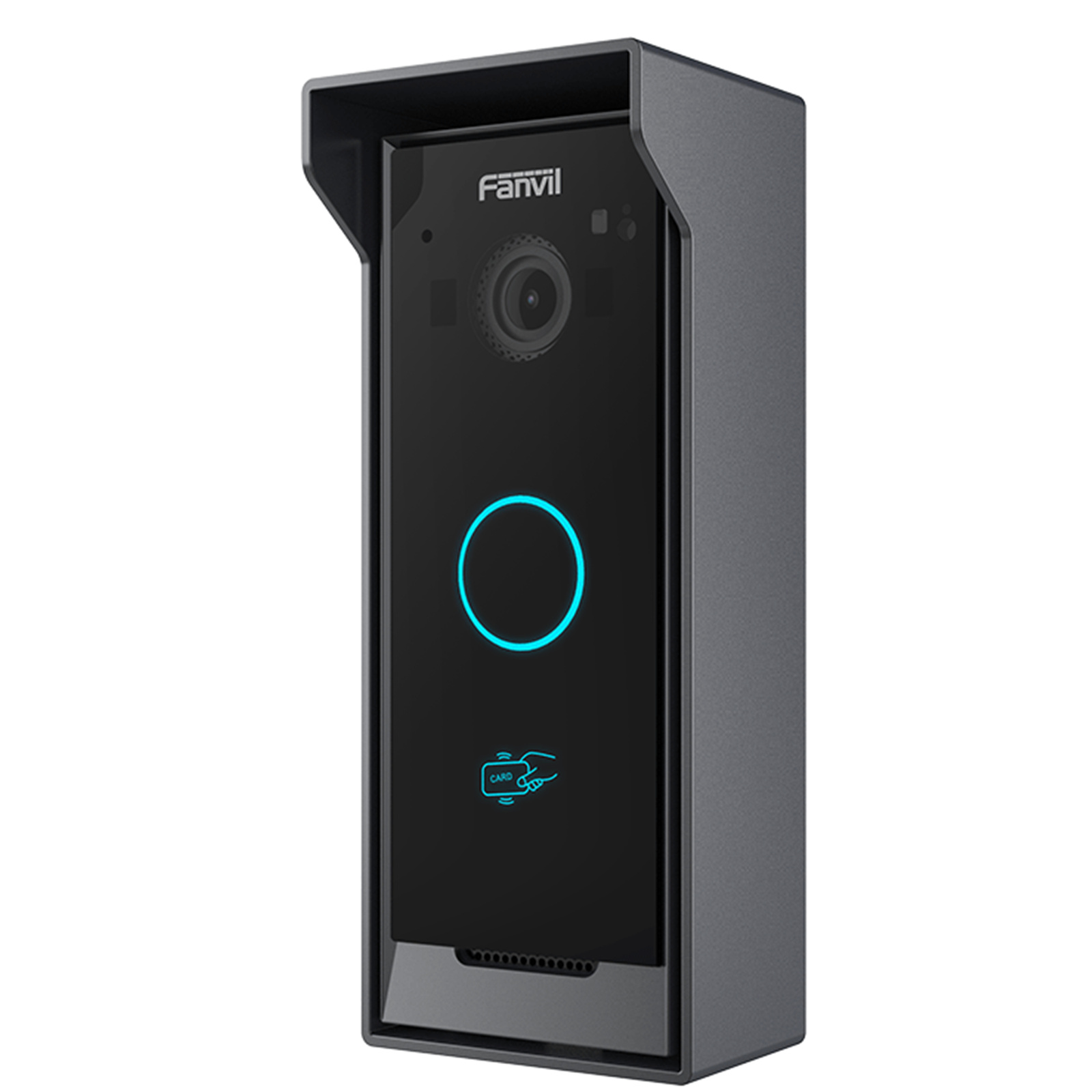

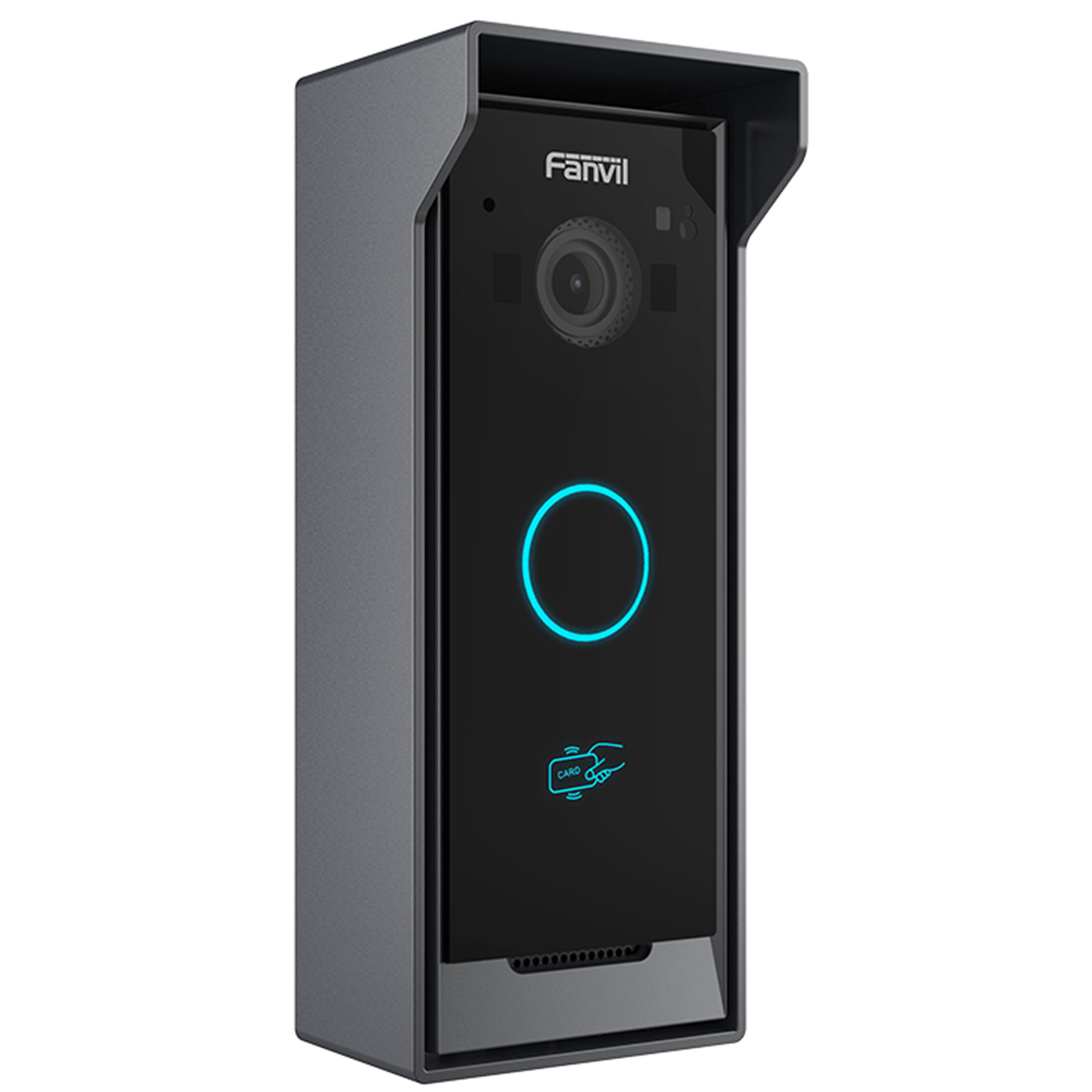

Fanvil i60 is a compact video door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as BLE, IC cards, remote DTMF and indoor switches for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.
- High protection level of IP65, wide temperature range from -40°C to 70°C
- Support multiple access methods: BLE, IC cards, DTMF, indoor switches
- Equipped with 1 speed-dial button
- 2 mega-pixel wide-angle camera with night vision
- Compatible with ONVIF standard protocol
Compact and Convenient
i60 boasts a compact design that saves space and allows for effortless installation. It features a physical speed-dial button with a tri-color indicator, ensuring user-friendly operation even in low-light conditions.
High Protection Level
Featuring high waterproof and dustproof capabilities with a wide temperature range from -40°C to 70°C, the 160 performs well in most outdoor environments. Anti-tamper will alarm and report to the control center when the cover is unauthorized opened.
Efficient Access Control
i60 allows users to achieve access control with mobile App, BLE, IC cards and DTMF code. It provides clear video image even in darkness with an infrared night-vision camera.
Remote Door Opening with Fanvil Link App
Residents can enable Bluetooth Unlock permission in the Fanvil Link App and conveniently unlock the door by simply shaking their phones.
Specifications
Panel Type
Multi-apartment, Community, Villa
Keyboard
1 Speed-dial Button
Body
ABS+PC
Colors
Panel: black, Housing: Gunmetal
Sensor
1/2.9-inch,CMOS
Camera
2 Mpx, Support infrared
Viewing Angle
140°(FOV) 100°(Horizontal) 57°(Vertical)
Output video
H.264 (Baseline, Main Profile)
Light Sensitivity
0.1Lux (Infrared/White light fill light)
Card Storage
1,0000
Power Consumption
PoE:1.63~6.93W
Adapter: 1.51~6.16W
Power Supply
DC 12V / 1A
PoE 802.3af Class 3
Working Temperature
-40℃~+70℃
Storage temperature
-40℃~+70℃
Size of the Panel (LWH)
50*130*30mm
IP / IK Level
IP65
Installation
Wall-mounted
Rain cover
Functional Capabilities
Supported Protocols
SIP 2.0 over UDP/TCP/TLS
Lock Opening
IC Card,By DTMF Code,Remote Door Opening, BLE
Interface
Wiegand Input/Output
Short Circuit Input/Output
Supported Wiegand
26, 34 bit
Supported ONVIF Types
Profile S
Supported Standards
DTMF, IC Card, Indoor Switch, BLE
Cards
13.56 MHz
Talking Mode
Full duplex (High-definition Audio)
Additionally
Built-in relay,Motion detection,Tamper Alarm,TF Card,Open API
