Fanvil FAN-i60K i60K access control door phone
- Brand: Fanvil
- MPN: FAN-i60K
- Part #: IPHFAN1180

Product URL: https://www.pbtech.com/au/product/IPHFAN1180/Fanvil-FAN-i60K-i60K-access-control-door-phone
Features

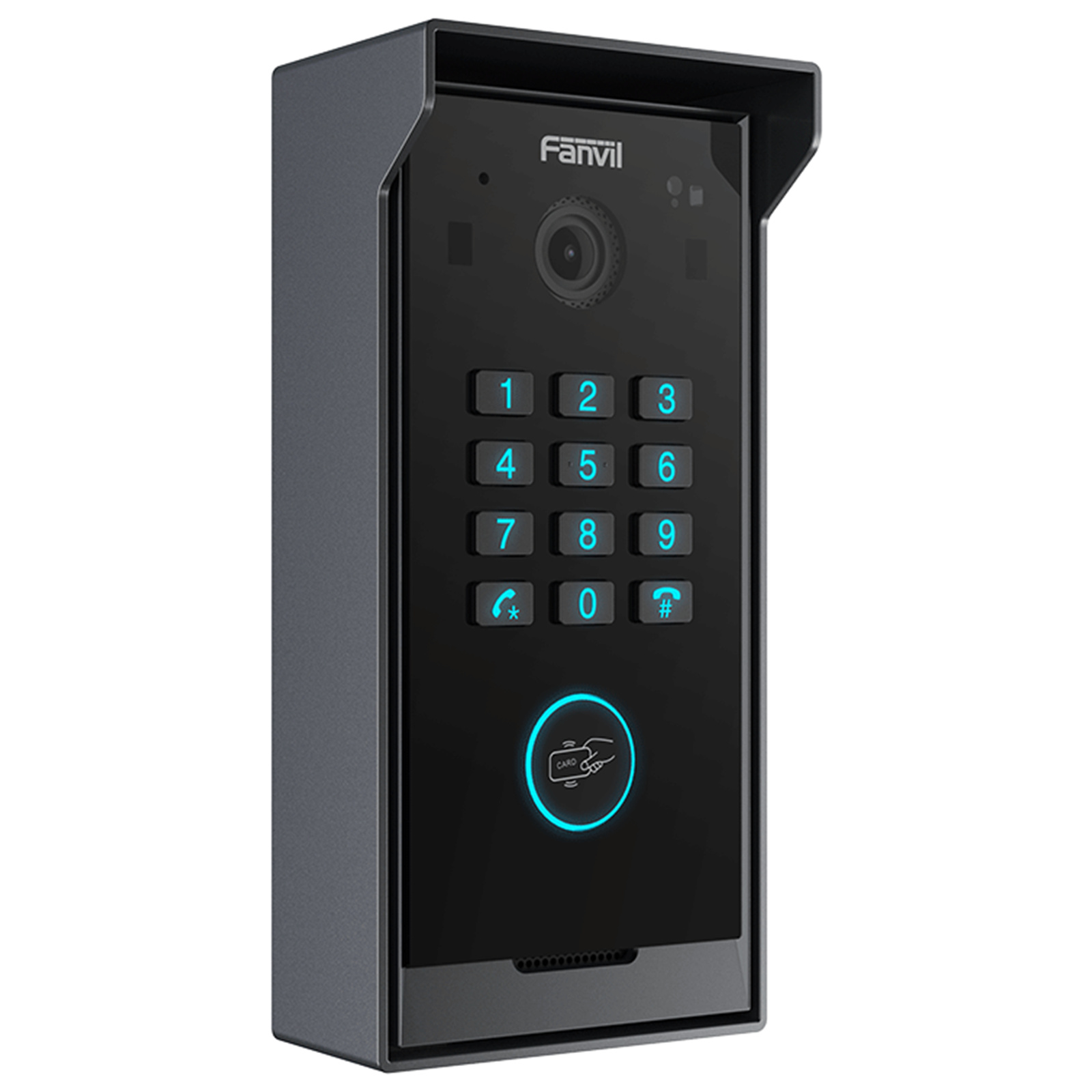

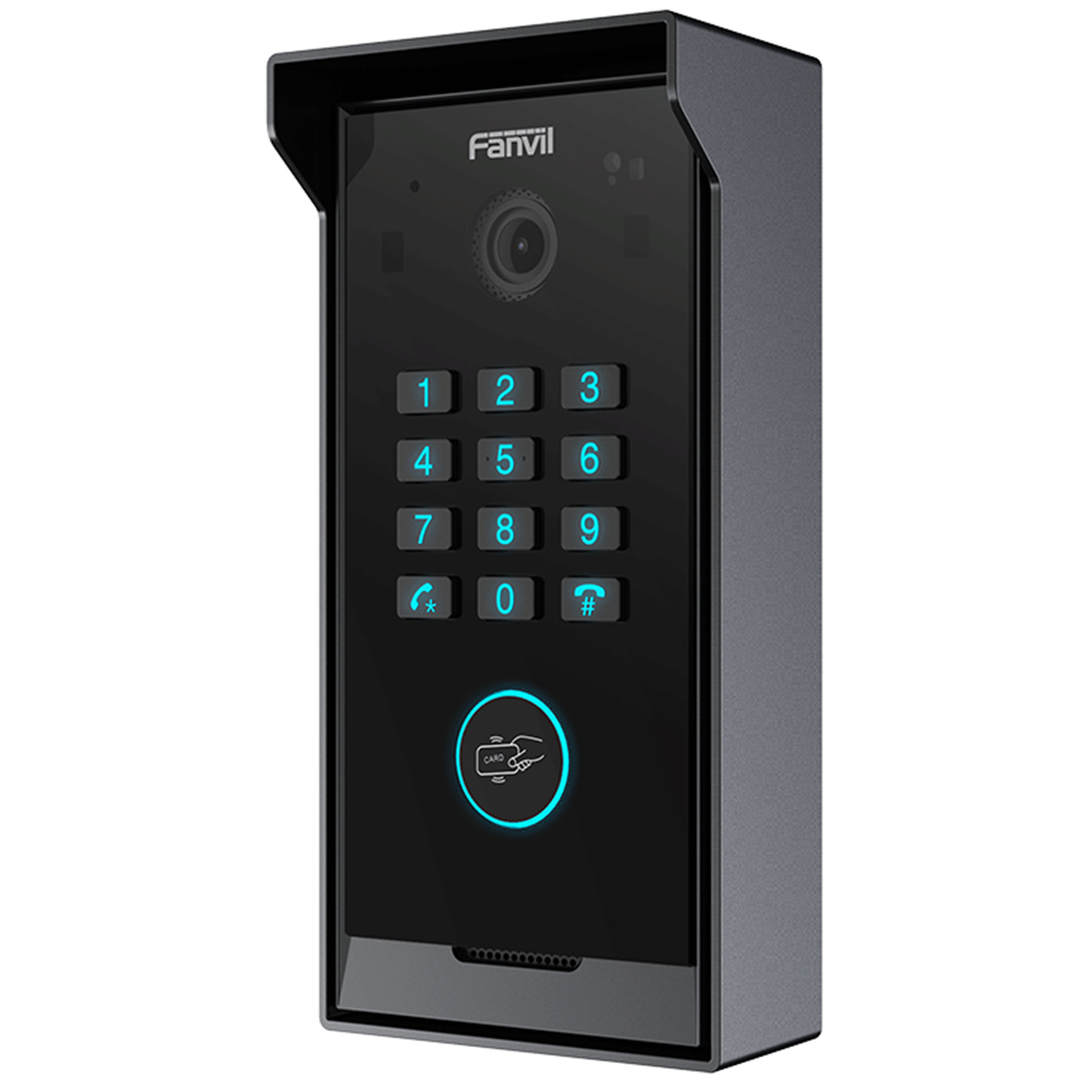

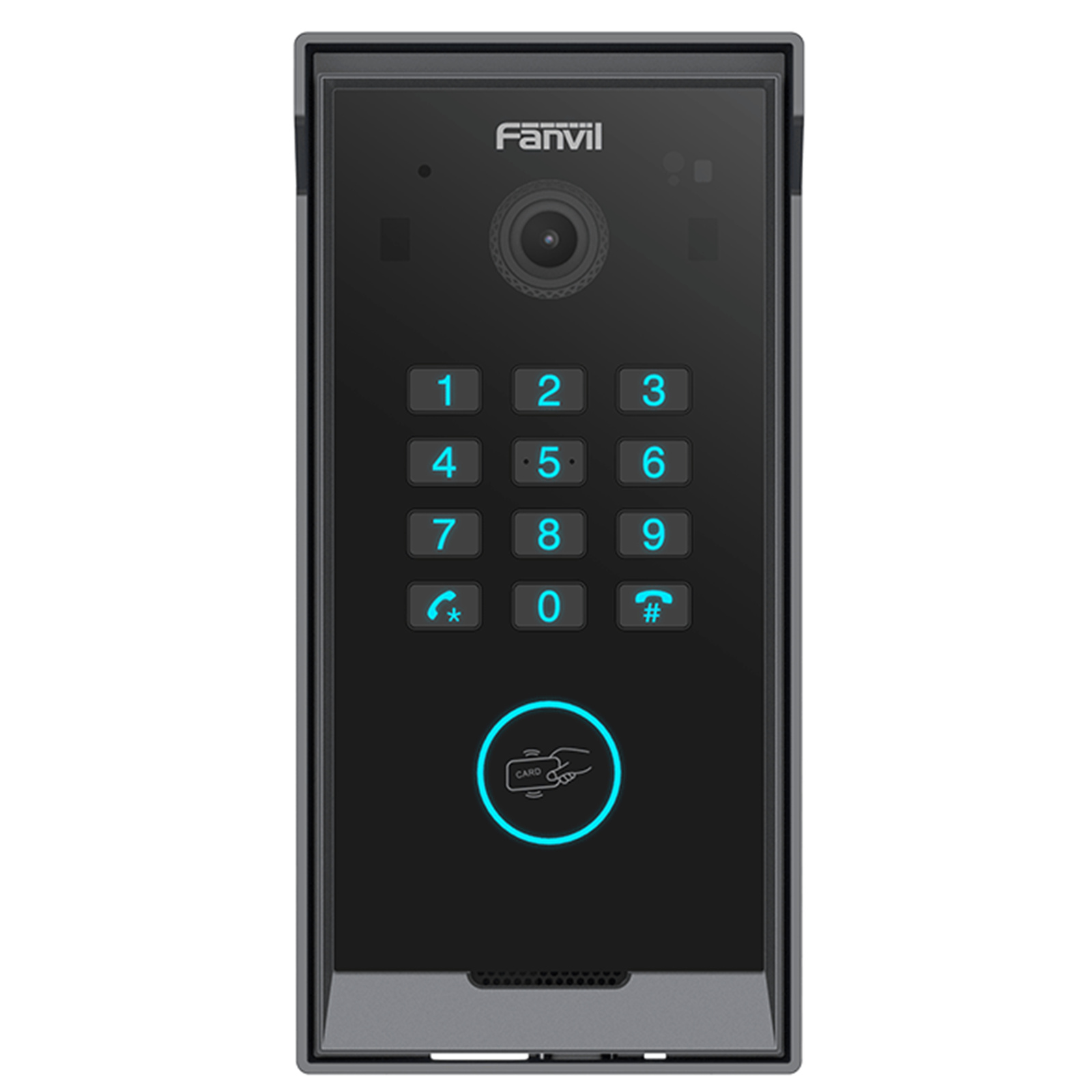

Fanvil i60K is a video door phone with a speed-dial button, a numeric keypad, and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as password, BLE, IC cards, remote DTMF and indoor switches for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.
- High protection level of IP65, wide temperature range from -40°C to 70°C
- Support multiple access methods: BLE, password, IC cards, DTMF, indoor switches
- Equipped with 1 speed-dial button and a numeric keypad
- 2 mega-pixel wide-angle camera with night vision
- Compatible with ONVIF standard protocol
Compact and Convenient
i60K boasts a compact design that saves space and allows for effortless installation. Equipped with a speed-dial button with a tri-color indicator and a numeric keypad with blue backlight, it allows users to operate easily in low-light environments.
High Protection Level
Featuring high waterproof and dustproof capabilities with a wide temperature range from -40°C to 70°C, the i60K performs well in most outdoor environments. Anti-tamper will alarm and report to the control center when the cover is unauthorized opened.
Efficient Access Control
i60K allows users to achieve access control with mobile App, BLE, DTMF code, IC cards and password. It provides clear video image even in darkness with an infrared night-vision camera.
Remote Door Opening with Fanvil Link App
Residents can enable Bluetooth Unlock permission in the Fanvil Link App and conveniently unlock the door by simply shaking their phones.
Specifications
Panel
Type Multi-apartment, Community, Villa
Keyboard
1 speed-dial button and a numeric keypad
Body
ABS+PC
Colors
Panel: black, Housing: Gunmetal
Sensor
1/2.9-inch,CMOS
Camera
2 Mpx, Support infrared
Viewing Angle
140°(FOV) 100°(Horizontal) 57°(Vertical)
Output video
H.264 (Baseline, Main Profile)
Light Sensitivity
0.1Lux (Infrared/White light fill light)
Card Storage
1,0000
Power Consumption
PoE:1.63~6.93W
Adapter: 1.51~6.16W
Power Supply
DC 12V / 1A
PoE 802.3af Class 3
Working Temperature
-40℃~+70℃
Storage temperature
-40℃~+70℃
Size of the Panel (LWH)
70.7*149.7*30mm
IP / IK Level
IP65
Installation
Wall-mounted
Rain cover
Functional Capabilities
Supported Protocols
SIP 2.0 over UDP/TCP/TLS
Lock Opening
IC Card,By DTMF Code,Remote Door Opening, Password,BLE
Interface
Wiegand Input/Output
Short Circuit Input/Output
Supported Wiegand
26, 34 bit
Supported ONVIF Types
Profile S
Supported Standards
DTMF, IC Card, Indoor Switch, BLE
Cards
13.56 MHz
Talking Mode
Full duplex (High-definition Audio)
Additionally
Built-in relay,Motion detection,Tamper Alarm,TF Card,Open API
