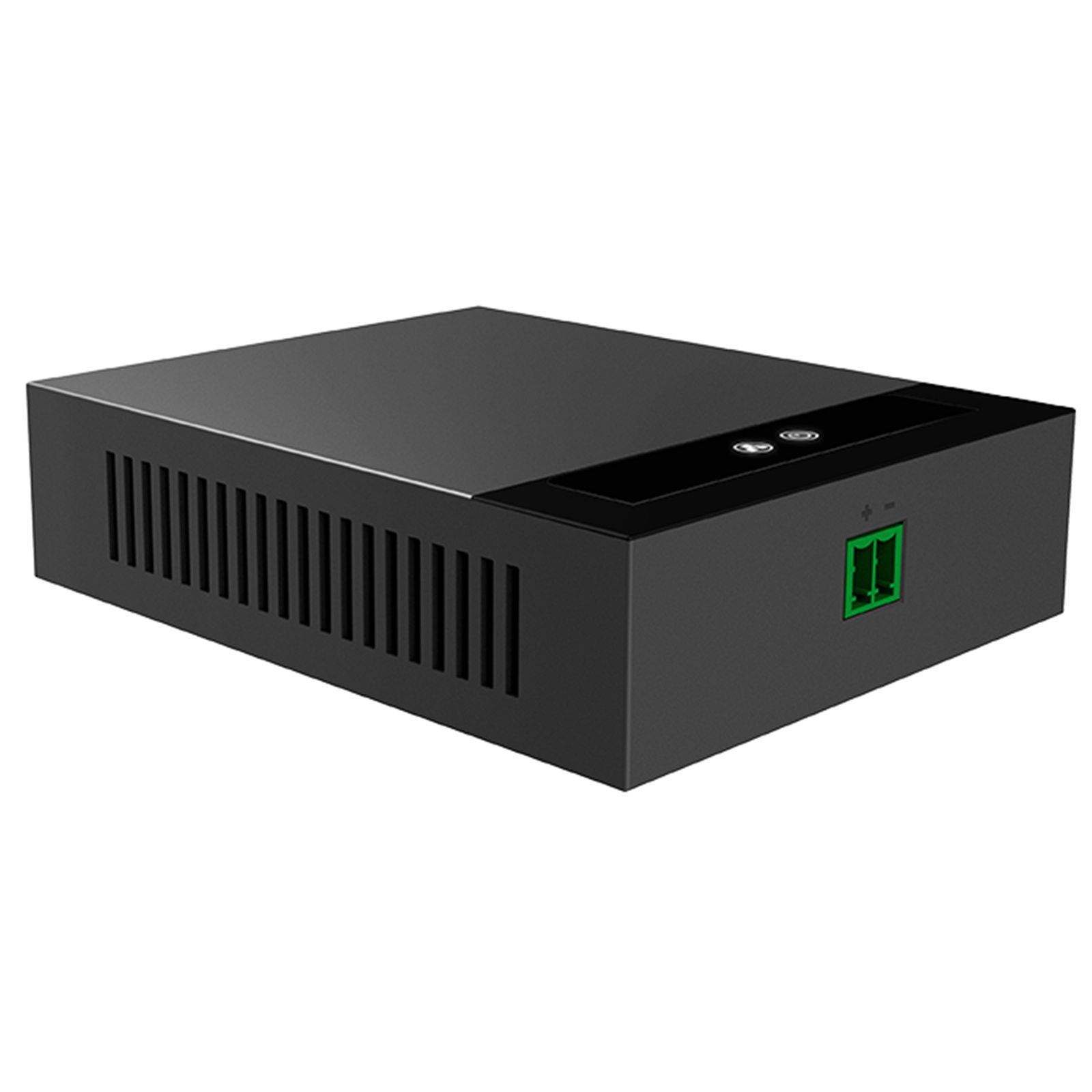

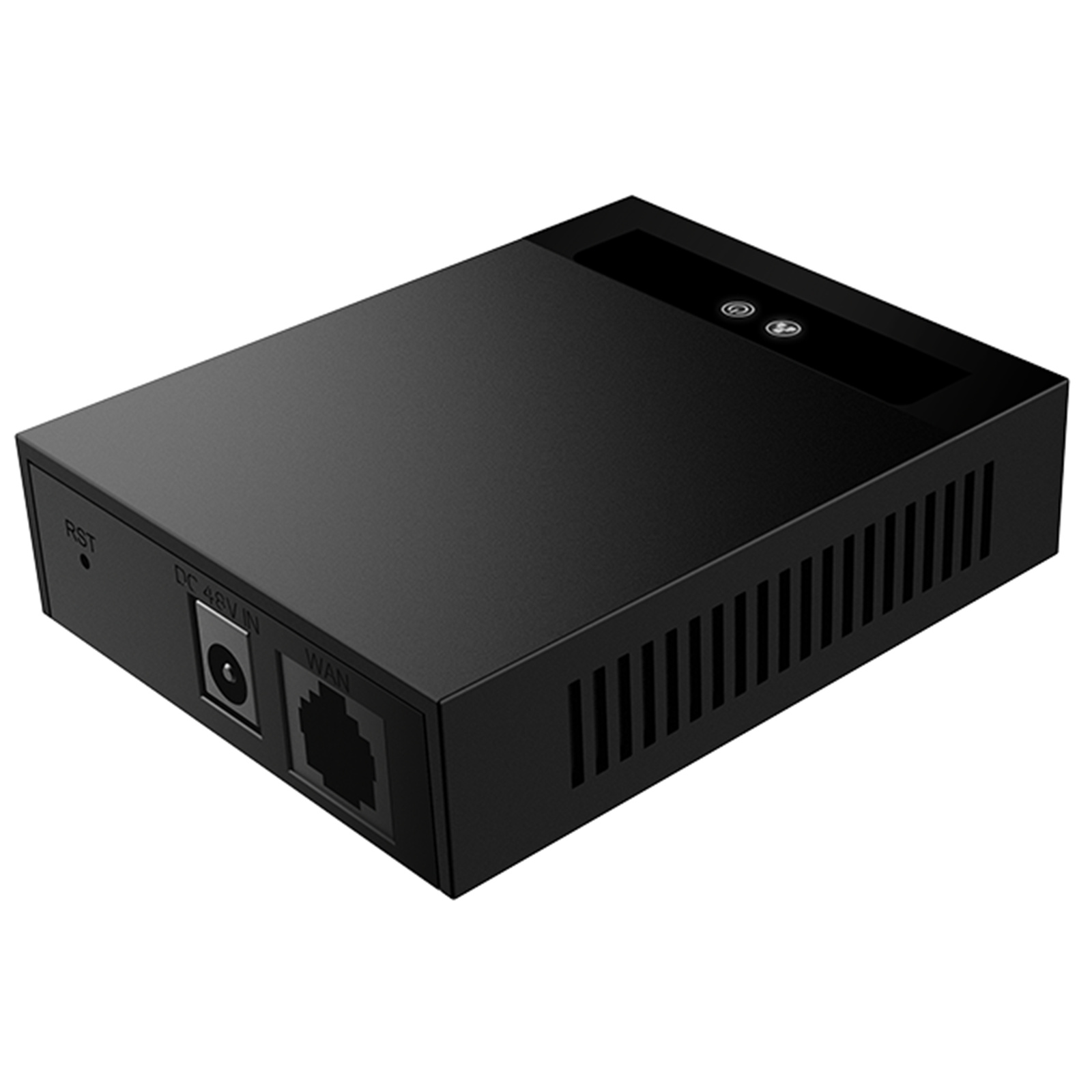

Fanvil PN1 1 Port Digital to 2-wire Converter
Fanvil PN1 1 Port Digital to 2-wire Converter
- Brand: Fanvil
- MPN: FAN-PN1
- Part #: IPHFAN1185
- UPC:
View all shipping info
- Brand: Fanvil
- MPN: FAN-PN1
- Part #: IPHFAN1185
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Business Phone Accessories





Fanvil PN1 1 Port Digital to 2-wire Converter
- Brand: Fanvil
- MPN: FAN-PN1
- Part #: IPHFAN1185

Product URL: https://www.pbtech.com/au/product/IPHFAN1185/Fanvil-PN1-1-Port-Digital-to-2-wire-Converter
Features
Fanvil PN1 is a 2-wire converter featuring a unique design that facilitates the reuse of existing wires. It requires no cumbersome installation or wiring, simply plug it in and it's ready to use. This not only saves installation time but also significantly reduces overall wiring costs. This innovative feature makes PN1 an ideal choice for quick and efficient deployment in existing infrastructure, providing users with a more convenient and cost-effective experience.
- Using 2-Wire to connect any PoE-enabled IP device
- Reuse existing wires (PSTN & RVV cables) to save wiring costs
- Support IEEE802.3af/at PoE output
- Compatible with PN8 and PN24 PoE switches for network and power supply,enabling flexible networking
- There is no master-slave distinction between the two PN1 converters
- Maximum transmission distance is up to 300 meters (Network & power supply)
PN1 2-Wire Converter
Enterprise Office
Apartment and Villa
Hospital and School
Specifications
Scenario
Community, Hotel, Villa, Renovation of an old building
Body
ABS
Color
Gunmetal
Ethernet Interface
Connector Type: RJ45
Speed: 10/100 Base T, auto-negotiation
IEEE 802.3 af/at PoE+
2-Wire Interface
2-wire port *1
Reset
1
Status Indicator Lights
Power indicator light (Red)
Network indicator light (Green)
Power
100V~240V input, max:80W output
Transmission Distance
300M (network and power supply),1600M (Only supply network), depends on wiring and interference
CAT 5e, 24AWG, RVV 2*0.5, or Similar
Working Temperature
-20°C~+50°C
Storage Temperature
-30°C~+80°C
Installation
Wall-mounted/Flush-mounted
