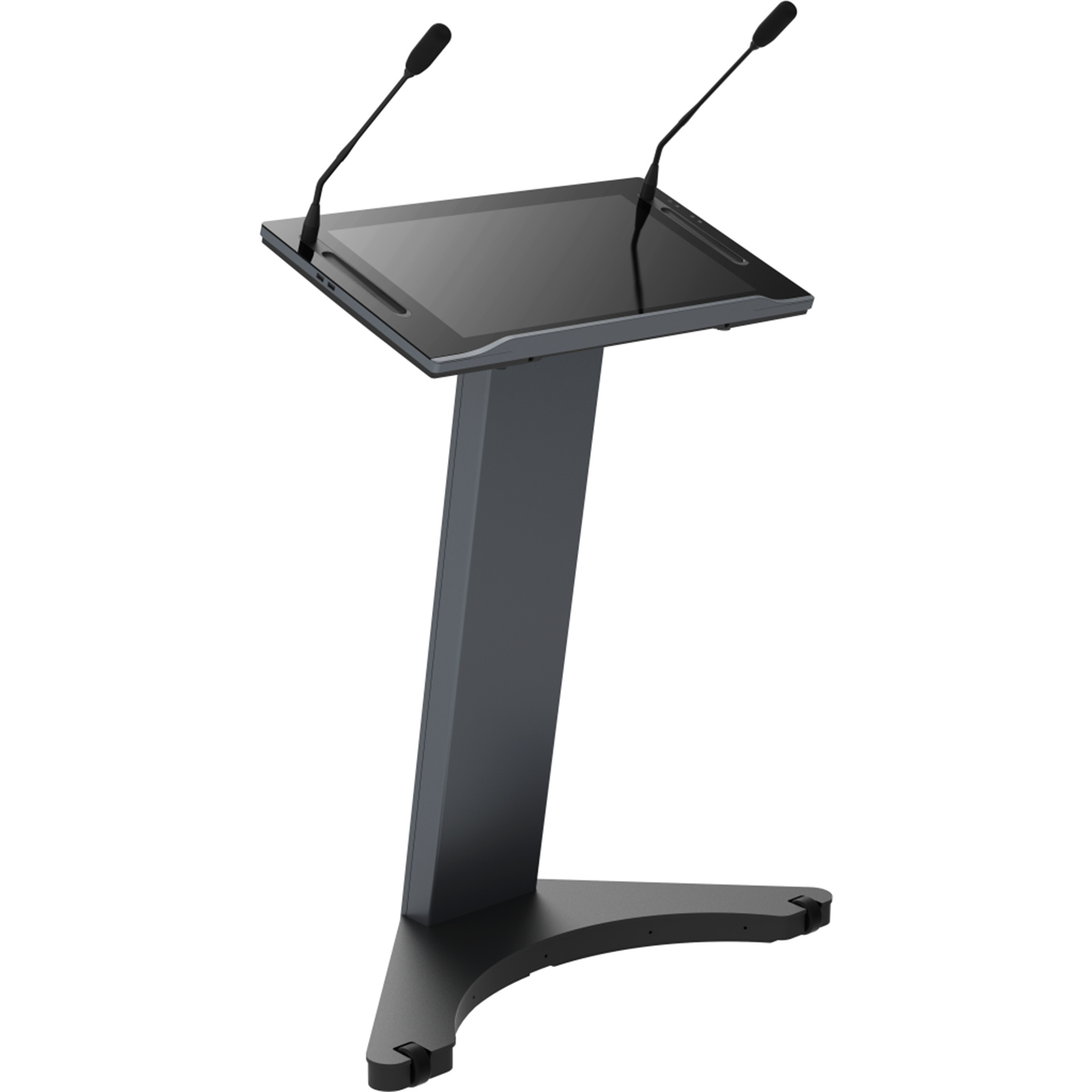

Maxhub Smart All-in-One Lectern - 21.5" Touch Screen, 2-Mics Array, 2 x 2.5W Speaker
Maxhub Smart All-in-One Lectern - 21.5" Touch Screen, 2-Mics Array, 2 x 2.5W Speaker
- Brand: Maxhub
- MPN: SL22MC
- Part #: IPHMHB2201
- UPC:
View all shipping info
- Brand: Maxhub
- MPN: SL22MC
- Part #: IPHMHB2201
- UPC:
Features
Smart Lectern - Define Your Stage
Smart System Embedded | Wired & Wireless Screen-sharing[1]
Onstage Annotation[2] | Electrically Height Adjustable
Exemplary All-in-One Lectern
A smart device with a sleek design that integrates the functionality of a PC, microphone, and touchscreen into one conference lectern.
Screen Sharing, Reinvented
This smart conference lectern connects with a mobile devices or laptops, and synchronizes the screens with onstage display[3]; You can easily switch between devices[4].; You can easily switch between devices[4].
- Wireless Screen-sharing[6]
- Multiple Choices for Connection[5]
- Up to 8 devices for instant switch[7]
Wireless sharing to multiple devices
Wireless sharing to traditional devices
Wireless sharing to MAXHUB Integrated LED Wall
Annotation at Will
Annotate on the smart lectern while facing to the audience to improve engagement.
- 21.5 Inches Display
- Capacitive + EMR Touch Technology
- Smart Annotation
Comfort is Key
The height adjustable lectern makes hand gestures, annotating, and presenting more comfortable. Designed with versatility in mind, the lectern electronically adjusts for heights from 3ft up to 6ft to accommodate different statures.
Wireless Adaptation
Completely mobile, you can be sure your setup is always reliable and looks professional.
[1] Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0 and above, Android 5.0 and above. The "MAXHUB Share" app needs to be downloaded, installed properly and granted necessary network access.
[2] Onstage display includes: MAXHUB Integrated LED Walls, MAXHUB Interactive Flat Panels, and display systems that work with a MAXHUB Wireless Box or support HDMI input.
[3] Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0 and above, Android 5.0 and above. The "MAXHUB Share" app needs to be downloaded, installed properly and granted necessary network access.
[4] Supports screen-sharing from personal devices to the smart lectern, screen-sharing from the lectern to the external display via HDMI or wireless connection, and relay the screen-share from personal devices to the external display with on-screen annotation features.
[5] When connected in the same WLAN with a MAXHUB Integrated LED Wall, MAXHUB Smart Lectern does not need any additional apps to achieve wireless screen-sharing. However, when connected to other display systems, additional apps may be required to install on the smart lectern to do so or through a MAXHUB Wireless Box.
[6] A MAXHUB Smart Lectern supports simultaneous connection with up to 8 devices and instant switch amongst them.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular VC Peripherals
Maxhub WT13 Wireless Screen Sharing Dongle - USB-C/A
Yealink WPP30 4K Wireless Presentation Pod
Yealink RoomPanel E2 8" All-In-One PoE/WiFi Meeting Room...
Yealink Room Sensor - Bluetooth - Teams Room Occupancy -...
Yealink RoomCast E2 Wireless Presentation System
Maxhub Smart All-in-One Lectern - 21.5" Touch Screen, 2-Mics Array, 2 x 2.5W Speaker
- Brand: Maxhub
- MPN: SL22MC
- Part #: IPHMHB2201
Product URL: https://www.pbtech.com/au/product/IPHMHB2201/Maxhub-Smart-All-in-One-Lectern---215-Touch-Screen
Features
Smart Lectern - Define Your Stage
Smart System Embedded | Wired & Wireless Screen-sharing[1]
Onstage Annotation[2] | Electrically Height Adjustable
Exemplary All-in-One Lectern
A smart device with a sleek design that integrates the functionality of a PC, microphone, and touchscreen into one conference lectern.
Screen Sharing, Reinvented
This smart conference lectern connects with a mobile devices or laptops, and synchronizes the screens with onstage display[3]; You can easily switch between devices[4].; You can easily switch between devices[4].
- Wireless Screen-sharing[6]
- Multiple Choices for Connection[5]
- Up to 8 devices for instant switch[7]
Wireless sharing to multiple devices
Wireless sharing to traditional devices
Wireless sharing to MAXHUB Integrated LED Wall
Annotation at Will
Annotate on the smart lectern while facing to the audience to improve engagement.
- 21.5 Inches Display
- Capacitive + EMR Touch Technology
- Smart Annotation
Comfort is Key
The height adjustable lectern makes hand gestures, annotating, and presenting more comfortable. Designed with versatility in mind, the lectern electronically adjusts for heights from 3ft up to 6ft to accommodate different statures.
Wireless Adaptation
Completely mobile, you can be sure your setup is always reliable and looks professional.
[1] Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0 and above, Android 5.0 and above. The "MAXHUB Share" app needs to be downloaded, installed properly and granted necessary network access.
[2] Onstage display includes: MAXHUB Integrated LED Walls, MAXHUB Interactive Flat Panels, and display systems that work with a MAXHUB Wireless Box or support HDMI input.
[3] Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0 and above, Android 5.0 and above. The "MAXHUB Share" app needs to be downloaded, installed properly and granted necessary network access.
[4] Supports screen-sharing from personal devices to the smart lectern, screen-sharing from the lectern to the external display via HDMI or wireless connection, and relay the screen-share from personal devices to the external display with on-screen annotation features.
[5] When connected in the same WLAN with a MAXHUB Integrated LED Wall, MAXHUB Smart Lectern does not need any additional apps to achieve wireless screen-sharing. However, when connected to other display systems, additional apps may be required to install on the smart lectern to do so or through a MAXHUB Wireless Box.
[6] A MAXHUB Smart Lectern supports simultaneous connection with up to 8 devices and instant switch amongst them.
Specifications
Display
Size
21.5inch
Response Time
14ms
Aspect Ratio
16:9
Display Area
476.064(H) × 267.786(V)
Resolution
1920(H) × 1080(V)
Pixel Pitch
0.24795 × 0.24795
Refresh
60Hz
Display Color
16.7M (8bit)
NTSC
72%
Contrast Ratio
1000:1
Viewing Angle
178°(H/V)
Back Light Unit
ELED
Brightness With Glass (typ)
450cd/m²
Life Time
=30000 Hours
Touch System
Sensing Type
Capacitive Sensing
Touch Tool
Finger, Active Capacitance pen
Accuracy
±1.5mm
Minimum Object Size
6mm
Touch Point
10 points touch
Palm Rejection
Support
Microphone
Quantity
2
Distance of Pickup
0~0.30m (0 - 0.98 ft)
Wireless Module
Wi-Fi
Version: 802.11 a/b/g/n/ac
Operation Frequency: 5GHz; 2.4GHz
Distance: 0~10m
Wireless Screen-share
Operation Mode: AP
Operation Frequency: 5GHz
Power
Power Requirements
100-240V~ 50/60Hz 2.0A/19VDC 6.3A
Overall Power (Max.)
120W
Height Adjustment System
Smart Lectern lifting
Electric Control
Speed
Up/Down: 0.9cm/s (0.35 inches/s)
Range
Min: 1.0m (39 inches)
Max: 1.2m (47 inches)
I/O Port
HDMI Bridge
1 (Top of the Column, used for HDMI Bridge between the Panel and the Column)
HDMI OUT
1 (Bottom of Smart Lectern column chassis)
USB 2.0
3 (Two channels on the side, one channel hidden (for upgrade only)
RJ45
1 (10/100/1000 Mbps)
AC IN
1
DC IN
1 (19V/6.31A)
MIC IN
2 (Gooseneck Microphone)
AUDIO OUT (6.5mm (1/4 inch))
1
AUDIO OUT (3.5mm (1/8 inch))
2 (Smart Lectern screen x 1, Smart Lectern column chassis x 1)
AUDIO OUT (Cannon/XLR)
1
AUDIO Bridge
1 (3.5mm, used for Audio Bridge between the Panel and the Column)
Physical Button
4 (Power Button, Moving Up, Moving Down, Mute)
Physical Specifications
Dimension (L × H × D)
786.3 × 420 × 1010.4 mm
(30.96 × 16.54 × 39.76 inches)
Dimension (package) (L × W × H)
898 × 562 × 1148 mm
(35.35 × 22.13 × 45.20 inches)
Wheels
× 2
Net Weight
29.9kg (65.9 lbs)
Gross Weight
43.0kg (94.8 lbs)
Accessories
Power Cord
1
HDMI Cable
1
HDMI Bridge Cable
1
Audio Bridge Cable
1
Smart Pen
1
Gooseneck microphone
2
Environmental Conditions
Operation Temperature
0°C~40°C
Operation Humidity
10%~90%RH
Storage Humidity
10%~90%RH
Storage Temperature
-20°C~60°C
Altitude
Below 5000 meters
Component Modules
PC Model
OPS72C (Windows 10 IoT Enterprise )
CPU
i5-1240P (1.7GHz)
RAM + ROM
16g + 256g
Wireless Module
SI04B
