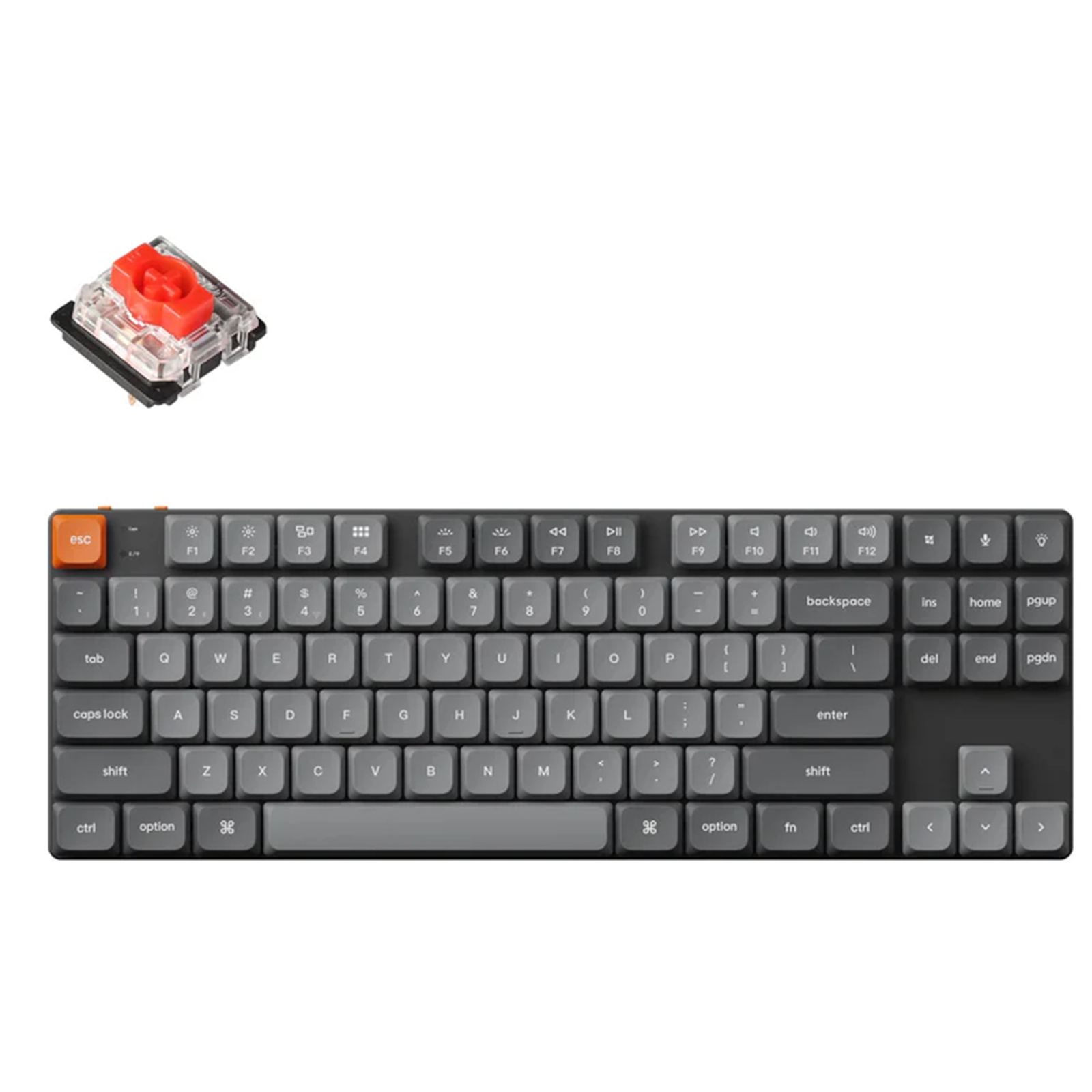

Keychron K1M-B1 K1 MAX 80% Custom Mechanical Keyboard
Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI 80% - TKL 87 Key - Full Assembled - RGB - Low Profile MX2.0
Keychron K1M-B1 K1 MAX 80% Custom Mechanical Keyboard
Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI 80% - TKL 87 Key - Full Assembled - RGB - Low Profile MX2.0
- Brand: Keychron
- MPN: K1M-B1
- Part #: KEYKCH1320
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews
"Perfect keyboard match with both MAC and Window.
Fast polling rate in both wired and wireless. Love the structure in low-profile design with aluminum frame.
PBT Key caps are fasc ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Home & Office Keyboards





Keychron K1M-B1 K1 MAX 80% Custom Mechanical Keyboard Gateron Red Switch - Wireless / Wired / 2.4GHz Low Profile QMK - ANSI 80% - TKL 87 Key - Full Assembled - RGB - Low Profile MX2.0
- Brand: Keychron
- MPN: K1M-B1
- Part #: KEYKCH1320

Product URL: https://www.pbtech.com/au/product/KEYKCH1320/Keychron-K1M-B1-K1-MAX-80-Custom-Mechanical-Keyboa?is-review=1
Features
The K1 Max is a low-profile wireless mechanical keyboard with a TKL (80%) layout. It supports 2.4 GHz, Bluetooth, and wired connections. Empowered by QMK/VIA, it offers endless possibilities and enhanced productivity in your work and gaming!
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K1 Max via Bluetooth 5.1 to three devices.
Ultra-Slim
The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K1 Max one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Suitable For All Devices
Offers a Mac layout while remaining compatible with Windows. It stands out in the market by providing the same multimedia and function key functions as Apple keyboards for Mac users, but with enhanced tactile feedback.
Additionally, you can configure different keymaps for both Mac and Windows devices. The VIA software is compatible with macOS, Windows, and Linux. The keyboard includes keycaps for both macOS and Windows, along with additional esc and enter keys, facilitating seamless switching between operating systems.
An Epic Core Inside
A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.
Interior Acoustic Foam
Elevate your typing with K1 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.
Low-Profile Gateron Switch
The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red) or bumpy (brown).
Low-Profile Double-Shot PBT Keycaps
Designed for premium type feeling, the K1 Max comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.
Redesigned Stabilizers
We've redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
RGB Backlights
Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Ergonomic Support
Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.
Specifications
Number of Keys
87 (80%)
Switches
Gateron low-profile mechanical
Switch Face
North-facing
Number of Multimedia Keys
12
Frame Material
ABS+Aluminum frame
Keycap Material
Low-profile double-shot PBT
Layout
ANSI
Polling Rate (2.4GHz and Wired Mode)
1000Hz
Polling Rate (BT Mode)
90Hz
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
*The K1 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
CONNECTIVITY AND POWER
Backlit
22 types of RGB backlight options plus endless possibilities
Battery
2000 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off)
Up to 166 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)
Up to 86 hours (Lowest brightness)
Connection
2.4 GHz / Bluetooth / Type-C wired
Bluetooth version
5.1
Bluetooth Device Name
Keychron K1 Max
Compatible System
macOS / Windows / Linux
PHYSICAL UNIT
Dimension
346 x 118.5 mm (13.62 x 4.66")
Weight
608 g / 1.34 lbs
Height without keycap (front)
7.72 mm (0.3")
Height without keycap (rear)
14.7 mm (0.58")
Height incl. keycap (front)
18.2 mm (0.72")
Height incl. keycap (rear)
24.1 mm (0.95")
Typing Angle
3.37º, 4.2º and 6.7º
MCU
ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment
-10 to 50?
