Keychron K8M-H1 K8 Max QMK Fully Assembled (Hot-Swappable) RGB Backlight SuperRedWirelessMechanicalKeyboard
Keychron K8M-H1 K8 Max QMK Fully Assembled (Hot-Swappable) RGB Backlight SuperRedWirelessMechanicalKeyboard
- Brand: Keychron
- MPN: K8M-H1
- Part #: KEYKCH1418
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews
"Really impressed by the overall quality out of the box. It sounds amazing stock and is probably the best keyboard you can buy in this price range.
However, the switch for the spac ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Home & Office Keyboards





Keychron K8M-H1 K8 Max QMK Fully Assembled (Hot-Swappable) RGB Backlight SuperRedWirelessMechanicalKeyboard
- Brand: Keychron
- MPN: K8M-H1
- Part #: KEYKCH1418

Product URL: https://www.pbtech.com/au/product/KEYKCH1418/Keychron-K8M-H1-K8-Max-QMK-Fully-Assembled-Hot-Swa?is-review=1
Features

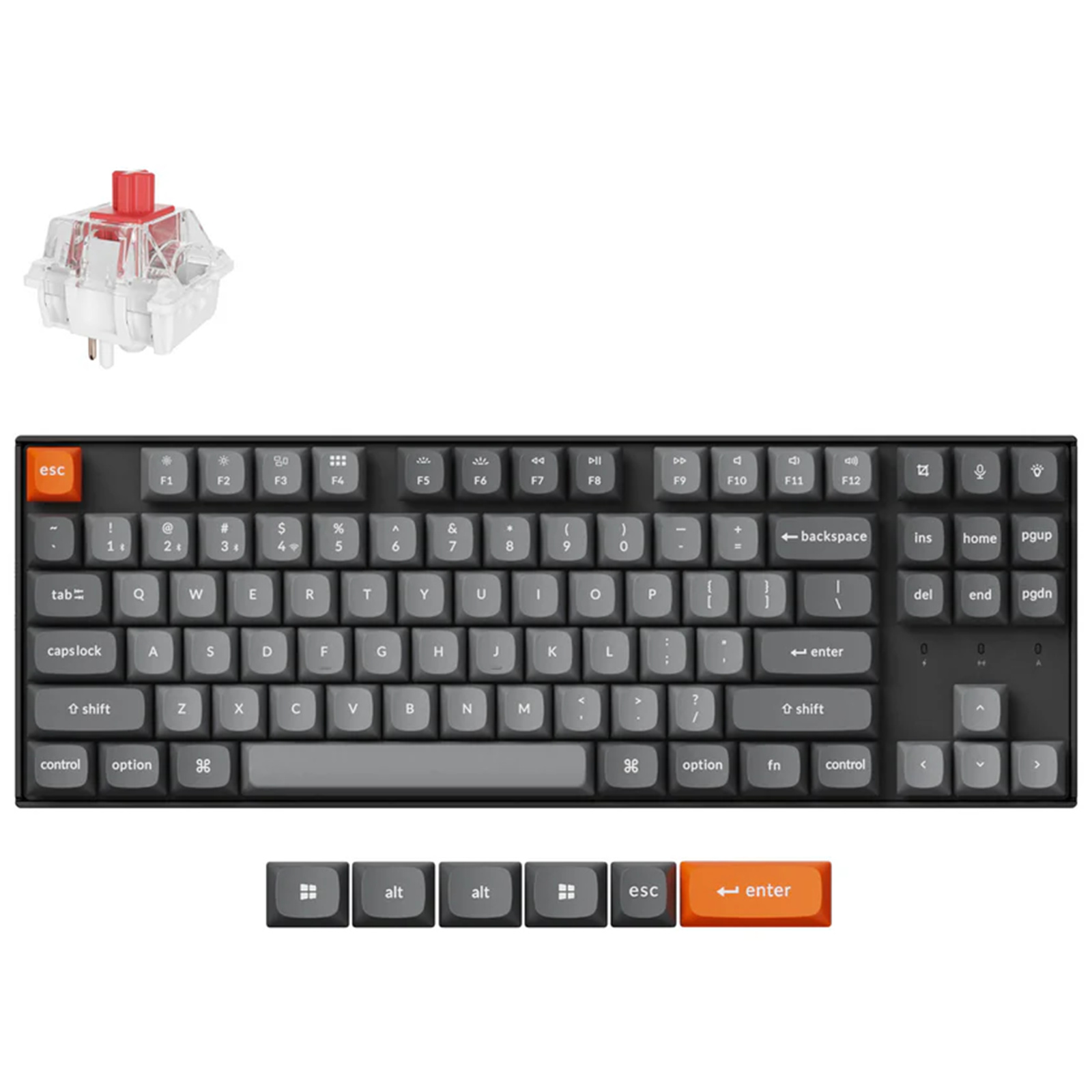

The K8 Max is a wireless mechanical keyboard with a TKL (80%) layout. It supports 2.4 GHz, Bluetooth, and wired connections. Configurable through QMK and Keychron Launcher web app, it offers endless possibilities and enhanced productivity in your work and gaming!
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K8 Max via Bluetooth 5.1 to three devices.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
Significantly Enhanced Acoustic Foams
Elevate your typing with K8 Max featuring advanced IXPE acoustic foam for enhanced comfort, coupled with resilient EPDM foam for superior key switch support, responsiveness, and durability. The steel plate provide responsive feedback and a peaceful typing sound, while added weight will enhance the stability.
Suitable For All Devices
Offers a Mac layout while remaining compatible with Windows. It stands out in the market by providing the same multimedia and function key functions as Apple keyboards for Mac users, but with enhanced tactile feedback.
Additionally, you can configure different keymaps for both Mac and Windows devices with Keychron Launcher web app. The keyboard includes keycaps for both macOS and Windows, along with additional esc and enter keys, facilitating seamless switching between operating systems.
An Epic Core Inside
A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile Double-shot PBT Keycaps
To further fine-tune your typing experience, the K8 Max comes with our unique OSA profile (OEM profile with spherical-angle) and double-shot PBT keycaps that aim to provide a more comfortable fingertip feel with excellent oil resistance for long-term use on the timeless tenkeyless layout.
Screw-In PCB Stabilizers
Even small part matters for your fingertip feel. We've integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron K8 Max also supports third-party screw-in PCB stabilizers.
Ergonomic Support
Three levels of adjustable typing angle (3.4º, 7.7º & 10.7º) and curved OSA-profile keycaps are all working together to provide long-lasting ergonomic support for your wrist.
South-facing RGB Backlights
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist's angle. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.
Comes with more than 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Specifications
SPECIFICATION
Number of Keys
87 (80%)
Switches
Keychron Super mechanical
Switch Face
South-facing
Number of Multimedia Keys
12
Frame Material
ABS / ABS+Aluminum frame
Keycap Material
Double-shot PBT
Keycap Profile
OSA (OEM profile with spherical-angle)
Layout
ANSI
Polling Rate (2.4GHz and Wired Mode)
1000Hz
Polling Rate (BT Mode)
90Hz
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
CONNECTIVITY AND POWER
Backlit
22 types of RGB backlight options plus endless possibilities
Battery
4000 mAh rechargeable li-polymer battery
Wireless Working Time (Backlit off)
Around 190 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)
Around 100 hours (Lowest brightness)
Connection
2.4 GHz / Bluetooth / Type-C wired
Bluetooth version
5.1
Bluetooth Device Name
Keychron K8 Max
Compatible System
macOS / Windows / Linux
PHYSICAL UNIT
Dimension (Plastic frame version)
354.21 x 124.18mm (13.94 x 4.89")
Weight
1158 g / 2.55 lbs
Dimension (Aluminum frame version)
359.20 x 129.20 mm (14.14 x 5.09 inches)
Weight
1308g / 2.88 lbs
Height incl. keycap (front)
35.32 mm (1.39")
Height incl. keycap (rear)
43.09 mm (1.70")
Typing Angle
3.4º, 7.7º and 10.7º
MCU
ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Operating Environment
-10 to 50?
