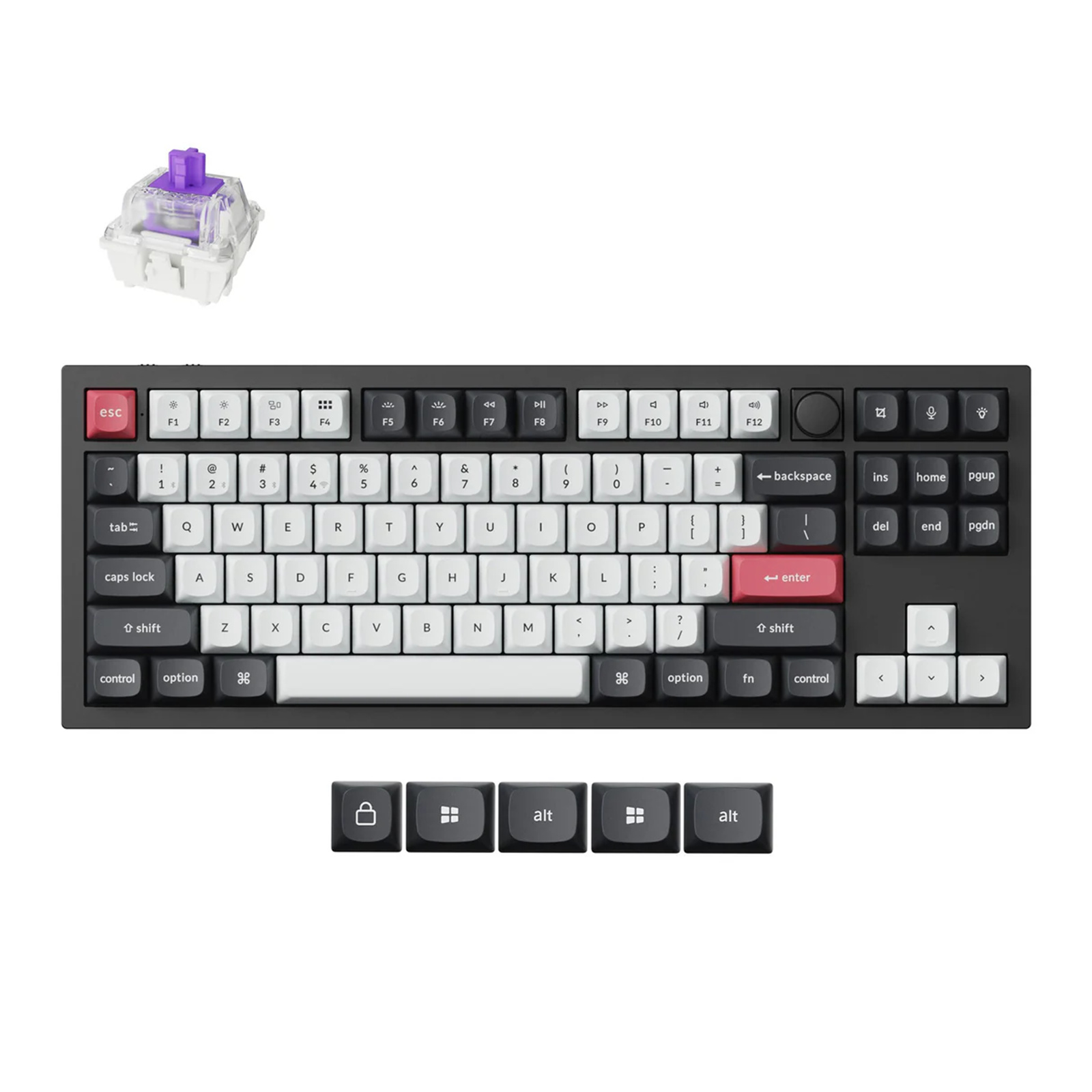

Keychron Q3 HE 80% QMK Wireless Fully Assembled Carbon Black
Gateron Double-Rail Magnetic NebulaSwitch Custom Keyboard
Keychron Q3 HE 80% QMK Wireless Fully Assembled Carbon Black
Gateron Double-Rail Magnetic NebulaSwitch Custom Keyboard
- Brand: Keychron
- MPN: Q3H-M1
- Part #: KEYKCH1466
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"This Hall Effect keyboard does everything I want it to and has become my daily driver for work and gaming. Great build quality. Plenty of options to customize actuation, lighting a ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Home & Office Keyboards





Keychron Q3 HE 80% QMK Wireless Fully Assembled Carbon Black Gateron Double-Rail Magnetic NebulaSwitch Custom Keyboard
- Brand: Keychron
- MPN: Q3H-M1
- Part #: KEYKCH1466

Product URL: https://www.pbtech.com/au/product/KEYKCH1466/Keychron-Q3-HE-80-QMK-Wireless-Fully-Assembled-Car?is-review=1
Features
· How To Use Launcher To Program Your Keyboard
· How to use HE mode on Keychron Launcher
https://www.keychron.com/pages/how-to-use-he-mode-on-keychron-launcher?_pos=14&_sid=66ac0691f&_ss=r
The Fully Assembled version includes:
- The keyboard PCB, the case, and the aluminum plate.
- Keycaps (included Mac & Windows keycaps).
- Adjustable-actuation-point Gateron 2.0 magnetic switches.
The Q3 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.
In addition to the Hall Effect magnetic switches, the Q3 HE introduces a 2.4G connection mode with an impressive 1000 Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.
Gateron Double-Rail Magnetic Hall Effect Switches
With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.
Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.
Specifications
Width
137 mm
Length
365 mm
Front Height
22.6 mm (without keycaps)
Back Height
35.8 mm (without keycaps)
Feet Height
2.4 mm
Angle
5.2°
Weight
1775 g ± 10 g (Fully Assembled version)
Body Material
Aluminum
Plate Material
Aluminum
Polling Rate
1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Rapid Trigger
Yes
Adjustable Actuation Points
0.2 - 3.8 mm
Dynamic Keystrokes
4-in-1 action keys
Sensitivity
0.1 mm
N-Key Rollover (NKRO)
Yes for both wireless and wired modes
Keycap
OSA Double-shot keycaps, not shine-through
MCU
ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight
22 types of RGB backlight options plus South-facing RGB LED
Switch
Gateron double-rail magnetic switch
Hot-swappable Support
Yes, compatible with Gateron double-rail magnetic switch only.
Stabilizer
Screw-in PCB stabilizer
Cable
Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity
2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version
5.2
Bluetooth Device Name
Keychron Q3 HE
Battery
4000 mAh Rechargeable li-polymer battery
Operating Environment
-10 to 50?
Wireless Working Time (Backlit off)
Up to 100 hours
