LENKENG LKV824P 1 In 4 Out HDMI Extender Splitter Over Cat6/6a up to 70m. 1x HDMI Input &4xRJ45 Output. Supports UHD 4K 60Hz, Supports EDID & RS-232. HDMI 2.0, HDCP2.2. Includes 1x Tansmitter & 4x Rx.

Normally $638.71
Normally $702.58
You save $41
You save $45
$ 597 .59
 +GST
$ 657 .35
 inc GST
$597.59  +GST
$657.35

LENKENG LKV824P 1 In 4 Out HDMI Extender Splitter Over Cat6/6a up to 70m. 1x HDMI Input &4xRJ45 Output. Supports UHD 4K 60Hz, Supports EDID & RS-232. HDMI 2.0, HDCP2.2. Includes 1x Tansmitter & 4x Rx.

  • Brand: LENKENG
  • MPN: LKV824P
  • Part #: KVMLNK1167
  • UPC:
FREE SHIPPING
Normally $638.71
Normally $702.58
You save $41
You save $45
PB Tech price
$ 597 .59 $ 657 .35
 +GST  inc GST
Hurry, only 1 unit left!


Delivery: Order now and it ships tomorrow
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$597.59  +GST
$657.35

Six easy payments of $109.56 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the LENKENG LKV824P 1 In 4 Out HDMI Extender Splitter Over Cat6/6a up...
LENKENG LKV824P 1 In 4 Out HDMI Extender    Splitter Over Cat6/6a up to 70m. 1x HDMI Input &4xRJ45 Output. Supports UHD 4K 60Hz, Supports EDID & RS-232. HDMI 2.0, HDCP2.2. Includes 1x Tansmitter & 4x Rx.
Total:
$ 622 .92
 +GST
$ 685 .21
Buy together and save $11.98 $13.18
Huntkey SAC804 8-Outlet Surge Protected Powerboard with Dual 5V 2.1A USB charging Ports  ideal for apple samsung mobile devices
Huntkey SAC804 8-Outlet Surge Protected Powerboard with Dual 5V 2.1A USB charging Ports  ideal for apple samsung mobile devices
$37.31 $41.04

$25.33  +GST

$27.86

You save 36% You save 36%

Features

LENKENG 1-In-4-Out 4K@60Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.

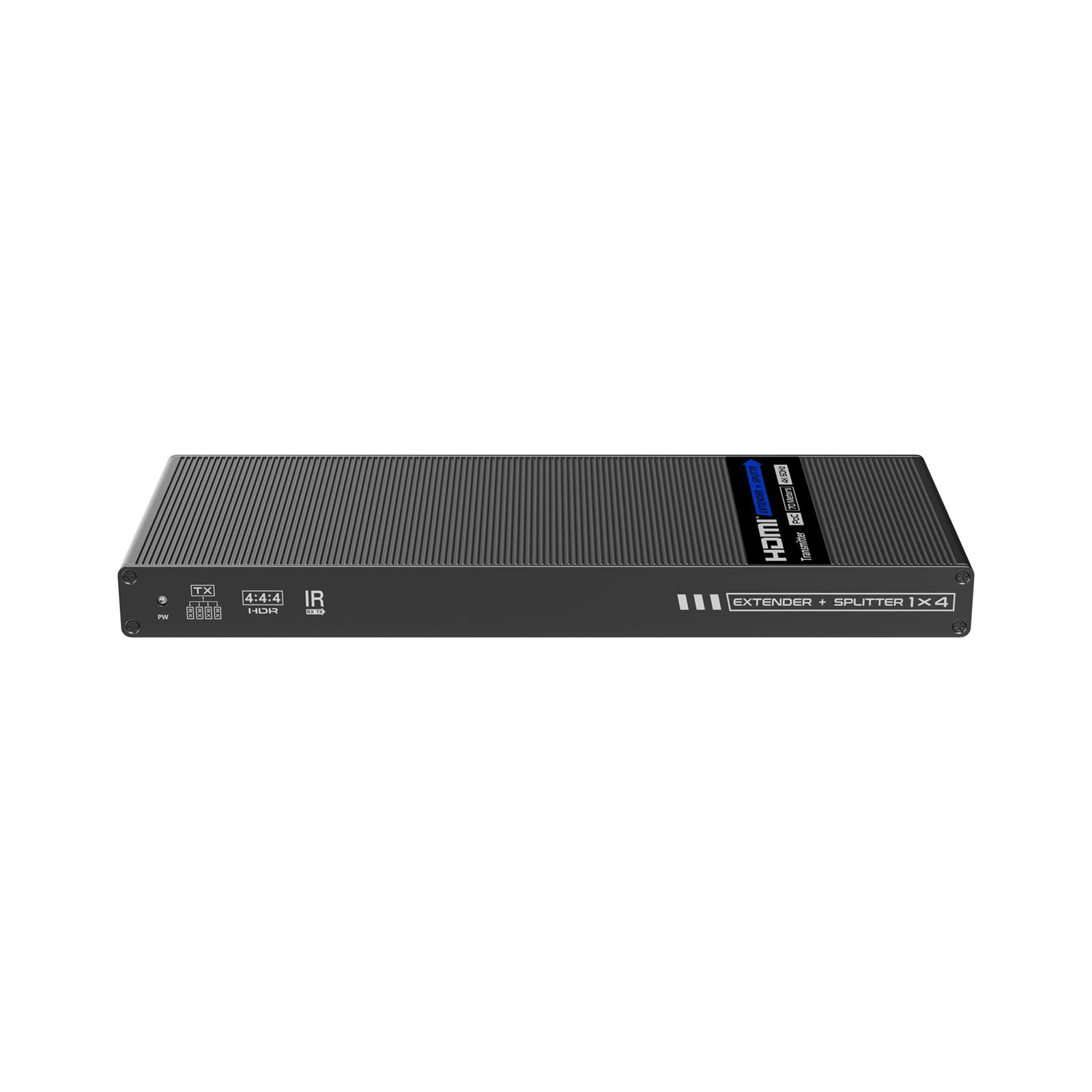

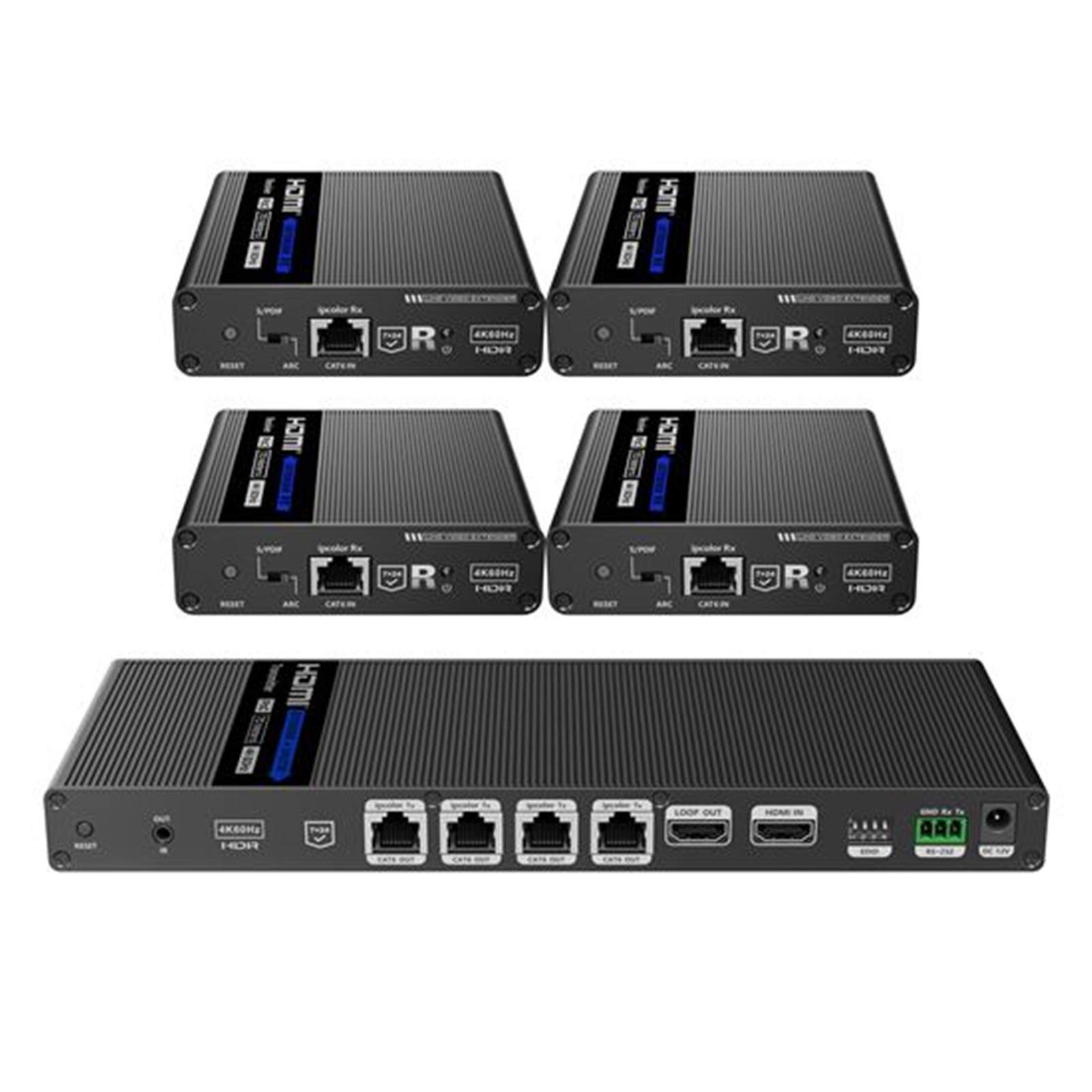

This product is a 1 input 4 outputs extender splitter kit, which integrates the functions of distribution and extension. It distributes 1x HDMI input signal to 4x identical signal outputs, extends these signals up to 70 meters, and supports 4K@60Hz resolution. It also supports IR passback, RS-232 control and other functions. It is suitable for studios, multimedia classrooms, rail transit, etc.

- Zero-latency transmission.

- Split and extend one HDMI input signal to four identical network output signals.

- Support up to 4K@60Hz resolution.

- Transmission distance up to 70 meters by using Cat6/6A/7 cables.

- Support IR passback (20KHz~60KHz).

- The transmitter supports HDMI loop out.

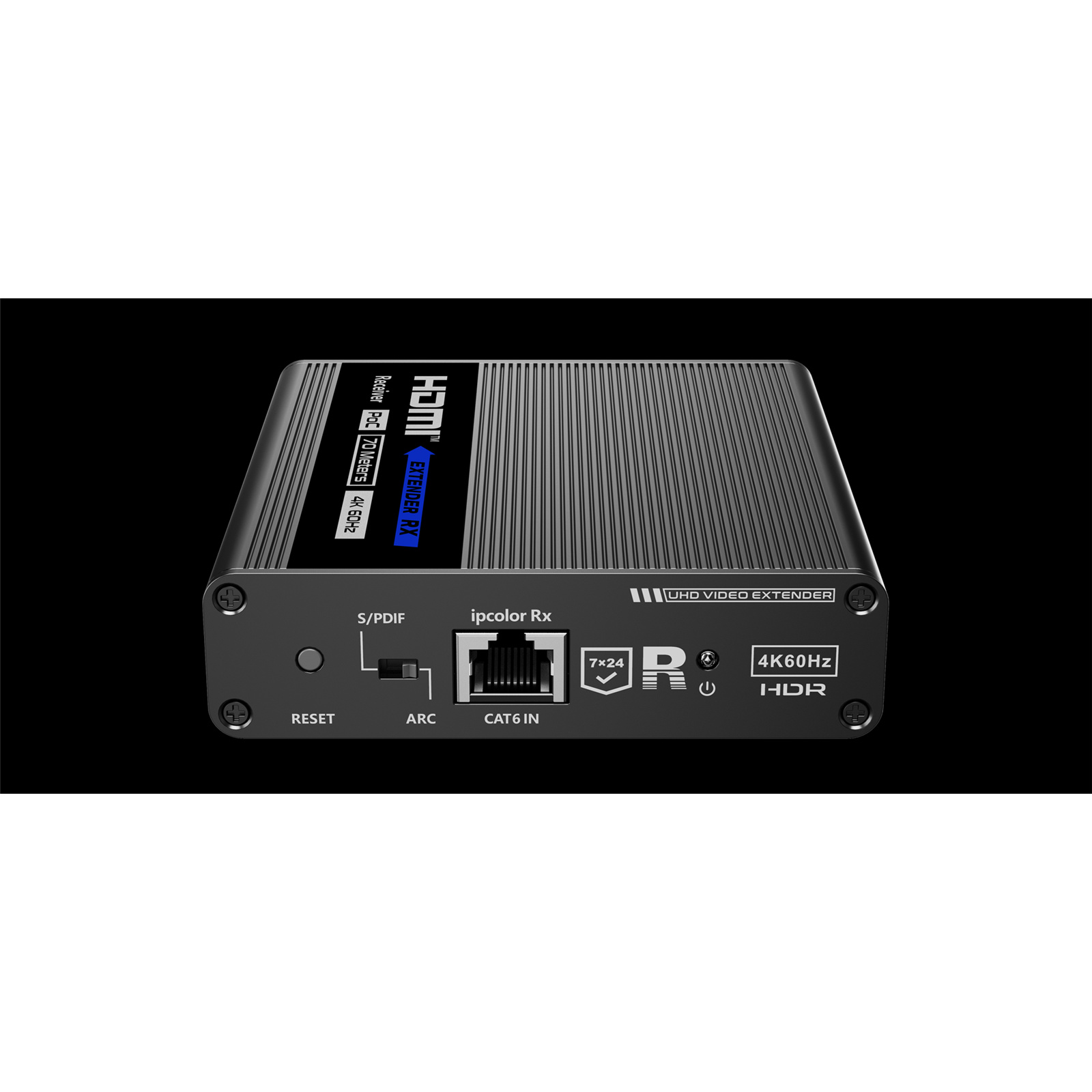

- The receiver can output the digital audio of the TV or source device from the S/PDIF port.

- Support EDID passthrough or manually set the EDID of the product.

- Support RS-232 command control.

- Surge Protection, Lightning Protection, ESD Protection.

- Equipped with rack mount ears.

- Support PoC, only the transmitter is required to supply power.

Specifications

Technical parameters

LKV824P

Transport protocol

ipcolor

Split mode

1 IN 4 OUT

Input

1xHDMI

Output

4xRJ45

HDMI signal

HDMI 2.0 compatible with HDCP2.2

PoC

Support

Resolution

480i@60Hz?480p@60Hz?576i@50Hz?576p@50Hz?
720p@50/60Hz?1080i@50/60Hz?1080p@50/60Hz?
1280x960?1280x800?1280x768?1680x1050?
1360x768?1366x768?1600x900?1024x768?800x600?
3840x2160@24/25/30/50/60Hz?4096x2160@24/25Hz

Transmission Distance

CAT6/6A/7=70m

HDMI LOOP OUT

Support up to 4K@60Hz loop output

IR pass back

Support IR pass back, Support 20-60khz IR devices

EDID

Support EDID passthrough and EDID switch

RS-232

Support RS-232 command control

Protection

ESD protection, surge protection, lightning protection

Working Temperature

-20~60?

Storage Temperature

-30~70?

Humidity (no condensation)

0~90%

Power supply

DC12V/3A

Power consumption

<24W

Weight

640g

Material

Aluminium alloy material + crystal panel

Dimension

264.00(L) x 104.00(W) x 23.50(H)mm

Manufacturer Part No:
LKV824P
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
KVMLNK1167
Product Model:
LKV824P
Warranty: 12 months *
