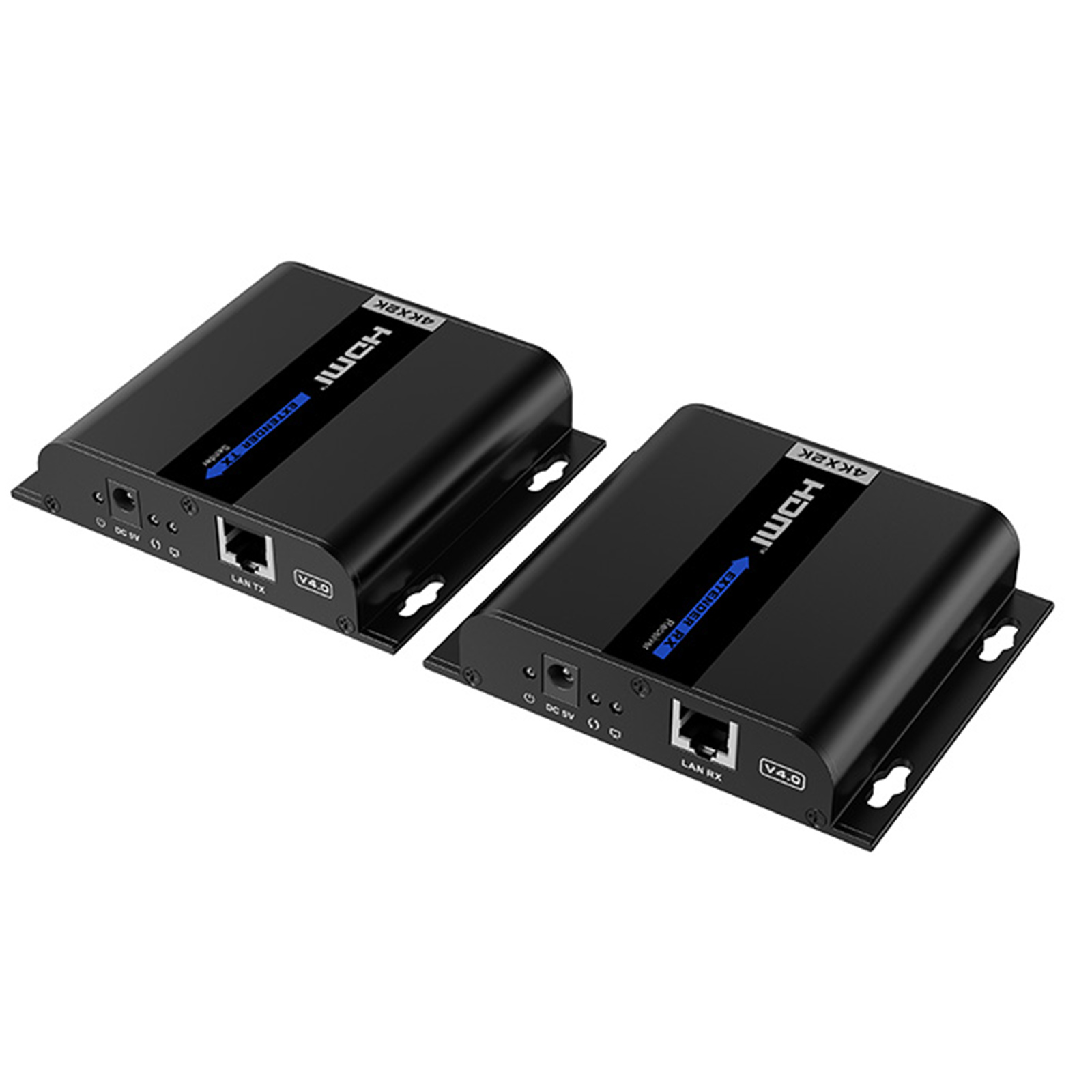

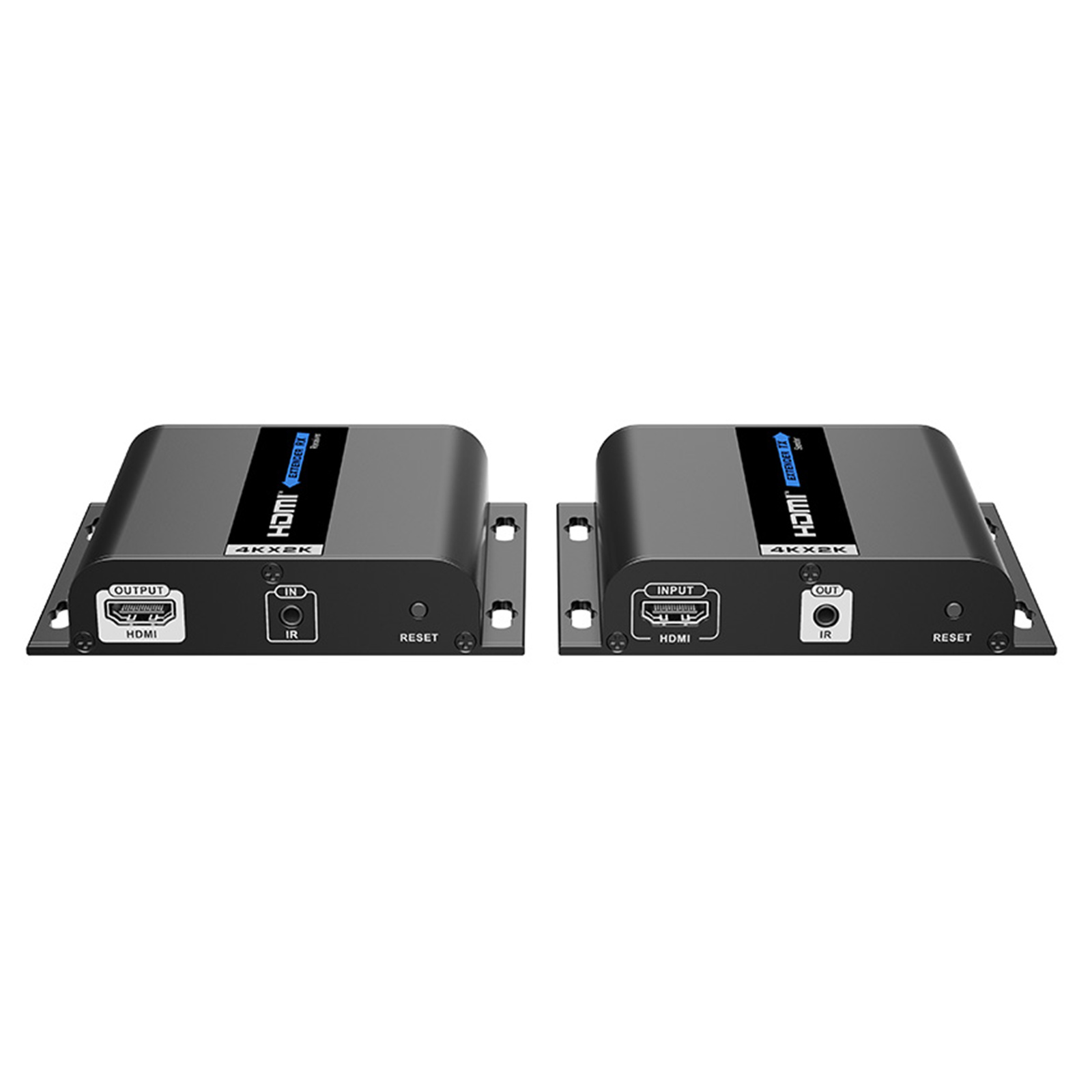

LENKENG 4K2K HDMI Extender Over Single CAT5/5e/6 Cable. Supports Res up to 4Kx2K 30Hz. One-Way IRPass-Through. One to Many Connection. Transmit up to 120m. Receiver unit only
LENKENG 4K2K HDMI Extender Over Single CAT5/5e/6 Cable. Supports Res up to 4Kx2K 30Hz. One-Way IRPass-Through. One to Many Connection. Transmit up to 120m. Receiver unit only
- Brand: LENKENG
- MPN: LKV683-4.0-RX
- Part #: KVMLNK1171
- UPC:
View all shipping info
- Brand: LENKENG
- MPN: LKV683-4.0-RX
- Part #: KVMLNK1171
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders





LENKENG 4K2K HDMI Extender Over Single CAT5/5e/6 Cable. Supports Res up to 4Kx2K 30Hz. One-Way IRPass-Through. One to Many Connection. Transmit up to 120m. Receiver unit only
- Brand: LENKENG
- MPN: LKV683-4.0-RX
- Part #: KVMLNK1171

Product URL: https://www.pbtech.com/au/product/KVMLNK1171/LENKENG-4K2K-HDMI-Extender-Over-Single-CAT55e6-Cab
Features
HDMI extender, extend your HDMI video/audio with the resolution of 4K×2K@30Hz up to 120m(394 feet) via CAT6 network cable. Supports IR passback, to control media playback of the signal source device at the display location.
4kx2k @ 30Hz
Support 4kx2k@30Hz video transmission, the image can be more clear,higher saturation and showed more outstanding details.
Upgrading technology, lower latency
Adopt new upgraded transmission technology, with lower transmission dela and better compatibility with display source, signal source and transmission cable.
120m Transmission
Converting HDMI audio and video signals into standard network signals, and the longest transmission distance can reach 120 meters.
IR passback
The receiving end can return 20-60KHz infrared radio frequency signals to the transmitting end , and the remote controller of the signal source can be used to remotely switch content, switch machine and etc.
Multiple Protection
Adopted multiple protections like ESD protection, surge protection, lightning protection to make products safer and more reliable
Specifications
HDMI compliance
HDMI1.4
HDCP compliance
HDCP1.4
Video support
480i @ 60Hz,480p @ 60Hz,576i @ 50Hz,576p @ 50Hz, 720p @ 50/60Hz,1080i @ 50/60Hz,1080p @ 50/60Hz, 4K @ 24/25/30Hz
Network Cable
UTP/STP CAT5E/6
Transmission distance
Up to 120m transmission distance for 4K@30Hz, full HD over single CAT6
Input DDC signal
Supports 20~60KHz IR devices
Mechanical
Colour
Black
Dimensions (L×W×H mm)
107.3 (W) ×94 (D) × 23.7 (H) mm 2pcs
Net weight
TX: 170g
RX: 167g
Power supply
5V/2A
Power consumption
6W,4W
Operation temperature
0°C~60°C
