LENKENG 4K 4x4 Matrix Switch. 4x HDMI 2.0 inputs and outputs. to 18Gbps. IR remote control. 3PinRS232 control. Plug & Play Max Res: 4K 60Hz (4096x2160) Includes Remote Control.

PB Tech price
PB Tech price
$ 267 .19
 +GST
$ 293 .91
 inc GST
$267.19  +GST
$293.91

LENKENG 4K 4x4 Matrix Switch. 4x HDMI 2.0 inputs and outputs. to 18Gbps. IR remote control. 3PinRS232 control. Plug & Play Max Res: 4K 60Hz (4096x2160) Includes Remote Control.

  • Brand: LENKENG
  • MPN: LKV424
  • Part #: KVMLNK1182
  • UPC:
PB Tech price
$ 267 .19 $ 293 .91
 +GST  inc GST
Hurry, only 4 units left!


Delivery: Order now and it ships today
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$267.19  +GST
$293.91

Features

LENKENG 4K 4x4 Matrix Switch. 4x HDMI 2.0 inputs and outputs. to 18Gbps. IR remote control. 3 Pin RS232 control. Plug & Play Max Res: 4K@60Hz (4096x2160) Includes Remote Control.

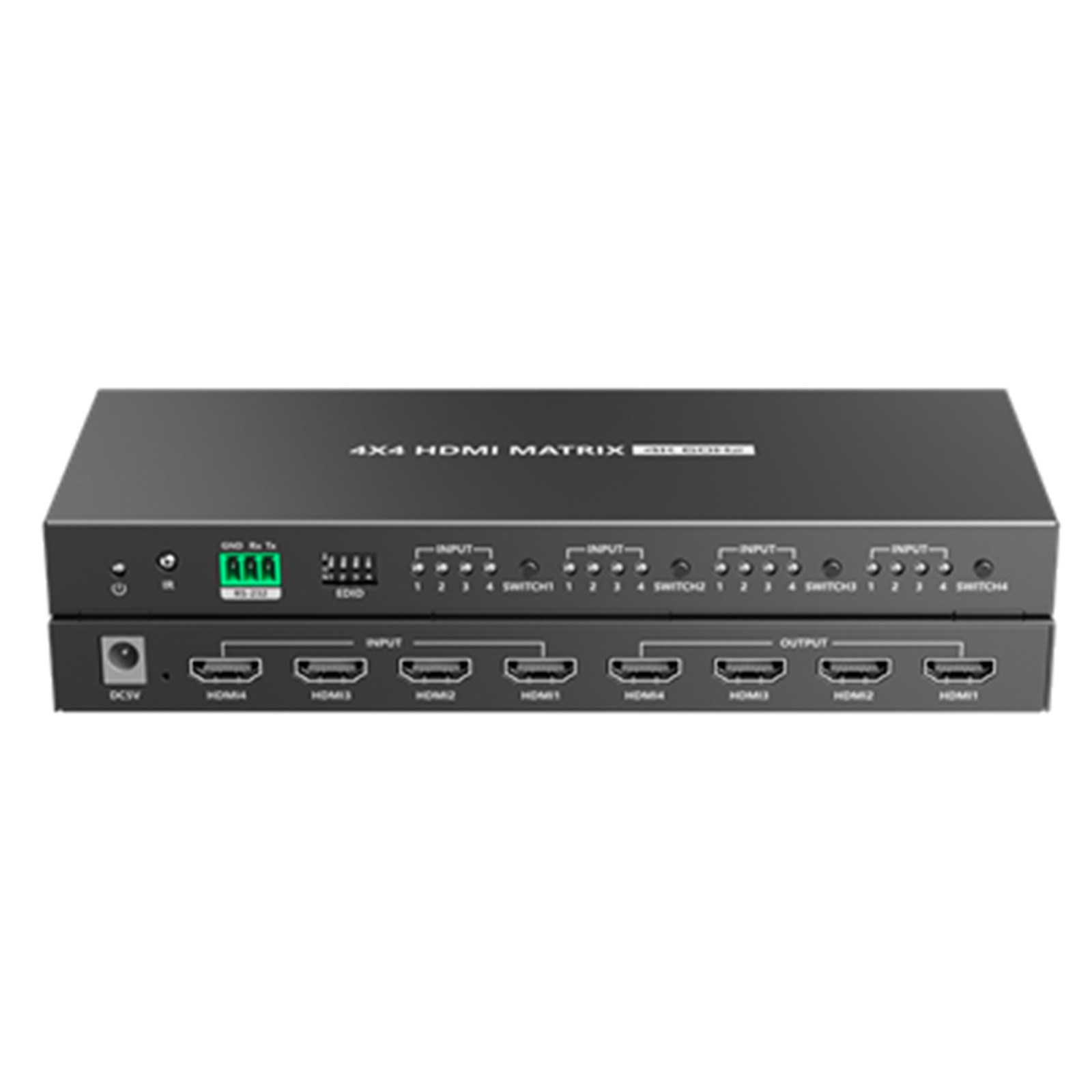

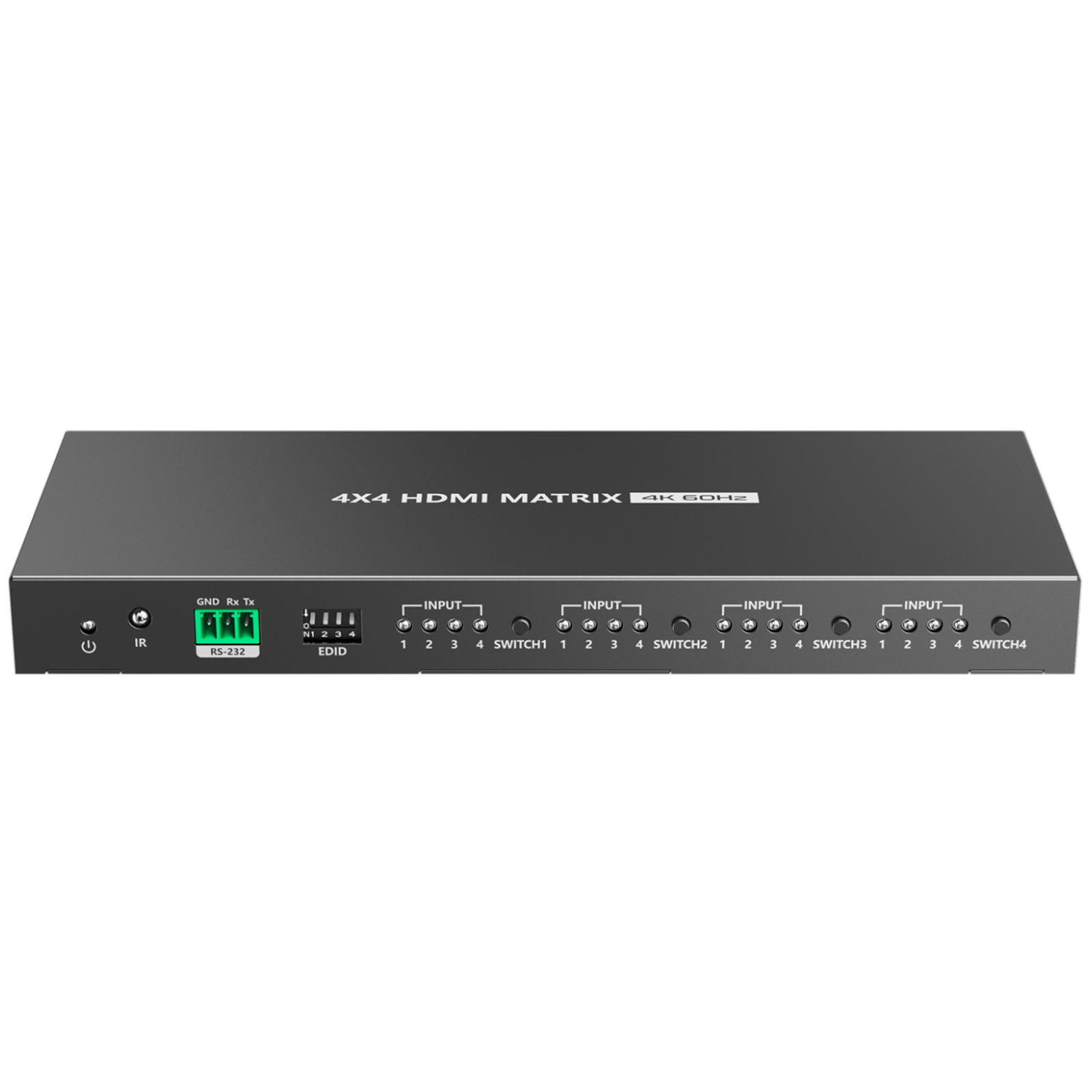

This is a 4 in, 4 out HDMI matrix switch. It can switch 4 HDMI input signals to 4 HDMI displays as needed. It supports up to 4096x2160@60hz HDR UHD resolution, and various switching methods (IR remote control, buttons and RS232) flexibly match input and output devices. Any two of the four HDMI outputs support Auto down-scaling. This unit is a reliable, ultra-high definition video transmission solution widely used in security monitoring, education and training, exhibition and broadcasting, command centre and other scenarios.

- 4K@60HZ HDR
- 4x HDMI Inputs, 4x HDMI Outputs
- Various control methods
- Auto down-scaling
- Multi audio formats
- Lightning, surge and ESD protection
- 2x HDMI outputs with Auto-down scaling

Specifications

HDMI version

HDMI2.0 (HDR, YUV4:4:4)
Compatible with HDCP2.2, HDCP1.4

HDMI interface

4 HDMI input, 4 HDMI output

Transmission rate

18Gbps

Bandwidth

600MHz

Resolution

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/60Hz, 4096×2160@24/25/30/60Hz

Audio format

LPCM/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos

RS-232

3 Pin (GND/Rx/Tx), Band rate 9600

EDID setting

EDID DIP switch (16 gears)

IR frequency

20KHz~60KHz

Voltage

DC 5V/1A

Power consumption

<4W

Working temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Humidity

0%~90% RH

Housing

Iron

Colour

Black

Weight

375g

Dimensions

210.0(L) x 80.0(W) x 21.0(H) mm

Protection

ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
