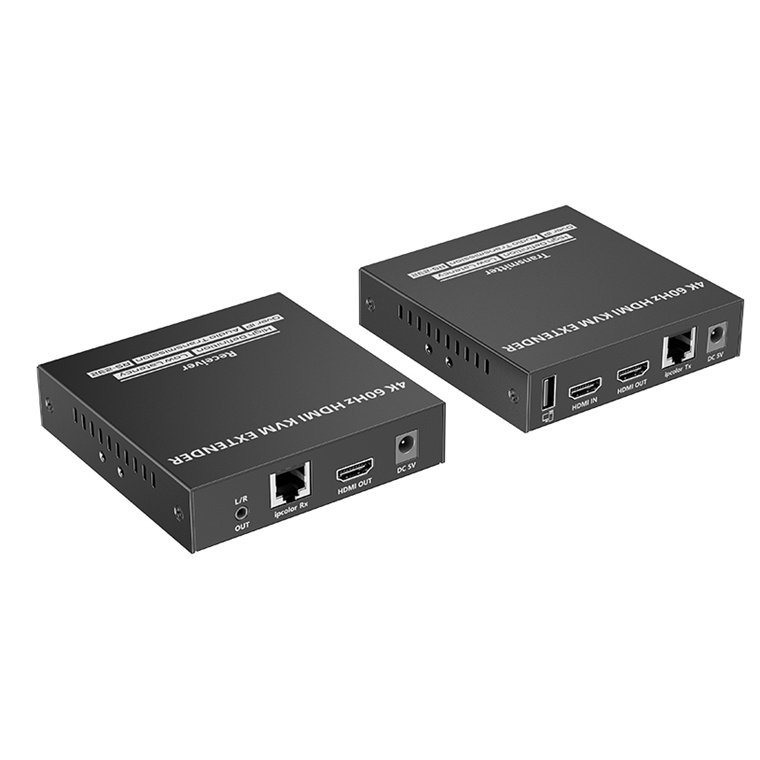

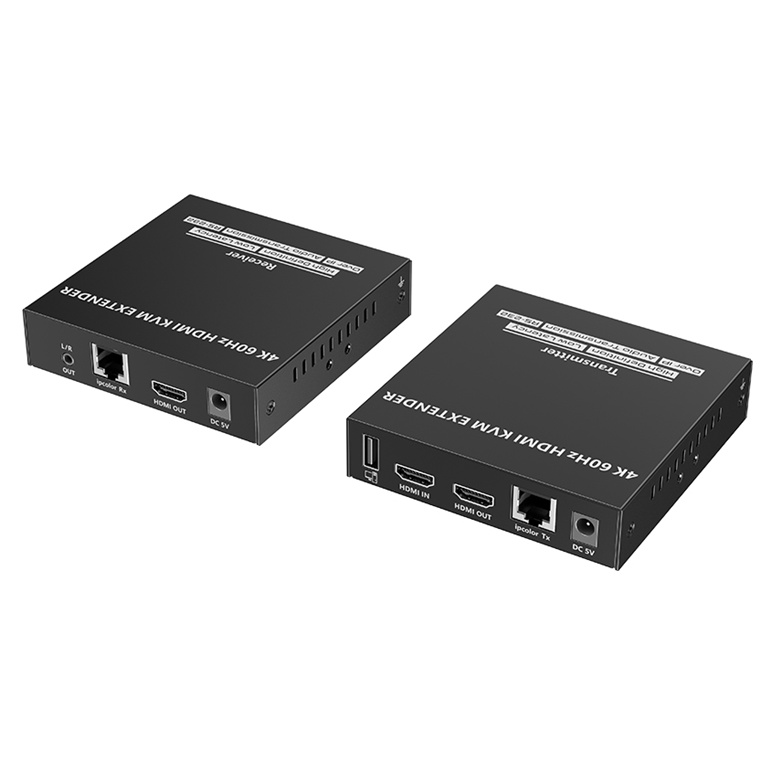

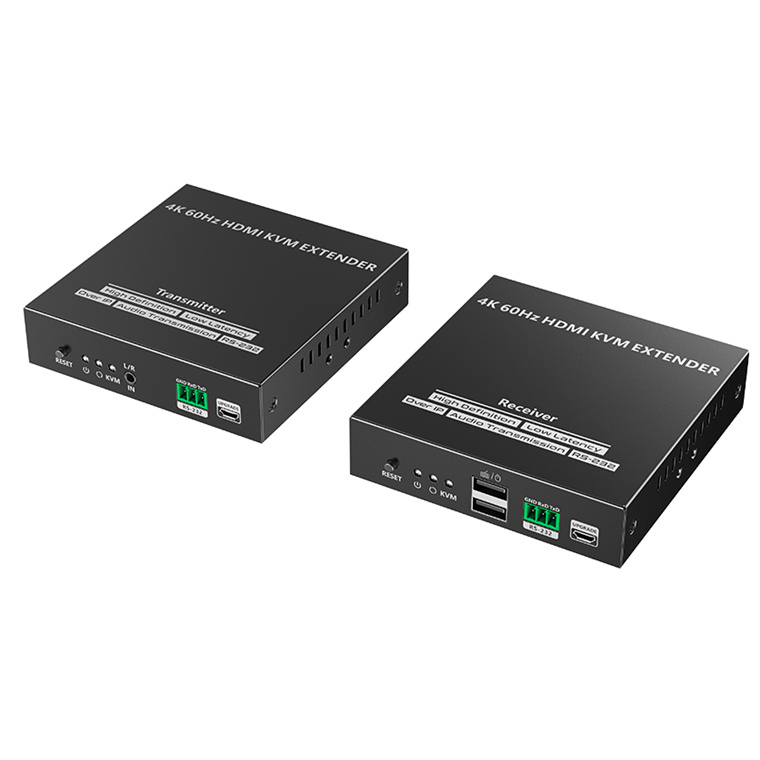

LENKENG HDMI KVM Extender over Network Cable up to 120m - Point to Multipoint/Point toPoint - Supports up to 3840x2160 60Hz

PB Tech price
PB Tech price
$ 456 .55
 +GST
$ 502 .20
 inc GST
$456.55  +GST
$502.20

LENKENG HDMI KVM Extender over Network Cable up to 120m - Point to Multipoint/Point toPoint - Supports up to 3840x2160 60Hz

  • Brand: LENKENG
  • MPN: LKV582KVM
  • Part #: KVMLNK1193
  • UPC:
PB Tech price
$ 456 .55 $ 502 .20
 +GST  inc GST


Delivery: Order now and it ships on 10 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$456.55  +GST
$502.20

Features

4K @ 60Hz HDMI KVM extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K @ 60Hz HDMI signal can be extended up to 120m via category 6 and above network cables, supporting one-to-one connection, one-to-many connection via gigabit switch, or switch cascading. It also supports HDMI loop out, KVM, and RS-232 passthrough, and can be widely used in meetings, home entertainment, educational presentations, and other fields.

- Adopting ipcolor STREAM technology can realize high-definition and low-latency transmission.
- Support up to 3840 x 2160 @ 60Hz resolution, backwards compatible.
- Compatible with Cat5/5e/6 or above network cables, transmission distance of Cat6 cable is 120 meters
- Support one-to-one or one-to-many connections through the gigabit switch.
- Support RS-232 passthrough.
- The transmitter supports HDMI loop out.
- Support KVM control signal passback.
- The transmitter has a 3.5 mm audio input for sound embedding, the receiver has an independent 3.5 mm audio output.
- Firmware can be upgraded through Micro USB.
- Lightning protection, surge protection, ESD protection.
- Support steady 24-hour operation.

Specifications

HDMI length

<= 5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0
HDCP 1.4/HDCP 2.2

Resolutions

3840x2160 @ 24/30/50/60Hz, 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920x1200 @ 60Hz, 2560x1440 @ 60Hz, 2560x1600 @ 60Hz

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

Cat6/6A/7 <= 120m

Transmission latency

80~140ms

HDMI output

LPCM 2.0

3. 5mm L/R output

PCM

RS-232 (GND/RXD/TXD)

Default baud rate: 115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200

Power Supply

DC 5V/2A

Power Consumption

TX <= 5.5W, RX <= 4W

Working temperature

-20°C~60°C

Storage temperature

-30°C~70°C

Humidity

0~90%RH (no condensation)

Housing

Iron

Weight

TX: 315g
RX: 307g

Colour

Black

Dimensions

106.0(L)*103.0(W)*20.6(H) mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2

Manufacturer Part No:
LKV582KVM
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
KVMLNK1193
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
