Features

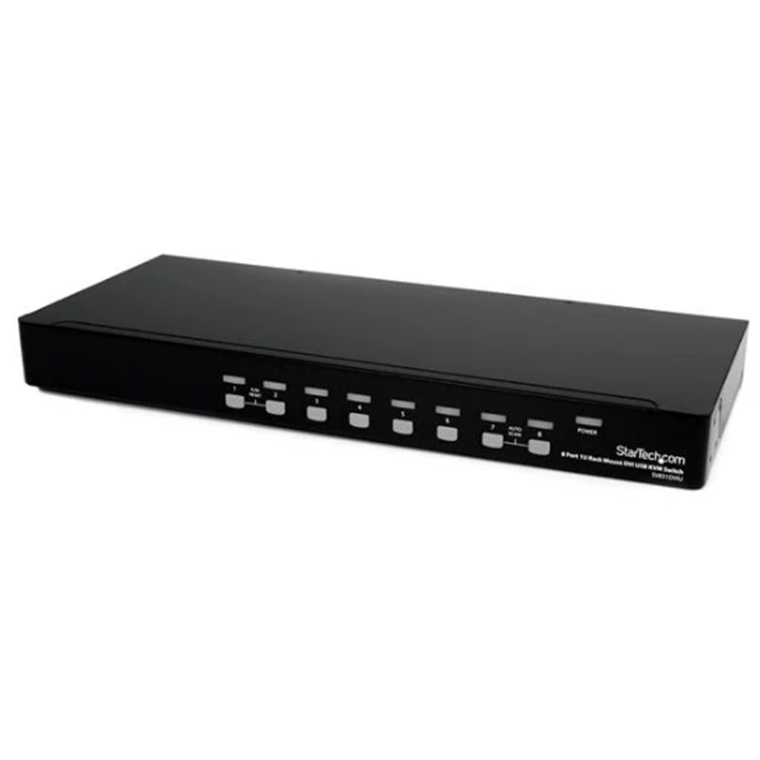

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
Specifications
HARDWARE
Audio
No
Cables Included
No
Daisy-Chain
No
KVM Ports
8
Number of Monitors Supported
1
PC Interface
USB
PC Video Type
DVI
Rack-Mountable
Yes
U Height
1U
PERFORMANCE
DVI Support
Yes - Single Link
Hot-Key Selection
Yes
IP Control
No
Maximum Cable Length
15 ft [4.6 m]
Maximum Digital Resolutions
1920 x 1200
Maximum Number of Users
1
MTBF
134000 hours
On-Screen Display
No
Port Selection Support
Push Button and Hotkeys
CONNECTOR(S)
Console Interface(s)
1 - DVI-I (29 pin) Female
2 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors
8 - DVI-I (29 pin) Female
8 - USB B (4 pin) Female
SOFTWARE
OS Compatibility
OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
Note
Supports SUN keyboard emulation
POWER
Center Tip Polarity
Positive
Input Current
1.8A
Input Voltage
100 - 240 AC
Output Current
4A
Output Voltage
12V DC
Plug Type
M
Power Consumption (In Watts)
48
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
0~80%RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
Color
Black
Material
Steel
Dimensions
1.7 in [4.4 cm]
Length 7.1 in [18 cm]
Width 17.2 in [43.8 cm]
Weight
5.5 lb [2.5 kg]
WHAT'S IN THE BOX
Included in Package
1 - 8 Port DVI USB KVM Switch
1 - Set Rack-mount brackets
3 - Power adapter:
1 - User Manual
