StarTech.com ST12MHDLAN4K HDMI Over IP Extender Kit - 4K Deploy HDMI over LAN and get avideo over IP solution that s scalable with intuitive control that s ideal for your video wall
StarTech.com ST12MHDLAN4K HDMI Over IP Extender Kit - 4K Deploy HDMI over LAN and get avideo over IP solution that s scalable with intuitive control that s ideal for your video wall
- Brand: StarTech.com
- MPN: ST12MHDLAN4K
- Part #: KVMSTT3706005
- UPC: 065030868372
View all shipping info
- Brand: StarTech.com
- MPN: ST12MHDLAN4K
- Part #: KVMSTT3706005
- UPC: 065030868372
Features
This HDMI® over IP extender gives you the flexibility to locate digital signage displays where you need them. Using your local network to extend a 4K HDMI signal, you can seamlessly distribute video to multiple displays from multiple source devices, making it easy to position your displays, or create a video wall.
You can add additional receivers (sold separately) to distribute your HDMI signal to multiple locations. You can also create a video wall and combine your video source across multiple displays.
The IP receiver also features RS-232 extension which enables you to add a remote serial-operated device.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through a Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a Gigabit Ethernet switch with IGMP.
For further scalability, you can combine up to 16 total extender kits. The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling up to 330 feet (100 meters). In this configuration, two independent 3.5 mm audio source can also be extended to separate 3.5 mm speaker systems.
Ultra HD 4K resolution at 30Hz
This HDMI over IP kit delivers astonishing 4K UHD video to your remote 4K displays. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you to extend a 4K video source to multiple remote locations -- perfect for distribution throughout large buildings such as schools, hospitals, shopping centers or areas. The extender also works at lower resolutions such as 1080p or 720p.
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app to manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional slot shelf mounting hardware for a tidy installation. Plus, because the extender uses standard non-proprietary CAT5e or CAT6 cable, it eliminates both the expense and hassle of running specialized cables.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Other KVM Accessories
LENKENG LKV3090 Digital to Analog/ Analog to Digital Combo Audio...
LENKENG LKV3061 HDMI Audio Extractor 1x HDMI In. 1x HDMI Out. 3x...
StarTech.com SV211HDUC KVM Switchbox 2 Port USB C KVM Switch...
StarTech.com HDBOOST HDMI SIGNAL BOOSTER - 115 FT - 1080P Amplify...
StarTech.com ICUSB232C USB C to Serial Adapter Cable 40cm (16") -...
StarTech.com ST12MHDLAN4K HDMI Over IP Extender Kit - 4K Deploy HDMI over LAN and get avideo over IP solution that s scalable with intuitive control that s ideal for your video wall
- Brand: StarTech.com
- MPN: ST12MHDLAN4K
- Part #: KVMSTT3706005
- UPC:065030868372
Product URL: https://www.pbtech.com/au/product/KVMSTT3706005/StarTechcom-ST12MHDLAN4K-HDMI-Over-IP-Extender-Kit
Features
This HDMI® over IP extender gives you the flexibility to locate digital signage displays where you need them. Using your local network to extend a 4K HDMI signal, you can seamlessly distribute video to multiple displays from multiple source devices, making it easy to position your displays, or create a video wall.
You can add additional receivers (sold separately) to distribute your HDMI signal to multiple locations. You can also create a video wall and combine your video source across multiple displays.
The IP receiver also features RS-232 extension which enables you to add a remote serial-operated device.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through a Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a Gigabit Ethernet switch with IGMP.
For further scalability, you can combine up to 16 total extender kits. The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling up to 330 feet (100 meters). In this configuration, two independent 3.5 mm audio source can also be extended to separate 3.5 mm speaker systems.
Ultra HD 4K resolution at 30Hz
This HDMI over IP kit delivers astonishing 4K UHD video to your remote 4K displays. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you to extend a 4K video source to multiple remote locations -- perfect for distribution throughout large buildings such as schools, hospitals, shopping centers or areas. The extender also works at lower resolutions such as 1080p or 720p.
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app to manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional slot shelf mounting hardware for a tidy installation. Plus, because the extender uses standard non-proprietary CAT5e or CAT6 cable, it eliminates both the expense and hassle of running specialized cables.
Specifications
HARDWARE
Audio Yes
AV Input HDMI
Cabling Cat 5e UTP or better
Daisy-Chain Yes
Ports 1
Rack-Mountable Yes
PERFORMANCE
Audio Specifications Stereo Sound
Max Distance 100 m / 330 ft
Maximum Digital Resolutions 4K @ 30Hz
Supported Resolutions 3840x2160 (4K) @ 30Hz
2560x1600
1920x1200 @ 60Hz
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported Yes
CONNECTOR(S)
Connector A 1 - HDMI (19 pin) Female Input
1 - RJ-45 Female
2 - RJ-11 Female
4 - 3.5 mm Mini-Jack (3 Position) Female
Connector B 1 - HDMI (19 pin) Female Output
1 - RJ-45 Female
2 - RJ-11 Female
4 - 3.5 mm Mini-Jack (3 Position) Female
SPECIAL NOTES / REQUIREMENTS
Note The ST12MHDLAN4K will only work with ST12MHDLAN4R receivers
Bandwidth requirement at 4k 30hz resolution is between 480Mbps and 850Mbps (per transmitter and receiver pair)
Latency at 4K 30hz resolution is 200ms between transmitter and receiver
INDICATORS
LED Indicators 1 - Link OK / POWER - Transmitter
1 - Reset - Transmitter
1 - Link OK / POWER - Receiver
1 - Reset - Receiver
POWER
Center Tip Polarity Positive
Input Current 0.6 A
Input Voltage 100 - 240 AC
Output Current 1.5 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18
Power Source AC Adapter Included
ENVIRONMENTAL
Humidity 0% - 80 %
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
Color Black
Enclosure Type Aluminum
Product Height 1.2 in [3 cm]
Product Length 5.1 in [13 cm]
Product Width 4.6 in [11.7 cm]
Weight of Product 20.9 oz [592 g]
PACKAGING INFORMATION
Package Height 3 in [76 mm]
Package Length 14.6 in [37 cm]
Package Width 9.3 in [23.5 cm]
Shipping (Package) Weight 5.1 lb [2.3 kg]
WHAT'S IN THE BOX

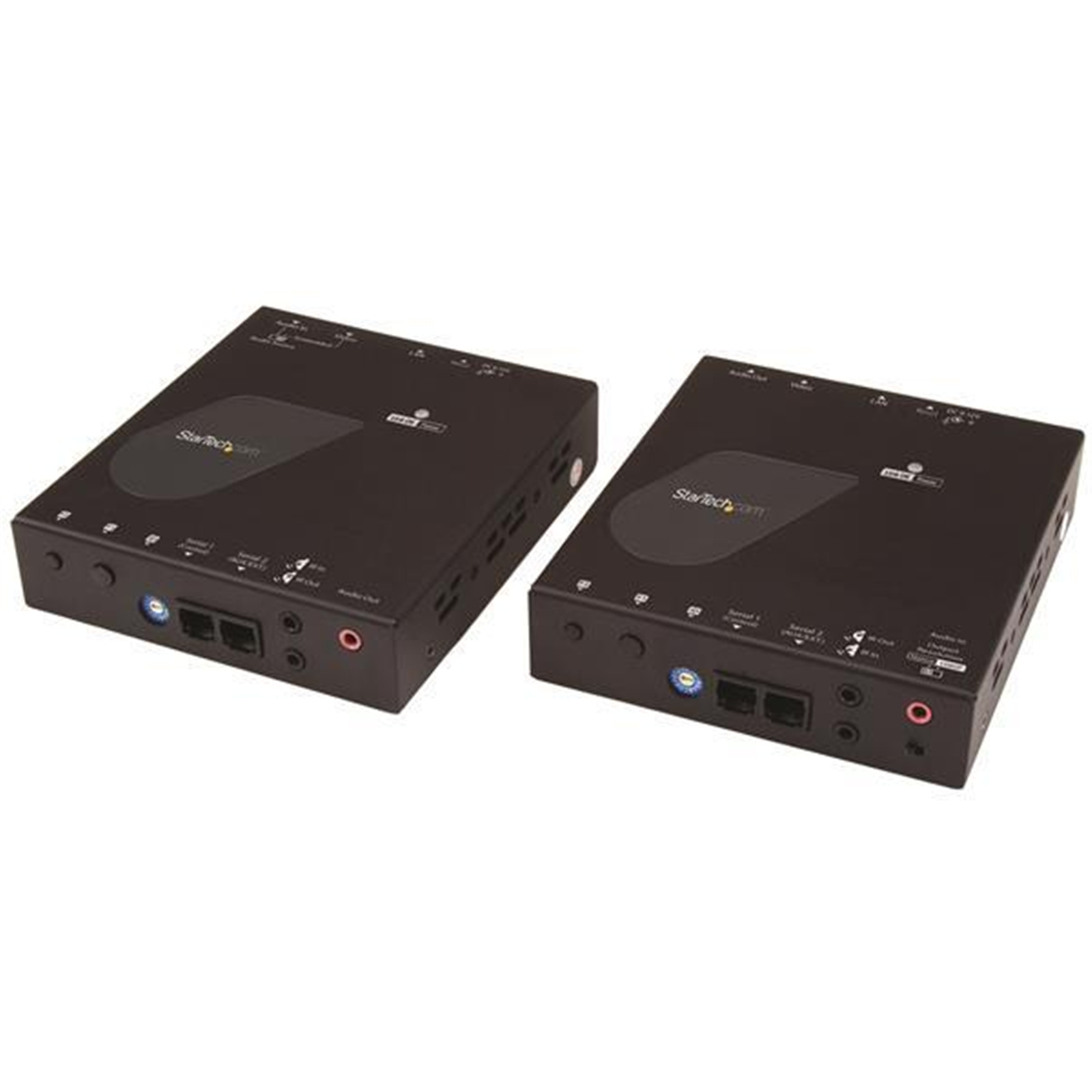

Included in Package 1 - HDMI over IP transmitter
1 - HDMI over IP receiver
2 - universal power adapters (NA, EU, UK, ANZ)
2 - mounting brackets
2 - CAT5e cables
2 - RJ11 to RS232 adapters
2 - RJ11 cables
1 - plastic screwdriver
1 - quick-start guide
