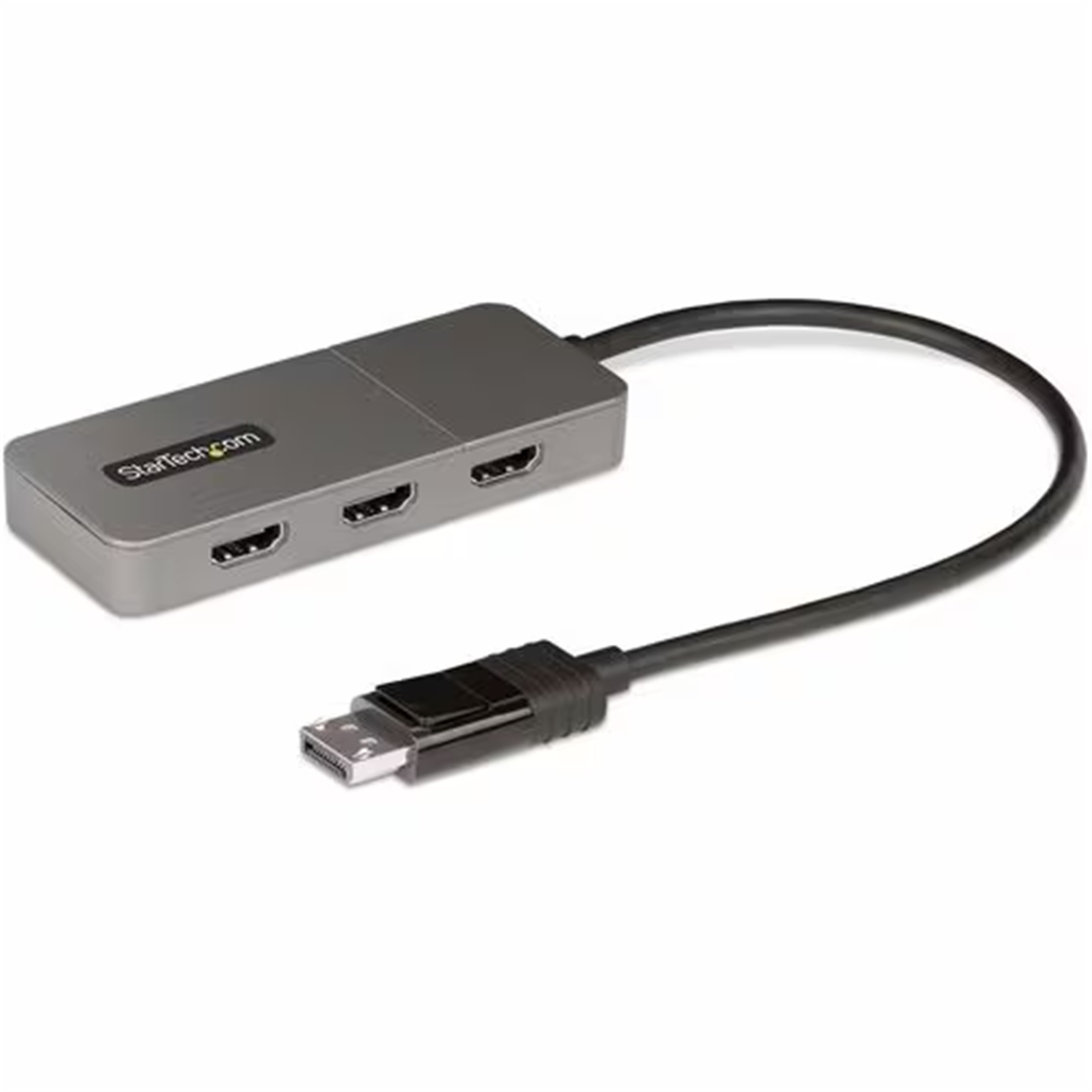

StarTech.com MST14DP123HD 3-PORT MST HUB DP TO TRIPLE 4K60HZ HDMI
Out of stock
StarTech.com MST14DP123HD 3-PORT MST HUB DP TO TRIPLE 4K60HZ HDMI
- Brand: StarTech.com
- MPN: MST14DP123HD
- Part #: KVMSTT5892777
- UPC: 65030897631
View all shipping info
- Brand: StarTech.com
- MPN: MST14DP123HD
- Part #: KVMSTT5892777
- UPC: 65030897631
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular DisplayPort Adapters





StarTech.com MST14DP123HD 3-PORT MST HUB DP TO TRIPLE 4K60HZ HDMI
- Brand: StarTech.com
- MPN: MST14DP123HD
- Part #: KVMSTT5892777
- UPC:65030897631

Product URL: https://www.pbtech.com/au/product/KVMSTT5892777/StarTechcom-MST14DP123HD-3-PORT-MST-HUB-DP-TO-TRIP
Features
3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only
- MULTI-MONITOR CONFIGURATION: DisplayPort to Triple-HDMI MST Hub drives up to three 4K 60Hz displays from a DP 1.4 host with DSC; USB Powered; Supports HDR and 7.1ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Windows computers with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC support up to three 4K 60Hz monitors; See resolution chart for a list of other supported display configurations
- EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the adapter
Drive Triple 4K 60Hz Displays with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.
Multitasking Made Easy
Configure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Driverless for Rapid Deployment and Seamless User Setup Experience
This MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.
Specifications
Connector(s)
Connector A
1 - DisplayPort
1 - USB Micro-B (5 pin) (Power)
Connector B
3 - HDMI
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
5% to 90% RH (non-condensing)
Hardware
4K Support
Yes
Displays Supported
3
Active or Passive Adapter
Active
AV Input
DisplayPort - 1.4
AV Output
HDMI - 2.0
Audio
Yes
Industry Standards
Display Stream Compression (DSC)
High Bit Rate 3 (HBR3)
Chipset ID
VMM5310
IT6563FN
Packaging Information
Package Quantity
1
Package Height
3.1 cm [1.2 in]
Package Length
17.2 cm [6.8 in]
Shipping (Package) Weight
150.0 g [5.3 oz]
Package Width
14.3 cm [5.6 in]
Performance
Video Revision
DisplayPort 1.4
HDMI 2.0
Maximum Cable Distance To Display
15 m [49.2 ft]
Supported Resolutions
4096x2160 60Hz
3840×2160 60Hz
2560x1440 60Hz
2048x1152 60Hz
1920x1200 60Hz
1920x1080 60Hz
Other resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Space Gray
Product Height
1.4 cm [0.6 in]
Product Length
10.5 cm [4.1 in]
Weight of Product
71.0 g [2.5 oz]
Product Width
4.3 cm [1.7 in]
Material
Plastic
Cable Length
30 cm [11.8 in]
Power
Power Source
USB-Powered
Software
OS Compatibility
Windows 11
Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)
