StarTech.com KVM Switch 2-Port USB-C PD Pass-Through
- Brand: StarTech.com
- MPN: C2-H46-UC2-PD-KVM
- Part #: KVMSTT5979687

Product URL: https://www.pbtech.com/au/product/KVMSTT5979687/StarTechcom-KVM-Switch-2-Port-USB-C-PD-Pass-Throug
Features
2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor
Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection
- DUAL LAPTOP CHARGING: 100W Power Delivery Pass-Through is enabled using dedicated USB-C Power Adapters (not included), with 10W reserved and up to 90W charging available for each host laptop simultaneously using the two PD 3.0 pass-through ports
- 4K 60HZ USB-C KVM SWITCH: Enables fast switching of a keyboard, video, and mouse using a single USB-C cable connected to a laptop that supports USB-C DP Alt Mode; It features a 4K 60Hz HDMI output, two USB HID ports, and pushbutton switching
- COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook); Works with USB-C, USB4, Thunderbolt 3/4 laptops
- READY TO DEPLOY: Compact KVM is bus powered and includes two 3ft/1m USB-C host cables; Small form factor is sturdy and features attached rubber feet, keeping the KVM in place during use; Streamlined Port Layout; LED Indicators for Port and Charging Status
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

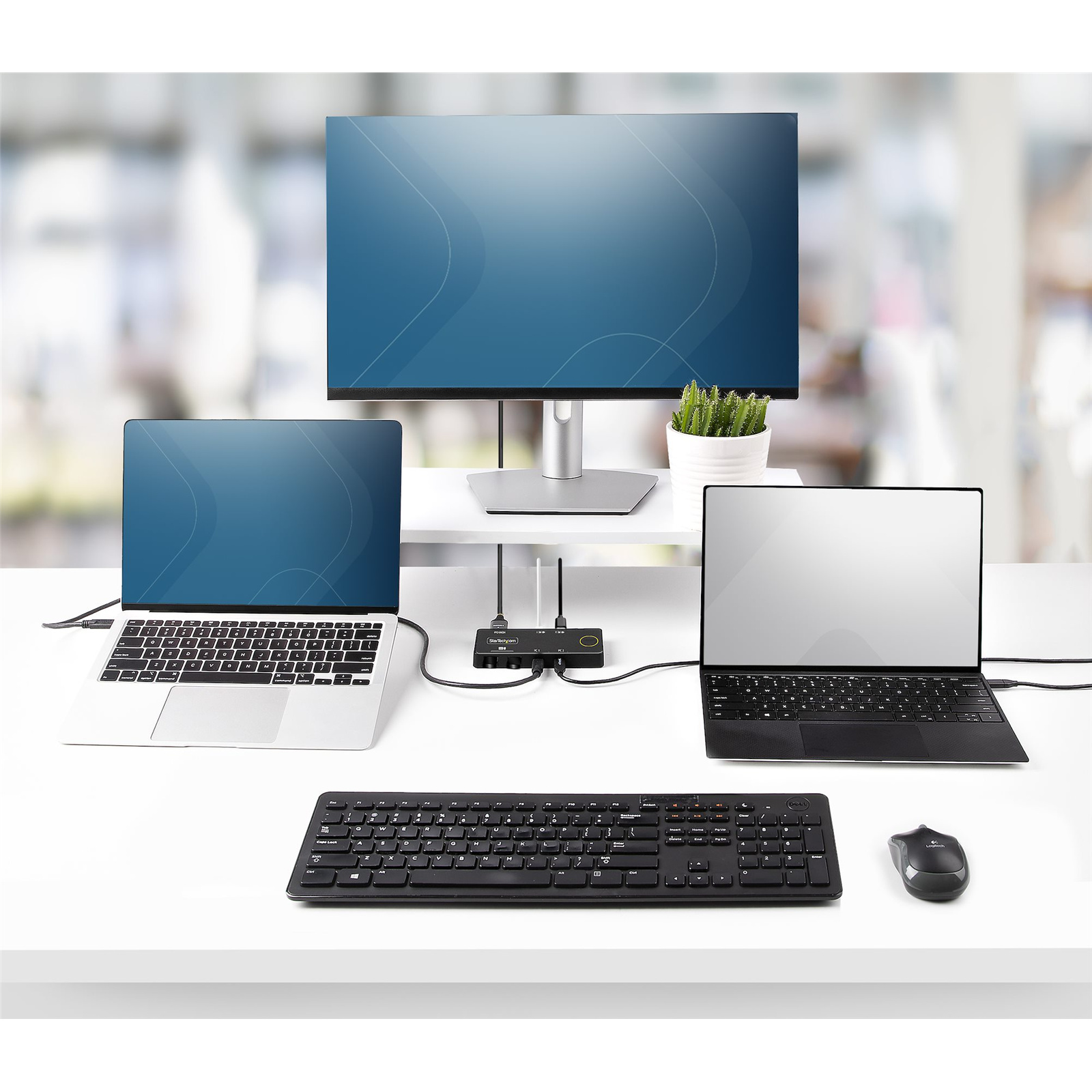

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.
100W Power Delivery Pass-through
Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.
Universal Compatibility
The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Ready for Quick Deployment

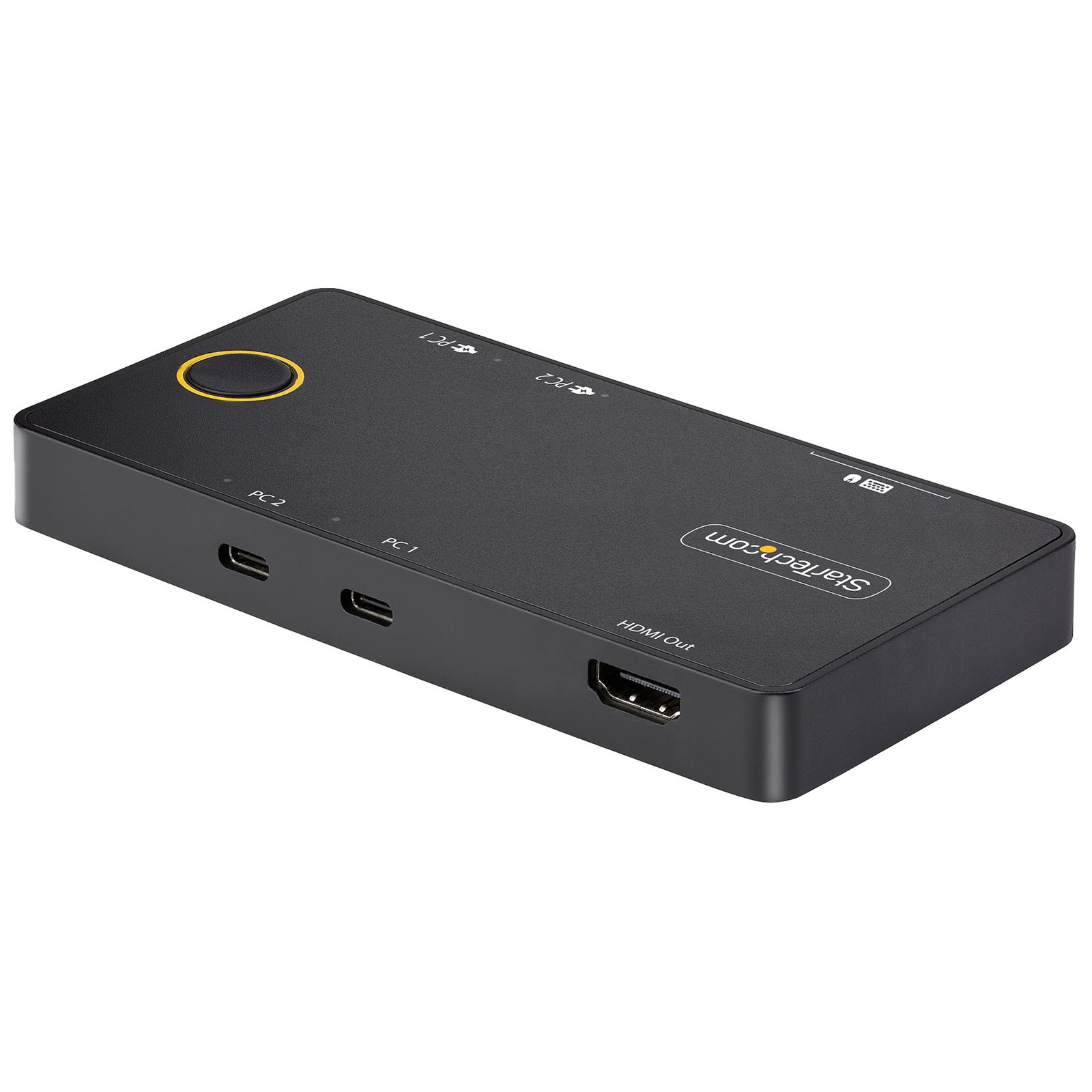

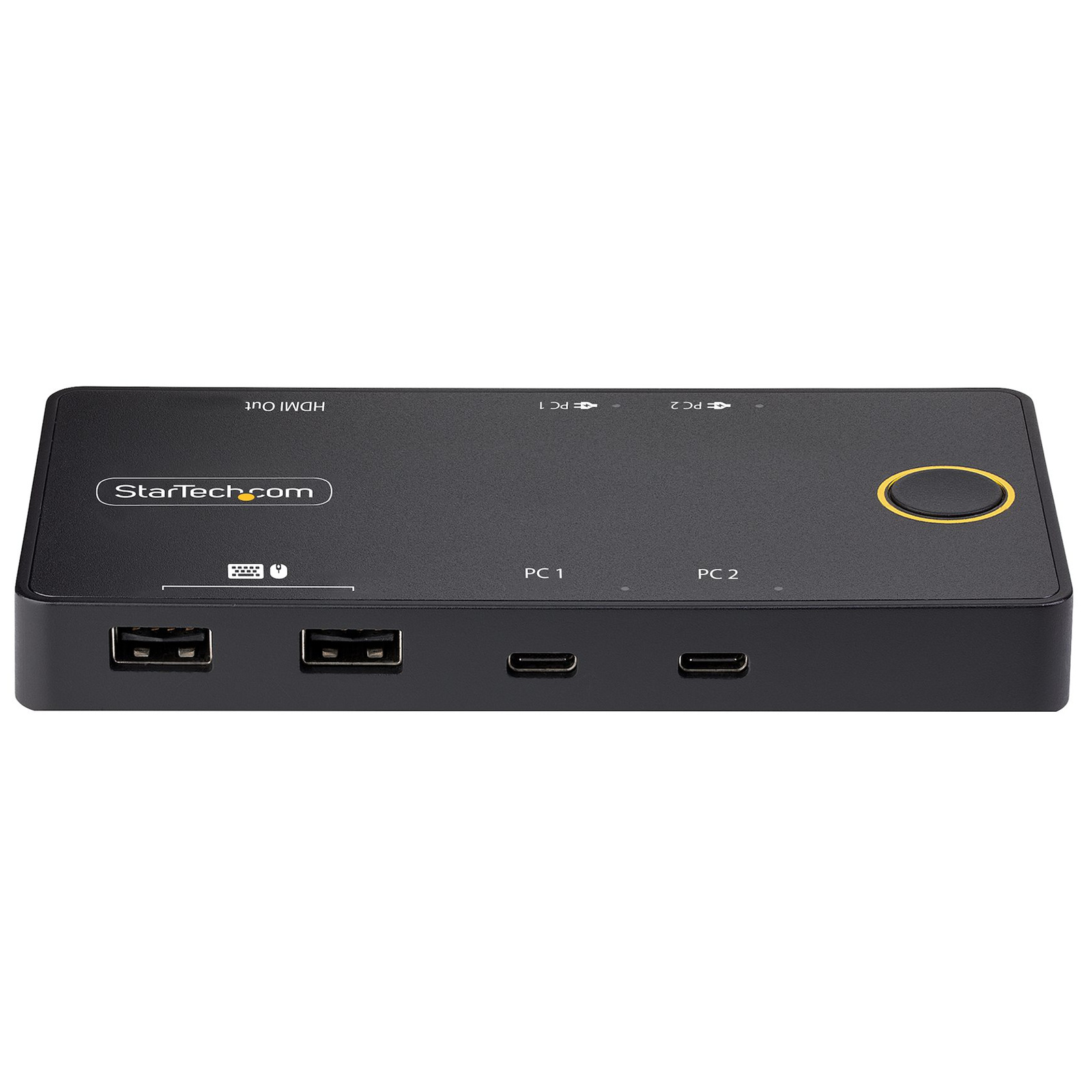

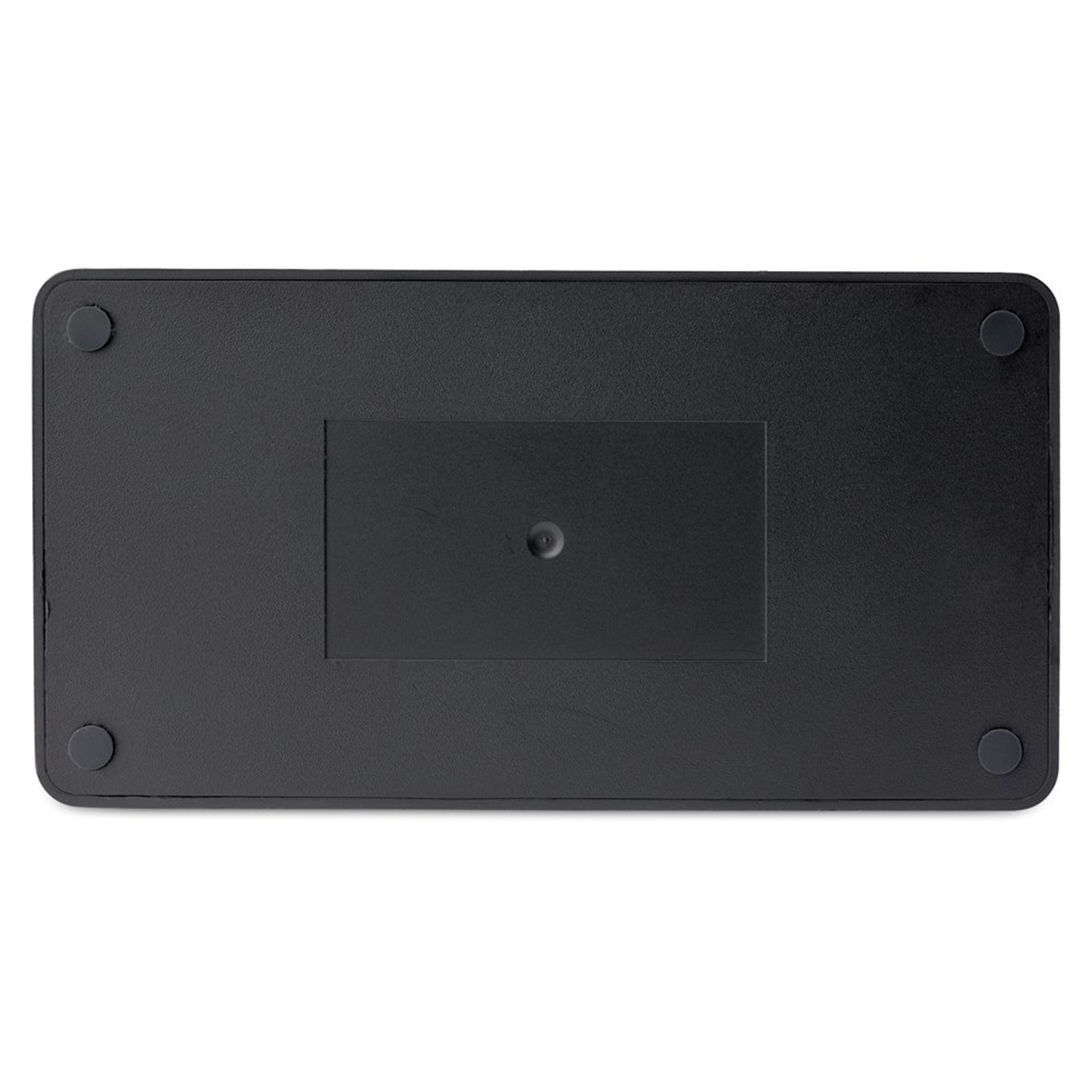

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.
Specifications
Connector(s)
Console Interface(s)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - HDMI
2 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
2 - USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps)
Environmental
Operating Temperature
5°C to 55°C (41°F to 131°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Humidity
20% ~ 80% RH
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB-C
PC Video Type
HDMI
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
Yes
Industry Standards
HDMI 2.1 TMDS
Chipset ID
VLI - VL103R
VLI - VL171
Parade - PS186
VLI - VL817
Daisy-Chain
No
Indicators
LED Indicators
2 - Power Input LED: Solid Blue = USB-C Power Adapter connected
2 - Host Connection LED: Solid Blue = Port Selected
Packaging Information
Package Length
4.8 in [12.3 cm]
Package Width
6.8 in [17.3 cm]
Package Height
3.5 in [8.8 cm]
Shipping (Package) Weight
15.5 oz [438.0 g]
Package Quantity
1
Performance
On-Screen Display
No
IP Control
No
Hot-Key Selection
No
Maximum Data Transfer Rate
480Mbps (USB 2.0)
Maximum Digital Resolutions
4096 x 2160 @ 60Hz
Supported Resolutions
5120 x 1440 @ 60Hz
4096 x 2160 @ 60Hz
3840 x 2160 @ 60Ha
3840 x 2160 @ 60Hz
3440 x 1440 @ 60Hz
2560 x 1440 @ 60Hz
2560 x 1080 @ 75Hz
1920 x 1200 @ 60Hz
1920 x 1080 @ 60Hz
Other lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Auto Scan
None
Port Selection Support
Push Button
General Specifications
Power Delivery Pass-through: 100W
Maximum Device Charging: 90W
MTBF
50,000 Hours
Physical Characteristics
Color
Black
Product Length
5.5 in [14.0 cm]
Product Width
2.8 in [7.0 cm]
Product Height
0.6 in [1.5 cm]
Weight of Product
7.1 oz [200.0 g]
Material
ABS
Cable Length
3ft (1m)
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Consumption (In Watts)
10W
Software
OS Compatibilit
No Drivers or Software Required
Special Notes / Requirements
Note
Host device must support USB-C DP Alt Mode for video functionality to work
Host device must support Power Delivery to charge when a USB-C Power Adapter is connected to the Power Delivery Pass-through Port
What's in the Box
Included in Package
1 - KVM Switch

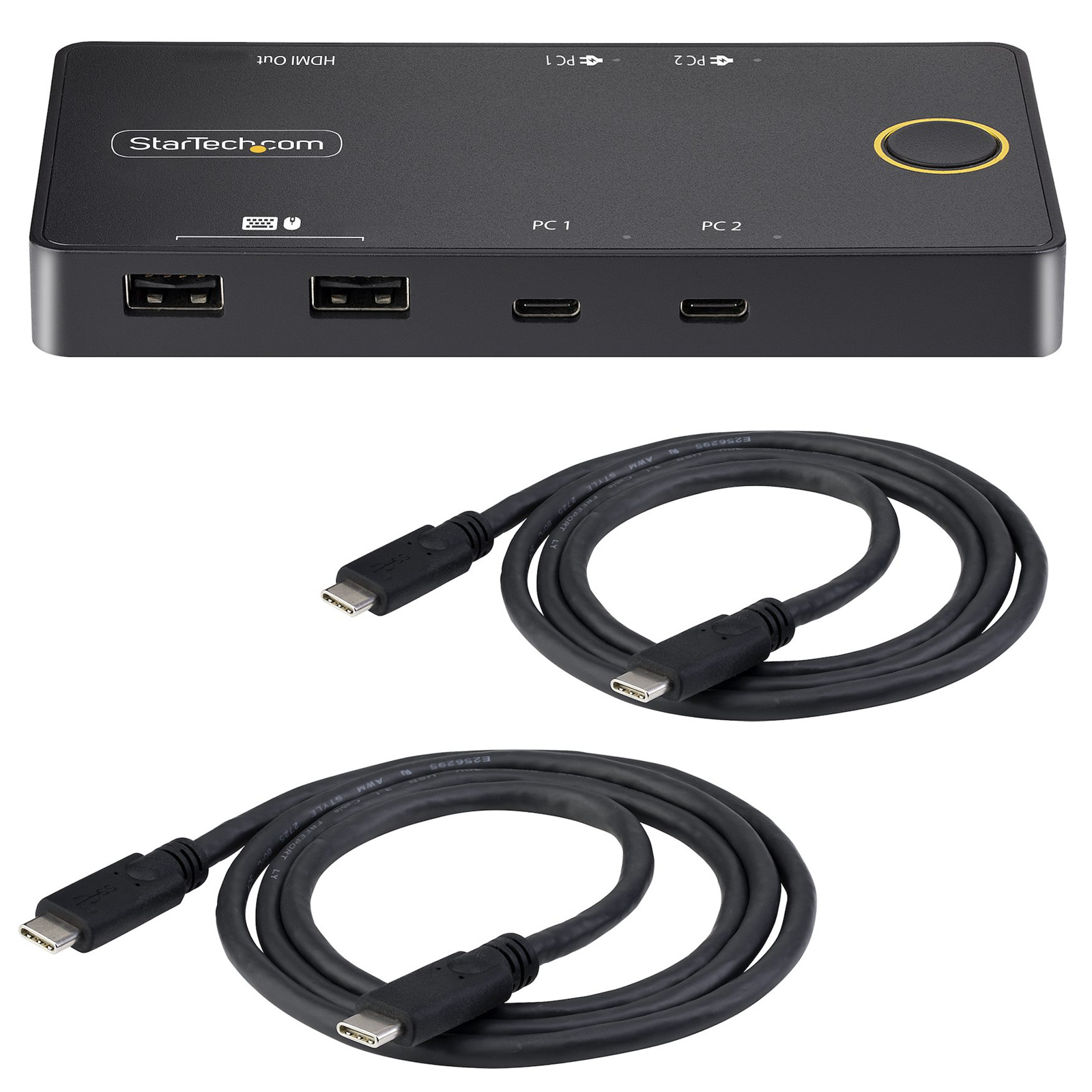

2 - USB-C Host Cables
1 - Quick-Start Guide
