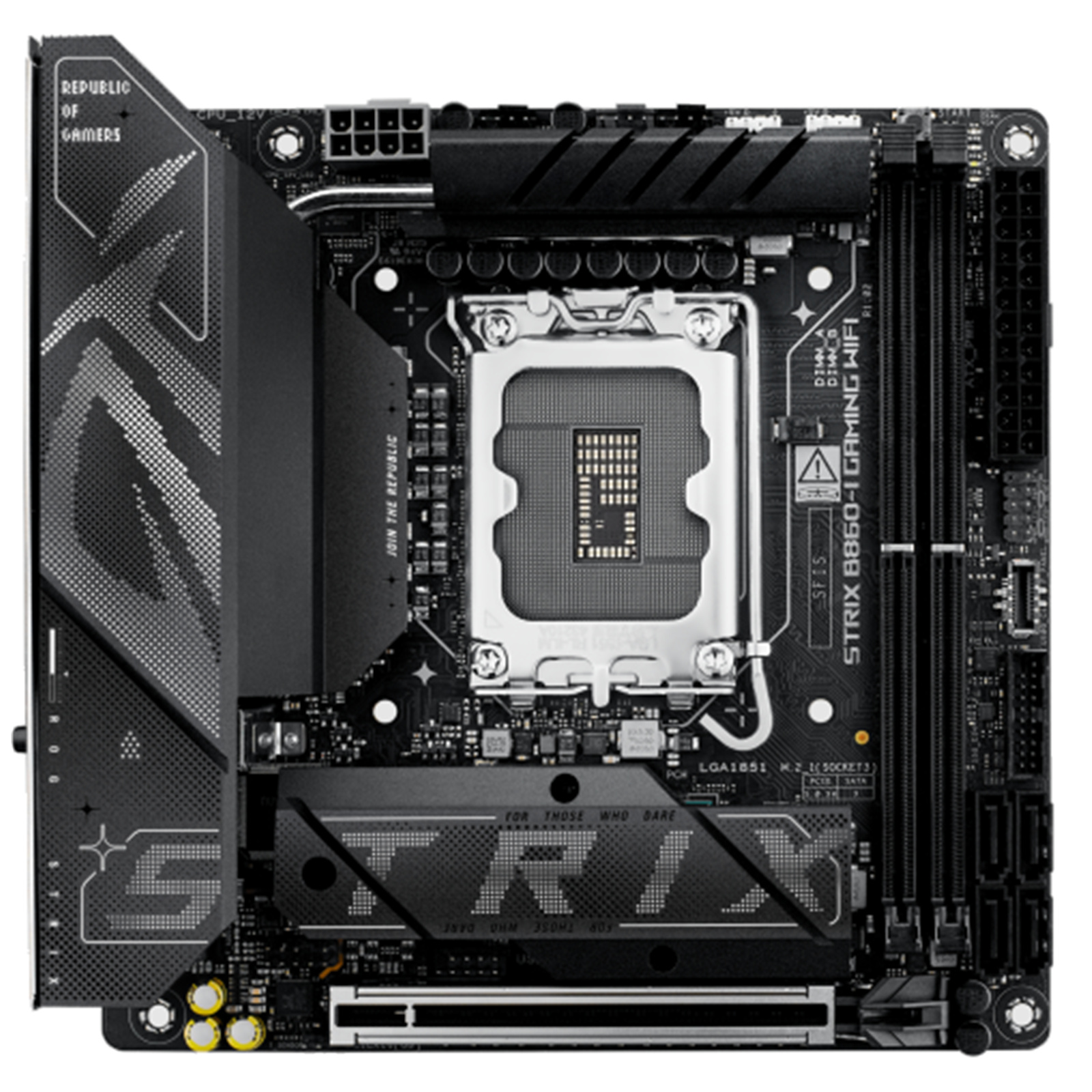

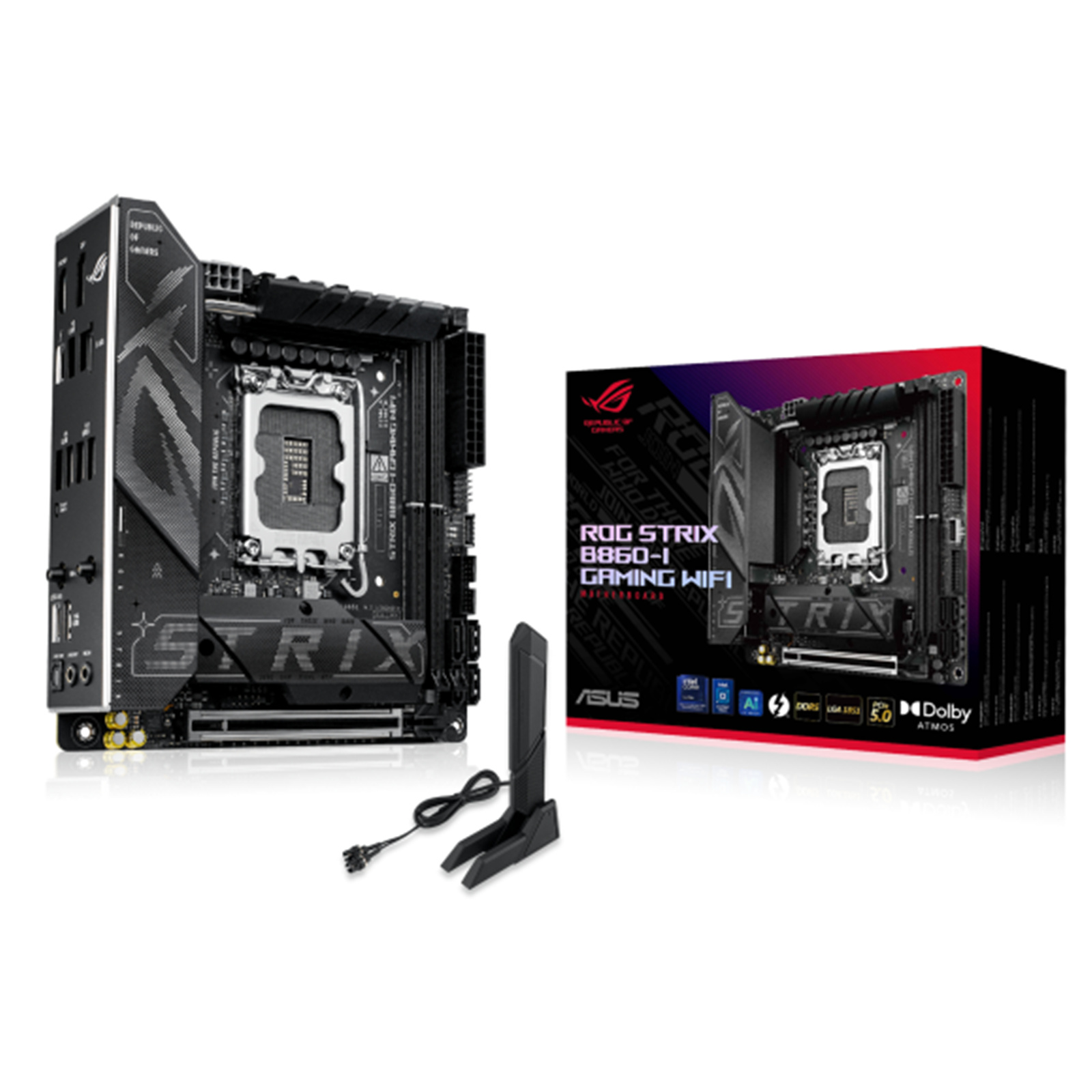

ASUS ROG STRIX B860-I GAMING WIFI ITX Motherboard Support Intel 15 Gen CPU, Socket 1851. B860 Chipset, PCIE 5.0, 2x M.2, 1x Internal USB 3.2 Header, 1x Internal USB 2.0 Header, 1x Internal Type C Header, Wifi 7+ Bluetooth
ASUS ROG STRIX B860-I GAMING WIFI ITX Motherboard Support Intel 15 Gen CPU, Socket 1851. B860 Chipset, PCIE 5.0, 2x M.2, 1x Internal USB 3.2 Header, 1x Internal USB 2.0 Header, 1x Internal Type C Header, Wifi 7+ Bluetooth
- Brand: ASUS
- MPN: ROG STRIX B860-I GAMING WIFI
- Part #: MBDASU62400
- UPC: 197105816008
View all shipping info
- Brand: ASUS
- MPN: ROG STRIX B860-I GAMING WIFI
- Part #: MBDASU62400
- UPC: 197105816008
COMBO DEALS: Buy Together and SAVE!
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series...
$468.00 +GST
$514.80
Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket...
$137.11 +GST
$150.82
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V...
$153.54 +GST
$168.89
Features
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.
DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
VRM HEATSINK
The VRM heatsink extends over the rear I/O to maximize surface area and deftly handle the power thermals of the latest Intel processors, while leaving clearance for large CPU coolers.
HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
PCIE 5.0
The Strix B860-I offers end-to-end PCIe 5.0 support, and the topmost x16 expansion slot is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One onboard M.2 slot is rated for blistering read and write speeds up to 16 GB/s, while the remainder can deliver still-impressive 8 GB/s transfers. And every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.?
THUNDERBOLT 4 TYPE-C® PORT
The port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Besides, it can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.
Specifications
Reviews
Accessories
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Intel Desktop Motherboards
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
Gigabyte B760M Gaming Plus WIFI DDR4 mATX Motherboard Intel...
Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 mATX Motherboard Intel...
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 -...
Gigabyte B760 DS3H WIFI6E GEN5 ATX Motherboard Intel B760,...
ASUS ROG STRIX B860-I GAMING WIFI ITX Motherboard Support Intel 15 Gen CPU, Socket 1851. B860 Chipset, PCIE 5.0, 2x M.2, 1x Internal USB 3.2 Header, 1x Internal USB 2.0 Header, 1x Internal Type C Header, Wifi 7+ Bluetooth
- Brand: ASUS
- MPN: ROG STRIX B860-I GAMING WIFI
- Part #: MBDASU62400
- UPC:197105816008
Product URL: https://www.pbtech.com/au/product/MBDASU62400/ASUS-ROG-STRIX-B860-I-GAMING-WIFI-ITX-Motherboard
Features
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.
DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
VRM HEATSINK
The VRM heatsink extends over the rear I/O to maximize surface area and deftly handle the power thermals of the latest Intel processors, while leaving clearance for large CPU coolers.
HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
PCIE 5.0
The Strix B860-I offers end-to-end PCIe 5.0 support, and the topmost x16 expansion slot is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One onboard M.2 slot is rated for blistering read and write speeds up to 16 GB/s, while the remainder can deliver still-impressive 8 GB/s transfers. And every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.?
THUNDERBOLT 4 TYPE-C® PORT
The port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Besides, it can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.
Specifications
Model
ROG STRIX B860-I GAMING WIFI
CPU
Support Intel® Core™ Ultra Processors
(Series 2)*
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to
https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC
Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile
(XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit
https://www.asus.com/support/download-center/.
* *Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports
DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI
2.1.
****Supports up to 8K@60Hz x1 with DSC,
maximum total bandwidth up to 23.8Gbps, for resolution support please check
DisplayPort 2.1 specs.
***** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for
the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280
(supports PCIe 5.0 x4 mode)
Intel® B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
* USB Type-C® power delivery output: max.
5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound High
Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- PCIe Slot Q-Release Slim (with PCIe
SafeSlot)
- M.2 Q-Latch
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, UEFI PXE
Accessories
Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x Screw package for M.2 SSD
1 x M.2 Bracket
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
