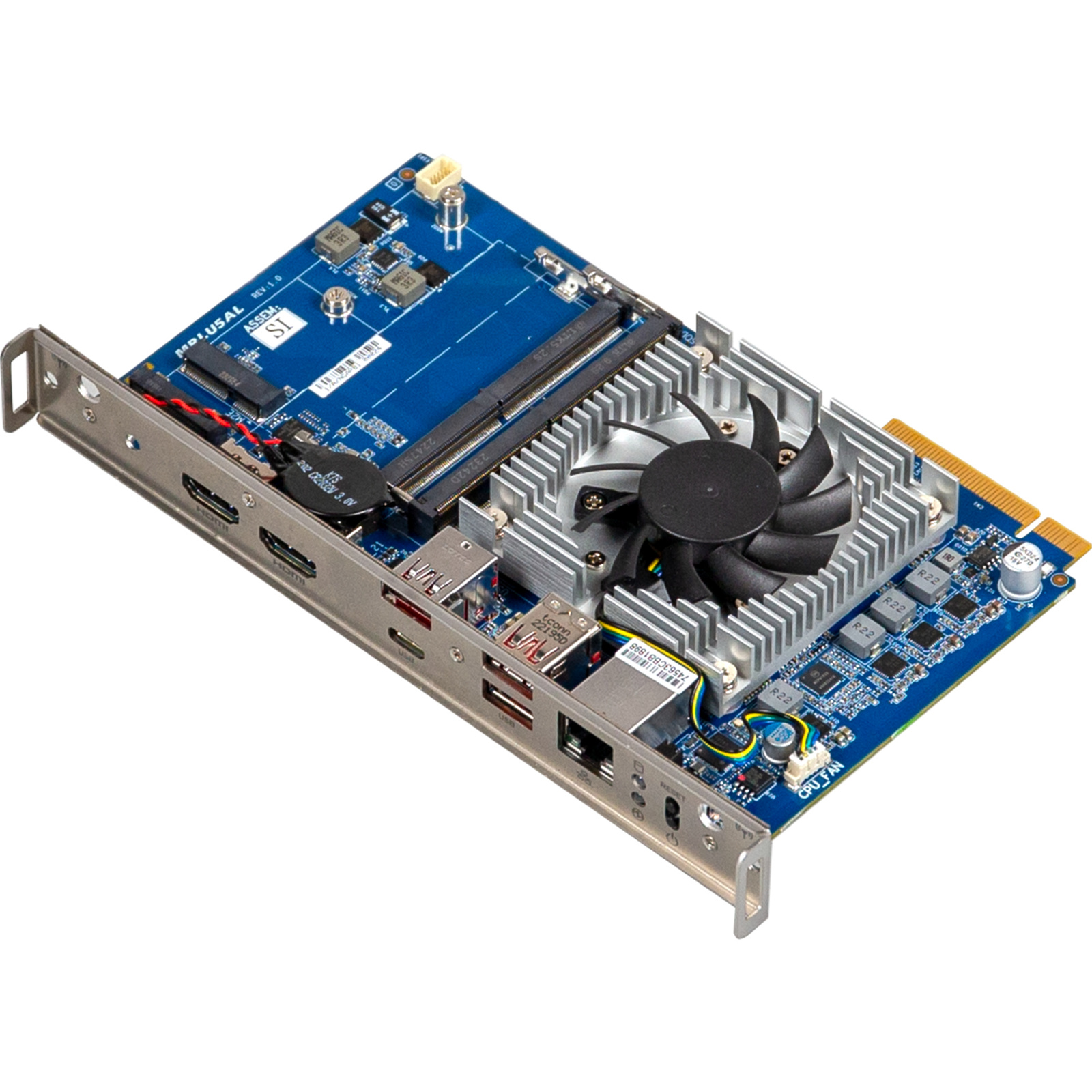

GigaIPC Intel Smart Display Module SDM-1335AL Intel 13th i5-1335U CPU

  • Brand: GigaIPC
  • MPN: 9MRLU5ALMR-SI
  • Part #: MBDGICM10003
  • UPC:
PB Tech price
$ 888 .19 $ 977 .01
 +GST  inc GST


Delivery: Order now and it ships on 08 Oct
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$888.19  +GST
$977.01

Features

8K Smart Display Module (SDM)

Intel® Core™ i5-1335U Processor

Dual Channel DDR5, 2 x SO-DIMMs

1 x 2.5GbE LAN Port

3 x USB 3.2 Type A Gen 2x1

1 x USB 3.2 Type C Gen 2x1 (with DP output)

Environment : Operation 0°C to 55°C

Specifications

Form Factor

SDM-Large
175W x 100D(mm)

CPU

Intel® Core™ i5-1335U Processor
Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz
TDP 15W
12 MB Smart Cache

Socket

1 x FCBGA1744

Memory

2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules

Ethernet

1 x 2.5GbE LAN Port (Intel® I225LM)

Video

Integrated Graphics Processor - Intel® Iris Xe Graphics:
1 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x Display Port 1.4a (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.1 (Rear), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)

Audio

Intel® Integrated Audio

Expansion Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key

Rear l/O

2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Type A Gen 2x1
1 x USB 3.2 Type C Gen 2x1 (with DP output)
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0

OS Compatibility

Windows 10/11 (x64)

Operating Properties

Operating temperature: 0°C to +55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:
DIMM2 PAD P/N: 25ST3-200086-T5R*1
M.2 Standoff P/N: 12KSF-F10303-20R*1
M.2 Screw P/N: 25KSG-130048-S0R*1
M.2 Bracket P/N: 25ST1-1231Z0-S7R*1

Order Information

9MRLU5ALMR-SI (Box packing)

Optional Kit

Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1
External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2
External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2

Manufacturer Part No:
9MRLU5ALMR-SI
Brand:
Product Type:
-
UPC
-
Product Family:
Intel Smart Display Module
Shipping Weight:
1 kg
PB Part No:
MBDGICM10003
Product Model:
SDM-1335AL
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
