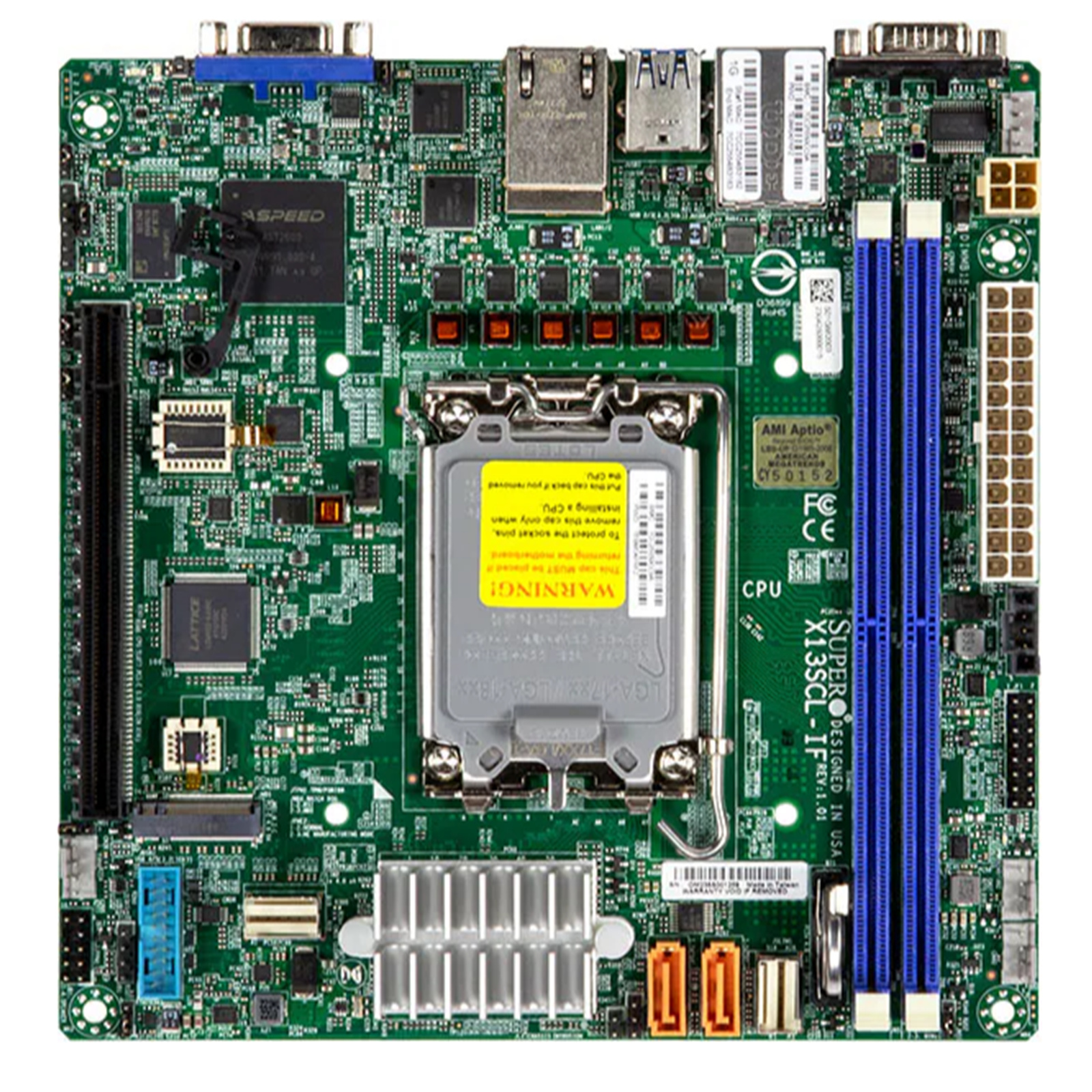

Supermicro X13SCL-IF Server Board, mITX, LGA1700, C262, 2 DIMM, 2x GbE, 6x SATA, 1x PCIe 5.0 x16, 1x M.2 2280, IPMI
- Brand: Supermicro
- MPN: MBD-X13SCL-IF-O
- Part #: MBDSPMX13108
- UPC:672042899159
Product URL: https://www.pbtech.com/au/product/MBDSPMX13108/Supermicro-X13SCL-IF-Server-Board-mITX-LGA1700-C26
Features
X13SCL-IF
- Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
- Intel® C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10
- Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots
- 1 PCIe 5.0 x16
- 2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)
- Dual LAN with Intel® i210 Gigabit Ethernet Controller
- M.2 Interface: 1 PCIe 4.0 x4
- M.2 Form Factor: 2280
- M.2 Key: M-Key
- 4 USB 3.2 Gen1 ports (2 rear + 2 via header)
- 2 USB 2.0 ports (2 rear)
Specifications
Physical Stats
Form Factor
Mini-ITX
Dimension
6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
Intel® Xeon® E-2400/Pentium®* Processor
Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium® G7400 and G7400T
Core
Up to 8 cores
System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR5-4800MT/s
Memory Type
4800/4400/4000 MT/s Up to 64GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C262
SATA
Intel® C262 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
2 SATA3 (6Gbps) port(s)
4 SATA3 (6Gbps) port(s) via Slimline SAS x4 connector
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 rear)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
TPM
1 TPM Header
Expansion Slots
PCIe
1 PCIe 5.0 x16,
1 PCIe 4.0 x4 SlimSAS, 2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Management
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
