Tamiya 58743 1/10 TOYOTA CELICA GT-FOUR ST205 (INCL ESC) TT-02
Out of stock
Tamiya 58743 1/10 TOYOTA CELICA GT-FOUR ST205 (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58743
- Part #: MDLTMA58743
- UPC:
View all shipping info
- Brand: Tamiya
- MPN: Tamiya 58743
- Part #: MDLTMA58743
- UPC:
Features
Toyota developed this high-spec version of the sixth generation Celica with the aim of repeating in 1994 their global rally championship of the previous year. Now it appears as a radio control model assembly kit with a polycarbonate body recreating the car's classic form and separately molded parts adding plenty of detail.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels use semi-pneumatic treaded tires.
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel plastic differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Type 540 motor
- ESC included for export

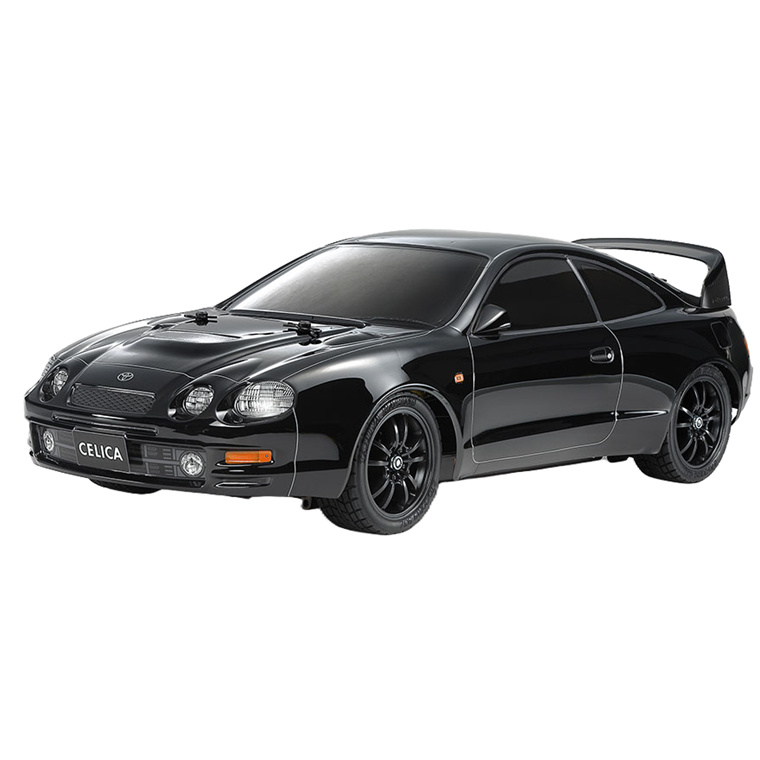

The glamorous Celica GT-FOUR (ST205) form is captured in style by a polycarbonate body.
The quadruple rounded headlights were the signature of this car, as were the bonnet scoops.
Side mirrors are a racy angular design.
2,100 full size cars were sold in Japan with this alluring rear spoiler.
Gun metal 10-spoke wheels are paired with semi-pneumatic tires.
Resin ball links in the steering linkage joints make for smooth, comfortable motion.
Wheel hubs are shaped to look like brake discs.
Motor cover includes removable cooling duct (not attached in image).
This image gives a closer look at the rear double-wishbone suspension with friction dampers.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Cars
Aoshima - 1/24 - Toyota - Japan Taxi Checker 2017
Tamiya Big Scale Series No.46 - 1/12 - Team Lotus Type 72D 1972
Tamiya 18720 MINI 4WD K4 TASCHEL (FM-A)
Revell RV05664 007 GIFT SET 1/24 MUSTANG MACH-1
Academy 9-15617 1/24 Iconic Korean Brisa Car
Tamiya 58743 1/10 TOYOTA CELICA GT-FOUR ST205 (INCL ESC) TT-02
- Brand: Tamiya
- MPN: Tamiya 58743
- Part #: MDLTMA58743
Product URL: https://www.pbtech.com/au/product/MDLTMA58743/Tamiya-58743-110-TOYOTA-CELICA-GT-FOUR-ST205-INCL
Features
Toyota developed this high-spec version of the sixth generation Celica with the aim of repeating in 1994 their global rally championship of the previous year. Now it appears as a radio control model assembly kit with a polycarbonate body recreating the car's classic form and separately molded parts adding plenty of detail.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels use semi-pneumatic treaded tires.
- Bathtub-type frame
- Shaft-driven 4WD
- Front/rear 4-bevel plastic differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Front/rear friction dampers
- Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Type 540 motor
- ESC included for export
The glamorous Celica GT-FOUR (ST205) form is captured in style by a polycarbonate body.
The quadruple rounded headlights were the signature of this car, as were the bonnet scoops.
Side mirrors are a racy angular design.
2,100 full size cars were sold in Japan with this alluring rear spoiler.
Gun metal 10-spoke wheels are paired with semi-pneumatic tires.
Resin ball links in the steering linkage joints make for smooth, comfortable motion.
Wheel hubs are shaped to look like brake discs.
Motor cover includes removable cooling duct (not attached in image).
This image gives a closer look at the rear double-wishbone suspension with friction dampers.
Specifications
Product Type
Plastic Model Assembly Kit
Brand
Tamiya
Scale
1/10
Length
451mm
Width
186mm
Height
134mm
Wheelbase
257mm
Tire Width/Diameter
27/67mm (front & rear)
Motor
Type 540 motor
Gear Ratio
8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Separately Required Items (Not Included)
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
