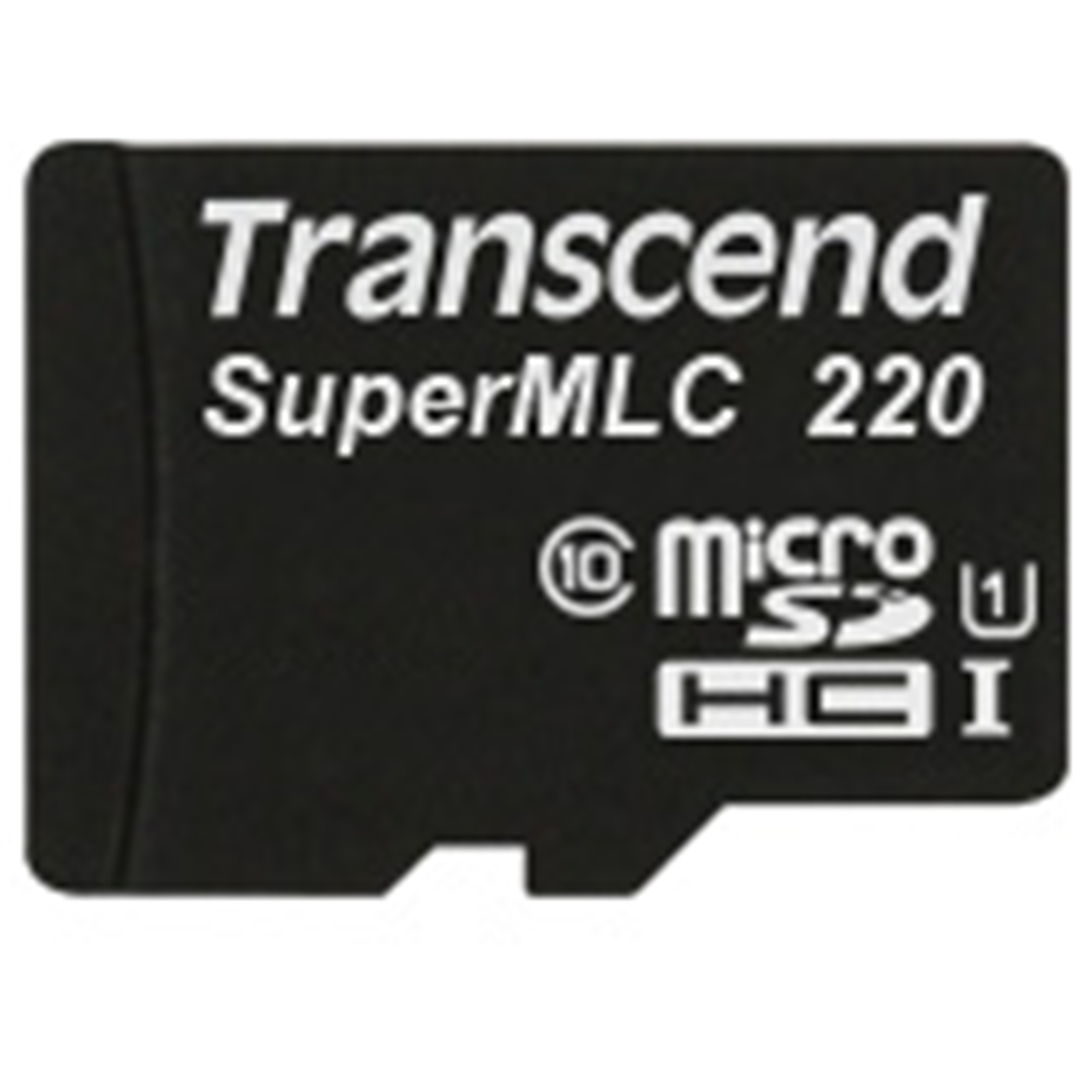

Transcend Embedded 8GB microSD U1, SLC mode, Wide Temp. MLC
- Brand: Transcend Embedded
- MPN: TS8GUSD220I
- Part #: MEMTRSI31403
- UPC:760557835820

Product URL: https://www.pbtech.com/au/product/MEMTRSI31403/Transcend-Embedded-8GB-microSD-U1-SLC-mode-Wide-Te
Features
SLC mode is a cost-effective technique that can improve performance by operating like an SLC NAND flash. The USD220I operates over a wide temperature range (-40°C ~ 85°C) and can also provide excellent durability, making it suitable for high-write applications such as medical equipment, surveillance systems, and POS.
Firmware features
- ECC function
- Early Move
- Supports S.M.A.R.T. functionality to monitor, analyze, and report storage device status
- Wear leveling
Hardware features
- RoHS 2.0 Directive Compliant Products
- Electrostatic discharge immunity (IEC 61000-4-2)
- Conforms to SD 3.01 standard
- High-quality MLC NAND flash and SLC mode (aka SuperMLC) for superior durability and reliability
- Can operate in a wide temperature range of -40°C~85°C
- Scope Pro Software
Specifications
appearance
size
11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form factor
microSD card
storage
Flash Type
MLC NAND Flash (SLC mode)
capacity
8 GB
Operating environment
Operating voltage
2.7V ~ 3.6V
Drop test
1.5m free fall
Operating environment temperature
Wide-range temperature
-40°C (-40°F) ~ 85°C (185°F)
Storage temperature
-40°C (-40°F) ~ 85°C (185°F)
humidity
0% ~ 95%
Shockproof
Acceleration: 490 m/s² (holding time: 11 ms, half sine, velocity change: 3.44 m/s)
Vibration resistance (operating)
20 G (max amplitude), 20 Hz ~ 2,000 Hz (frequency)
power
Power consumption (max)
0.72 watts
Data Transfer Speed
Read (max)
Up to 80 MB/s
Write (max)
Up to 45 MB/s
TBW [Total Write Capacity]
Up to 300 TBW
