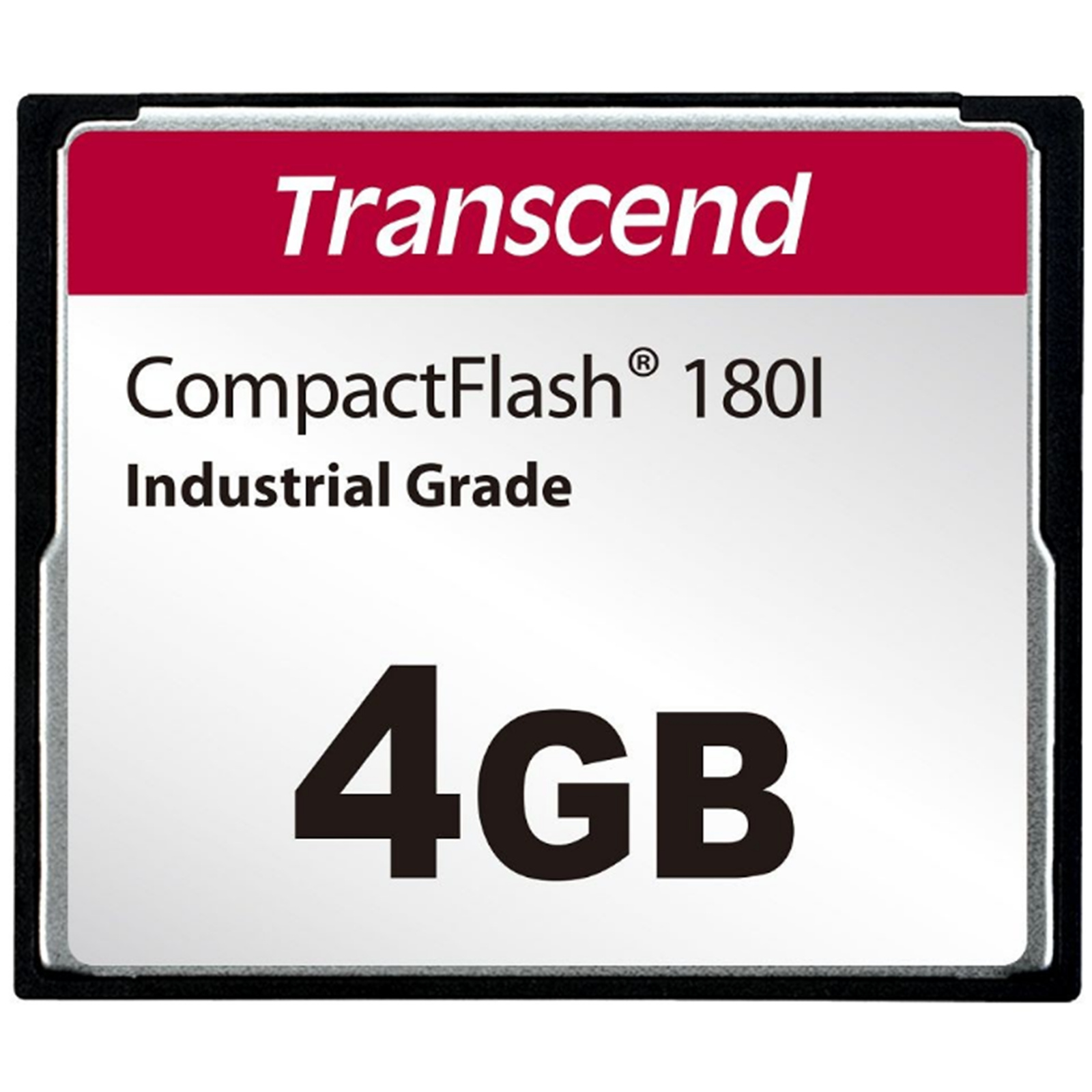

Transcend Embedded 4GB, CF Card, SLC mode WD-15, Wide Temp

PB Tech price
PB Tech price
$ 48 .46
 +GST
$ 53 .31
 inc GST
$48.46  +GST
$53.31

Transcend Embedded 4GB, CF Card, SLC mode WD-15, Wide Temp

PB Tech price
$ 48 .46 $ 53 .31
 +GST  inc GST


Delivery: Order now and it ships on 29 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$48.46  +GST
$53.31

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the Transcend Embedded 4GB, CF Card, SLC mode WD-15,...
Transcend Embedded 4GB, CF Card, SLC mode WD-15, Wide Temp
Total:
$ 75 .03
 +GST
$ 82 .54

Features

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan.

Transcend also offers the CF180I CompactFlash cards with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Firmware Features

- Based on Ultra DMA Mode 5
- True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
- True IDE Mode: Fixed Disk (Standard)
- Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
- Built-in ECC (Error Correction Code) functionality
- Static Data Refresh
- Erase Count Monitoring
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling
- Security Command

Hardware Features

- Compliant with RoHS standards
- Compliant with CompactFlash specification 6.0
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Durability: 10,000 insertion/removal cycles
- Power Loss Protection (PLP) to prevent data loss in the event of sudden power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)

Specifications

Appearance

Dimensions

42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")

Pin Count

50 pin

Form Factor

Compact flash card

Storage

Flash Type

MLC NAND flash (SLC mode)

Capacity

4 GB

Operating Environment

Operating Voltage

3.3V±5%
5V±10%

Operating Temperature

Extended Temp.-25°C (-13°F) ~ 85°C (185°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)

Storage Temperature

-40°C (-40°F) ~ 85°C (185°F)

Humidity

0% ~ 95%

Shock

1500 G, 0.5 ms, 3 axis

Vibration (Operating)

20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Max.)

0.6 watt(s)

Performance

Read Speed (Max.)

up to 85 MB/s

Write Speed (Max.)

up to 75 MB/s

Mean Time Between Failures (MTBF)

3,000,000 hour(s)

Terabytes Written (TBW)

up to 210 TBW

Manufacturer Part No:
TS4GCF180I
Brand:
Product Type:
-
UPC
760557857662
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
MEMTRSI32004
Product Model:
-
Warranty: 12 months *
