Shure CVG12D-BC 12" (30.5 cm) Gooseneck Microphone with Integrated Desktop Base and inline preamp
- Brand: Shure
- MPN: CVG12D-BC
- Part #: MICSHU0012
- UPC:042406505277

Product URL: https://www.pbtech.com/au/product/MICSHU0012/Shure-CVG12D-BC-12-305-cm-Gooseneck-Microphone-wit
Features

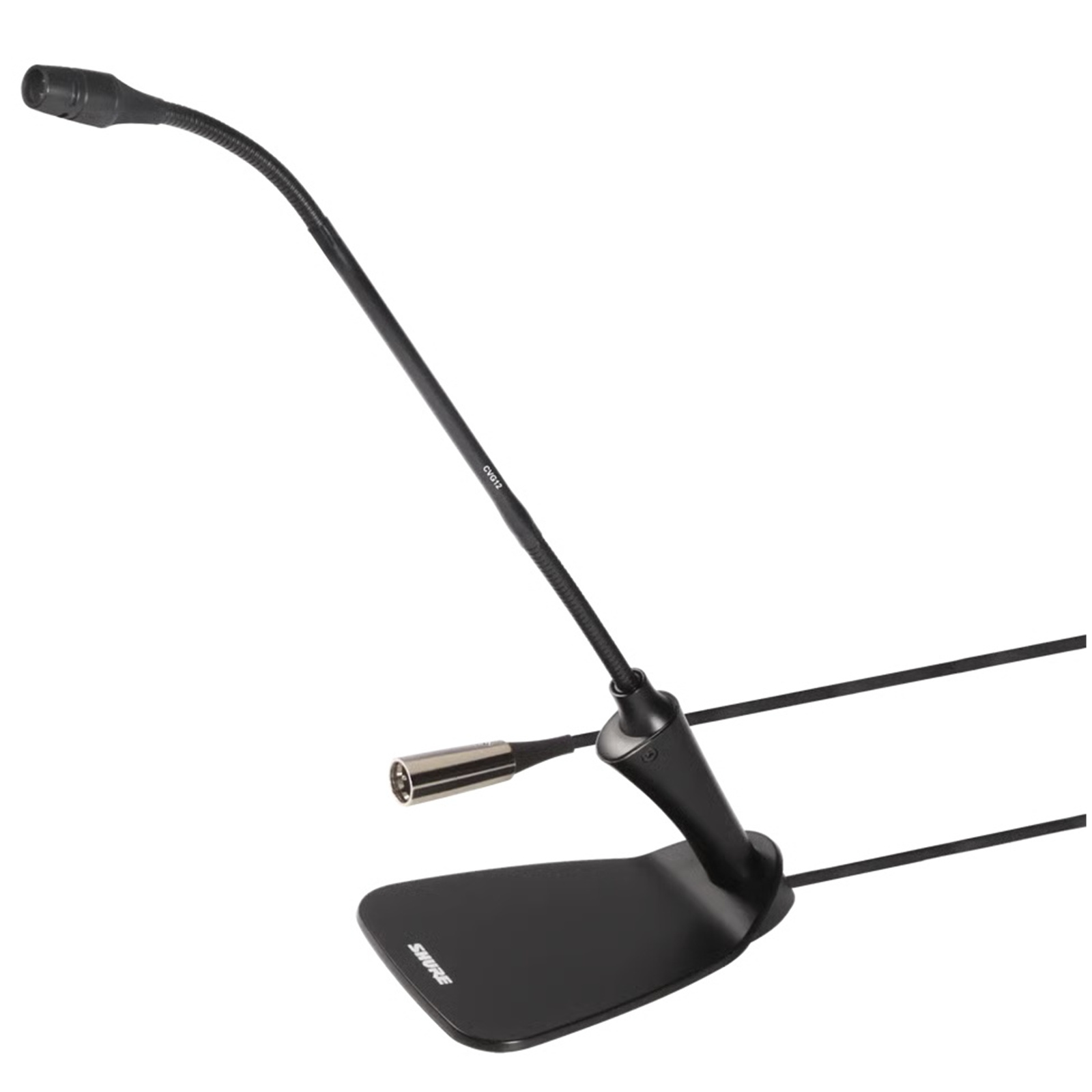

12" Gooseneck Condenser Microphone with Integrated Desktop Base and 12' cable, Inline Pre-Amp, Cardioid, Black
Gooseneck cardioid microphone consists of integrated desktop base and inline preamplifier for use in installed sound reinforcement or conferencing. Features a dual-section gooseneck for positioning and Commshield RF Filtering for interference.
- Cardioid polar pattern with tailored response for speech
- Integrated desktop base
- 12" (30.5 cm) gooseneck
- Inline preamp
- Dual-section gooseneck enables ease of positioning and placement options
- XLR cable/connection. Plug-and-play solution for minimized setup times All Centraverse models are equipped with Commshield® RF Filtering Technology
- Guards against unwanted RF Interference from portable wireless devices (smartphones, etc.)
- High resistance to intense nearby radio signals
Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning, the CVG12D provides scalable, high level performance in a wide variety of locations, including podiums and desktops.
Specifications
Cartridge Type
Electret Condenser
Frequency Response
70-16000 Hz
Polar Pattern
Cardioid
Output Impedance
180 O
Sensitivity (at 1 kHz , open circuit voltage)
-33 dBV/Pa (22 mV)
Maximum SPL (1 kHz at 1% THD)
120 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL)
67 dB
Dynamic Range
93 dB
Self Noise (equivalent SPL, A-weighted, typical)
27 dB SPL
Common Mode Rejection (10 Hz to 100 kHz)
>45 dB
Preamplifier Output Clipping Level (1% THD)
-7 dBV
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements
CVGD: 11-52 V DC, 2.0 mA
Environmental Requirements
Operating Temperature Range: -18 °C to 57 °C (0 °F to 135 °F)
Storage Temperature Range: -29 °C to 74 °C (-20 °F to 165 °F)
Relative Humidity: 0 to 95%
