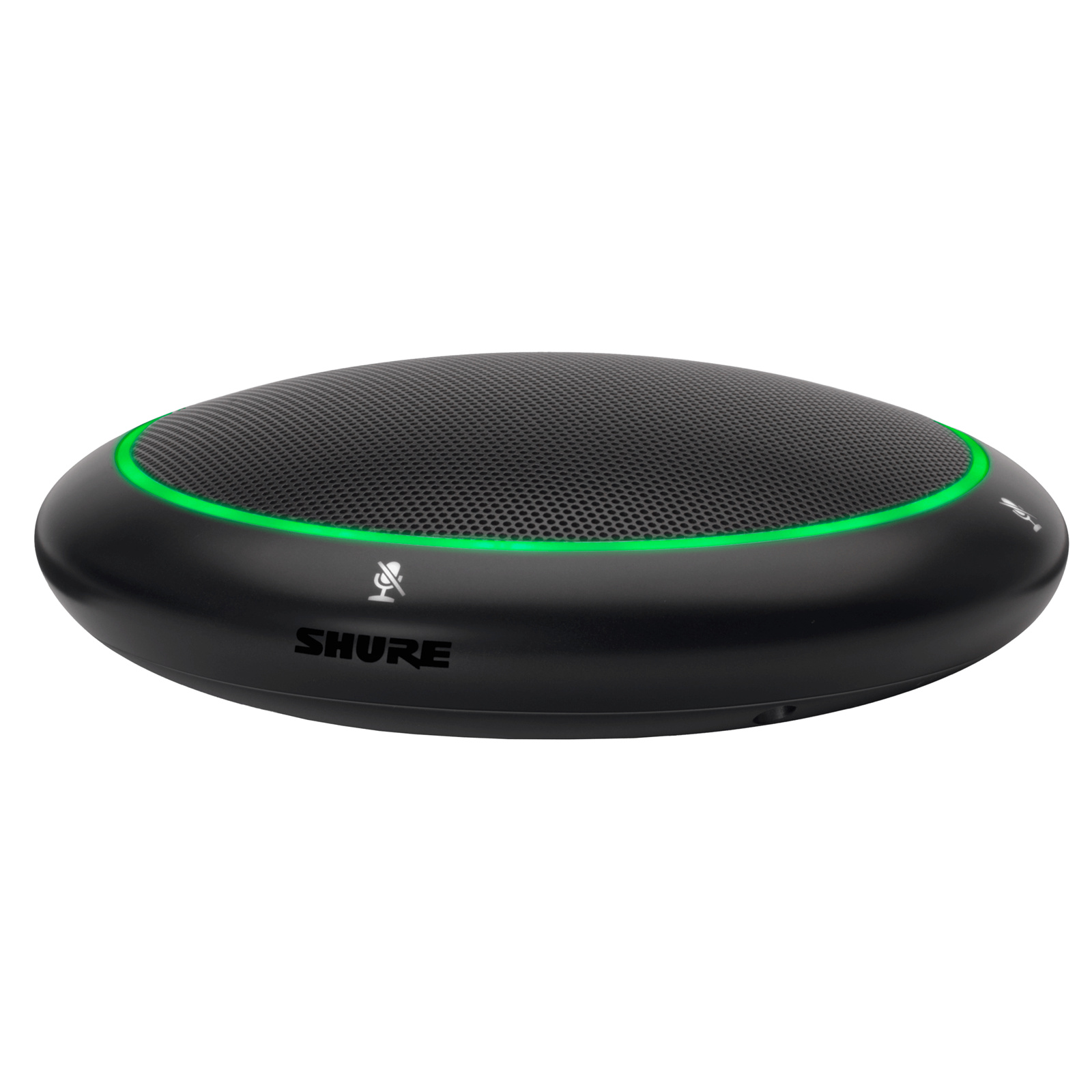

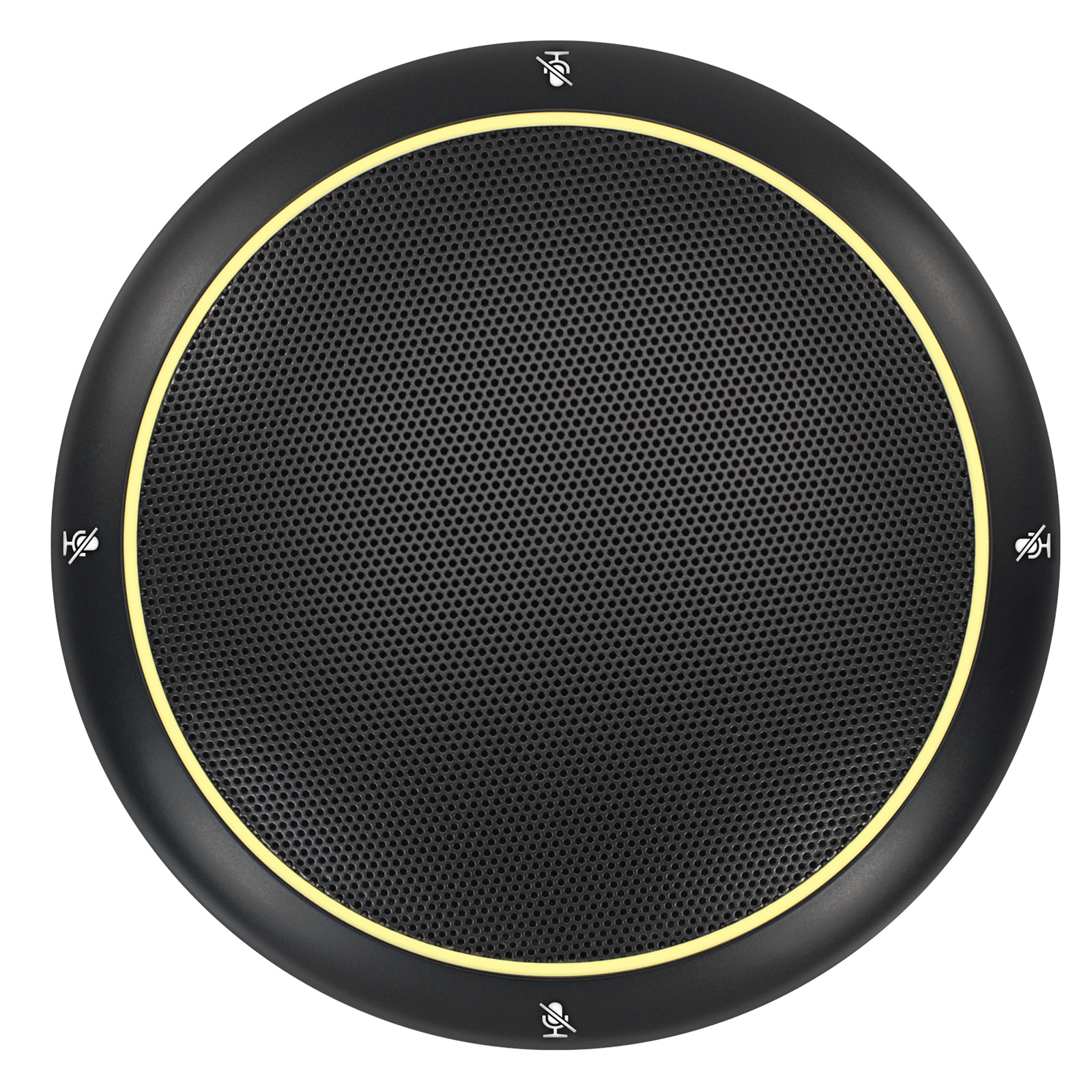

Shure MXA310 - Table Array Microphone - Black- POE - Up to four simultaneous polar patterns - Automatic Mixing - Omnidirectional - Dante Audio Networking

The MXA310 integrates smartly into any space. Boardrooms. Huddle rooms. Multi-purpose areas. You can ensure speech is captured accurately and reproduced intelligibly. With Steerable Coverage™ and a low profile design, it removes unnecessary clutter, giving you even more clarity.

- LED light ring with configurable colors and brightness control
- Dante Domain Manager / Device Lock compatible .
- Programming-free LED mute sync with leading software conferencing solutions including Zoom Rooms, Microsoft Teams and Skype for Business (when used with IntelliMix P300 or ANIUSB-MATRIX)
- Discreet design integrates easily into your room with two mounting options: mounts on the table or A310-FM flush mount

Seamless integration

The MXA310 connects to the vast ecosystem of Shure and third-party networked audio devices via Dante or AES67, with just one cable for power, control and audio.

Focused conversation

With Steerable Coverage™ and built-in automatic mixing, you can capture every voice with pinpoint accuracy anywhere in the room.

No unwanted ambience

Office HVAC systems can add overpowering background noise to the call. The Shure-exclusive "toroid" polar pattern only captures table-level sound, helping to reduce unwanted distractions from fan or HVAC noise.

Dante™ integration

The MXA310 can easily connect to the vast ecosystem of Shure and third-party networked audio devices.

Encryption

Shure Network Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilize AES-256 technology to protect confidential content.

Audio Capture / DSP

Up to four simultaneous polar patterns including the innovative "toroid" pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional-all steerable to any angle in 15 degree increments)

Shure DSP Utilities:

- Steerable Coverage Technology
- Automatic Mixing
- 4 Band C/S PEQ assignable to any one channel at a time

Software Control

- Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
- Stores 10 presets

Connectivity

- Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
- Control strings for third-party preset controllers including Crestron and AMX

Hardware / Installation

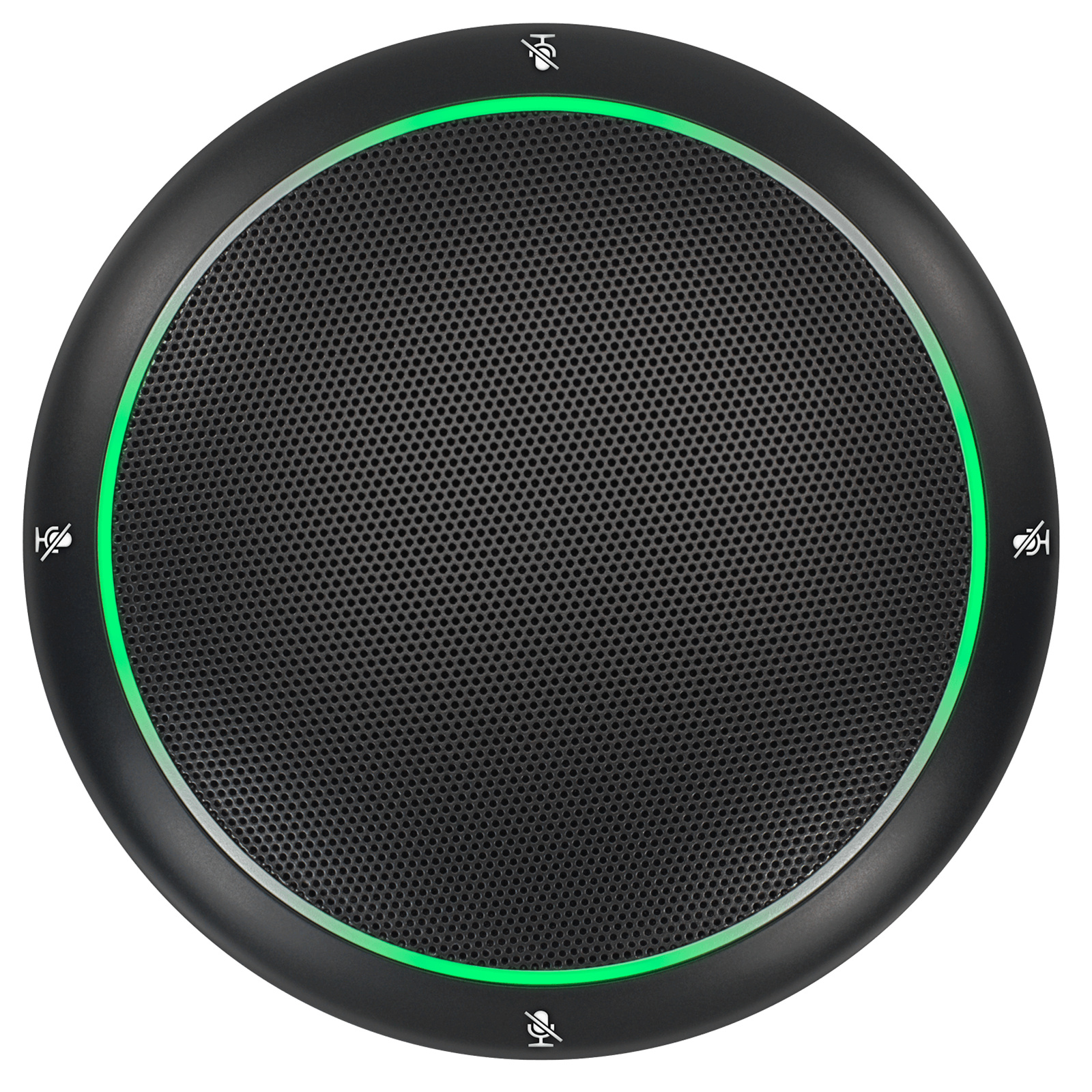

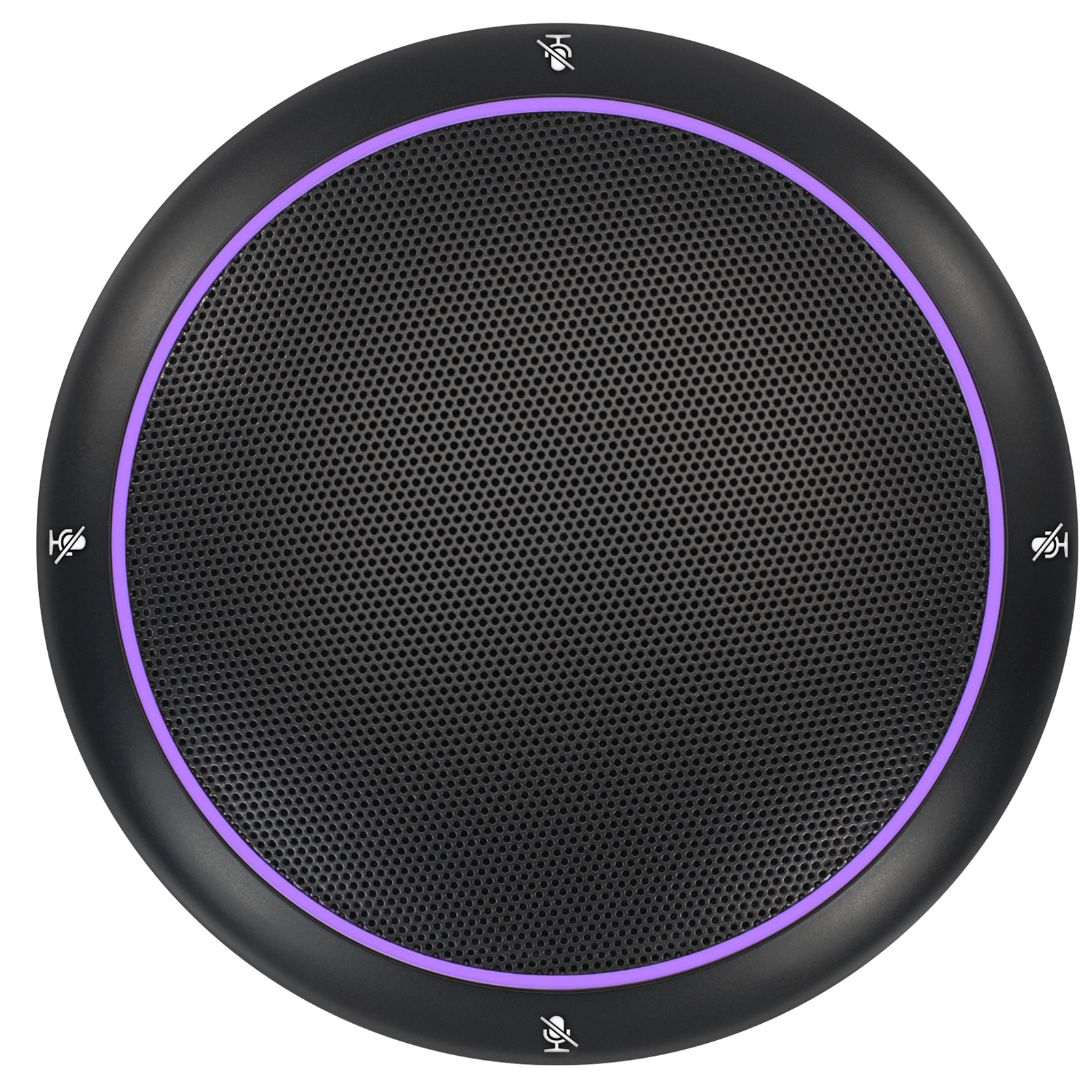

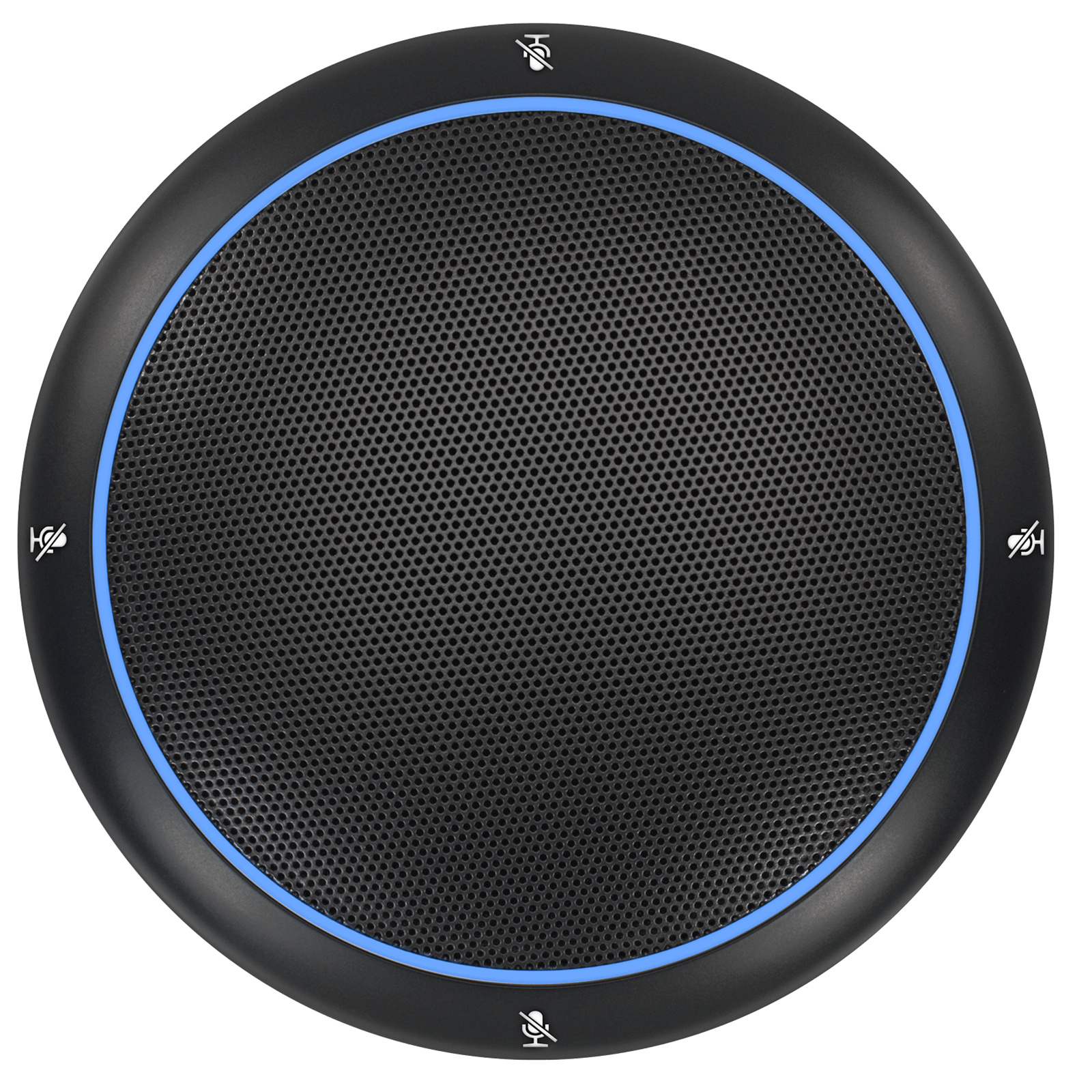

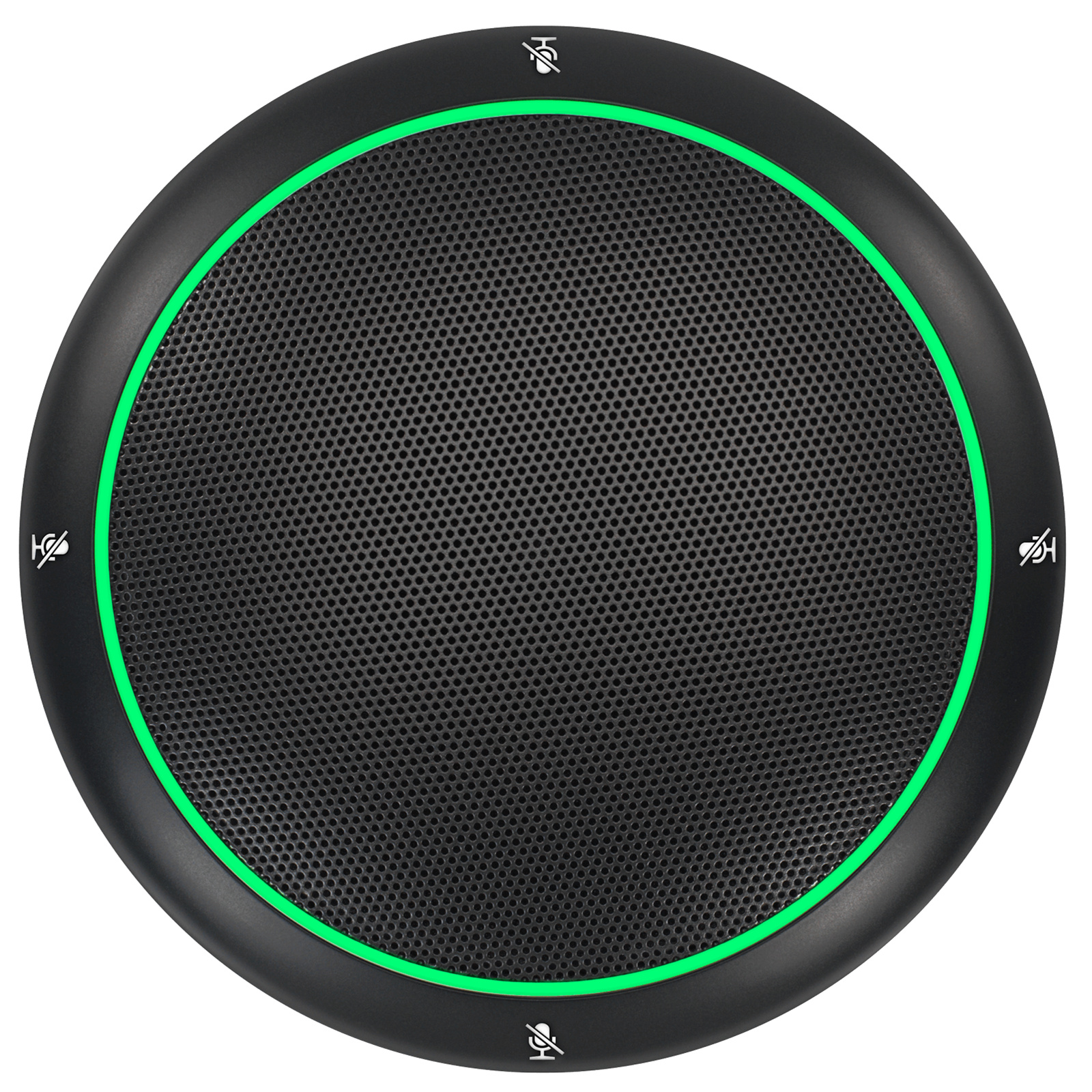

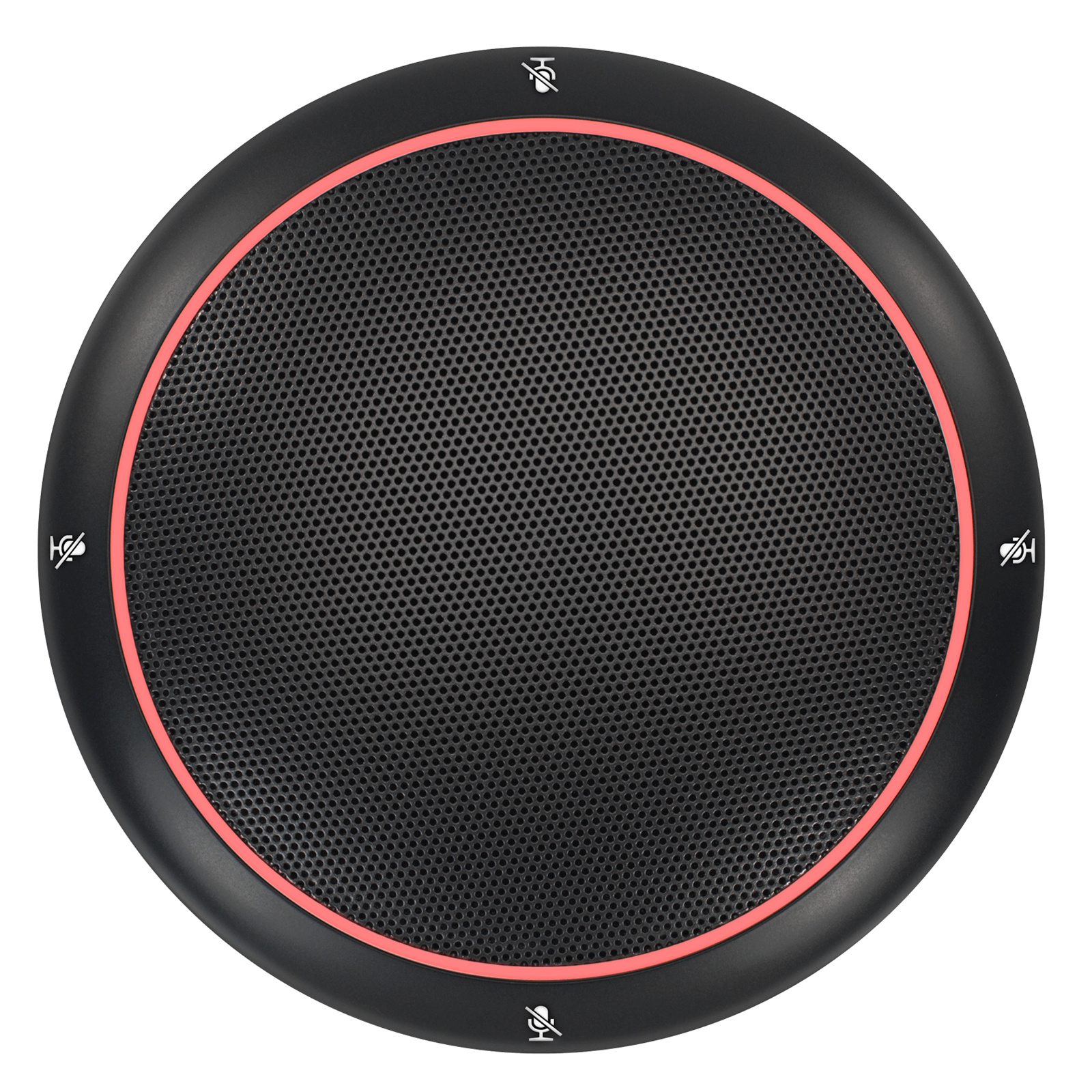

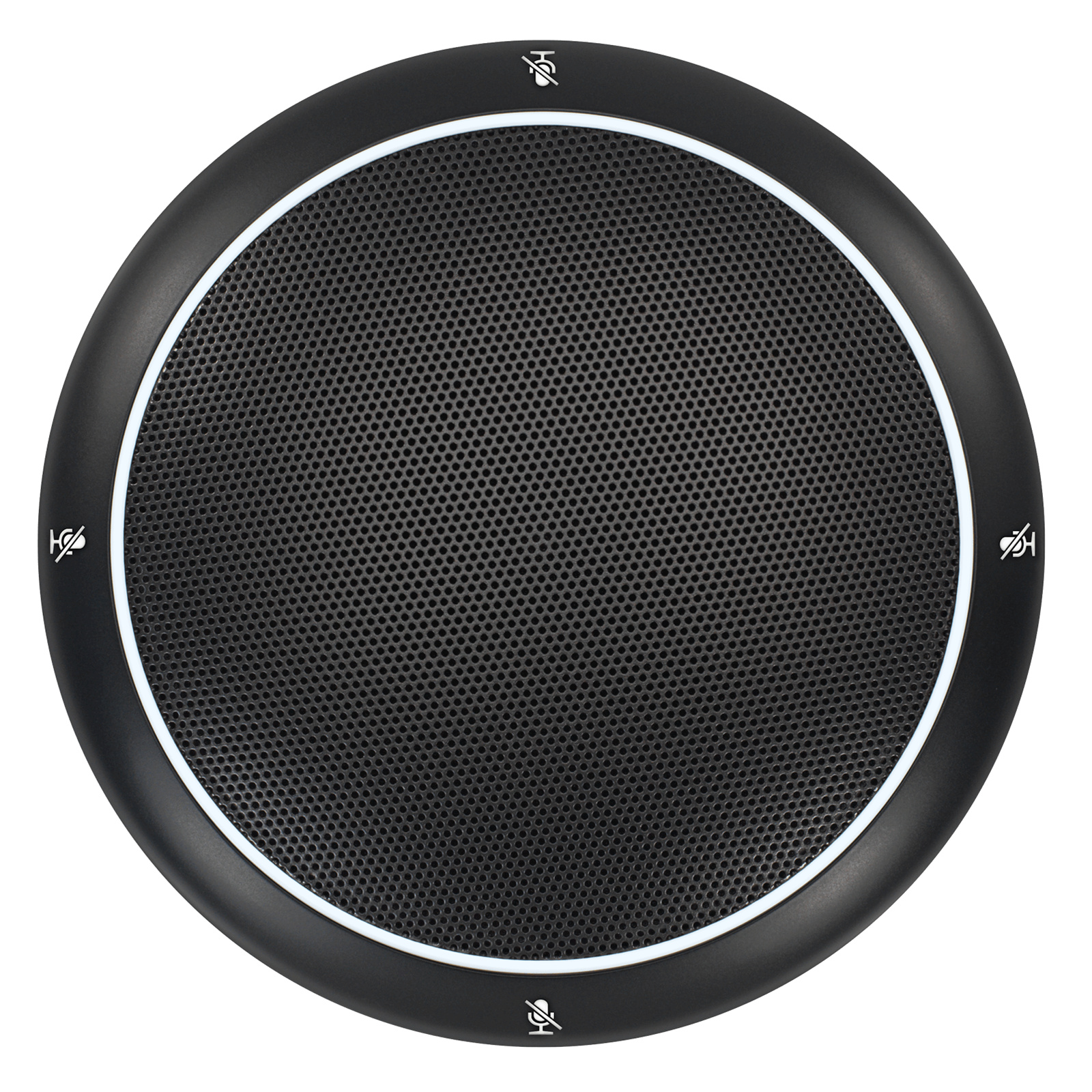

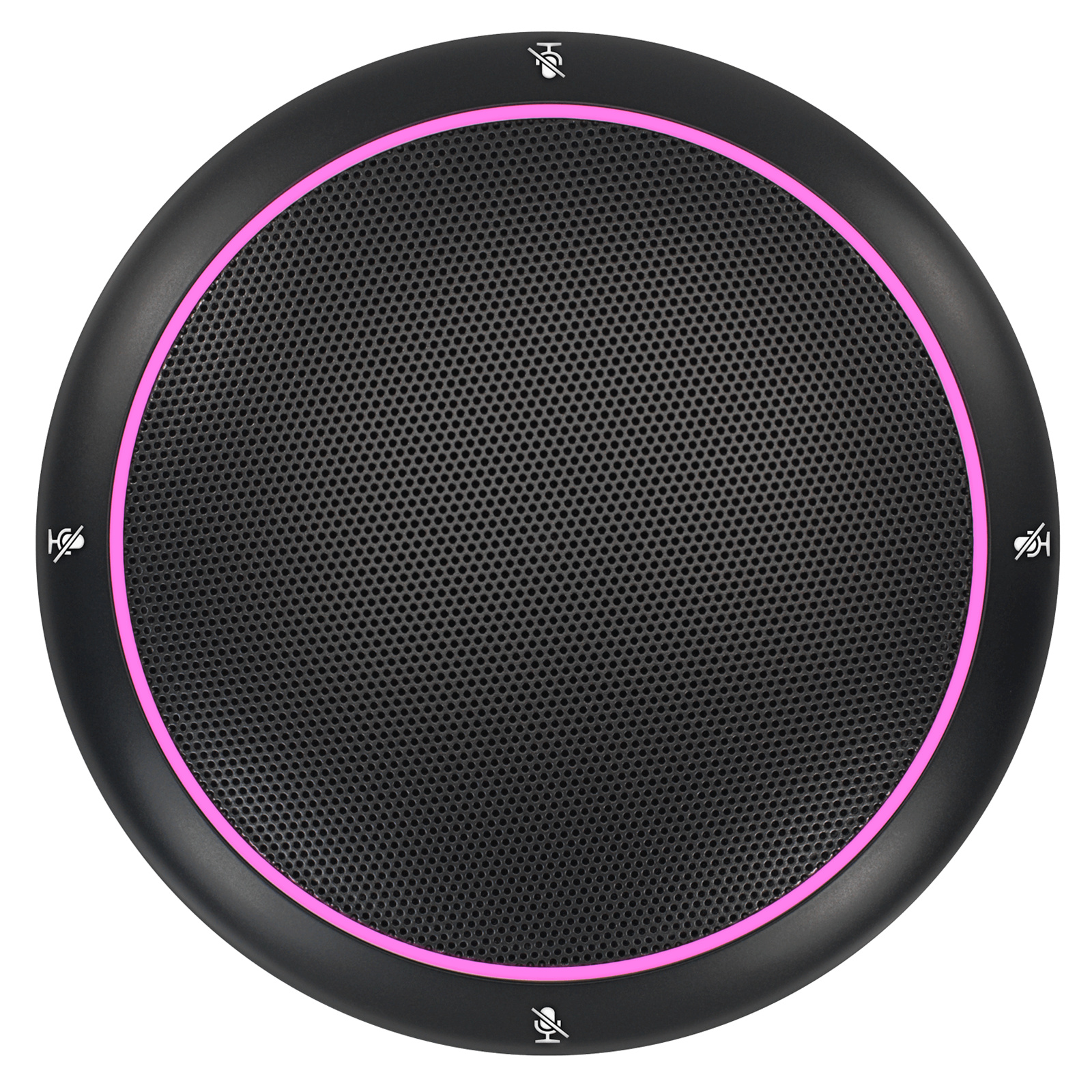

Configurable multi-color LED

- Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
- Brightness controls (default, dim, disabled)

Mute Switch modes

- Toggle, Push-to-Talk, Push-to-Mute, Disable
- Backlit LED indicator of enabled/disabled mute switch
- Generates external control signal to mute a downstream device or trigger camera presets

CommShield® RF Immunity

Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations.

Device Reboot/Factory Reset Options

Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details

The Microflex® Advance™ Table Array is a premium networked array microphone that captures high quality audio and provides flexibility in varying A/V Conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. Within the onboard Shure DSP Utilities, Shure's proprietary Steerable Coverage™ technology deploys up to four discrete simultaneous coverage zones around a table and utilizes an innovative "toroid" ring-shaped pattern to reject unwanted artifacts from overhead such as HVAC or projector fans.

Programmable capacitive-touch mute switches ensure simple user operation. Configurable multi-colored LED light ring displays mute status and displays lighted segments during set-up to confirm coverage areas and auto mix settings. Integrates seamlessly with Dante™ Networked Audio, and third-party preset controllers including Crestron and AMX. All parameters are configured via a browser-based control software, with intuitive control of polar patterns, templates and presets for quick set up for any meeting space requirement.
