Shure VP89S SHORT SHOTGUN MICROPHONE
- Brand: Shure
- MPN: VP89S
- Part #: MICSHU1116

Product URL: https://www.pbtech.com/au/product/MICSHU1116/Shure-VP89S-SHORT-SHOTGUN-MICROPHONE
Features

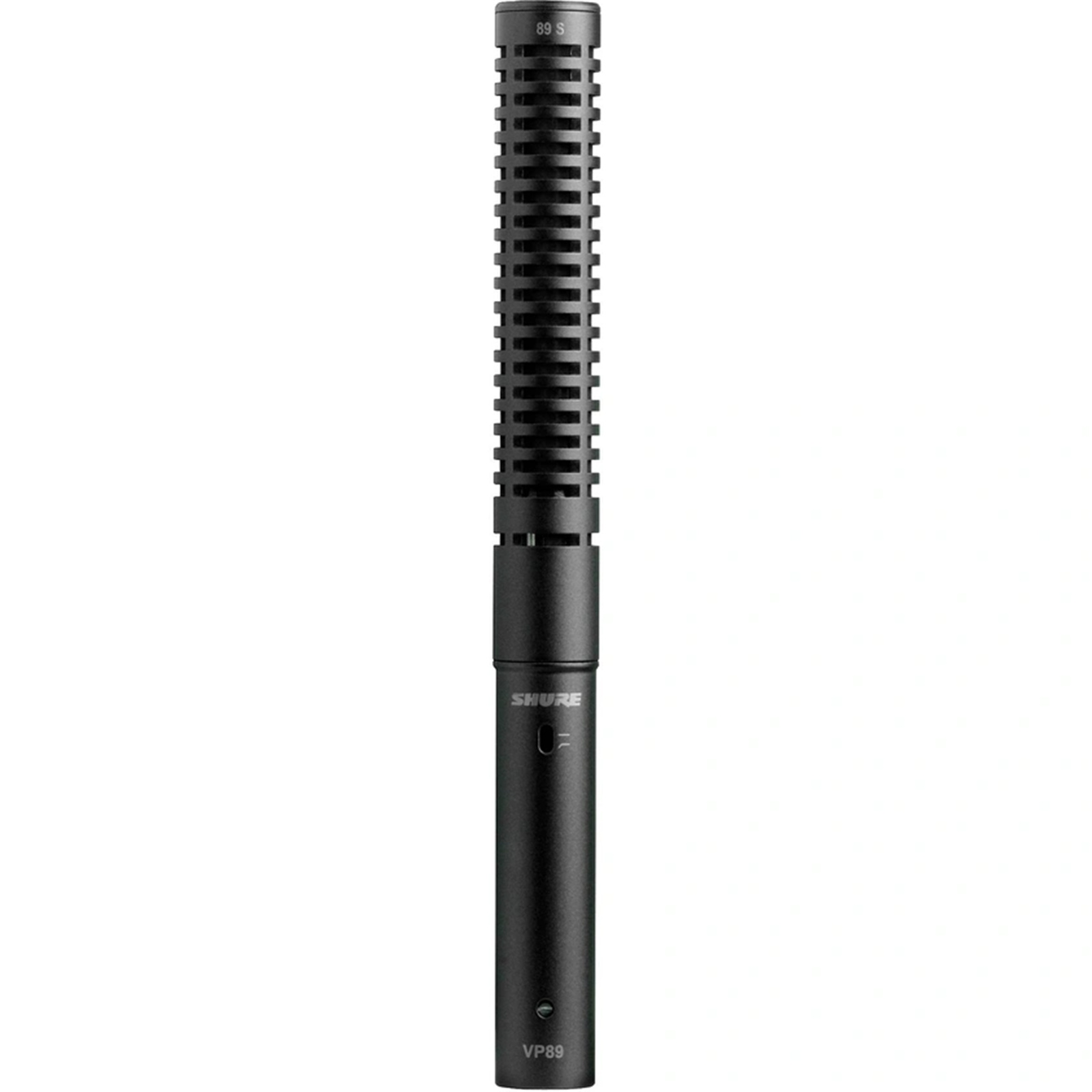

The Shure VP89S Modular Shotgun Microphone features an interchangeable capsule that displays high RF (Radio Frequency) rejection, superior side noise rejection, and is paired with the detachable VP89 Preamp. Long, short and medium sized capsule barrels are available to suite various recording needs, rejection angles and frequency response types.
This model ships with the short capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp.
- State-of-the-art preamplifier redesign
- Superior RF immunity
- Internal low-frequency roll-off
- Recessed low-cut filter switch for additional control
- Smaller footprint
- Superior Shure design and rugged, roadworthy construction
Short Capsule Design
- Features a wide pickup angle for greatest degree of ambience in near-field target range (camera mounting, discrete mounting)
- Unmatched quality of off-axis rejection
Specifications
In The Box
Shure VP89S Modular Shotgun Microphone
Carrying Case
Foam Windscreen
Transducer
Electret Condenser
Polar Pattern
Hypercardioid / Lobar
Frequency Response
140Hz to 20kHz
Dynamic Range (Typical)
Dynamic Range (@ 1 kHz)
2500 Ohms load: 117.0dB
1000 Ohms load: 113.5dB
Signal-to-Noise Ratio
79.0dB
Maximum Input Sound Level
2500 Ohms load: 132.0dB SPL
1000 Ohms load: 128.5dB SPL
Input Clipping Level
Clipping Level (@ 1 kHz, 1% THD)
2500 Ohms load: 4.0 dBV
1000 Ohms load: 0.0 dBV
Power Requirements
11-52V DC phantom power (IEC-61938), <2.0 mA
Output Impedance
115.0 Ohms
Sensitivity
-33.5 dBV/Pa (2.11 mV)
Noise
Self Noise (equivalent SPL, A-weighted, typical):
15.0dB
Output Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Low Frequency Roll-Off
200Hz
Temperature
Operating: -18°C to 57°C
Storage: -29°C to 74°C
Power Requirements
11-52VDC phantom power (IEC-61938), < 2.0 mA
Weight
VP89S: 117g
