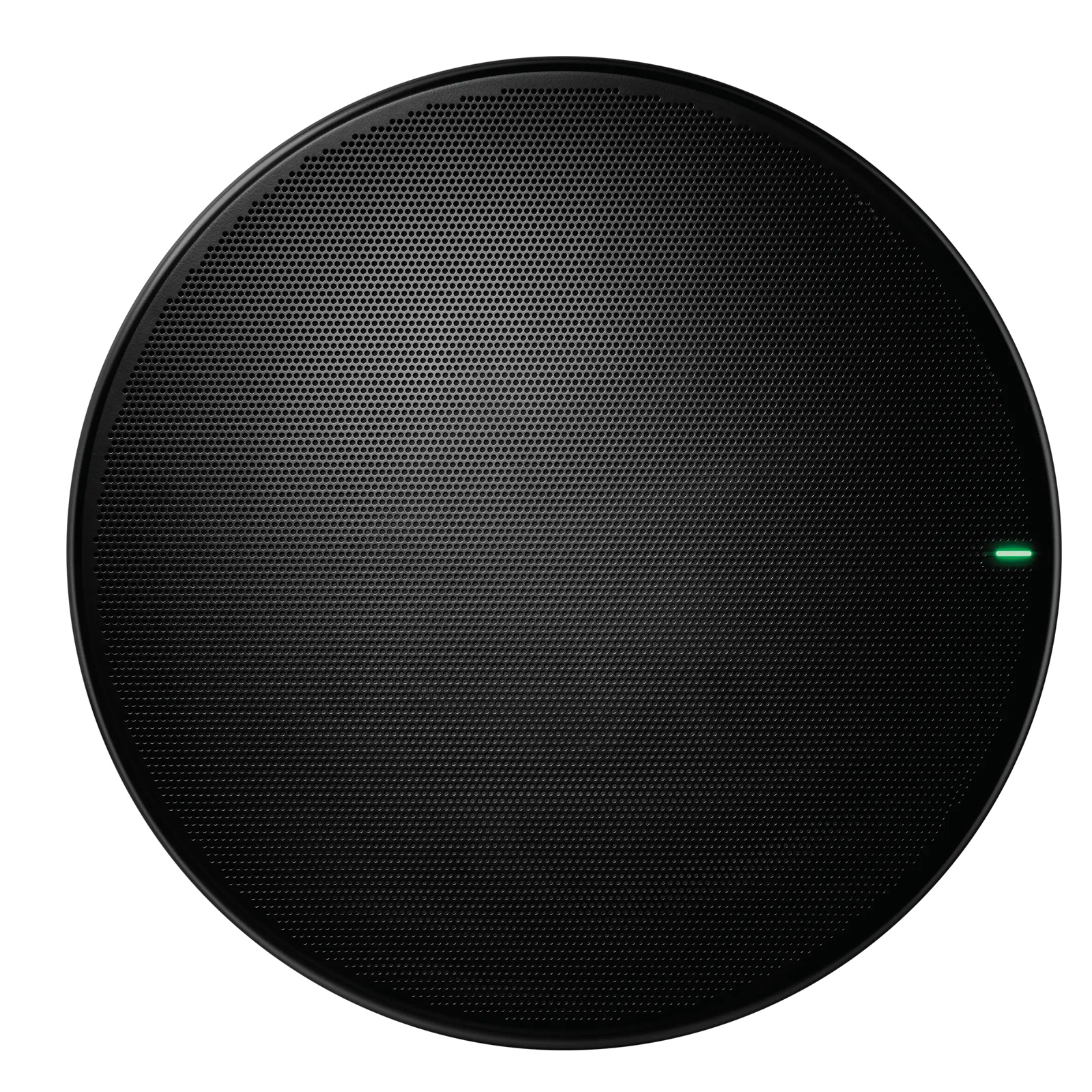

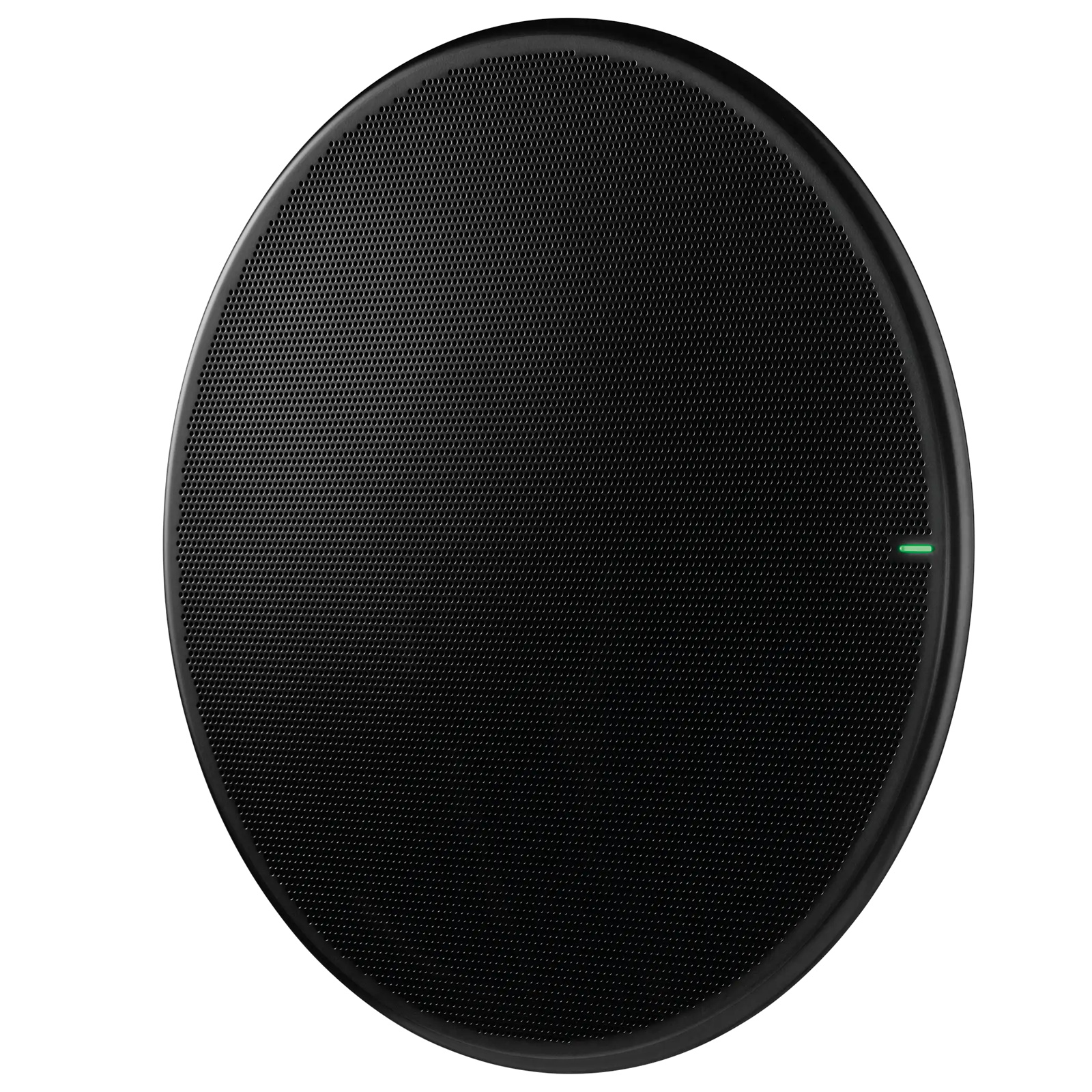

Shure MXA920 - Ceiling Array Microphone - Black - POE - Onboard IntelliMix digital signal processing - Configurable LED Status Bar - 8 adjustable coverage areas
Out of stock
Shure MXA920 - Ceiling Array Microphone - Black - POE - Onboard IntelliMix digital signal processing - Configurable LED Status Bar - 8 adjustable coverage areas
- Brand: Shure
- MPN: MXA920B-R
- Part #: MICSHU1301
- UPC:
View all shipping info
- Brand: Shure
- MPN: MXA920B-R
- Part #: MICSHU1301
- UPC:
Features
Automatic Coverage™ technology requires no set-up yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.
Automatic CoverageTM the technology captures talkers in up to 8 adjustable coverage areas you define without needing to aim pickup lobes.
Virtual Acoustic Boundary ensures that voices or noises outside defined automatic coverage areas will not be heard.
You can also turn Automatic Coverage technology off and use Steerable CoverageTM technology to precisely aim 8 pickup lobes with individual audio outputs to feed separate loudspeaker zones for voice lift applications.
Onboard IntelliMix® DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
Square and round form factors meet the architectural needs of today's meeting spaces.
Certified for use with Microsoft Teams and compatible with popular collaboration tools.
Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
LED status bar with configurable colors and brightness.
Command strings enable seamless integration with third-party camera and room control systems.
Next generation array architecture delivers enhanced low-frequency directionality and the most natural speech quality.
Advanced talker localisation algorithm instantly reports the exact position of each talker for the most accurate camera tracking possible.
Precise coverage control provides exceptional isolation between microphone lobes and loudspeakers, guaranteeing the maximum sound level possible in voice lift and sound reinforcement applications.
In larger spaces, Designer system configuration software helps you configure MXA920's with other Microflex Ecosystem devices.
Choose Teams-certified bundles with the ANIUSB-MATRIX, P300-IMX, or IntelliMix Room DSP and MXN5C networked loudspeaker.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Audio Interfaces
Dynamix BLUECAST-2 Bluetooth 5.0 Transmitter Receiver for Digital...
IK Multimedia iRig 2 Multimedia Guitar Interface for iPhone, iPad...
Unitek Y-247A USB To Stereo Audio Converter USB 2.0 - Supports...
RODE Wireless ME TX - Transmitter Only - Ultra-compact 2.4GHZ...
Boya BY-DM20 - Compact, Dual-Channel Lavalier Microphone...
Shure MXA920 - Ceiling Array Microphone - Black - POE - Onboard IntelliMix digital signal processing - Configurable LED Status Bar - 8 adjustable coverage areas
- Brand: Shure
- MPN: MXA920B-R
- Part #: MICSHU1301
Product URL: https://www.pbtech.com/au/product/MICSHU1301/Shure-MXA920---Ceiling-Array-Microphone---Black
Features
Automatic Coverage™ technology requires no set-up yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.
Automatic CoverageTM the technology captures talkers in up to 8 adjustable coverage areas you define without needing to aim pickup lobes.
Virtual Acoustic Boundary ensures that voices or noises outside defined automatic coverage areas will not be heard.
You can also turn Automatic Coverage technology off and use Steerable CoverageTM technology to precisely aim 8 pickup lobes with individual audio outputs to feed separate loudspeaker zones for voice lift applications.
Onboard IntelliMix® DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
Square and round form factors meet the architectural needs of today's meeting spaces.
Certified for use with Microsoft Teams and compatible with popular collaboration tools.
Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable.
Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
LED status bar with configurable colors and brightness.
Command strings enable seamless integration with third-party camera and room control systems.
Next generation array architecture delivers enhanced low-frequency directionality and the most natural speech quality.
Advanced talker localisation algorithm instantly reports the exact position of each talker for the most accurate camera tracking possible.
Precise coverage control provides exceptional isolation between microphone lobes and loudspeakers, guaranteeing the maximum sound level possible in voice lift and sound reinforcement applications.
In larger spaces, Designer system configuration software helps you configure MXA920's with other Microflex Ecosystem devices.
Choose Teams-certified bundles with the ANIUSB-MATRIX, P300-IMX, or IntelliMix Room DSP and MXN5C networked loudspeaker.
Specifications
General
Compatibility
Shure Microflex Advance
Latency
Does Not Include Dante Latency
Direct Outputs (Automatic Coverage Off) 15.9 ms
Automix Output (Includes IntelliMix Processing) 26.6 ms
Digital
A/D Conversion: 24-Bit
Sample Rate: 48 kHz
Digital Signal Processing: Automatic Mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-Band Parametric), Mute, Gain (140 dB Range)
Acoustic Echo Cancellation Tail Length: Up to 250 ms OS Compatibility: Windows
Channel Count, Automatic Coverage On: 2 Total Channels (1 Output, 1 AEC Reference in Channel)
Channel Count, Automatic Coverage Off: 10 Total Channels (8 Independent Transmit Channels, 1 Automix Output, 1 AEC Reference in Channel)
Microphone
Primary Applications: Corporate Presentation, Conferencing, Videoconferencing
Form Factor: Hanging
Intended Sound Sources: Speech/Voice-Over
Sound Field: Mono
Element Type: 113x MEMS
Gain Adjustment: Up to +140 dB
Onboard Controls: Gain/Sensitivity
Coverage Type: Automatic or Steerable
Lobes: 8
Performance
Frequency Range: 125 Hz to 20 kHz
Maximum SPL: 95.7 dB SPL
Sensitivity: -1.74 dBFS/Pa
Dynamic Range: 77.5 dB
Signal-to-Noise Ratio: 75.76 dB A-Weighted
Equivalent Noise Level: 18.24 dB SPL A-Weighted
Inputs/Outputs
Audio I/O
1x RJ45 Output
Power
Power Source
PoE
Power Consumption
10.1 W (Maximum)
Physical
Mounting
Back: Multiple Ceiling Mount
Colour
Black
Environmental Resistance
Dust-Resistant (IP5X)
Certifications
FCCClass B Digital, Part 15, CANICES-003, CE
Operating Conditions
20 to 104°F / -6 to 40°C
Storage Conditions
-20 to 165°F / -28 to 73°C
Dimensions
25 x 2.4" / 635.4 x 61.3 mm
Weight
12.7 lb / 5.8 kg
