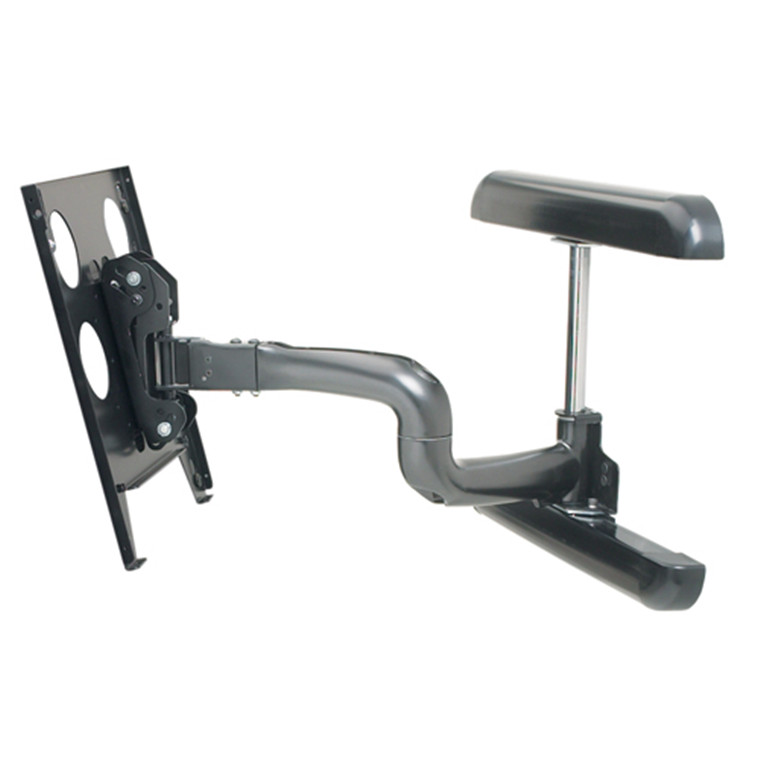

Chief PWRUB Swing Arm Mount TV Mounts
- Brand: Chief
- MPN: PWRUB
- Part #: MOACHI1212

Product URL: https://www.pbtech.com/au/product/MOACHI1212/Chief-PWRUB-Swing-Arm-Mount-TV-Mounts
Features
-Extends 24.88" from wall and remains low profile in the home position
-Q-Latch Mounting System secures flat panel to mount with a latching flag
-Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
-Centris Technology provides fingertip tilt adjustments
-Mounting guides provided for a hassle-free installation
-Provides positive latch in home position to keep screen tight to wall
-CableTrac System provides a fast and effective way to route cables
-UL listed for proven strength
-Swivel up to 90° left or right (depending upon screen size)
-Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Specifications
Color
Black
Lateral Shift
12" (304.8mm)
Maximum Screen Thickness
25" (635 mm)
Minimum Depth
3.38" (85.9mm)
Mounting Pattern Compatibility (Universal Versions)
200 x 200mm - 862 x 517mm
Notes
Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)
18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
Post-Installation Leveling Roll
Yes
Shipping Weight
50 lbs (22.68 kg)
Solution Type
Universal
Tilt
+ 5° , - 15°
Typical Screen Sizes
32 - 65"
Wall Stud Compatibility In
16" (406 mm)
Weight Capacity
125 lbs (56.7 kg)
Orientation
Landscape, Portrait
